SHFSDID121XRFID reader

Wireless Dynamics Wireless Dynamics Inc. 220, 3636 – 23rd Street NE, Calgary, Alberta, Canada T2E 8Z5 Phone: (403) 250-1818 Fax: (403) 250-1777 SDiD 121X User Instructions Preliminary Version V 0.1 PDF created with pdfFactory trial version www.pdffactory.com Wireless Dynamics Wireless Dynamics Inc. 220, 3636 – 23rd Street NE, Calgary, Alberta, Canada T2E 8Z5 Phone: (403) 250-1818 Fax: (403) 250-1777 FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following three conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. 3) This device may not be used with an extender board and must be fully inserted into the host’s SD slot during operation. Any change or modification not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Overview The SDiD 121X family of Low Frequency (LF) RFID reader/writers, with optional SD memory, are in the format of a Secure Digital Input/Output, SDIO card. The model numbers and configurations of the SDiD121X family include: 1. SDiD1210: SDIO format RFID reader. 2. SDiD1212 (i512MB): SDIO format RFID reader with 512MB of industrial SD memory for data storage. 3. SDiD1212 (s512MB): SDIO format RFID reader with 512MB of commercial SD memory for data storage. The SDiD 121X family of LF RFID reader/writers enable PDAs, cellular phones and other handheld devices to operate as LF Radio Frequency Identification Readers and Writers. The SDiD 121X family of readers incorporate the antenna, RFID transceivers, SD memory (based on model number), and the SDIO interface and all necessary software drivers. PDF created with pdfFactory trial version www.pdffactory.com Wireless Dynamics Wireless Dynamics Inc. 220, 3636 – 23rd Street NE, Calgary, Alberta, Canada T2E 8Z5 Phone: (403) 250-1818 Fax: (403) 250-1777 Features Supported LF RFID Protocols: • LF-RFID at 134.2 kHz. • See datasheet for specific tag protocol support. Secure Data, SD, Card: • SDIO compliant, version 1.10. • SD Combo Card compliant. • SD-1, SP-4, SPI mode. Host Support: • Supports any device with an SDIO compliant SD slot. • See datasheet for latest available drivers. Read and Write Range: • Up to 5”, depending on tag type. Operating Frequency: • 134.2 kHz, FDX mode. • 134.45 kHz, HDX mode. Integrated Antenna: PDF created with pdfFactory trial version www.pdffactory.com Wireless Dynamics Wireless Dynamics Inc. 220, 3636 – 23rd Street NE, Calgary, Alberta, Canada T2E 8Z5 Phone: (403) 250-1818 Fax: (403) 250-1777 • Compact Antenna. Power Consumption: • 100mW typical power consumption in stand-by mode. • 825mW typical power consumption in active mode, RF field-on. Card Status LED Indicator: • 3-color LED indicating: standby, search and data communications modes. Physical Dimensions Parameter Nominal Value Outline Dimensions (LxWxH): See Diagram Below Weight: Less than 10g PDF created with pdfFactory trial version www.pdffactory.com Wireless Dynamics Wireless Dynamics Inc. 220, 3636 – 23rd Street NE, Calgary, Alberta, Canada T2E 8Z5 Phone: (403) 250-1818 Fax: (403) 250-1777 LED Specification The SDiD 121X has an integrated 3-color LED that is used to indicate the card status. The following table shows the different LED states and the corresponding card status: LED Status Indicator Card Status LED State Start-Up ON for 2 seconds then OFF Operating Modes: Active and Stand-by Under control of the Host Software Application Operating Instructions 1) Insert the SDiD 121X card into the SD card slot of the host device. The integrated 3-color LED on the SDiD 121X will initially be ON for two seconds before turning OFF. 2) Start the Host Software Application in the host device. 3) Configure the SDiD121X for the desired mode of operation using the Host Software Application. 4) When the SDiD121X is actively searching for a tag, place the reader into proximity with the appropriate tag. The tag will be activated by the RF field and data will be transacted between the reader and the tag according to the tag type. 5) When the SDiD 121X card is in the standby mode, the LED will be OFF and the SDiD 121X card will not be able to activate tags until the appropriate mode is selected in the Host Software Application. PDF created with pdfFactory trial version www.pdffactory.com

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax December 5, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: SHFSDID121X IC #: 5998A-SDID121X Please be advised pursuant to 47CFR 0.459 that the following information is to be held confidential on behalf of Wireless Dynamics Inc: • Schematics • Detailed block diagram • Operational description • BOM This application contains technical information that Wireless Dynamics Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. Thank you for your attention to this matter. Sincerely, Glen Moore EMC Manager NTS On Behalf of Wireless Dynamics Inc

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 6, 2007 RE: FCC ID: SHFSDID121X_ATCB005718 Attention: Glen Moore I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the 731 form states the device is being certified under Part 15.225. Please note that 15.225 is for devices operating in the 13.56MHz range not in the 134kHz range. Please correct the 731 to state the correct rule part under which the device will be granted. 2. Please note that pages 20 and 26 of the test report state testing was done to 15B limits. Please note that intentional radiators are to 15C requirements. Please correct the report to show compliance to 15C requirements. 3. Please note that the FCC does not accept data below 30MHz made with a rod antenna. Please note that the FCC mandates measurements below 30MHz are to be made using a magnetic loop antenna. The list of equipment on Page 33 indicates a rod antenna was used. Please provide measurement data using the required magnetic loop antenna. 4. Please note that the FCC does not accept EN55022 test data. Please also note that for 15C test data the FCC does not accept CISPR test data either but data must be in accordance with the rules and limits of 15.209 and 15.207. Please make proper reference to accepted limits and rule parts. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax December 7, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: SHFSDIS121X Please find below responses to your questions regarding the above application, if you have any further questions or concerns, please do not hesitate to contact me at 403-568-6605 x236. 1. Please note that the 731 form states the device is being certified under Part 15.225. Please note that 15.225 is for devices operating in the 13.56MHz range not in the 134kHz range. Please correct the 731 to state the correct rule part under which the device will be granted. This is a mistake in the Form 731 and the Form 731 has been re-submitted. 2. Please note that pages 20 and 26 of the test report state testing was done to 15B limits. Please note that intentional radiators are to 15C requirements. Please correct the report to show compliance to 15C requirements. The test report has been revised to accurately reflect the Part 15.209 and 15.207 limits that are being referenced. 3. Please note that the FCC does not accept data below 30MHz made with a rod antenna. Please note that the FCC mandates measurements below 30MHz are to be made using a magnetic loop antenna. The list of equipment on Page 33 indicates a rod antenna was used. Please provide measurement data using the required magnetic loop antenna. The tests were actually performed with a Loop antenna and inaccurate equipment information was used in the report. The report has been updated to reflect the actual equipment used for testing. 4. Please note that the FCC does not accept EN55022 test data. Please also note that for 15C test data the FCC does not accept CISPR test data either but data must be in accordance with the rules and limits of 15.209 and 15.207. Please make proper reference to accepted limits and rule parts. The references to EN55022 have been removed from the report. The plots showing the CISPR 22 limit have had a note added clarifying that the actual data was compared against the Part 15.209 limit. NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax Sincerely, Spencer Watson EMC Technologist NTS On Behalf of Wireless Dynamics Inc

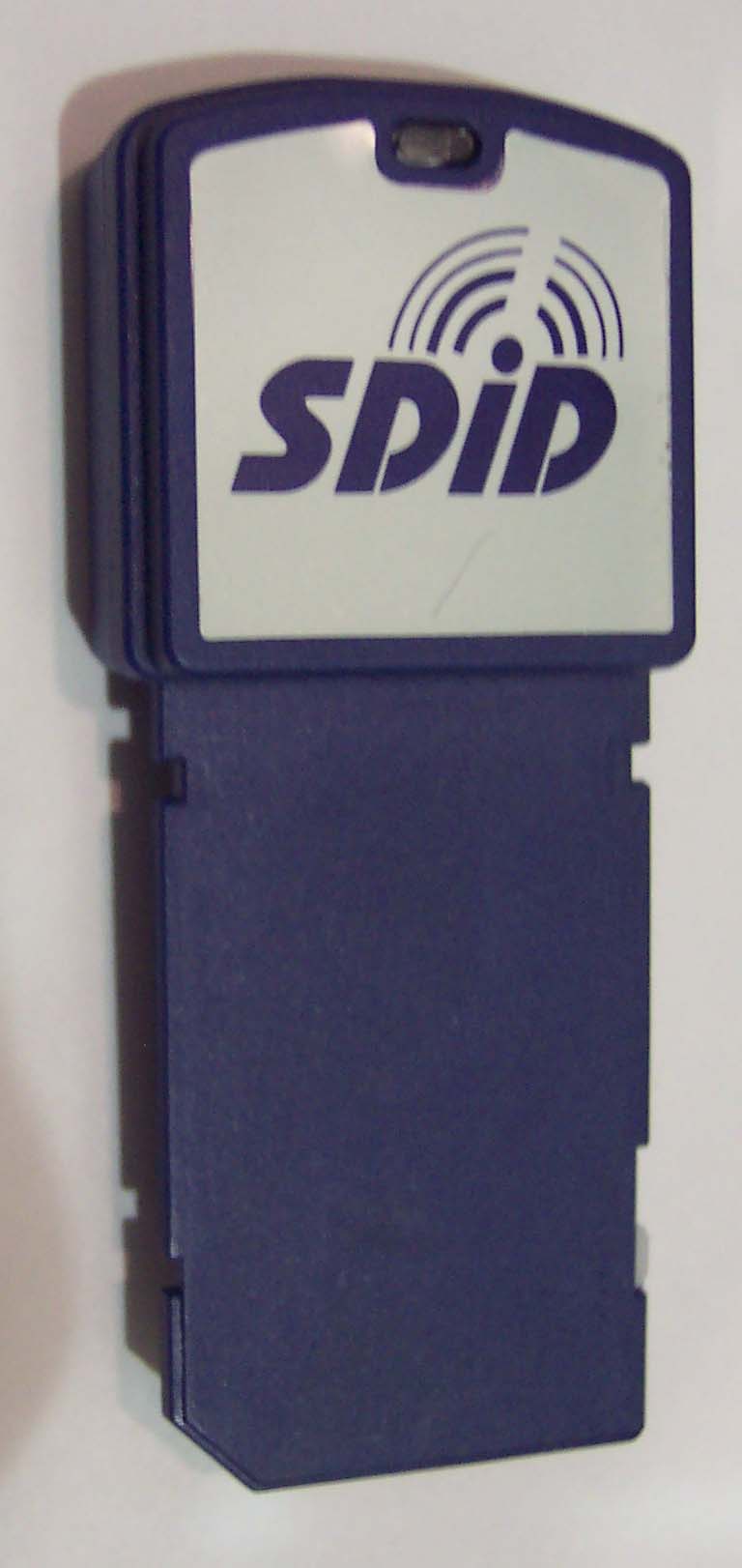

Wireless Dynamics CG-730 FCC ID: SHFSDID121X IC Number: 5998A-SDIS121X Date: Dec 5, 2007 Revision #: 2 External Photographs Figure 1 – Back side of EUT. Wireless Dynamics CG-730 FCC ID: SHFSDID121X IC Number: 5998A-SDIS121X Date: Dec 5, 2007 Revision #: 2 Figure 2 – Front side of EUT.

id9655890 pdfMachine by Broadgun Software - a great PDF writer! - a great PDF creator! - http://www.pdfmachine.com http://www.broadgun.com

Wireless Dynamics CG-730 FCC ID: SHFSDID121X IC Number: 5998A-SDID121X Date: Dec 5, 2007 Revision #: 2 Internal Photographs Figure 1 – Bottom Side, All Models Wireless Dynamics CG-730 FCC ID: SHFSDID121X IC Number: 5998A-SDID121X Date: Dec 5, 2007 Revision #: 2 Figure 1 – Top Side with memory, SDiD 1212 Wireless Dynamics CG-730 FCC ID: SHFSDID121X IC Number: 5998A-SDID121X Date: Dec 5, 2007 Revision #: 2 Figure 1 – Top Side without memory, SDiD 1210

This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Certification Test Report CFR 47 FCC Part 15, Subpart C Project Code CG-730 (Report CG-730-EM-1-3) This report supercedes CG-730-EM-1-2 Wireless Dynamics Inc. SDiD 1212 and SDiD 1210 FCC ID#: SHFSDID121X IC IC#: 5998A-SDID121X Revision: 3 December 7, 2007 Prepared for: Wireless Dynamics Author: Spencer Watson EMC Technologist Approved by: Nick Kobrosly Product Integrity Lab Manager CG-730- EM-1-3 FCC ID: SHFSDID121X IC ID: 5998A-SDID121X Emissions Test Report Wireless Dynamics SDiD 1212 and SDiD 1210 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in part without permission of the testing body and the customer NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 34 November 29, 2007 Report Summary Test Facility NTS Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers FCC 101386 IC 46405-3978 - File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Performed For Wireless Dynamics Inc. 220, 3636 - 23 Street N.E. Calgary, AB T2E 8Z5 Phone #: (403) 219-8226 Fax #: (403) 250-1777 Name: Jeff Carmichael Phone #: (403) 219-8223 Email Address: [email protected] Customer Representative Name: Damon Adams Phone #: (403) 219-8226 Email Address: [email protected] Responsible Manager Name: Michael Loh Phone #: (403) 250-1818 Email Address: [email protected] CG-730- EM-1-3 FCC ID: SHFSDID121X IC ID: 5998A-SDID121X Emissions Test Report Wireless Dynamics SDiD 1212 and SDiD 1210 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in part without permission of the testing body and the customer NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 34 November 29, 2007 Test Summary The compliance test cases and respective test standards, as defined by the customer, may not be inclusive of all testing required by the Base Standards or fulfill the applicable regulatory requirements in their entirety. They do not reflect the opinions or recommendations of NTS Test Result: The product presented for testing complied with test requirements as shown above. Standards Deviations* from: Appendix Base Test Basis Description & Range Base Standard Test Basis NTS Procedure Pass / Fail Criteria A FCC CFR 47 Part 15.209 Class B ANSI C63.4 Radiated Emissions (30 - 1000 MHz) None None None PASS B B FCC CFR 47 Part 15.209 Class B ANSI C63.4 Radiated Emissions (9KHz - 30 MHz) None None None PASS B C FCC CFR 47 Part 15.207 Class B ANSI C63.4 Conducted Emissions - Voltage (0.150 - 30 MHz) None None None PASS B CG-730- EM-1-3 FCC ID: SHFSDID121X IC ID: 5998A-SDID121X Emissions Test Report Wireless Dynamics SDiD 1212 and SDiD 1210 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in part without permission of the testing body and the customer NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 34 November 29, 2007 Test Log & Signatures: Appendix Test Case Start End Tester A Radiated Emissions (30 - 1000 MHz) Oct.29 2007 Oct.29 2007 Lixin Wang and Spencer Watson EMC Technologist B Radiated Emissions (9KHz - 30 MHz) Oct.29 2007 Oct.29 2007 Spencer Watson EMC Technologist C Conducted Emissions - Voltage (0.150 - 30 MHz) Oct 30, 2007 Oct 30, 2007 Lixin Wang EMC Technologist Prepared By: ____________________ Spencer Watson EMC Technologist Reviewed By: ______________________ Glen Moore EMC Manager Checked By: ______________________ Robyn Zuehlke Quality Manager CG-730- EM-1-3 FCC ID: SHFSDID121X IC ID: 5998A-SDID121X Emissions Test Report Wireless Dynamics SDiD 1212 and SDiD 1210 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in part without permission of the testing body and the customer NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 5 of 34 November 29, 2007 Table of Contents REPORT SUMMARY.................................................................................................................................... 2 TEST SUMMARY ......................................................................................................................................... 3 TEST LOG & SIGNATURES:........................................................................................…

Text truncated - open the document above for the full version.

Wireless Dynamics FCC ID: SHFSDID121X Compliance Test Report CG-730 IC ID # 5998A-SDID121X Date: Dec 5, 2007 Revision #: 2 Test Photographs Figure 1 Radiated Emissions Test Photograph (30 MHz – 1 GHz) Figure 2 Radiated Emissions Test Photograph (9 kHz – 30 MHz) Wireless Dynamics FCC ID: SHFSDID121X Compliance Test Report CG-730 IC ID # 5998A-SDID121X Date: Dec 5, 2007 Revision #: 2 Figure 3 Conducted Emissions Test Photograph 1 (150 kHz – 30 MHz) Figure 4 Conducted Emissions Test Photograph 2 (150 kHz – 30 MHz)
