SJ8-CA640DIGITAL WIRELESS CAMERA AND RECEIVER SYSTEM

QRZ\RXFDQVHH 1. Power: Pressing this button turns the monitor on and off 2. TV/AV: If your monitor is connected to another video source, pressing this button will transfer the image from the 7" LCD monitor to the attached monitor. 3. Quad: Opens up a quad screen view. For more information on camera viewing, please see “Camera Viewing” on Pg. 16 4. Volume: This adjusts the volume of the audio that plays through your monitor 5. IR Sensor: The IR sensor is how the remote and monitor communicate 6. Manual Record: Prompts the monitor to begin constant recording. To stop recording, press this button again 7. Motion Record: Prompts the monitor to record only when motion is detected. To stop motion recording, press this button again 8. Manual Channel: Manually changes which camera is being viewed on screen 9. Auto Channel: Turns auto channel on and off. When this function is on, the camera channels will sequence through automatically 10. Delete/Scan: This button will turn on the screen saver. The screen saver will display until motion is detected, once detected, the screen saver will close and the monitor will display the camera that detected motion. During playback this button allows you to delete single clips of recorded footage. For more information on deleting recorded footage, please see “DELETE” on Pg. 27 11. Menu/Exit: Enters and exits the main menu 12. Joystick: This tab has many functions when accessing the menu as well as playing back footage. For information about how to use this joystick, please see “Joystick” on Pg. 14 of the manual 13. Antenna: This antenna allows for a stronger signal between the camera and monitor 14. Power Input: Plug the small end of the included power adapter marked “monitor” into this area 15. A/V Out: Plug the single end of the included A/V cable into this area 16. SD Card Insert: Your SD card can be inserted into this area to record and save footage 17. Talk: This button allows for two-way communication. The monitor and camera are both equipped with a microphone and a speaker, pressing this button allows you to speak through the camera from the monitor MONITOR QZ\QHH REMOTE The included remote control has the same functions as the monitor with the exception of two commands that are NOT included on the remote control, they are: • Talk: Cannot access talk function with remote • Power: Cannot power on or off the monitor from the remote control CAMERA 1. Pair Button: Located at the back of the camera, you press this button when pairing the camera and monitor. For more information, please see “Pairing” on Pg 14 2. Antenna: This removable antenna allows for a better signal between the camera and monitor 3. Camera Housing: Made of anodized aluminum to prevent rust 4. Infrared (IR): The 18 LEDs allow the camera to see in the dark up to 40ft away 5. Camera Lens: The camera lens is located in the center of the LEDs 6. CDS Sensor: Automatically turns on the infrared LEDs when it gets dark 7. Motion Detection: Detects any motion in front of the camera 8. Microphone: Allows you to hear and record sounds as well as footage 9. Camera Mount: Allows the camera to be desk or wall mounted 10. Power connection: This 3 ft. cord connects to the power adapter (marked “Camera”) 1 2 3 4 5 6 7 8 9 10 Back of Camera THINGS TO CONSIDER BEFORE INSTALLATION • The camera should be installed between 8 to 13ft above the area to be monitored • Ensure that the camera is installed NO MORE than 100 ft away from the monitor’s position to maintain a strong signal between the camera and monitor • Before mounting the camera, ensure there are no obstructions in the camera’s view • Place camera in the most strategic place where it can provide detailed video of your home or business. Having the camera in the open for people to see can help deter criminals • To cover large, dark areas such as backyards, garages, and driveways, place camera in a strategic location, such as on the roof or deck. This way, more area is covered by the camera • Ensure that the camera is positioned to avoid glare. Be sure to position camera away from direct sunlight or indoor lighting • For best results, light in front of the camera should be around the same brightness as the light around the area or object being monitored • Decide whether the camera will be wall-mounted, ceiling mounted or mounted on a desk/table top. We recommend that the mount is secured using the included screws and hardware for all installations The GX301 utilizes Clear Signal Technology, meaning that it is designed to avoid the frequencies of common wireless devices. By doing so, the system does not receive interference from any standardized 2.4GHz or 5.8 GHz wireless devices within your home or business. The signal also passes easily through interior walls. However, buildings with metal frames or placing the camera near large metal objects may cause signal interference. If reception is poor, moving the camera and/or monitor closer to one another may fix this problem. Interference is also possible if another device within the building (such as a cordless phone) is operating on the same frequency. AVOIDING INTERFERENCE MOUNTING THE CAMERA 1. Decide if the camera will be wall-mounted or sitting on a desk/tabletop. The camera can be adjusted for many mounting scenarios by rotating it to the required position. • Keep in mind that the camera is microphone equipped. If you would like audio recorded, make sure the camera is within a close enough range of the area being monitored to record any sounds (within 6 ft) • Be sure to mount the camera no further than 100ft away from your monitor • Be sure to mount the camera no further than 8ft away from a power source 2. Screw the mounting bracket into the camera’s mounting hole, turning it clockwise. 3. Ensure that the camera is strongly secured into the wall. 4. Adjust camera to the desired viewing angle. 5. For additional help with mounting the camera, please see the drilling template located at the back of …

Text truncated - open the document above for the full version.

RDI Technology (Shenzhen) Co., Ltd FCC ID: SJ8-CA640 POWER OF ATTORNEY Jun 08 ,2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Jun 09 , 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, RDI Technology (Shenzhen) Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, RDI Technology (Shenzhen) Co., Ltd ------------------------------- Engineering Manager

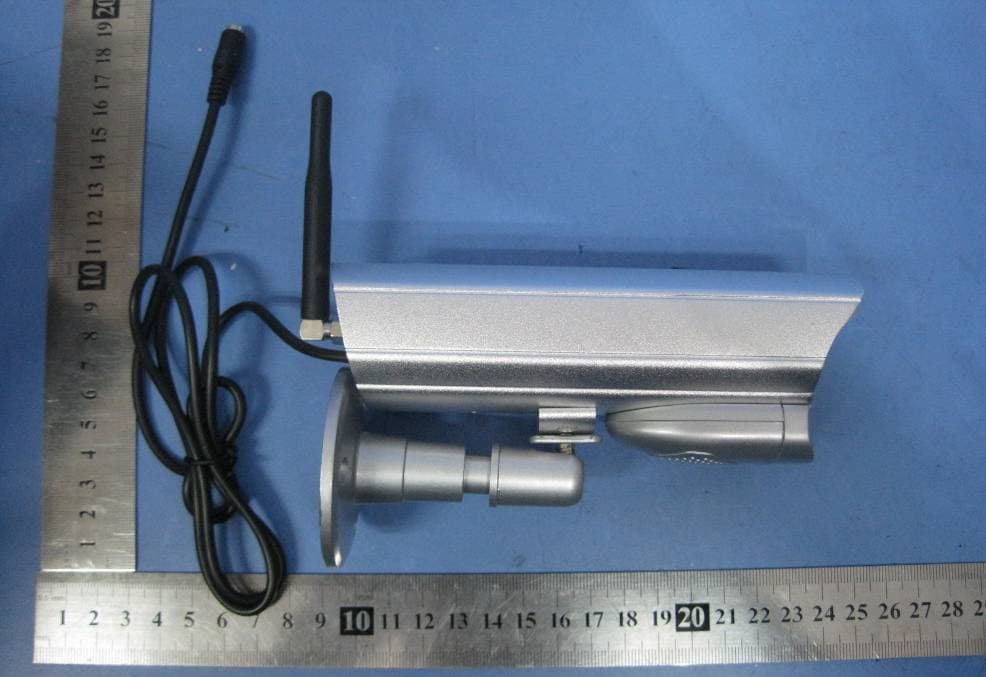

EUT - Front View EUT - Back View

RDI Technology (Shenzhen) Co., Ltd FCC ID: SJ8-CA640 Page 46 of 46 16FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID:SJ8-CA640 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID Label Sample for Model: CMD6470,CR6425 FCC ID : SJ8-CA640 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 PCB1 - Front View 2.2 PCB1 - Back View 2.3 PCB2 - Front View 2.4 PCB2 - Back View 2.5 PCB3 - Front View 2.6 PCB3 - Back View

CA640 2.4G Digital Camera Architecture CA640 Wireless camera includes high quality video and audio components. When combined with a RDI Wireless Video Monitor/Receiver, you have an ideal combination for watching the baby, monitoring the porch, pets, yard or the pool. It is also suite to many small business applications. CA640 wireless camera hardware architecture is show in Figure 1 The camera is base on a single-chip COMS camera sensor (MI-0360) provide a high quality video, built-in an audio microphone, auto turn on/off IR LED for night vision and audio alert when audio volume over preset level. Microprocesser (ES08V01A) code and decode the video and audio signal and send the digital singal to nRF24L01 for transmitting RF radio. nRF24L01 is a single chip radio transceiver for the world wide 2.4 -2.5 GHz ISM band. The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and Enhanced ShockBurst™ protocol engine. Output power, frequency channels, and protocol setup are easily programmable through a SPI interface. Current consumption is very low, only 9.0mA at an output power of -6dBm and 12.3mA in RX mode. Built-in Power Down and Standby modes makes power saving easily realizable. A simplified block diagram of the nRF24L01 is shown in figure 2 Figure 2 : nRF24L01 Block Diagram Packet Handling Methods nRF24L01 has the following Packet Handling Methods: ShockBurst™ (compatible with nRF2401, nRF24E1, nRF2402 and nRF24E2 with 1Mbps data rate, see page 24) Enhanced ShockBurst™ ShockBurst™ ShockBurst™ makes it possible to use the high data rate offered by nRF24L01 without the need of a costly, high-speed microcontroller (MCU) for data processing/clock recovery. By placing all high speed signal processing related to RF protocol on-chip, nRF24L01 offers the application microcontroller a simple SPI compatible interface, the data rate is decided by the interface-speed the micro controller itself sets up. By allowing the digital part of the application to run at low speed, while maximizing the data rate on the RF link, ShockBurst™ reduces the average current consumption in applications. In ShockBurst™ RX, IRQ notifies the MCU when a valid address and payload is received respectively. The MCU can then clock out the received payload from an nRF24L01 RX FIFO. In ShockBurst™ TX, nRF24L01 automatically generates preamble and CRC, see Table 12. IRQ notifies the MCU that the transmission is completed. All together, this means reduced memory demand in the MCU resulting in a low cost MCU, as well as reduced software development time. nRF24L01 has a three level deep RX FIFO (shared between 6 pipes) and a three level deep TX FIFO. The MCU can access the FIFOs at any time, in power down mode, in standby modes, and during RF packet transmission. This allows the slowest possible SPI interface compared to the average datarate, and may enable usage of an MCU without hardware SPI. Enhanced ShockBurst™ Enhanced ShockBurst™ is a packet handling method with functionality that makes bi-directional link protocol implementation easier and more efficient. In a typical bi-directional link, one will let the terminating part acknowledge received packets from the originating part in order to make it possible to detect data loss. Data loss can then be recovered by retransmission. The idea with Enhanced ShockBurst™ is to let nRF24L01 handle both acknowledgement of received packets and retransmissions of lost packets, without involvement from the microcontroller. Figure 3: nRF24L01 in a star network configuration An nRF24L01 configured as primary RX (PRX) will be able to receive data trough 6 different data pipes, see Figure 3. A data pipe will have a unique address but share the same frequency channel. This means that up to 6 different nRF24L01 configured as primary TX (PTX) can communicate with one nRF24L01 configured as PRX, and the nRF24L01 configured as PRX will be able to distinguish between them. Data pipe 0 has a unique 40 bit configurable address. Each of data pipe 1-5 has an 8 bit unique address and shares the 32 most significant address bits. All data pipes can perform full Enhanced ShockBurst™ functionality. nRF24L01 will use the data pipe address when acknowledging a received packet. This means that nRF24L01 will transmit ACK with the same address as it receives payload at. In the PTX device data pipe 0 is used to received the acknowledge, and therefore the receive address for data pipe 0 has to be equal to the transmit address to be able to receive the acknowledge. See Figure 5 for addressing example. Figure 4: Example on how the acknowledgement addressing is done An nRF24L01 configured as PTX with Enhanced ShockBurst™ enabled, will use the ShockBurst™ feature to send a packet whenever the microcontroller wants to. After the packet has been transmitted, nRF24L01 will switch on its receiver and expect an acknowledgement to arrive from the terminating part. If this acknowledgement fails to arrive, nRF24L01 will retransmit the same packet until it receives an acknowledgement or the number of retries exceeds the number of allowed retries given in the SETUP_RETR_ARC register. If the number of retries exceeds the number of allowed retries, this will show in the STATUS register bit MAX_RT and gives an interrupt. Whenever an acknowledgement is received by an nRF24L01 it will consider the last transmitted packet as delivered. It will then be cleared from the TX FIFO, and the TX_DS IRQ source will be set high. With Enhanced ShockBurst™ nRF24L01 offers the following benefits: Highly reduced current consumption due to short time on air and sharp timing when operating with acknowledgement traffic Lower system cost. Since the nRF24L01 handles all the high-speed link layer operations, like re-transmission of lost packet and generating acknowledgement to received packets, it is no need for hardware SPI on the system microcontroller to interface the nRF24…

Text truncated - open the document above for the full version.

RDI Technology (Shenzhen) Co., Ltd. FCC ID: SJ8-CA640 Date of Issue: June 08, 2010 MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) Pd = Power Density in milliwatts / square centimeter The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained。 Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields: Pd= Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain Pd=Power Density in mW / cm 2 Maximum Permissible Exposure And: Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) -2.39 0.577 15.31 33.96 Substituting the MPE safe distance using d=20 cm into Equation 1 Yields Pd=0.00199⋅P⋅G Where P = Power in mW G = Numeric antenna gain Pd = Power Density in mW / cm 2 The power density = 0.00199⋅15.31⋅ 0.577mW / cm2 =0.003898 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm2 even if the calculation indicates that the power density would be larger.)

Don't stuff APPROVED: SHEET: OF PCB NO:DRAWN:SCALE:CHECKED: DATED:DATED: REV: DATED: SIZE: A3 1:1 RDI MODEL NO: REV: COMPANY:TITLE: AlbertRDI808 1 2009-11-26 1.0 PIR Board CA640 SR 2.4G Wireless Digital Camera 1 Detect indication LEDNot Stuff 1 D 2 S 3 G U1 RE200B 1 GND 2 LED 3 OSC 4 OUT1 5 OUT2 6 SEL1 7 SEL2 8 VCC 9 VEE 10 /RST 11 OP1P 12 OP1N 13 OP1O 14 OP2P 15 OP2N 16 OP2O U2 PT8A263 R14 10K R4 1K R5 1K R13 560K R11 10K R12 10K R6 1M R7 22K R8 680K R1 47K R2 100K R3 47K C5 200pF C6 22nF C7 22nF C9 2.2uF C8 22nF + C4 100uF/6.3V + C1 22uF/6.3V + C2 10uF/6.3V + C3 22uF/6.3V + C10 100uF/6.3V D1 +5V GND PIR_OUT E B C Q1MMBT3906 +5V +5V +5V +5V +5V

RDI Technology (Shenzhen) Co., Ltd FCC ID: SJ8-CA640 FCC TEST REPORT Page 1 of 50 FCC ID : SJ8-CA640 Applicant : RDI Technology (Shenzhen) Co., Ltd Address of Applicant : Building C1 Xingtang Industrial Park, East Baishixia, Fuyong, Baoan, Shenzhen, PRC. Equipment Under Test (EUT) : Product description : Digital Wireless Camera And Receiver System Model No. : CMD6470,CR6425 Frequency Range : 2402MHz to 2478MHz Standards : FCC 15 Paragraph 15.247 Date of Test : Jun 08,2010 Test Engineer : Olic huang Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building,West Baima Rd.,Songgang Street, Baoan District, Shenzhen 518105,China Tel :+86-755-27553488 Fax:+86-755-27553868 RDI Technology (Shenzhen) Co., Ltd FCC ID: SJ8-CA640 Page 2 of 50 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................4 4 GENERAL INFORMATION..................................................................................................................................5 4.1 CLIENT INFORMATION............................................................................................................................................5 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................5 4.3 DETAILS OF E.U.T. .................................................................................................................................................5 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 4.6 TEST FACILITY........................................................................................................................................................6 4.7 TEST LOCATION......................................................................................................................................................6 4.8 EQUIPMENT USED DURING TEST.............................................................................................................................7 5 CONDUCTED EMISSION TEST ........................................................................................................................10 5.1 TEST EQUIPMENT..................................................................................................................................................10 5.2 TEST PROCEDURE.................................................................................................................................................10 5.3 CONDUCTED TEST SETUP.....................................................................................................................................11 5.4 EUT OPERATING CONDITION...............................................................................................................................11 5.5 CONDUCTED EMISSION LIMITS.............................................................................................................................12 5.6 CONDUCTED EMISSION TEST DATA......................................................................................................................12 5.7 CONDUCTED EMISSION TEST SETUP VIEW............................................................................................................14 6 RADIATION EMISSION TEST...........................................................................................................................15 6.1 TEST EQUIPMENT..................................................................................................................................................15 6.2 MEASUREMENT UNCERTAINTY.............................................................................................................................15 6.3 TEST PROCEDURE.................................................................................................................................................15 6.4 RADIATED TEST SETUP.........................................................................................................................................16 6.5 SPECTRUM ANALYZER SETUP...............................................................................................................................16 6.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................17 6.7 SUMMARY OF TEST RESULTS................................................................................................................................17 6.8 EUT OPERATING CONDITION...............................................................................................................................18 6.9 RADIATED EMISSIONS LIMIT ON PARAGRAPH 15.209 ...........................................................................................18 6.10 RADIATED EMISSIONS TEST RESULT................................................................................................................19 6.11 RADIATED EMISSION DATA.............................................................................................................................19 6.11.1 Test mode: continuously recevie mode...................................................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup View Test Front View Test Back View Photographs of Test Setup for CTX and CRX Radiation Emission Test View For 30MHz-1000MHz Radiation Emission Test View For 1GHz-25GHz
