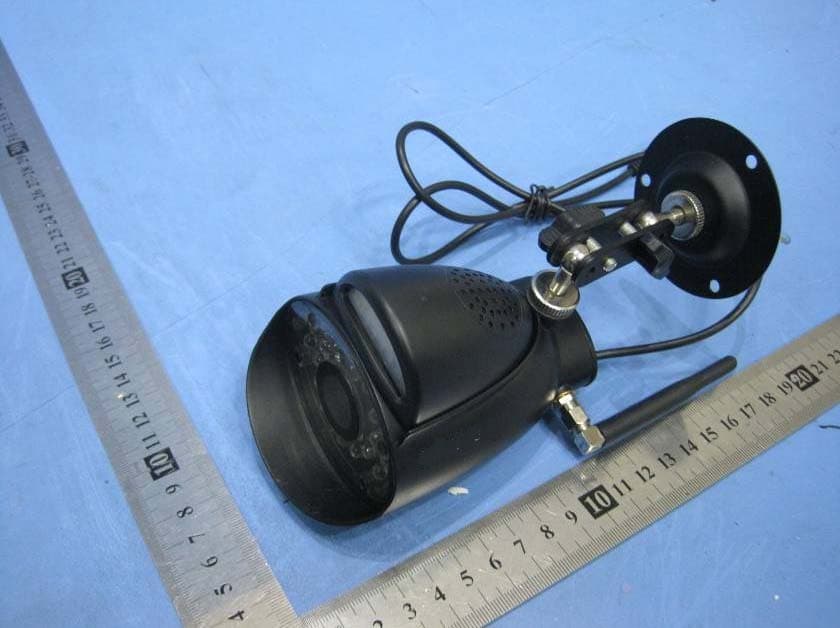

SJ8-CA670CDIGITAL WIRELESS CAMERA

DIGITAL WIRELESS CAMERA INSTRUCTION MANUAL MODEL: CA670 1 Features • Digital wireless technology provides excellent image quality and clarity • Interference free, secure and private signal • Up to 300ft wireless transmission range ① • VGA resolution camera • Night vision allows for low light viewing up to 40 feet / 12 meters • Built-in microphone • Weatherproof for outdoor use • PIR Sensor for motion detection ① IR illumination range of 40ft./12m under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application. Overviews Front & Side Controls 1. Camera Antenna – Sends & receives signals to or from the receiver. 2. AC Adaptor Jack – Plug the AC adaptor to the jack for camera’s power supply. 3. Wall Mounting Bracket – Use the bracket to mount the camera on a wall or other flat surfaces. 4. IR LEDs – Infrared LEDs provide viewing in no/low light conditions 5. Lens – Catches the video in front of the lens and transmits video from camera to receiver. 6. Microphone – Receives sounds from the area near the camera, and transmits sound from the camera to the receiver. 7. PIR Sensor – Detects motion in front of the lens and emits detection signal to transmitter. 2 8. Speaker – Produces the sound transmitted from the receiver. Back Controls 9. Pair Button – The pair button is located on the back of the camera, it is used to pair the camera with receiver. 10. Bracket Jack – Screw the wall mounting bracket to the jack, and fix the bracket on a wall or other flat surfaces. Camera Installation Before you install the camera, carefully plan where and how it will be positioned, and where you will route the cable that connects the camera to the power adaptor. Before starting permanent installation, verify its performance by observing the image on the receiver when camera is positioned in the same location/position where it will be permanently installed and the receiver is placed in the location where it will be used most of the time. Installation Warnings Aim the camera(s) to best optimize the viewing area: Select a location for the camera that provides a clear view of the area you want to receive, which is free from dust, and is not in line-of-sight to a strong light source or direct sunlight. Avoid installing the cameras where there are thick walls, or obstructions between the cameras and the receiver. Night Vision This camera has built-in IR LEDs, which provides the camera with the ability to view images in no/low light conditions. Night vision will be automatically switched on in low illumination condition. Installing the Camera 1. Carefully unpack the camera. NOTE: If you are installing cameras that did not come with the system, please see the pairing camera section of this manual for installation details. 2. Mount the camera to the wall. Mark the position of the screw holes on the wall, drill holes and insert the supplied 3 plastic anchors, then firmly fix the camera bracket to the plastic anchors with supplied screws. 3. Adjust the viewing angle of the camera You can adjust the viewing angle to monitor desired area by rotating the camera bracket. 4. Connect camera power After the camera is installed, plug the AC adaptor power output cable into the 9V POWER jack of the camera, and plug the power plug into a wall outlet or surge protector. NOTE: You can install additional cameras (maximum of 4 cameras). When adding cameras that were 3 not included in the original box, you will need to pair the cameras with the receiver. Refer to the camera pairing section of this manual. Camera installation is now completed. Camera Pairing The system comes with camera(s) that have already been paired. These cameras will communicate with the receiver once powered on. The pairing function assigns each camera to a different channel on the wireless receiver (up to 4 cameras), and is necessary for configuring additional cameras. NOTE: It is highly recommended to pair the cameras to the receiver before permanently mounting the cameras. 1. Power on the receiver by connecting it to power outlet with supplied 5V power adaptor. 2. Power on the camera by connecting it to power outlet with supplied 9V power adaptor. 3. Press the Menu button on the receiver or remote controller. Navigate to the Pairing menu option by pressing the ▼▲◄► buttons on the remote controller or operating the joystick on the receiver. Press the Enter button to enter the pairing operation. 4. Select a channel by pressing the UP and DOWN ▼▲ buttons on the remote controller or pushing upwards/downwards the joystick on the receiver. Press the Enter button to confirm the selection. 5. A message will be displayed on the receiver screen. The receiver will count down from 30~0 – you must press the Pair button on the camera during this time to successfully pair the camera. If the button on the camera is not pressed, the receiver will return to the view screen, and no pairing will take place. 6. Press the Pair button on the back of the camera. Once the camera has been paired, it will be immediately viewable on the receiver monitor. 4 Troubleshooting If you have problems with the system, there is often a quick and simple solution. Please try the following: Problem Solution No picture from a camera 1. Check all connections to the camera. Make sure the adaptor is plugged in. 2. Make sure that the receiver is ON. 3. Make sure that the camera is in range of the receiver. The picture is dropping 1. Move the camera closer to the receiver. 2. Try repositioning the camera, receiver or both to improve the reception. Audio problems 1. Increase the volume when there is no sound. 2. Make sure that there is sound within range of the camera microphone. 3. If the unit emits a loud screeching noise (audio feedback), move the camera or receiver farther apart. The picture is or has become choppy The picture may become choppy when experiencing a lower frame rate (i.e. 10 frames per second vs. a higher 20 frames per sec…
