CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2022-1-15> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name SJ8-CL794 CL794 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title Company: Address: Phone: Fax: E-Mail:

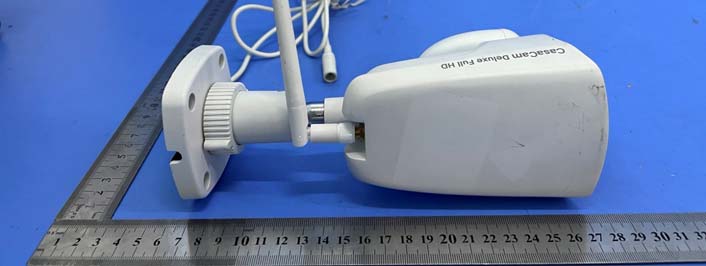

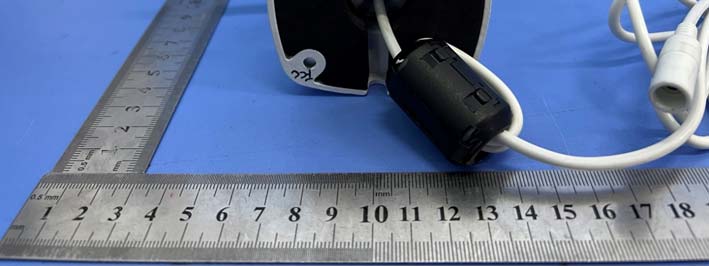

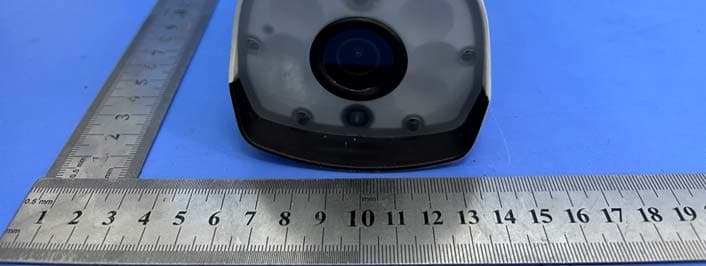

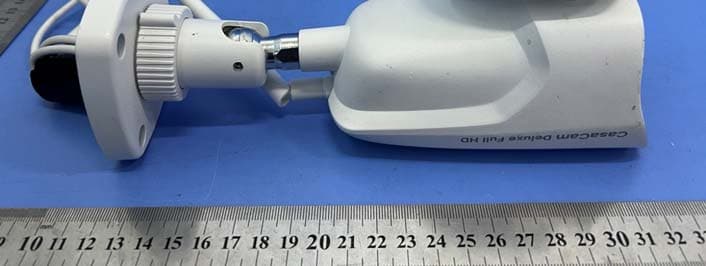

FCC ID: SJ8-CL794 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: SJ8-CL794 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Antenna FCC ID: SJ8-CL794 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

FCC ID: SJ8-CL794 TB-RF-074-1.0 Appendix IFCC ID Label Size for the label: 35mm X20mm FCCID: SJ8-CL794 Model: CL794 FCC ID: SJ8-CL794 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID: SJ8-CL794 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Appearance of PCB FCC ID: SJ8-CL794 TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of EUT FCC ID: SJ8-CL794 TB-RF-074-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB FCC ID: SJ8-CL794 TB-RF-074-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of Adapter

Report No.: TB-MPE184773 Page: 1 of 3 TB-RF-075-1.0 Maximum Permissible Exposure Evaluation FCC ID: SJ8-CL794 1. Client Information Applicant : RDI Technology (Shenzhen) Co., Ltd Address : 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC.China. Manufacturer : RDI Technology (Shenzhen) Co., Ltd Address : 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC.China. 2. General Description of EUT EUT Name : Wireless Camera Models No. : CL794 Model Different : ---- Product Description : Operation Frequency: 802.11b/g:2412MHz~2462MHz Number of Channel: 802.11b/g:11 channels RF Output Power: 802.11b: 17.636dBm(MAX) Antenna Gain: 2 dBi Dipole Antenna Power Rating : Adapter(GS18J090200FUF) Input: 100-240V~, 50/60Hz, 0.5A Output: DC9V2A Software Version : N/A Hardware Version : N/A Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(20211014-10-2#). Report No.: TB-MPE184773 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Dipole Antenna:2dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: 2.4G WiFi Mode Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) 802.11B 17.636 17±1 18 2 20 0.01989 1 802.11G 17.552 17±1 18 2 20 0.01989 1 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4WIFI:2412~2462 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.01989 mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. Report No.: TB-MPE184773 Page: 3 of 3 TB-RF-075-1.0 The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 1 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 RF Test Data for 2.4G WiFi (Conducted Measurements) General Description of EUT Product Name: Wireless Camera Test Model: CL794 Sample ID: 20211014-10-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: DC9V Test Engineer: Hejingchang Note: For a more detailed features description, please refer to the report TB-FCC184772 1.Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 100 0 0 NVNT b 2437 Ant1 100 0 0 NVNT b 2462 Ant1 100 0 0 NVNT g 2412 Ant1 100 0 0 NVNT g 2437 Ant1 100 0 0 NVNT g 2462 Ant1 100 0 0 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 2 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 3 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 4 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 5 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 2.Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 17.276 0 17.276 30 Pass NVNT b 2437 Ant1 17.353 0 17.353 30 Pass NVNT b 2462 Ant1 17.636 0 17.636 30 Pass NVNT g 2412 Ant1 17.157 0 17.157 30 Pass NVNT g 2437 Ant1 17.27 0 17.27 30 Pass NVNT g 2462 Ant1 17.552 0 17.552 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 6 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 3.-6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 10.04 0.5 Pass NVNT b 2437 Ant1 9.593 0.5 Pass NVNT b 2462 Ant1 10.04 0.5 Pass NVNT g 2412 Ant1 16.34 0.5 Pass NVNT g 2437 Ant1 16.34 0.5 Pass NVNT g 2462 Ant1 16.34 0.5 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 7 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 8 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 9 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 10 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 4.Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 -10.574 8 Pass NVNT b 2437 Ant1 -9.682 8 Pass NVNT b 2462 Ant1 -10.249 8 Pass NVNT g 2412 Ant1 -14.35 8 Pass NVNT g 2437 Ant1 -14.744 8 Pass NVNT g 2462 Ant1 -14.15 8 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 11 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 12 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 13 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 14 of 30 FCC ID: SJ8-CL794 TB-RF-074-1.0 5.Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -54.44 -20 Pass NVNT b 2462 Ant1 -55.66 -20 Pass NVNT g 2412 Ant1 -47.54 -20 Pass NVNT g 2462 Ant1 -46.95 -20 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TB-FCC184772 Page: 15 of 3…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC184772 Page: 1 of 36 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: SJ8-CL794 Report No. : TB-FCC184772 Applicant : RDI Technology (Shenzhen) Co., Ltd Equipment Under Test (EUT) EUT Name : Wireless Camera Model No. : CL794 Series Model No. : ---- Brand Name : CasaCam Sample ID : 20211014-10-1#& 20211014-10-2# Receipt Date : 2021-11-18 Test Date : 2021-11-18 to 2022-01-13 Issue Date : 2022-01-15 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC184772 Page: 2 of 36 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Mode ........................................................................................................ 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 7.4 Deviation From Test Standard ......................................................................................... 21 7.5 EUT Operating Mode ........................................................................................................ 21 7.6 Test Data ............................................................................................................................. 21 8. BANDWIDTH TEST ................................................................................................................. 22 8.1 Test Standard and Limit .................................................................................................... 22 8.2 Test Setup ........................................................................................................................... 22 8.3 Test Proc…

Text truncated - open the document above for the full version.

FCC ID: SJ8-CL794 TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) FCC ID: SJ8-CL794 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
