SJ8-M420CDIGITAL MONITOR

Safety Precautions • Adult assembly is required. Keep small parts away from children when assembling. • This product is not a toy. Do not allow children or infants to play with it. • This video monitor is not a substitute for responsible adult supervision. • Test the video monitor before use. Become familiar with its functions. • Keep the cords out of reach from children and infants. • Never use extension cords with power adapters. • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Only insert batteries/battery pack of the same type. • Insert batteries with the correct polarity. • Do not mix new and used batteries. • Do not mix alkaline, standard, and rechargeable batteries. • Remove exhausted batteries from the product. • Keep all batteries away from children and infants. • Dispose or recycle batteries in accordance with local laws, which may vary by location. • Do not cover the video monitor with a towel or blanket. • Do not use the video monitor near water. • Do not install the video monitor near a heat source. • Do not touch the plug contacts with sharp or metal objects. • Keep this user’s guide for future reference. To Avoid Injury to Children & Infants: •MAKE SURE to keep the camera and all power cords are least 3ft / 1m away from cribs and out of reach of your child. • Use the included cable clips to help keep power cords away from your child. 3ft / 1m Edited with the trial version of Foxit Advanced PDF Editor To remove this notice, visit: www.foxitsoftware.com/shopping Product Includes..............................3 Monitor Overview...........................3 Camera Overview...........................4 Getting Started ...............................6 Optional - Mounting the Camera............... 7 Using the Cable Clips .............................. 9 Using Your Baby Monitor ..............10 Adjusting Volume .................................. 10 Changing Channels............................... 11 Talking to Your Baby .............................. 11 Using Digital Zoom................................ 11 Locking the Monitor ............................... 12 Video Off Mode (Audio Only Mode) ....12 Inserting a microSD Card ....................... 12 Video Recording ................................... 13 Taking Snapshots .................................. 14 Using the Night-Light ............................. 14 Playing Sleep & Soothe Sounds............... 15 Using Quad and Scan View Mode .......... 16 Using the Main Menu ............................ 17 Setting the Date and Time....................... 17 Adjusting Camera Brightness .................. 18 Configuring Recording Options............... 19 Configuring Recording Options............... 19 Changing Languages............................. 20 Configuring Alarm Volume ..................... 21 Temperature Alerts................................. 22 Using the Timer ..................................... 24 Using Motion Tracking (P/T Camera Only)................................ 24 Using Playback Mode............................ 25 Formatting Memory Card ....................... 28 Using Power Saving Mode ..................... 29 ENGLISH 1 Table of Contents: Restoring Default Settings ....................... 29 Remotely Connecting to Your Cameras .......................................31 Using Audio / Video Out ...............32 Pairing Additional Cameras ..........34 Technical Specifications .................36 Fixed Camera ...................................... 36 P/T Camera ......................................... 36 3.5” Monitor ........................................ 36 4.3” Monitor ........................................ 36 Unit Dimensions ............................37 Troubleshooting ............................38 Need Help?...................................38 2 ENGLISH 3 Product Includes x1* x1 Fixed Camera Monitor Power Adapter x1* *See product packaging for exact contents x1* Mounting Kit Power Adapter x1 Monitor Overview Cable Clips x3* Enter / exit menu Switch channel Talk Zoom Stand Battery compartment Power / Sound LED’s* Speaker *Power / Sound LED’s on the left side of the 3.5” LCD monitor x1* Pan/Tilt (P/T) Camera Reset button OR P/T Mounting Plate (for P/T camera only) x1* Joystick Light sensor Microphone Speaker Lens Infrared LED’s Stand Temperature Sensor Power port Pairing button Night light button Fixed Camera (BB3500 / BB4300 Series) Antenna Camera Overview Volume controls Play / stop sounds Next sound microSD slot Charging indicator Power port Mini USB port AV out port Lock mode Quad view / Scan mode Antenna Power / video on /off Start / stop recordingNight light Snapshot Wi-Fi Cradle connector* Mounting thread *Wi-Fi Cradle not included. See “Remotely Connecting to Your Cameras” on page 31 for details. LEFT RIGHT TOP BOTTOM 4 Power switch Power indicator Volume dial P/T Camera (BB3500 Series) Power port Antenna Speaker Lens Light sensor Pairing buttonPower button Volume dial Ceiling mount switch Microphone Temperature sensor Infrared LED’s ENGLISH 5 Make sure all power cables are at least 3ft / 1m away from the crib and out of reach of your child. Use the included cable clips to help keep power cords away from your child. Connect the power adapter to the monitor. Power button Getting Started 1 2 Connect the power adapter to the camera. Slide the power switch to ON or press and hold the power button. Power switch 3 Fixed camera P/T camera Press and hold the power button on top of the monitor for 3 seconds. The display turns on. 4 Power button 6 Make sure all power cables are at least 3ft / 1m away from the crib and out of reach of your child. Use the included cable clips to help keep power cords away from your child. See “Using the Cable Clips” on page 9 for installation details. 38mm Fixed Camera Reattach the camera base here ENGLISH 7 Optional - Mounting the Camera Tap anchors into holes with a hammer. Insert s…

Text truncated - open the document above for the full version.

RDI Technology (Shenzhen) Co., Ltd Date: May 20, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SJ8-M420C Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SCH.pdf BlockDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, RDI Technology (Shenzhen) Co., Ltd ................................................... Signature Tony. zhou / Manager ................................................... Typed name and Title

RDI Technology (Shenzhen) Co., Ltd FCC ID: SJ8-M420C POWER OF ATTORNEY Date: May 20, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on May 19, 2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, RDI Technology (Shenzhen) Co., Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, RDI Technology (Shenzhen) Co., Ltd ................................................................................. Signature Tony. zhou / Manager ................................................................................. Typed name and Title

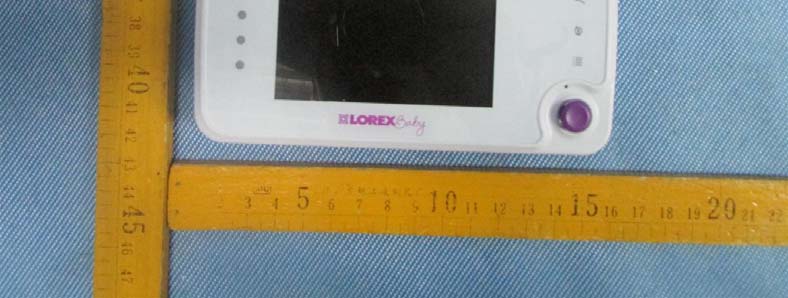

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - Constructional Details EUT - External View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 18.2 EUT - Internal View

Reference No.: WTF13S0503485E Page 63 of 63 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC Label Location for model: M420C The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: SJ8-M420C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Reference No.: WTF13S0503485E Page 62 of 63 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC Label FCC Label Sample for model: M420C FCC ID: SJ8-M420C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn EUT - Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn RF module Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn RF module

Reference No.: WTF13S0503486E Page 1 of 17 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : SJ8-M420C Applicant : RDI Technology (Shenzhen) Co., Ltd. Address : Building C1 Xintang Industrial Park, East Baishixia, Fuyong, Baoan, Shenzhen, China Manufacturer : The same as above Address : The same as above Equipment Under Test (EUT) : Product Name : Digital Monitor Model No. : M420C Rules : FCC CFR47 Part 15 Section 15.107:2010 FCC CFR47 Part 15 Section 15.109:2010 Date of Test : May 11~14, 2013 Date of Issue : June 06 , 2013 Test Result : PASS * Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTF13S0503486E Page 2 of 17 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conducted Emission FCC Part 15.107:2010 PASS Radiated Emission FCC Part 15.109:2010 PASS Reference No.: WTF13S0503486E Page 3 of 17 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents 1 COVER PAGE .........................................................................................................................................1 2 TEST SUMMARY..................................................................................................................................................2 3 CONTENTS............................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 GENERAL DESCRIPTION OF E.U.T............................................................................................................4 4.2 DETAILS OF E.U.T......................................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS............................................................................................................4 4.4 TEST FACILITY............................................................................................................................................4 4.5 TEST LOCATION..........................................................................................................................................4 5 EQUIPMENT USED DURING TEST..................................................................................................................5 6 CONDUCTED EMISSION DATA........................................................................................................................6 6.1 E.U.T. OPERATION....................................................................................................................................6 6.2 EUT SETUP................................................................................................................................................6 6.3 CONDUCTED EMISSION TEST RESULT......................................................................................................7 7 RADIATION EMISSION DATA...........................................................................................................................9 7.1 E.U.T. OPERATION....................................................................................................................................9 7.2 EUT SETUP..............................................................................................................................................10 7.3 SPECTRUM ANALYZER SETUP.................................................................................................................11 7.4 TEST PROCEDURE...................................................................................................................................11 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION................................................................................11 7.6 SUMMARY OF TEST RESULTS..................................................................................................................12 8 PHOTOGRAPHS – TEST SETUP....................................................................................................................14 8.1 PHOTOGRAPH – RADIATION EMISSION TEST SETUP..............................................................................14 8.2 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP...........................................................................16 9 PHOTOGRAPHS –CONSTRUCTIONAL DETAILS......................................................................................17 Reference No.: WTF13S0503486E Page 4 of 17 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product Name : Digital Monitor Model No. : M420C Operation Frequency : 2402MHz ~ 2478MHz, 39 channels in total Type of Modulation : GFSK Oscillator : Crystal 32.768kHz and 27MHz for CPU,16MHz for RF module 4.2 Details of E.U.T. Technical Data : (1)Battery DC 3.7V 1500mAh (2)DC 5V 1A powered by adapter (Input: 100-240~50/60Hz, 200mA) Adapter : Manufacturer:Csec, M/N:CS6D050100FUF 4.3 Description of Support Units…

Text truncated - open the document above for the full version.
