SJ8-M702Digital Wireless 7in. Monitor

DIGITAL WIRELESS 7” LCD MONITORING SYSTEM WITH SD CARD RECORDING MODEL:CM642702 Feature list: — 850nm IR Led visible distance up to 10m — 7” TFT Lcd Digital panel (800 RGB x 480) — Two way audio — Scan function — PIR trigger or Video motion detect recording — Manual recording — Schedule recording separate settings from Monday to Sunday — SD Card capacity up to 64GB — One Lcd monitor can pair four cameras — Frame rate: Cam x 2 : 720p x1 @ 15 fps or Cam x 2 : VGA x2 @ 30 fps or Cam x 4 : or VGA x 4 @ 15 fps — Individual recording files — 5 Seconds pre-recording — Lcd : 5v DC 2A Power adaptor (+/-5%) — Camera: 9v DC 600mA (+/-5%) — RF range: 150 meter (Line of sight) — Quad view — PIR trigger and Video motion detect alert Remote view and playback by Android or iOS smart phone The system includes the following components: Wireless Receiver Front Controls 1. Cam--- Press the button to view cameras in automatic switching mode. 2. Quad---- Press Quad button to view the images in quad mode. Press Quad buttons to exit from quad mode to automatic switching mode 3. Scan--- Press the button to switch the receiver to scan mode. When there’s motion detected by cameras, the LCD will lighten up and show the live video from the camera. 4. Zoom---- In “×1” mode, press to enter “×2” mode, shows on the screen; In “×2” mode, press it again to enter “×1” mode, doesn’t show on the screen. 5. Delete---- Press it to delete the video. 6. Menu---Press Menu button to access the receiver menu. Press the key again to exit. 7. Joystick--- A. Navigation button (▲▼◄► arrows): servicing button B. Enter button: Push to enter Playback mode. 8. LCD Screen--- Displays video from the camera(s) or displays system operations. Top Controls 9. Motion--- Press this button to enter auto recording mode. Receiver starts to record when there is motion detection in camera side. 10.Rec---Press this button and receiver starts to record manually. 11. Power---Press this button to power on/off the receiver. 12. Vol/Adj---- Press the left part to decrease the volume and press the right part to increase the volume. Side Controls 13. SD card slot---- Insert SD card to this SD card slot for both video and audio recording. 14. Service--- Used for service purposes only. 15. Talk----Press this button to talk back to the camera and the icon is displayed on the screen. Back Controls 16. Ethernet Port (RJ45)--- Connect the receiver to your router using the included Ethernet cable to enable smartphone / tablet connectivity. 17. DC 5V Power Input –-- Connect the included DC 5V/2A power adaptor to power the receiver. 18. Antenna---- Position the antennas as needed for best reception. 19. Stratus UID Number / QR Code--- Unique ID number for connection to the system on a smartphone / tablet. 20. Speaker –---Produces the sound transmitted from the camera(s). 22.Monitor stand Wireless Receiver Installation 1. Before receiver installation, choose one installation method from below 2 methods: 1). Desktop or table stand. For this method, you only need to place the receiver on a desktop. 2). Wall mounting Decide where to mount the receiver first. Make sure the range between the position and the nearest power output port is no more than 5 feet. Also, the range between the position and TV or VCR/DVR should be no more than 5 feet. Drill two holes on the wall where you decide to install the receiver. Insert a plastic anchor to each hole and fix a screw into the plastic anchor. Insert the screws into the two holes located on the bottom of receiver and then push down the receiver. Adjust the receiver for best viewing angle. 2. After the receiver is well positioned, plug the AC adaptor power output cable into the 5V POWER input of the receiver, and plug the power plug into a wall outlet or surge protector. 3. If you wish to view the receiver images on a larger screen, connect one end of the included AV cable to the AV output of receiver, and connect the other end to the Video IN (Yellow) and Audio IN (White) ports on the TV, VCR or other viewing/recording devices. Note: When outputting Audio/Video to TV, etc, press the AV button on the remote control to output audio and video to TV. The receiver installation is now completed. Wireless Camera 1. Camera Antenna –Receives & Sends signals to or from the Receiver. 2. Lens – Catches the video in front of the lens and transmits video from camera to receiver. 3. IR LED –Infrared LEDs provide viewing in no/low light conditions. 4. PIR sensor–Detects motion in front of the lens and emits detection signal to transmitter. 5. Thumbscrew-Rotates the thumbscrew to adjust the angle of the camera until the desired view is set 6. Speaker-Produces the sound transmitted from the monitor. 7. Bracket –Use the bracket to mount the camera on a wall or other flat surfaces. 8. Pairing Button –The pairing button is located on the back of the camera behind by the stand mount. 9. Power Jack –Connect the DC 5V Power Adaptor to the Camera. Note: This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between day mode and night vision mode, an audible clicking noise may be heard coming from the camera. This clicking is normal, and indicates that the camera filter is working. Camera Installation Before you install the camera, carefully plan where and how it will be positioned, and where you will route the cable that connects the camera to the power adaptor. Before starting permanent installation, verify its performance by observing the image on the receiver when camera is positioned in the same location/position where it will be permanently installed and the receiver is placed in the location where it will be used most of the time Installation Warnings: Aim the Camera(s) to best optimize the viewing area: Select a location for the camera that provides a clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a strong light source or direct sunlight. Avoid installing the cameras where …

Text truncated - open the document above for the full version.

RDI Technology (Shenzhen) Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Date:2014/08/04 Confidentiality Request regarding application for certification of FCC ID: SJ8-M702. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SJ8-M702 _SCH.pdf SJ8-M702 _BlockDiagram.pdf SJ8-M702 _CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, RDI Technology (Shenzhen) Co., Ltd. ................................................... Signature Tony zhou / Engineering Manager

RDI Technology (Shenzhen) Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2014.08.04 SUBJECT: FCC Application for SJ8-M702 To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer . Regards, Signature:(Must be signed by the person that is listed on the FCC Website) ................................................... Signature ................................................... Typed name and title: Tony zhou / Engineering Manager Applicant: RDI Technology (Shenzhen) Co., Ltd. Address: Building C1 Xintang Industrial Park, East Baishixia, Fuyong, Baoan, Shenzhen, Guangdong, China

RDI Technology (Shenzhen) Co., Ltd. FCC ID: SJ8-M702 POWER OF ATTORNEY Date:2014/08/04 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on 2015/08/03. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We,RDI Technology (Shenzhen) Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, RDI Technology (Shenzhen) Co., Ltd. ................................................... Signature ................................................... Tony zhou / Engineering Manager

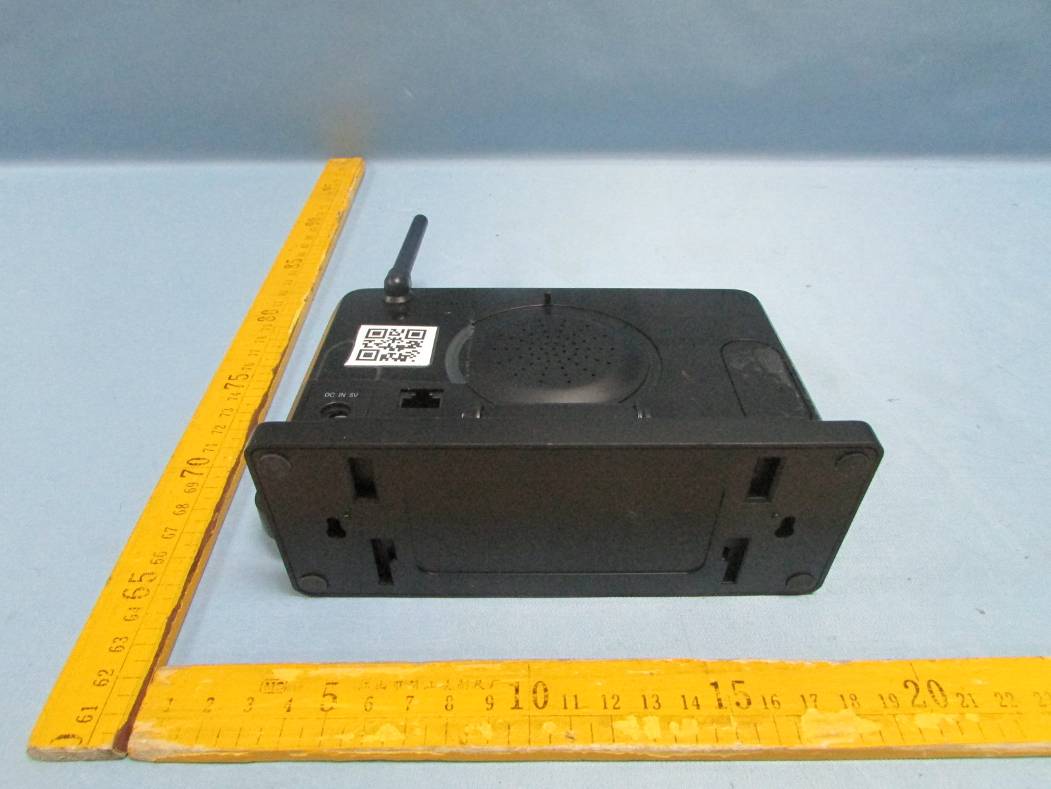

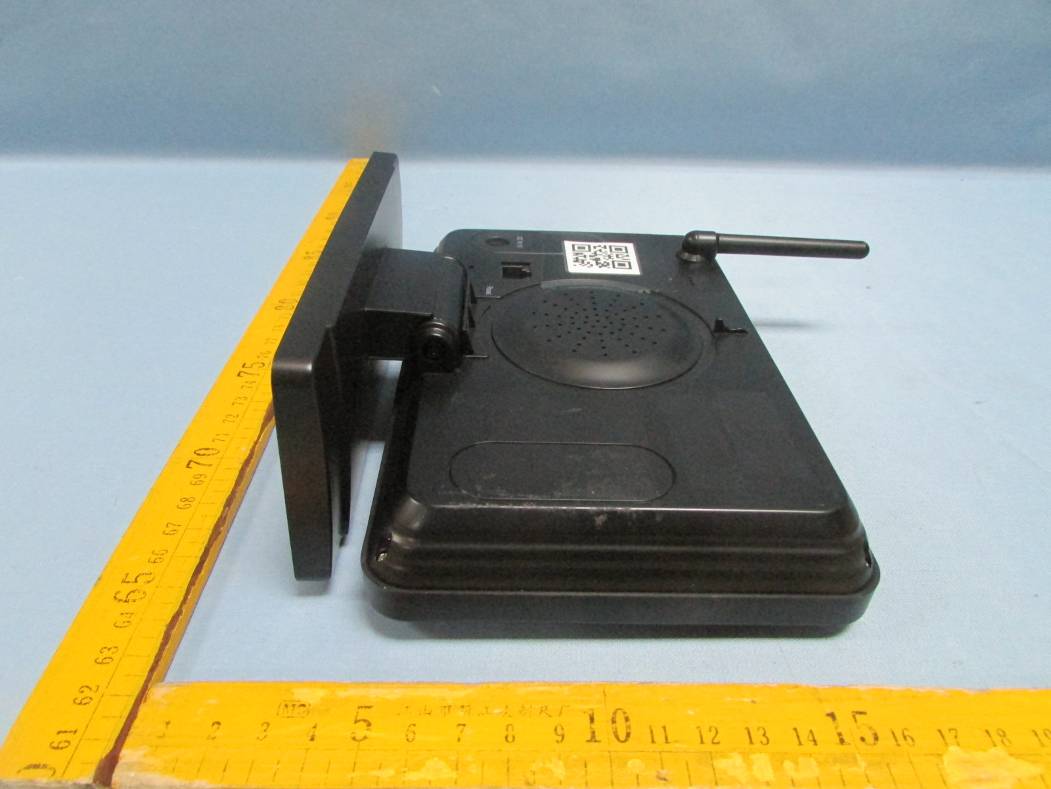

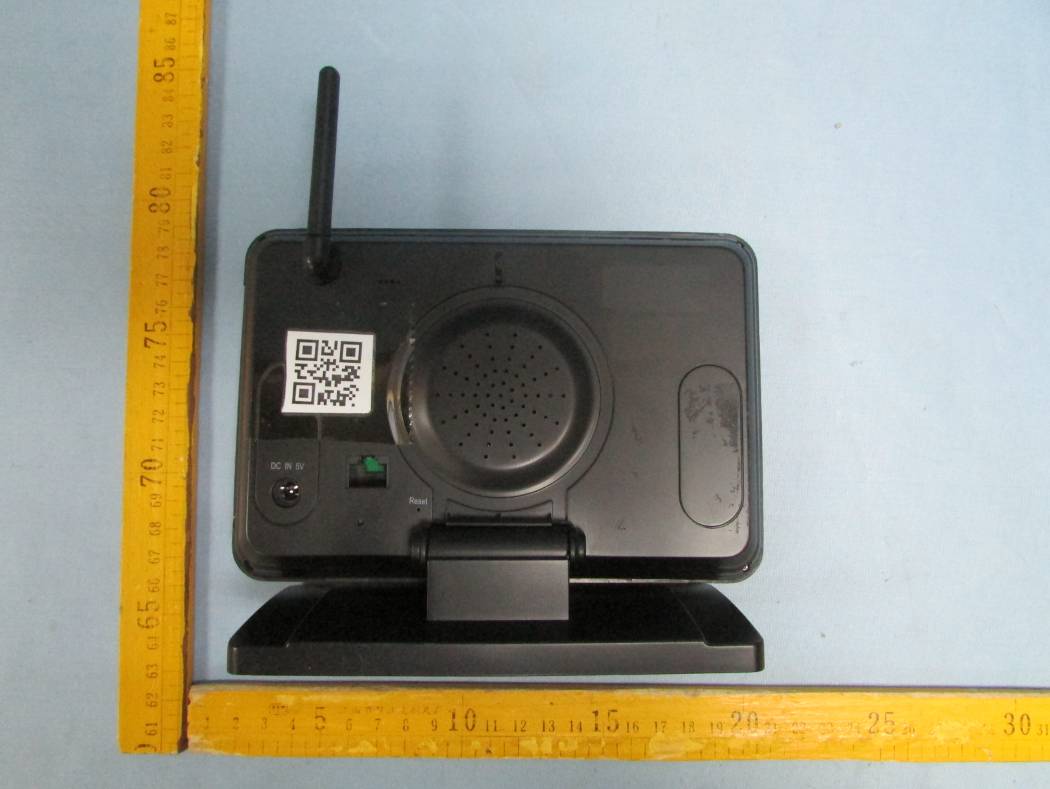

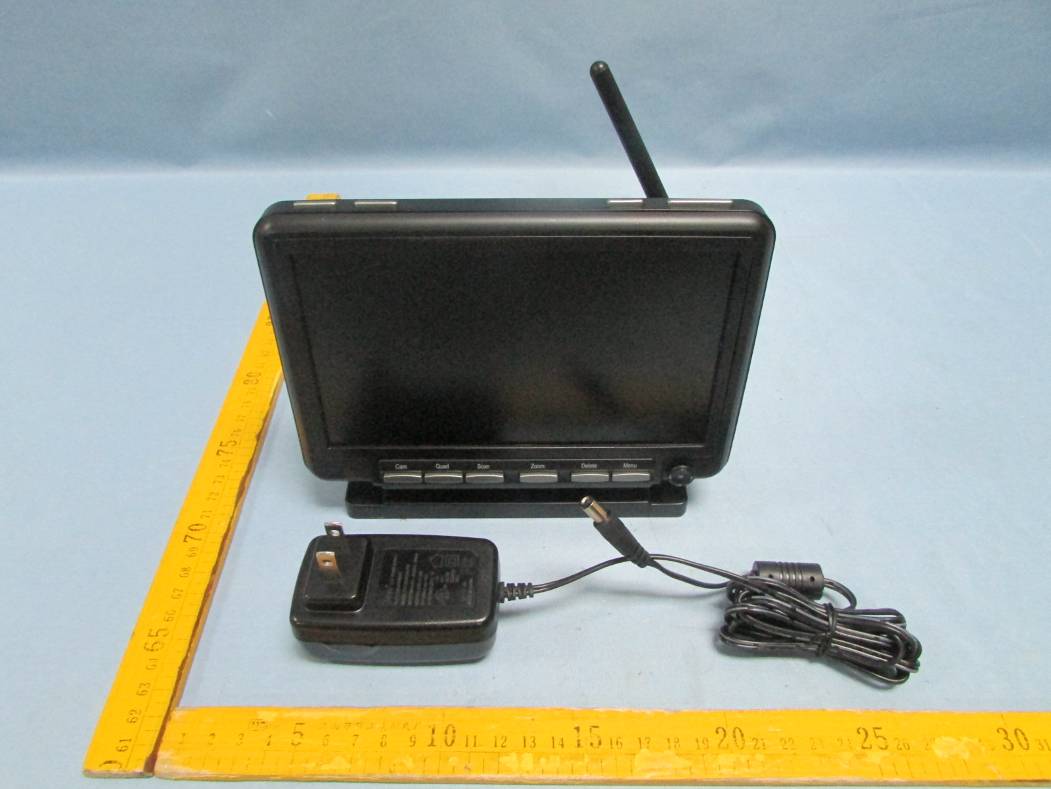

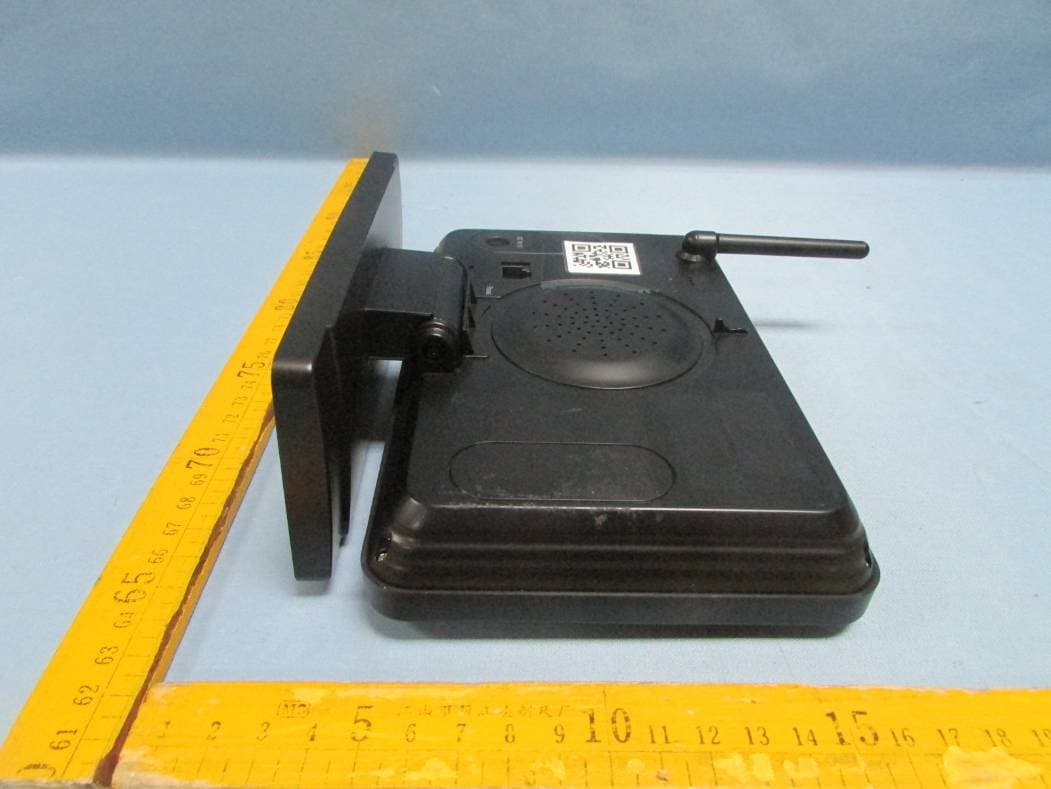

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 5 Model M702 –External Photos Page 2 of 5 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Page 3 of 5 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 4 of 5 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 5 of 5 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC and IC Label Location for model: M702 This device complies with part 15 of the FCC rules and industry Canada license-exempt rss standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SJ8-M702 IC: 7644A-M702 Model: M702 This device complies with part 15 of the FCC rules and industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC and IC Label Sample for model: M702 This device complies with part 15 of the FCC rules and industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC and IC Label Sample for Model: M702 FCC ID: SJ8-M702 IC: 7644A-M702 Model: M702 This device complies with part 15 of the FCC rules and industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 3 Model M702 – Internal Photos ANT. connector Page 2 of 3 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn RF Module Page 3 of 3 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn RF Module

TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 47 Reference No. .................... : WTS14S0716841E FCC ID ................................ : SJ8-M702 Applicant ............................ : RDI Technology (Shenzhen) Co., Ltd. Address .............................. : Building C1, Xintang Industrial Park East Baishixia, Fuyong, Baoan, Shenzhen, Guangdong, China Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Digital Wireless 7" Monitor Model No. ........................... : M702 Standards........................... : FCC CFR47 Part 15 Section 15.247:2012 Date of Receipt sample .... : Aug.01, 2014 Date of Test ....................... : Aug.05~10, 2014 Date of Issue ...................... : Aug.12, 2014 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: The same as above Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS14S0716841E Page 2 of 47 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS Band edge 15.247(d) 15.205(a) PASS Conduct Emission 15.207 PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS14S0716841E Page 3 of 47 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................... 5 4.2 DETAILS OF E.U.T. .................................................................................................................................... 5 4.3 CHANNEL LIST ............................................................................................................................................ 5 4.4 TEST FACILITY ............................................................................................................................................ 5 4.5 TEST LOCATION .......................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST ............................................................................................................. 6 5.1 EQUIPMENTS LIST ...................................................................................................................................... 6 5.2 MEASUREMENT UNCERTAINTY .................................................................................................................. 6 5.3 TEST EQUIPMENT CALIBRATION ................................................................................................................ 6 6 CONDUCTED EMISSION ............................................................................................................................... 7 6.1 E.U.T. OPERATION .................................................................................................................................... 7 6.2 EUT SETUP ................................................................................................................................................ 7 6.3 MEASUREMENT DESCRIPTION ................................................................................................................... 7 6.4 CONDUCTED EMISSION TEST RESULT ...................................................................................................... 8 7 RADIATED SPURIOUS EMISSIONS .......................................................................................................... 10 7.1 EUT OPERATION ...................................................................................................................................... 10 7.2 TEST SETUP ............................................................................................................................................. 11 7.3 SPECTRUM ANALYZER SETUP ................................................................................................................. 12 7.4 TEST PROCEDURE ................................................................................................................................... 13 7.5 SUMMARY OF TEST RESULTS .................................................................................................................. 14 8 BAND EDGE MEASUREMENT ................................................................................................................... 17 8.1 TEST PROCE…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 2 Photographs – Model M702 Test Setup Photograph – Conducted Emission Test Setup Photograph – Radiation Spurious Emission Test Setup 32.768kHz~30MHz Page 2 of 2 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 30MHz-1GHz Above 1GHz
