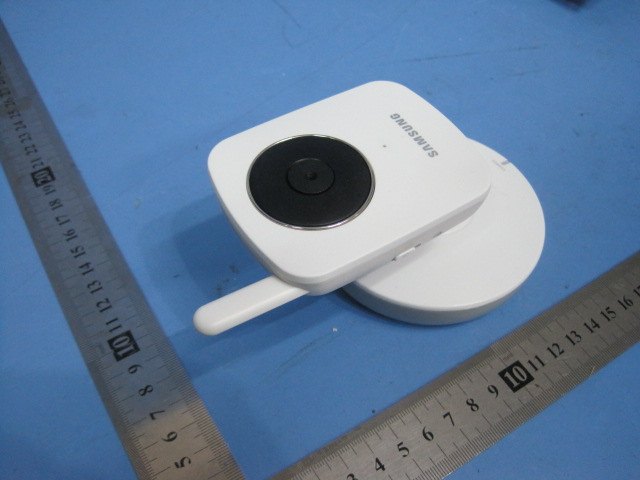

SJ8-SEB-1014RDigital Camera and Monitor System

PORTABLE DIGITAL WIRELESS MONITORING SYSTEM INSTRUCTION MANUAL MODEL: CMD6638 (SEW-3030) 1 Features • Digital wireless technology provides excellent image quality and clarity • Interference free, secure and private signal • Up to 300ft wireless transmission range ① • Listen in with exceptional sound clarity • Safety warning feature notifies you when out of range • System expandable up to 4 cameras ② • Two-way audio communication • Camera side temperature display on monitor • Lullabies ① Maximum open space transmission range. The actual range is dependent upon building materials and other obstructions in path of wireless signal. ② Additional cameras sold separately. Camera Features • VGA resolution camera • Night vision allows for low light viewing up to 10 feet / 3 meters ③ • Built-in microphone and speaker • Camera can be battery operated for true portable wireless operation • Lullabies • Temperature detection ③ IR illumination range of 10ft./3m under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application. Receiver Features •3.5” color LCD monitor/receiver with superior image quality • Video/Audio output for viewing on TV/Monitor or recording on VCR/DVD recorder • Rechargeable lithium polymer battery for true portability • Convenient receiver cradle included • Audio level indicator and alarm • Baby room temperature display Getting Started The system comes with the following components: 2 Check your package to confirm that you have received the complete system, including all components shown above. Wireless Receiver Front/Back Controls 1. LCD Screen – Displays video from the camera. 2. Microphone – Receives sounds from the area near the receiver and transmits sound from the receiver to the camera (only when TALK Button is pressed down and held). 3. SLEEP Button – When the SLEEP button is pressed, the LCD screen is turned off and the system continuously scans all available cameras while the monitor is dark. The scan feature can be used for the following two reasons: (1) to prevent you from being disturbed (i.e. when sleeping) by the bright LCD screen, or (2) to conserve battery power. If audio is detected above the preset audio trigger level on the camera(s)*, the receiver will beep and display the triggered camera. The receiver will return to scan mode about 8 seconds after the alarm has completed. Press A,M,Sleep button cancel sleep mode. 4. Navigation Controls/OK Button – Use the controls in Viewing Mode and Menu Mode. Viewing Mode: The following controls are used while watching live video from the camera: • Press the UP/DOWN ▲▼ arrows to increase or decrease the volume. • Press the LEFT ◄ arrow to view cameras* in automatic switching mode. • Press the RIGHT ► arrow to manually switch between cameras*. Menu Mode: Use the UP/DOWN/LEFT/RIGHT ▲▼◄► arrows to navigate in Menu Mode. Press the OK button to confirm the menu selection. 5. MENU Button – Press to access the receiver menu. Press the button again to exit. 6. Receiver Antenna – receives & sends signals from or to the cameras*. 7. USB Port (Optional Use) – Connect the included USB cable to view video from the receiver on your computer. The software CD is included in the package for the operation on PC. 8. Charging Indication LED – Indicates the built-in battery is in charge when the LED is on. 3 9. DC 5V Power Input – Connect the included DC 5V power adaptor to power the receiver and/or charge the receiver battery (when the receiver is not in the cradle). 10. A/V Out Port (Optional Use) – Connect the included A/V cable to view video from the receiver on a TV or monitor, or record on a DVD recorder/VCR. Alternatively, use the A/V out port on the receiver cradle. NOTE: Using this feature will turn off the LCD screen. The LCD screen will turn back on when the A/V cable is disconnected. 11. / Button – Press the button to start or stop the lullaby. 12.  Button – Press the button to play next lullaby. 13. TALK Button – Press down and hold the button to talk back to the camera currently being displayed on the LCD screen. 14. Power Slide Switch – Slide the switch to ON or OFF position to switch on/off the receiver. 15. SD Card Slot – Insert SD card to this SD card slot for both video and audio recording.(not available for this version) * You must have more than one camera configured on the system when using the functions that requires more than one camera. 16. Alarm +/-Button – Press to increase or decrease the volume of the audio alarm. 17. Night Light Button – Press to remotely turn on/off the night light on the camera (for the camera currently being displayed on the LCD screen). When the night light is on, an indication icon will be displayed on the LCD screen. 18. Antenna Locking Switch – Slide the switch to unlocking position, the receiver antenna will pop up. Then you can adjust the antenna to vertical position for better signal reception. 19. Speaker – Produces the sound transmitted from the camera(s) *. 4 Wireless Receiver Installation Determine if you will be using the receiver cradle, or connecting the cables directly to the receiver before installation: 1. Place the receiver cradle or receiver in a place that will have clear reception with your camera(s). 2. Plug the AC adaptor power output cable into the 5V POWER input of the cradle or receiver. Plug the power plug into a wall outlet or surge protector. 3. Leave the receiver to charge for several hours prior to first time use so the built-in rechargeable receiver battery is fully charged. DO NOT remove the power cable from the receiver / from the cradle during initial charge process. After initial charge, charge the receiver as required. 4. If you wish to view the receiver images on a larger screen, connect the included AV cable to the cradle or receiver, and connect the other end of the cable to the Video IN (Yellow) and Audio IN (White) ports on the TV, VCR or other viewing/recording device. If you wish …
