1 BC240 Wireless 720p HD ClipCam Additional camera QUICK START GUIDE What's included: ! WARNING: STRANGULATION HAZARD STRANGULATION HAZARD‐ Children have accidentally become tangled in cords and been strangled. Please keep all cords out of the reach of children. Use only adapters provided. 2 Product Overview Getting Started 1. Insert AC adapter power plug into the camera’s DC port, plug the other end into a standard indoor power outlet 2. Place the camera in the preferred position (to best optimize the viewing area). You can place it on the table/cabinet, mount it on a wall or use the clip stand to mount it on the crib. (after pairing) 3. To power on the camera, just plug in power adapter. No power switch or button needed. Pairing Pairing allows you to introduce additional cameras to the monitor. 1. Monitor: ‐> You can connect up to 4 cameras to your system 2. Camera: Press Pair button on the back within 30 seconds 3. The camera’s video displays on the monitor when pairing is successful 3 FCC REGULATIONS Part 15 Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021/1/9> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name SJ8BC240 BC240 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Terry zhang/EngineeringManager Company: RDI Technology (Shenzhen) Co., Ltd. Address: 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road, East Baishixia, Fuyong, Baoan,Shenzhen. PRC Phone: 8675527308306 Fax: 8675527308306 E-Mail: [email protected]

RDI Technology (Shenzhen) Co., Ltd. 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road, East Baishixia, Fuyong, Baoan,Shenzhen. PRC Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/1/9 To whom it may concern: We, RDI Technology (Shenzhen) Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: SJ8BC240 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Terry zhang/EngineeringManager Company: RDI Technology (Shenzhen) Co., Ltd. Address: 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road, East Baishixia, Fuyong, Baoan,Shenzhen. PRC Phone: 8675527308306 Fax: 8675527308306 E-Mail: [email protected]

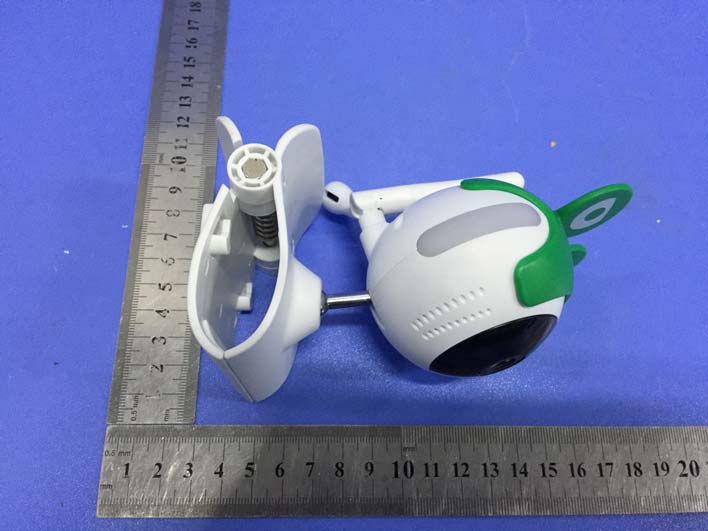

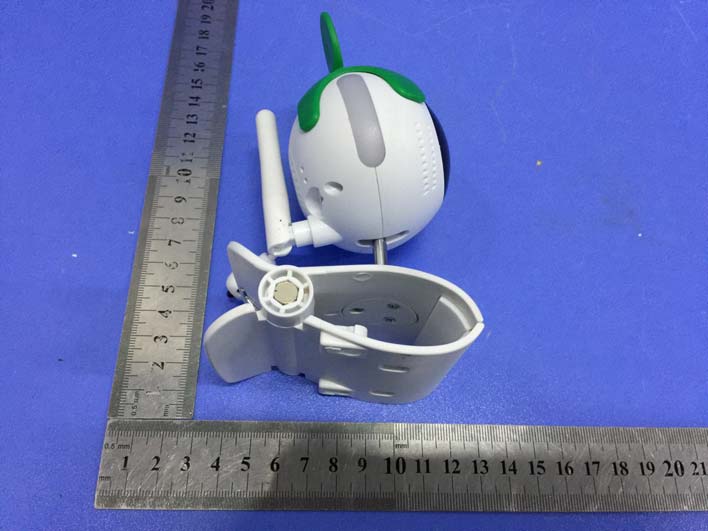

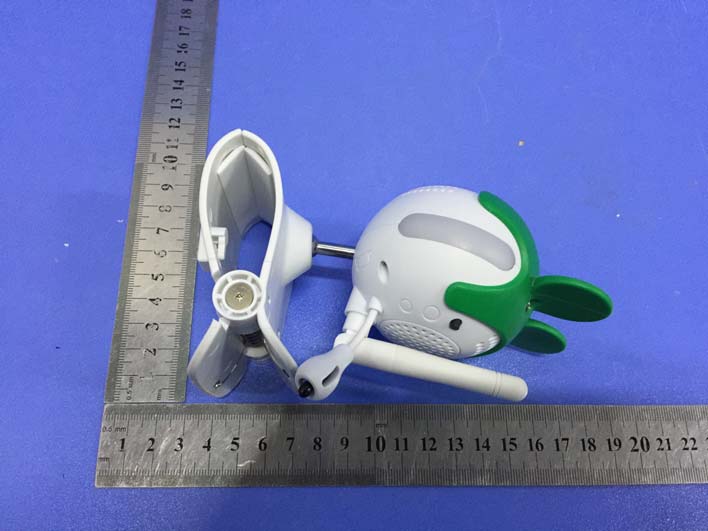

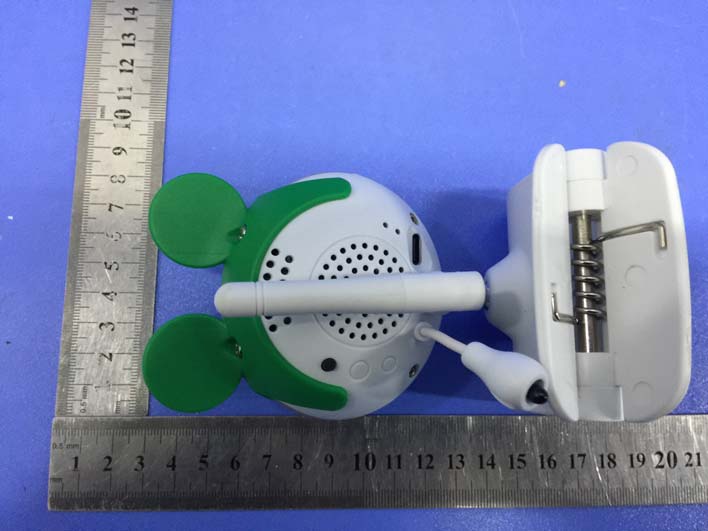

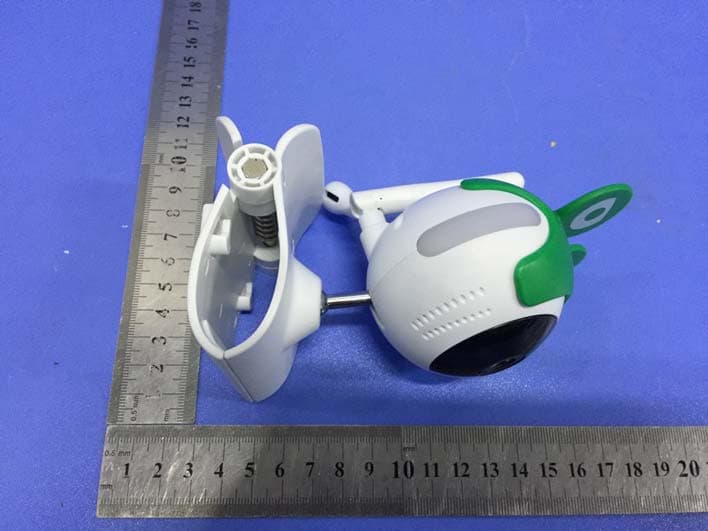

Page: 3 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter Page: 4 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Page: 5 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Page: 6 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT Antenna

Page: 1 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Appendix IFCC ID Label Unit: mm Page: 2 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

Page: 7 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Internal of EUT Page: 8 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Page: 9 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB Page: 10 of 12 FCC ID: SJ8BC240 TB-RF-074-1.0 Photo 15 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE177925 Page: 1 of 3 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: SJ8BC240 1. Client Information Applicant : RDI Technology (Shenzhen) Co., Ltd Address : 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen, PRC Manufacturer : RDI Technology (Shenzhen) Co., Ltd Address : 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen, PRC 2. General Description of EUT EUT Name : Wireless Camera Models No. : BC240 Model Different : N/A Sample ID : 20201215-15-1# & 20201215-15-2# Product Description : Operation Frequency: 2408MHz~2468MHz RF Output Power: 19.129dBm Antenna Gain: 2dBi Dipole Antenna Modulation Type: GFSK (4Mbps) Power Rating : DC 5V from Adapter (Model:CS6F050100FUF) Input: AC 100-240V~50/60Hz, 200mA Output: DC 5.0V, 1.0A Software Version : N/A Hardware Version : N/A Remark : The adapter and antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Report No.: TB-MPE177925 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Monopole Antenna: 2dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Mode Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 2408 19.129 19±1 20 2 20 0.0315 2440 18.816 19±1 20 2 20 0.0315 2468 18.447 19±1 20 2 20 0.0315 Report No.: TB-MPE177925 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For GFSK:2408~2468 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0315mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC177924 Page: 1 of 46 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: SJ8BC240 Original Grant Report No. : TB-FCC177924 Applicant : RDI Technology (Shenzhen) Co., Ltd Equipment Under Test (EUT) EUT Name : Wireless Camera Model No. : BC240 Series Model No. : N/A Brand Name : CasaCam Sample ID : 20201215-15-1# & 20201215-15-2# Receipt Date : 2020-12-18 Test Date : 2020-12-19 to 2021-01-08 Issue Date : 2021-01-08 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Rebeca Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC177924 Page: 2 of 46 TB-RF-074-1.0 Contents IICONTENTS .......................................................................................................................................... 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS AND BAND-EDGE TEST ............................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. NUMBER OF HOPPING CHANNEL .................................................................................... 20 8.1 Test Standard and Limit ..................................................................................…
