SJ8LSP-R1100HOME VIEWER

IntroductionThe LSP-R1000/LSP-R1100 is a combined wireless color camera &video monitor (receiver). A high-resolution color video camera, it includesa built-in motion detector and an audio microphone. An ideal combina-tion for watching the baby, monitoring the porch, pets, yard or the pool. Itis also suited to many small business applications.Features•2 .4 GHz wireless technology • 2.5-inch (LSP-R1000) / 1.8-inch (LSP-R1100) LCD display for goodpicture display. • Plug and play installation • Supports up to 3 cameras. • LCD display can work with 3 modes : Power save, Auto and Manual • Adjustable cycle time between cameras in Auto mode. • The Brightness, Colour, Contrast, Alarm volum and Audio volume canbe adjusted. • PIR sensor function.(LSP-R1000 : Motion sensing, LSP-R1100 : Sound trigger). Package ContentsY our package contains the following: Part Name and FunctionsLCD Monitor Overview a LCD monitor screen.Displays the live image of the selected wireless camera. b Channel indicator.lights green or red when the channel is selected.Blinks when the motion is detected. c Mode select buttons.- P/S : Select when you want to place the system in scan mode. - AUTO : Select when you want to place the system in auto mode. - MANUAL : Select when you want to place the system in manualmode. d Speaker.Y ou can listen to the sounds of the wireless camera. e Power button.Tu rn the LCD monitor On or Off. f Speaker volume adjustment buttons.Adjust the speaker volume level by using the volume buttons. g Alarm volume adjustment button.Adjust the alarm volume of the LCD monitor by tuning the alarm vol-ume tuner. h MENU button.Y ou can select the Brightness, Colour or Contrast setting mode. i v/V buttonss Adjusts the level value of the Brightness, Colour or Contrast. j Audio/Video output jack.Yo u can connect the other display and/or sound device by using supplied AV cable. k DC 9V Power input jack. l Battary case.Y ou can use the LCD monitor without the power supply adapter by using the four AA type batteries or battery pack (optional). Camera Overview a Camara lens. b IR(Infrared Rays) lamp sensor. c Motion sensor. d Microphone.The microphone is included on the camera. e An infrared lamp. f Battary terminal box.Y ou can use the camera without the power supply adapter or battery pack (Supplied for LSP-R1001 only) by using the four AA type bat-tery. g DC 9V Power input jack. Installing the wireless cameraInstalling your camera is a simple process. It can be placed on any hori-zontal surface. 1. Locate the camera on a hori- zontal surface. 2. Plug the power supply into the camera and then to awall outlet. 3. Make adjustments of the camera viewing angle by tilt-ing and panning the camerahead with your hand. 4. Press the POWER button to turn on the camera. Note : Make sure the power adapter cord is long enough to reach yourmounting location. Operating the Wireless Camera SystemMode operation • P/S mode : Press the P/S button on the LCD monitor, the system will bechanged to P/S mode. The LCD monitor screen blanks into astandby mode while the system continuously scans the activecameras. If a camera detects motion, the LCD monitor displaysthe camera picture and the beeper will sounds. Two minutesafter the last detection, the screen returns to standby mode whilethe LCD monitor resumes scanning. Press the MANUAL orAUTO button to cancel this mode. • AUTO mode : Press the AUTO button on the LCD monitor, the system will bechanged to auto mode. The system automatically rotatesthrough all cameras. When a camera detects motion, the LCDmonitor will display the picture from the camera for a few sec-onds and the beeper will sound. To avoid searching channelsthat do not have cameras/transmitters assigned, set the dipswitches for those corresponding channels to the off position.The dwell time(Time taken to switch between cameras) is presetto 4 seconds and can be adjusted between 2-30 seconds. Toadjust the dwell time, press both the AUTO and MANUAL but-tons simutaneously. Each flash of the LED increases the dwelltime by one second. • MANUAL mode : Press the MANUAL button on the LCD monitor to select a spe-cific camera. The LCD monitor will switch to a different cameraeach time the MANUAL button is pressed. When a cameradetects motion, the LCD monitor will display the picture of thecamera for a few seconds, and the beeper will sounds. To avoidsearching channels that do not have cameras assigned, set thedip switches for those corresponding channels to the OFF posi-tion. Menu Operation •Bri ghtness adjustment 1. Press the MENU button repeatedly on the LCD Monitor to select the brightness mode. If the LED in the ENTER buttonis turned green, stop pressing. 2. Adjust brightness level using the v/V buttons. • Blue colour adjustment 1. Press the MENU button repeatedly on the LCD Monitor to select the Colour mode. If the LED in the ENTER button isturned green and fast flicker, stop pressing. 2. Adjust blue colour level using the v/V buttons. • Blue colour adjustment 1. Press the MENU button repeatedly on the LCD Monitor to select the Colour mode. If the LED in the ENTER button isturned green and slow flicker, stop pressing. 2. Adjust red colour level using the v/V buttons. • Contrast adjustment 1. Press the MENU button repeatedly on the LCD Monitor to select the contrast mode. If the LED in the ENTER button isturned off, stop pressing. 2. Adjust contrast level using the v/V buttons. Note:If you press the MENU button, the LED is changed as shown below.T urned green ➔ T urned green and fast flicker ➔ T urned green and slow flicker ➔ T urned off ➔ T runed green. Motion-Sensing CamerasThe cameras are equiped with a motion sensor PIR. When a cameradetects motion, a red light flashes on the camera and an alert sounds onthe LCD monitor. Before Installation• The camera must not faces to direct sunlight or any bright light; oth-erwise, this may cause damage to the camera. •A void viewing areas where half of the area is in bright sunlight and the …

Text truncated - open the document above for the full version.

EUT - Front View EUT - Back View Adapter - Front View Adapter - Back View

FCC ID Label Sample for Model: LSP-R1100 FCC ID: SJ8LSP-R1100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID: SJ8LSP-R1100 This device complies with Part 15 of the FCC Rules. Operation is

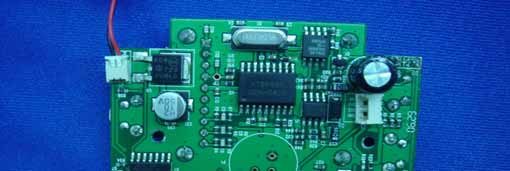

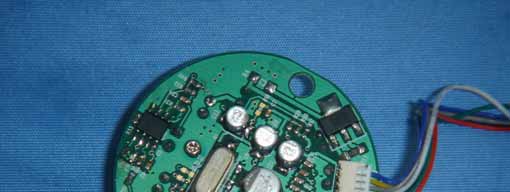

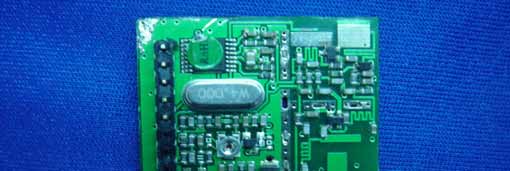

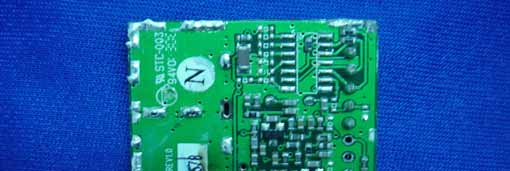

PCB1 - Front View PCB1 - Back View PCB2 - Front View PCB2 - Back View PCB3 - Front View PCB3 - Back View PCB4 - Front View PCB4 - Back View

R1100 Wireless Camera Aug, 27th, 2006 Architecture R1100 Wireless camera includes high quality video and audio components. When combined with R1000 Receiver, you have an ideal combination for watching the baby, monitoring the porch, pets, yard or the pool. It is also suite to many small business applications. R1100 wireless camera hardware architecture is show in Figure 1. 1> The camera is base on a single-chip COMS Monochrome camera sensor (OV7910) provide a high quality video, built-in an audio microphone,IR LED for night vision and audio alert when audio detected 2> The 2.4GHz TX module is assigned to transmit the video and audio signal wirelessly. 3> MCU (Micro control unit) operates periodically. Including scan the switch to select the RF module channel and audio detected control
