CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021/1/12> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name SJ8VS2000R VS2000R For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Terry zhang/EngineeringManager Company: RDI Technology (Shenzhen) Co., Ltd. Address: 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC Phone: 8675527308306 Fax: 8675527308306 E-Mail: [email protected]

RDI Technology (Shenzhen) Co., Ltd. 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC Date: 2021/1/12 FCC ID: SJ8VS2000R Model Number: VS2000R To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, RDI Technology (Shenzhen) Co., Ltd., declare that this EUT (FCC ID: SJ8VS2000R) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Terry zhang/EngineeringManager Company: RDI Technology (Shenzhen) Co., Ltd. Address: 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC Phone: 8675527308306 Fax: 8675527308306 E-Mail: [email protected]

RDI Technology (Shenzhen) Co., Ltd. 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/1/12 To whom it may concern: We, RDI Technology (Shenzhen) Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: SJ8VS2000R including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Terry zhang/EngineeringManager Company: RDI Technology (Shenzhen) Co., Ltd. Address: 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC Phone: 8675527308306 Fax: 8675527308306 E-Mail: [email protected]

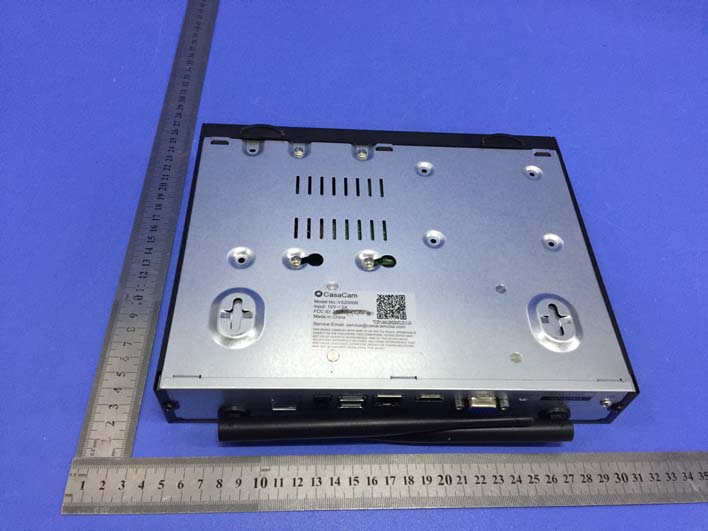

Page: 3 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter Page: 4 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Page: 5 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT TX Antenna RX Antenna Page: 6 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT

Page: 1 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Appendix IFCC ID Label Unit: mm Page: 2 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

Page: 7 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Internal of EUT Page: 8 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Page: 9 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Photo 13 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE177921 Page: 1 of 3 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID:SJ8VS2000R 1. Client Information Applicant : RDI Technology (Shenzhen) Co., Ltd Address : 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC Manufacturer : RDI Technology (Shenzhen) Co., Ltd Address : 101 to 401, Building 1, and Building 2, No. 7 Yongyue Road,East Baishixia, Fuyong, Baoan, Shenzhen. PRC 2. General Description of EUT EUT Name : Network Video Recorder Models No. : VS2000R Model Different : N/A Sample ID : 20201217-17_1-01& 20201217-17_1-02 Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz RF Output Power: 802.11b: 16.55dBm 802.11g: 10.04dBm 802.11n(HT20): 10.25dBm 802.11n(HT40): 13.43dBm Antenna Gain: 5dBi Dipole Antenna Modulation Type: 802.11b: DSSS(CCK, DQPSK, DBPSK) 802.11g/n:OFDM(BPSK,QPSK,16QAM,64QAM) Power Rating : DC 12V from Adapter(CS-1202000): Input: AC 100-240V, 50/60Hz 1.5A Max. Output: DC 12V, 2A Software Version : N/A Hardware Version : N/A Remark : The adapter and antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Report No.: TB-MPE177921 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Dipole Antenna: 5dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 802.11b 1 2412 16.36 16±1 17 5 20 0.0315 2437 16.55 16±1 17 5 20 0.0315 2462 16.23 16±1 17 5 20 0.0315 802.11g 1 2412 10.04 10±1 11 5 20 0.0079 2437 10.04 10±1 11 5 20 0.0079 2462 9.28 10±1 11 5 20 0.0079 802.11n (HT20) 1 2412 10.25 10±1 11 5 20 0.0079 2437 10.16 10±1 11 5 20 0.0079 2462 9.93 10±1 11 5 20 0.0079 802.11n (HT40) 1 2422 13.27 13±1 14 5 20 0.0158 2437 13.34 13±1 14 5 20 0.0158 2452 13.43 13±1 14 5 20 0.0158 Note: (1) N TX = Number of Transmit Antennas (2) RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TB-MPE177921 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For GFSK:2412~2462 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0315mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC177920 Page: 1 of 79 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: SJ8VS2000R Original Grant Report No. : TB-FCC177920 Applicant : RDI Technology (Shenzhen) Co., Ltd Equipment Under Test (EUT) EUT Name : Network Video Recorder Model No. : VS2000R Series Model No. : N/A Brand Name : CasaCam Sample ID : 20201217-17_1-01& 20201217-17_1-02 Receipt Date : 2020-12-28 Test Date : 2020-12-29 to 2021-01-11 Issue Date : 2021-01-12 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Rebeca Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC177920 Page: 2 of 79 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. BANDWIDTH TEST ................................................................................................................. 20 8.1 Test Standard and Limit .................................…

Text truncated - open the document above for the full version.

Page: 10 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Page: 11 of 11 FCC ID: SJ8VS2000R TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
