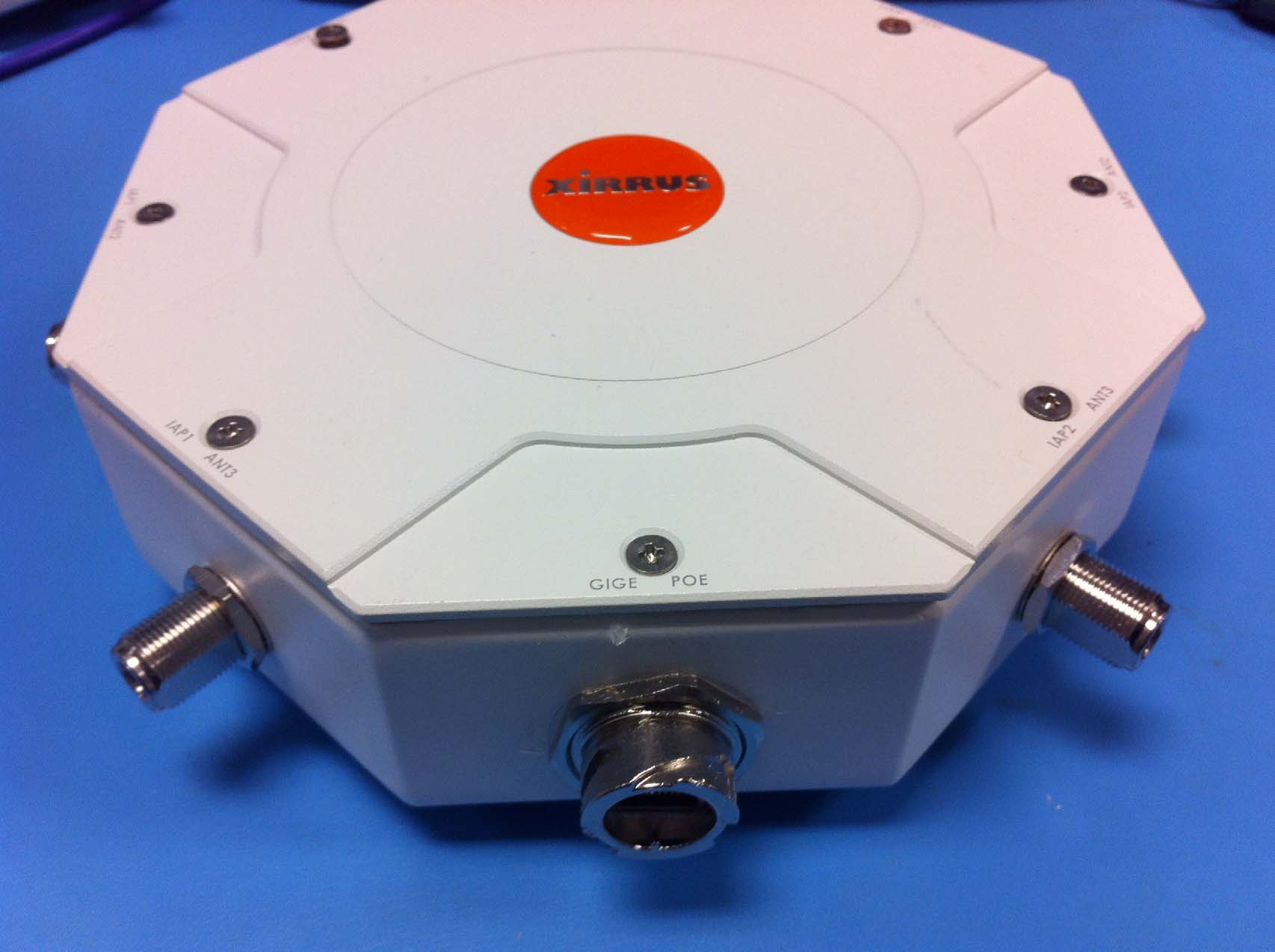

SK6-XR1000H802.11abgn (3x3) access point for outdoor installations

Quick Installation Guide for XR-1000H Series Wireless Arrays November, 2012 XR-1000H Quick Installation Guide is a registered trademark of Xirrus, Inc. All other trademarks and brand names are marks of their respective holders. All rights reserved. This document may not be reproduced or disclosed in whole or in part by any means without the written consent of Xirrus, Inc. Document Part Number: 812‐0085‐003, Revision B, Novembe r, 2012 XR-1000H Quick Installation Guide - i - CONTENTS 1) You Need the Following Items ........................................................................................................ 1 2) Choose a Suitable Location .............................................................................................................. 1 3) Prepare the Mounting Location ....................................................................................................... 2 4) Install the Mounting Plate ................................................................................................................ 2 5) Mount the Array on a Pole or Wall ................................................................................................. 3 5a) Pole Mounting .............................................................................................................................. 3 5b) Wall Mounting ............................................................................................................................. 5 6) Ground to Earth Ground .................................................................................................................. 5 7) Install an Antenna.............................................................................................................................. 6 8) Prepare the Ethernet Cable with the Waterproof Shell ................................................................ 6 9) Connect the Cables ............................................................................................................................ 7 10) Log In to the Array .......................................................................................................................... 8 11) Configure the Array ........................................................................................................................ 9 12) Secure Low Level Access to the Array ....................................................................................... 10 Drawings ............................................................................................................................................... 11 XR‐1230H Dimensions .................................................................................................................... 11 Mounting Bracket Dimensions ....................................................................................................... 12 Customer Support ................................................................................................................................ 12 Notices, Warnings, & Compliance Statements ................................................................................ 12 Notices ............................................................................................................................................... 12 Warnings ........................................................................................................................................... 14 WiFi Alliance Certification ............................................................................................................. 15 Federal Communications Commission (FCC) Statements & Instructions ............................... 15 Industry Canada Statements and Warnings ................................................................................ 17 EU Directive 1999/5/EC Compliance Information ....................................................................... 18 RF Exposure ...................................................................................................................................... 21 Software License and Product Warranty Agreement ..................................................................... 24 Hardware Warranty Agreement ........................................................................................................ 28 XR-1000H Quick Installation Guide - ii - XR-1000H Quick Installation Guide - 1 - XR-1000H Quick Installation Guide The XR‐1000H Series Hardened Wireless Array provides Xirrus Array technology in a hardened case for installation outdoors and in other harsh environments. This guide describes how to install the XR‐1000H on a pole or wall and execute the initial power up of the Array. The pole or wall can be a structure that is installed at ground level or on a roof. The XR‐1000H is not compatible with other Xirrus mounting options. For additional information, see the Wireless Array User’ s Guide. This document is intended ONLY for XR‐1000H model Arrays. For other XR models, please see the Quick In stallation Guide for that Array family. 1) You Need the Following Items ƒ Accessory Kit (included in each Wireless Array carton) contains mounting bracket and short ground wire. ƒ Appropriate tools, bands, screws, and/or anchors required for the desired mounting location. (not provided with the Array) ƒ Workstation with a Web browser to configure the Wireless Array. ƒ RJ‐45 Ethernet connection(s) to your wired network. ƒ Power—XR‐1000H Arrays are powered via Power over Gigabit Ethernet (PoGE) using an Ethernet Cat 5e or Cat 6 cable that also carries data traffic. You must provide a network connection and Ethernet cable run from a Xirrus PoGE Power Injector port for the Array Gigabit port. The Xirrus PoGE Power Injector requ ires an AC outlet. Use only Xirrus‐ supplied PoGE injectors. See the PoGE Installation Guide for more information. XR‐1000H Arrays are powered by one injector port rated at 33W …

Text truncated - open the document above for the full version.

FCC RE: Application for FCC ID: SK6-XR1000H To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for an 802.11abgn (3x3) access point for outdoor installations pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47), Intentional Radiators Subpart E of Part 15 of FCC Rules (CFR 47), UNII Devices The design is based on the same 3x3 radio module that has been previously approved under FCC ID: SK6XI-N450. There are two antenna options available. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark E. Hill Staff Engineer Page 1 of 1

DFS Expedite Request Applicant: Xirrus FCC ID: SK6‐XR1000H Previously Granted: SK6XI‐N450 in the XR4000 host (4/8 radio host system), XR6000, XR1000 and XR2000 systems New device: SK6‐XR1000H which uses two modified SK6XI‐N450 modules in an outdoor hosts system. Technology: 802.11abgn, 3x3 radio, supports 20 and 40 MHz bandwidths Unchanged Bandwidths: 20 and 40MHz Unchanged Antenna: Antenna structure is integral to the module New higher gain external antennas Original antennas: 4dBi internal antennas New antennas: Terrawave, M6060060MO1D33607, three element, 2.4GHz ‐ 4 dBi, 5GHz ‐ 6dBi, Vertically polarized L‐Com, HG2458‐14DP‐3NF, three element (two vertical/one horizontal), 2.4GHz ‐ 14dBi, 5GHz ‐ 14dBi. Note ‐ the L‐com antenna will be used with RF cabling. Minimum cable loss is 5dB for 2.4GHz, and 8dB for 5GHz. The lowest gain antenna in the DFS bands would be the Terrawave, @ 6dBi. This was used during the DFS testing performed. Differences in DFS functioning, circuitry, software: The original module was modified to allow for external antenna connections. The integrated antenna was removed and SMA connectors were added to allow connections to the external antennas. The radio module driver and radio function software has not changed. The DFS software is unchanged. Differences between products: The CPU board is exactly the same CPU used on the XR1000. The radio boards were modified as explained above to allow connection to a external antennas. The enclosure was completely redesigned and made from metal to survive in an outdoor environment. Original testing performed by Elliott Labs New device tested by Elliott labs Sincerely, Mark E. Hill Staff Engineer, NTS Silicon Valley

November 19, 2012 DFS Expedite Request Applicant: Xirrus FCC ID: SK6‐XR1000H Previously Granted: SK6XI‐N450 in the XR4000 host (4/8 radio host system), XR6000, XR1000 and XR2000 systems New device: SK6‐XR1000H which uses two modified SK6XI‐N450 modules in an outdoor hosts system. Technology: 802.11abgn, 3x3 radio, supports 20 and 40 MHz bandwidths Unchanged Bandwidths: 20 and 40MHz Unchanged Antenna: Antenna structure is integral to the module New higher gain external antennas Original antennas: 4dBi internal antennas New antennas: Terrawave, M6060060MO1D33607, three element, 2.4GHz ‐ 4 dBi, 5GHz ‐ 6dBi, Vertically polarized L‐Com, HG2458‐14DP‐3NF, three element (two vertical/one horizontal), 2.4GHz ‐ 14dBi, 5GHz ‐ 14dBi. Note ‐ the L‐com antenna will be used with RF cabling. Minimum cable loss is 5dB for 2.4GHz, and 8dB for 5GHz. The lowest gain antenna in the DFS bands would be the Terrawave, @ 6dBi. This was used during the DFS testing performed. Differences in DFS functioning, circuitry, software: The original module was modified to allow for external antenna connections. The integrated antenna was removed and SMA connectors were added to allow connections to the external antennas. The radio module driver and radio function software has not changed. The DFS software is unchanged. Differences between products: The CPU board is exactly the same CPU used on the XR1000. The radio boards were modified as explained above to allow connection to a external antennas. The enclosure was completely redesigned and made from metal to survive in an outdoor environment. Original testing performed by Elliott Labs New device tested by Elliott labs Sincerely, Mark E. Hill Staff Engineer, NTS Silicon Valley

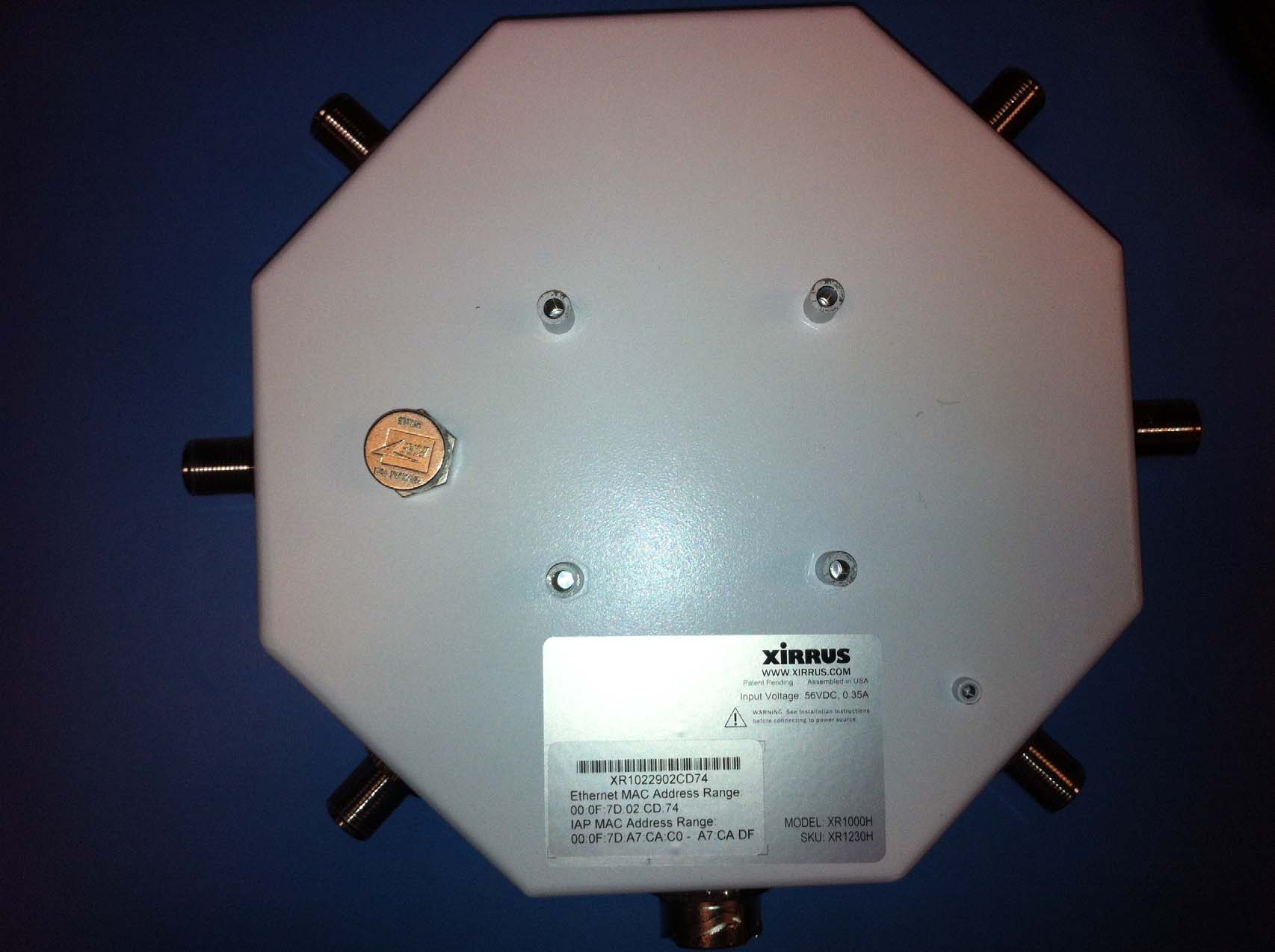

Engineering Approvals Label for XR‐1000H

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration No XirrusJob Number: J86948 Model: XR1000 Outdoor (3x3 radio modules) T-Log Number: T86967 Account Manager: Michelle Kim Steve Smith FCC 15.247, 15.E, RSS-210Class: N/A Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 10/26/2012 Test Engineer: Mark Hill Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Device complies with Power Density requirements at 20cm separation: 23.2 20cm separation: If not, required separation distance (in cm): Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. T86967 (FCC_IC_Radio).xlsMPE CalcPage 1 of 2 EMC Test Data Client: Contact: Standard: XirrusJob Number: J86948 Model: XR1000 Outdoor (3x3 radio modules) T-Log Number: T86967 Account Manager: Michelle Kim Steve Smith FCC 15.247, 15.E, RSS-210Class: N/A Use: General Antenna: 2.4GHz - 9dBi per chain (13.8dBi effective) 5GHz - 6dBi per chain (10.8dBi effective) Note: Operation limited to one radio operating in the 2.4GHz band and one in a 5GHz band Used for Multi ple Transmitters Peak AveragedBmWWdBm 2400 - 2483.5 OFDM21.9-13.835.73.715 2401 - 2483.5 CCK-19.113.832.91.950 5250 - 5350 OFDM17.110.827.90.61740.000#NUM! 5470 - 5725 OFDM16.410.827.20.52540.000#NUM! 5725 - 5850 OFDM24.0-10.834.83.020513.02034.80 26 73538 28 BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP 1113.71535.70 Ttl26.73538.28 EIRP mW 6735.30 For the cases where S > the MPE Limit Fre q. MHz - mW/cm^2mW/cm^2S <= MPE Limit 1.3401.00023.2cm 1.3401.000 S @ 20 cmMPE LimitDistance where Totals: Power Densit y (S)MPE Limit at 20 cmat 20 cm mW/cm^2mW/cm^2 T86967 (FCC_IC_Radio).xlsMPE CalcPage 2 of 2

File: R87948 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15, Subpart E Model: XR1000 Outdoor Unit IC CERTIFICATION #: FCC ID: APPLICANT: Xirrus, Inc. 2101 Corporate Center Dr. Newbury Park, CA 91320 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 REPORT DATE: August 3, 2012 FINAL TEST DATES: April 9, 11, 12, 18, 23 and 24 and May 1 and 2, 2012 TOTAL NUMBER OF PAGES: 148 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark E Hill David Guidotti Staff Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: August 3, 2012 File: R87948 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 08-03-2012 First release NTS Silicon Valley -- EMC Department Test Report Report Date: August 3, 2012 File: R87948 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 4 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 UNII / LELAN DEVICES ........................................................................................................................................ 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 9 MEASUREMENT UNCERTAINTIES .................................................................................................................. 10 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 11 GENERAL .............................................................................................................................................................. 11 OTHER EUT DETAILS ......................................................................................................................................... 11 ANTENNA SYSTEM ............................................................................................................................................ 11 ENCLOSURE ......................................................................................................................................................... 11 MODIFICATIONS ................................................................................................................................................. 11 SUPPORT EQUIPMENT ....................................................................................................................................... 12 EUT INTERFACE PORTS .................................................................................................................................... 12 EUT OPERATION ................................................................................................................................................. 12 TEST SITE ................................................................................................................................................................. 13 GENERAL INFORMATION ................................................................................................................................. 13 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 13 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................. 13 MEASUREMENT INSTRUMENTATION ............................................................................................................ 14 RECEIVER SYSTEM ............................................................................................................................................ 14 INSTRUMENT CONTROL COMPUTER ............................................................................................................ 14 LINE IMPEDA…

Text truncated - open the document above for the full version.

File: R87949 Rev. 1 Page 1 of 93 TEST REPORT Covering the DYNAMIC FREQUENCY SELECTION (DFS) REQUIREMENTS OF FCC Part 15 Subpart E (UNII), RSS-210 Annex 9 Xirrus Inc. Model(s): XR1000 Outdoor COMPANY: Xirrus Inc. 2101 Corporate Center Drive Thousand Oaks, CA, 91320 TEST SITE: NTS Silicon Valley 41039 Boyce Road Fremont, CA 94538 REPORT DATE: August 3, 2012 FINAL TEST DATE: May 30, 31 and June 7, 2012 TEST ENGINEER: Mehran Birgani, David Bare and Wayne Fisher PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark Hill David Guidotti Reviewer's Title Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: August 3, 2012 REVISION HISTORY Rev # Date Comments Modified By 1.0 08-03-2012 First Release - File: R87949 Rev. 1 Page 2 of 93 NTS Silicon Valley -- EMC Department Test Report Report Date: August 3, 2012 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 LIST OF TABLES ....................................................................................................................................................... 3 LIST OF FIGURES ..................................................................................................................................................... 5 SCOPE .......................................................................................................................................................................... 6 OBJECTIVE ................................................................................................................................................................ 6 STATEMENT OF COMPLIANCE ........................................................................................................................... 7 DEVIATIONS FROM THE STANDARD ................................................................................................................ 7 TEST RESULTS .......................................................................................................................................................... 8 TEST RESULTS SUMMARY – FCC PART 15, MASTER DEVICE ..................................................................... 8 MEASUREMENT UNCERTAINTIES .................................................................................................................... 9 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 10 GENERAL .............................................................................................................................................................. 10 ENCLOSURE ......................................................................................................................................................... 10 MODIFICATIONS ................................................................................................................................................. 10 SUPPORT EQUIPMENT ....................................................................................................................................... 11 EUT INTERFACE PORTS .................................................................................................................................... 11 EUT OPERATION ................................................................................................................................................. 11 RADAR WAVEFORMS ........................................................................................................................................... 12 DFS TEST METHODS ............................................................................................................................................. 13 RADIATED TEST METHOD ............................................................................................................................... 13 DFS MEASUREMENT INSTRUMENTATION .................................................................................................... 15 RADAR GENERATION SYSTEM ....................................................................................................................... 15 CHANNEL MONITORING SYSTEM .................................................................................................................. 16 DFS MEASUREMENT METHODS ....................................................................................................................... 17 DFS RADAR DETECTION BANDWIDTH ......................................................................................................... 17 DFS – CHANNEL CLOSING TRANSMISSION TIME AND CHANNEL MOVE TIME ..........…

Text truncated - open the document above for the full version.
