SLA-EBB0109WIRELESS HANDSET WITH BASE

Wireless Handset With Base EBB0109 User Manual V4 Turning your EBB0109 ON & OFF-- --------------------------------------------------------------- ON Press and hold the MFB Button for 3 seconds, and the Blue LED will light 1 second. The EBB0109 will automatically connect to the previously paired Bluetooth enabled phone. If the connecting is fail, the Blue LED will flash twice per 5 seconds. The EBB0109 will enter Idle mode. And it will automatically turn off if EBB0109 don’t connect to any Bluetooth device in 4 minutes. OFF Press the MFBButton for 4 seconds, and the Red LED will light 1 second. Pairing --------------------------------------------------------------------------------------- 1. In power Off Mode, Press and hold the MFB Button until you see the Blue and Red LED alternately flash. If a Bluetooth enabled phone or others device don’t connect to the EBB0109,then it will automatically turn OFF in 2 minutes. 2. Follow your Bluetooth enabled cell phone’s instructions for searching for Bluetooth device. 3. After a successful search the Bluetooth device will be shown on your mobile phone, chose “EBB0109” and confirm. 4. Maybe ,your mobile will request for a password, please enter “0000” 5. If it’s successful. EBB0109 will stop flashing Red LED and light 1 time per 5S. Quick Connect ------------------------------------------------------------------------------------- Press and realse the MFB button in 1 second. The EBB0109 will try connecting to the previously paired Bluetooth enabled phone. If the connecting is fail, the Blue LED will flash twice per 5 seconds. The EBB0109 will enter Idle mode. Last Number Redail ------------------------------------------------------------------------------ When EBB0109 is paired with a Bluetooth enabled phone , Quick press twice the MFB button then release it in 1 second to Redial the previously dialed the phone number on the phone. Voice Dial ----------------------------------------------------------------------------------------- When EBB0109 is paired with a Bluetooth enabled phone , Quick press the MFB button then realese it in 1 second to start-up a voice dial. If you speaker a voice tag(for example a personal name) ,the phone will dial out a corresponding phone number. Answering A CALL --------------------------------------------------------------------------- When there is an incoming call ,press the MFB button then realese it in 1 second to anwer the call. Reject A CALL-------------------------------------------------------------------------------- When there is an incoming call ,press and hold the MFB button for 2 secnods to reject the call. End A CALL ---------------------------------------------------------------------------------- When the EBB0109 is in talking or outgoing call states, press the MFB button then realese it in 1 second to end the call. Transfer Audio between Phone or EBB0109 ------------------------------------------------------- When the EBB0109 is in talking states, press and hold the MFB button for 2 seconds to transfer audio between the phone or EBB0109. Controlling Volume ------------------------------------------------------------------------------ Press the VOL+ or VOL- buttons to adjust the volume . Charging battery ---------------------------------------------------------------------------------- Put EBB0109 on the charger base and connecting the charging point with base, then you plug the USB cable for charging base,the EBB0109 will be Reset. But you can power-on it again in charging state. Others: It will automatically turn off if EBB0109 don’t connect to any Bluetooth device in 3.5 minutes. Specifications-------------------------------------------------------------------------------------- Model Name EBB0109 Compliant Bluetooth Specification V2.1+EDR Carrier Frequency 2402 MHz to 2480 MHz ModulationMethod GFSK,1Mbps,0.5BTGaussian Bluetooth Class Class 2 Hopping 1600hops / sec, 1MHz Channel Space Transmit Power 1dBm (typical) Coverage Range 10m Receiver Sensitivity -82 dBm/ 0.1% BER Weight 52 g Dimension (mm) 40 ( W ) x 160 ( L ) x 11 ( T ) mm Charging Voltage DC 5.0 V Charging Time Less than 2 Hours OperatingTemperature -10° to+50°C StorageTemperature -20° to+80°C Battery...........................................Rechargable 3.7V 150mAh Li-PoLy. Speaker............................................8Ohm/1W. Microphone........................................-42dB/2.2V. Standby time .....................................Up to 200 hours. Talking time.......................................Up to 6 hours. Charging time......................................Less than 2 hours. Charging Voltage..................................5V DC(USB) Frequency Range...................................2402Mhz---2480Mhz. Operating Temperature.............................-10------50°C Storage Temperatur.............................................-20----70°C Item min. Type.max. unit remark Charging inputvoltage 4.7 5 V Operating voltage 3.0 3. 7 V Talking 25 35 Current consumsuption Stand-by - 0.655 mA Charging time - 1.8 - hour Warning: Changes or modifications made to this device not expressly approved by DEPO Manufacturing Corp., Ltd. may void the FCC authorization to operate this device.

DEPO Manufacturing Corp., Ltd. 1206, BLOCK A Electronic Science & Technology Building,2070 Shennan Zhonglu,Shenzhen, Guangdong Province, China Tel: +86-755-83781163 Fax: +86-755-83780483 AGENCY AUTHORIZATION LETTER FCC ID: SLA-EBB0109 Date: Dec. 11, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec. 10, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, DEPO Manufacturing Corp., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ------------------- Maggie He/ Manager Assistant DEPO Manufacturing Corp., Ltd. Tel Number: (86)-755-83781163 Fax Number: (86)-755-83780483

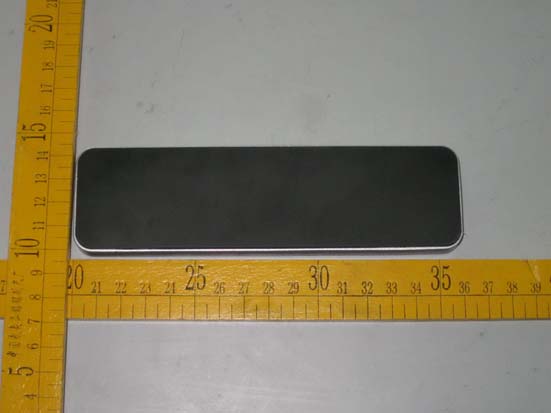

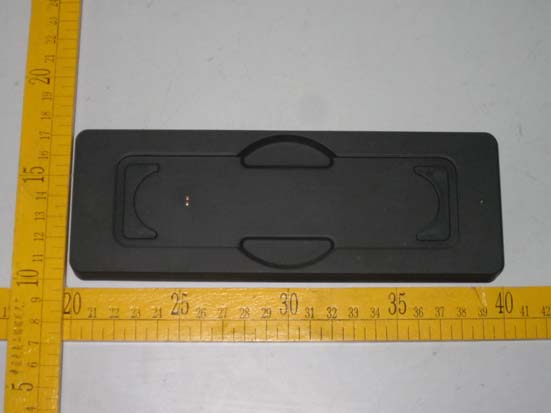

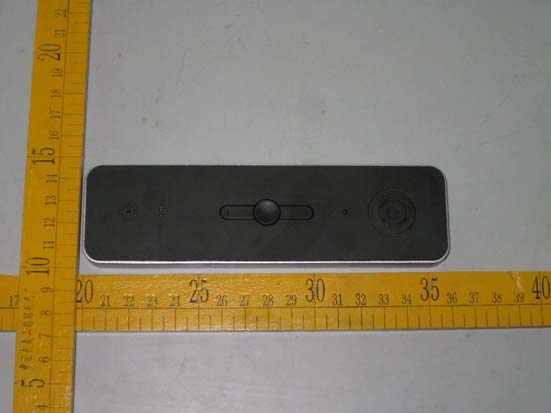

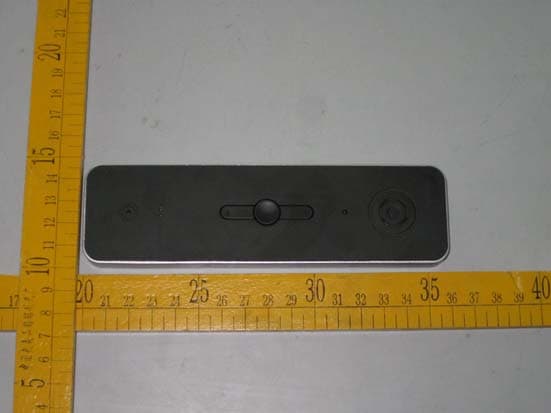

6. External and Internal Photos of the EUT External Photos Handset Charger Base

FCC ID Label Information 1. Label location: 2. FCC ID Label: DEPO Manufacturing Corp., Ltd. Model: EBB0109 FCC ID: SLA-EBB0109 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Handset Charger Base

Operation Description Model no.: EBB0109 The 16 MHz crystal oscillator drives the base of IC the final/buffer amplifier. The modulation provided by BC6130. The output of IC has the matching network consisting of U224C32 L2 F1 and C20,C16,C15, C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a PCB antenna There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.7 Volt (“4.8mm*12mm*21mm” size battery 150mAH) primary battery Operation Descriptions The transmitter is a Bluetooth radio operating at 2400MHz ISM band. The transmitter is powered by a 3.7V battery (“4.8mm*12mm*21mm” size battery 150mAH) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse / amplitude / frequency modulating signal on the 1MHz carrier frequency. Remarks: The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC; and type is GFSK modulation.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:1-Jan-2003 Sheet of File:C:\Documents and Settings\Administrator\桌面\BC6130.DDBDrawn By: 8 8 1 1 2 2 3 3 4 4 5 5 6 6 7 7 F1 L1 1.8NH L2 15NH C3 15P C2 5.6PF C1 NC ANT 1V5 VSS 49 SPKR_P 4 SPKR_N 3 MIC_P 1 MIC_N 2 AU_REF 5 LO_REF 15 LED(0) 29 LED(1) 28 MIV_BIAS 47 XTAL_IN 13 XTAL_OUT 14 VDD_ANA 12 VDD_RADIO 6 VDD_LO 9 VDD_CORE 30 VDD_AUDIO 48 VDD_PADS(1) 43 VDD_PADS(0) 20 VREGENABLE_L 10 VREGIN_L 11 VREGOUT_H 31 VREGIN_H 32 VREGNABLE_H 33 SMP_SENSE 34 LX 35 BAT_P 36 VDD_CHG 37 PIO(0) 24 PIO(3) 21 PIO(2) 22 PIO(1) 23 PIO(8) 44 PIO(7) 45 PIO(6) 46 PIO(11) 27 SPI_CLK 39 SPI_MISO 41 SPI_MOSI 38 SPI_CS# 40 SPI_DEBUG_EN 42 UART_TX 19 UART_RX 18 TEST_EN 25 RST# 26 AIO(0) 17 AIO(1) 16 RF_P 7 RF_N 8 U1 BC6130 QFN SPK_P SPK_N C4 15pF C5 15pF 1 2 SPK CON1 C6 150nF C8 15pF C7 150nF C9 15pF R1 2.2K L3 15nH R2 1K C10 2.2uF MIC1 C13 47nF C12 22nF R3 820R R4 510R LED1 Blue LED0 Red VBAT 31 24 Y1 16MHz C15 6.8p C16 18p R5 100K TH1 100K PIO_3 Q1 2N7 C17 220nF R7 220K VBUS R6 10K 1V9 1 TP2 SPI_CLK 1 TP3 SPI_MISO 1 TP5 SPI_CS# 1 TP4 SPI_MOSI CLK MISO MOSI CSB CSB MOSI MISO CLK VDD_PADS R12 10K SW3 音量- R11 10K SW2 音量+ PIO_1 PIO_2 E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 U2 M24C32 R13 4.7K R14 4.7K R15 4.7K 1V9 C18 100nF PIO_8 PIO_7 PIO_6 PIO_6PIO_7PIO_8PIO_1PIO_2 VBUS C19 4.7uF VBAT C20 10uF 1 2 BAT CON2 L6 22uH C21 4.7uF 1V5 PWR VBAT 1V9 R16 2.2R C22 2.2uF 1V5 VDD_PADS C23 100nF 1V9 C24 47nF 1V5 R17 2.2R C25 2.2uF C26 15pF C27 22nF L5 0R PIO_3 1 TP6 1V9 1 TP7 TX 1 TP8 RX R10 10K SW1 MFB1 PWR VBAT C30 100nF

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No......................: CTL11118800-S-WF Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Dec. 19, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: DEPO Manufacturing Corp., Ltd. Address.............................................: 1206, BLOCK A Electronic Science & Technology Building, 2070 Shennan Zhonglu, Shenzhen, Guangdong Province, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless handset with base Trade Mark .......................................: / Models/Type reference.....................: EBB0109, EBB0107, EBB0110 Modulation .......................................: GFSK Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: PCB Antenna FCC ID .............................................: SLA-EBB0109 Result................................................: Positive V1.0 Page 2 of 22 Report No.: CTL11118800-S-WF T E S T R E P O R T Test Report No. : CTL11118800-S-WF November 1, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless handset with base Model /Type : EBB0109(Under test in the report) Listed Models : EBB0107, EBB0110 Applicant : DEPO Manufacturing Corp., Ltd. Address : 1206, BLOCK A Electronic Science & Technology Building, 2070 Shennan Zhonglu, Shenzhen, Guangdong Province, China Manufacturer DEPO Manufacturing Corp., Ltd. Address 1206, BLOCK A Electronic Science & Technology Building, 2070 Shennan Zhonglu, Shenzhen, Guangdong Province, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 22 Report No.: CTL11118800-S-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 5 2.7. Modifications 5 3. TEST ENVIRONMENT............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 6 3.4. Configuration of Tested System 6 3.5. Statement of the measurement uncertainty 7 3.6. Equipments Used during the Test 7 4. TEST CONDITIONS AND RESULTS ............................................. 8 4.1. Conducted Emissions Test 8 4.2. Radiated Emission Test 11 4.3. Band Edge Measurement 16 5. TEST SETUP PHOTOS OF THE EUT .......................................... 18 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 19 V1.0 Page 4 of 22 Report No.: CTL11118800-S-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2003 V1.0 Page 5 of 22 Report No.: CTL11118800-S-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec. 1, 2011 Testing commenced on : Dec. 1, 2011 Testing concluded on : Dec. 5, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless Bluetooth handset with base work at 2400~2483.5 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer ● - supplied by the lab ● Notebook Computer Manufacturer : DELL Model No. : PP26L 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: SLA-EBB0109 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing c…

Text truncated - open the document above for the full version.

5. Test Setup Photos of the EUT
