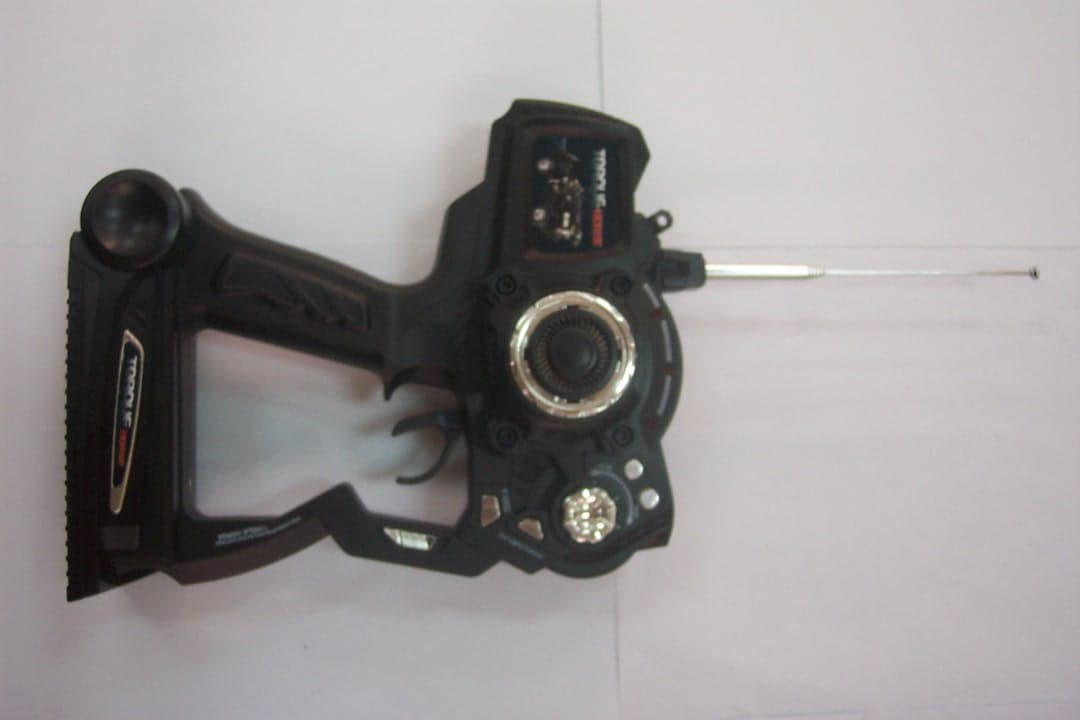

SLATGC0141Remote Control Toy Transmitter

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

FCC ID Location FCC ID Label Sample FCC ID: SLATGC0141 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

R/C transmitter: The 3 ICs are control functional remote encoder ICs, they are work with transistor Q3, Q4,Q5 and other components combined as RF transmitter circuit. The ICs control left, right, backward, forward, speeds and encoding signal output respectively. Data output from ICs and modulate with 27.145MHz oscillator that achieved by X1,Q2, R22, R23, R17, R26, C13, C11, and L4. RF power amplifier Q1, L2, C6, C8, C9 and C are use to enlarge the transmission range, the output frequency through L3. This unit makes use of an external flexible 80 centimeters long antenna.. Energy is supply with a 12-volt battery.

Report No.: GLEMO040901449RFF Page: 1 of 11 FCC ID: SLATGC0141 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO040901449RFF (SGS SZ No.:SZTYR040905198/TS) Applicant: DEPO Manufacturing Corp.Ltd. FCC ID: SLATGC0141 Fundamental Carrier Frequency : 27.145 MHz Equipment Under Test (EUT): Name: R/C CAR Model: TGC0141 Standards: FCC PART 15, SUBPART C : 2002 Section 15.227 Date of Receipt: 4 September 2004 Date of Test: 9 and 22 September 2004 Date of Issue: 7 October 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: SLATGC0141 Report No.: GLEMO040901449RFF Page:2 of 11 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test RequirementStanadard ParagraphResult Radiated Emission FCC PART 15 :2003 Section 15.227 (a) (b) PASS Occupied Bandwith Measurement FCC PART 15 :2003 ANCI 63.4 PASS The EUT passed the Radiated Emission test after modification as shown as below: (1): Added one ‘C’ for ‘ANT’ C: 30Pf FCC ID: SLATGC0141 Report No.: GLEMO040901449RFF Page:3 of 11 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 TEST SUMMARY.................................................................................................................................................... 2 3 CONTENTS .............................................................................................................................................................. 3 4 GENERAL INFORMATION.................................................................................................................................. 4 4.1 CLIENT INFORMATION............................................................................................................................................ 4 4.2 DETAILS OF E.U.T. ................................................................................................................................................. 4 4.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................................... 4 4.4 TEST LOCATION...................................................................................................................................................... 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 4 4.6 TEST FACILITY........................................................................................................................................................ 5 5 TEST RESULTS....................................................................................................................................................... 6 5.1 TEST INSTRUMENTS................................................................................................................................................ 6 5.2 E.U.T. OPERATION................................................................................................................................................. 6 5.3 TEST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 5.3.1 Radiated Emissions ...................................................................................................................................... 6 5.3.2 Occupied Bandwidth .................................................................................................................................... 8 5.3.3 Photographs - Radiated Emission Test Setup in Chamber ..........................................................................9 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................10-11 FCC ID: SLATGC0141 Report No.: GLEMO040901449RFF Page:4 of 11 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant Name: DEPO Manufacturing Corp.Ltd. Applicant Address: 2105, 21/F, Block A, Electronic Science & Technology Building.2070 Shennan Zhonglu, Shenzhen, P.R. China 4.2 Details of E.U.T. Product Name: R/C CAR Model: TGC0141 Power Supply: 12V DC (8 x 1.5 ‘AA’ Size Batterie…
