SMC-7K5Smart projector

Quick Start Guide EN Thanks for the recognition of the JMGO projector, what is presented to you is one of our proudest works. We believe that when the product is on, you can also feel our passion for it. This product is not just an audio-visual device, we hope it can give ordinary walls more room for imagination and become important companion in your life. Over the past ten years, we have focused on core component development and continuously improved product experience, and have grown into a leading company in the smart projector and laser TV industries. If you like this product, welcome to share its using experience, so that more people can join the big family of JMGO. Founder of JMGO Eric Hu Thank You Letter • Read this product manual thoroughly before attempting to use this product. Store the product manual in a safe location so it may be referenced at any time. •Do not look directly into the light source lens of the device, as intense light may damage your eyes. • When the projector is working, do not block the projection lens with any object. • If you encounter an issue with the product, do not attempt to disassemble it without authorization. Contact professional after-sales personnel to resolve the issue. Safety Notice Chairman Certificate of Conformity CERTIFICATE INSPECTED 1-1 Scope of Delivery Projector Body Remote Control Power Adapter Quick Start Guide AAA Battery x 2 1-2 Quick Start Guide 1.Slide down to open the back cover, and then install 2 AAA batteries. 2.Insert new batteries matching the polarity (+/-) and close the battery compartment. 1-3 Remote Control Power On/Off Direction Keys Return Menu Settings YouTube Netflix Google Assistant Confirm Home Volume Input Source Prime Video 1 2 3 4 5 6 7 8 9 10 11 12 13 10 11 12 13 *After the projector is turned on, press and hold the and the on the remote control for 3 seconds at the same time to enter Bluetooth pairing. Product Manual Power Button 1-4 Projector Body Type-c Power Port Reset Pin Hole HDMI (ARC) USB 1-5 Charging and Power On white light • Before first use, please use the included adapter to fully charge the projector. • Power on: The power button is a physical button, short press to power on. • JMGO App is a mobile application for multi-screen interaction with JMGO projector. Using JMGO App can help you obtain better projection experience. • Mobile phone for remote control—the mobile phone is also a remote control with JMGO App, and the projection remote control is more convenient. Download and Install of "JMGO App" Safety Warning: This product contains the bulit-in battery.lt is forbidden to disassemble, impact against or squeeze the product or throw it into the fire. In case of serious swelling, DO not continue using the product.lt is forbidden to use the product if the battery is soaked in water. Avoid placing the product in a high-temperature environment.Do not use any damaged chargers or batteries.RG1 IEC 62471-5:2015 Google TV is the name of this device's software experience and a trademark of Google LLC. Google and YouTube are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Availability of services varies by country and language. 1-6 2.1m 2.6m 3.2m 1.0m Projection Size & Distance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This projector complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20cm between the radiator and user body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This remote has been evaluated to meet general RF exposure requirement. This remote can be used in portable exposure condition without restriction. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by [licensee name] is under license. Other trademarks and trade names are those of their respective owners Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. 1-7 EU Declaration Conformity Hereby, SHENZHEN HOLATEK CO., LTD. declares that this device is in compliance with the essential requirements and other relevant pro…

Text truncated - open the document above for the full version.

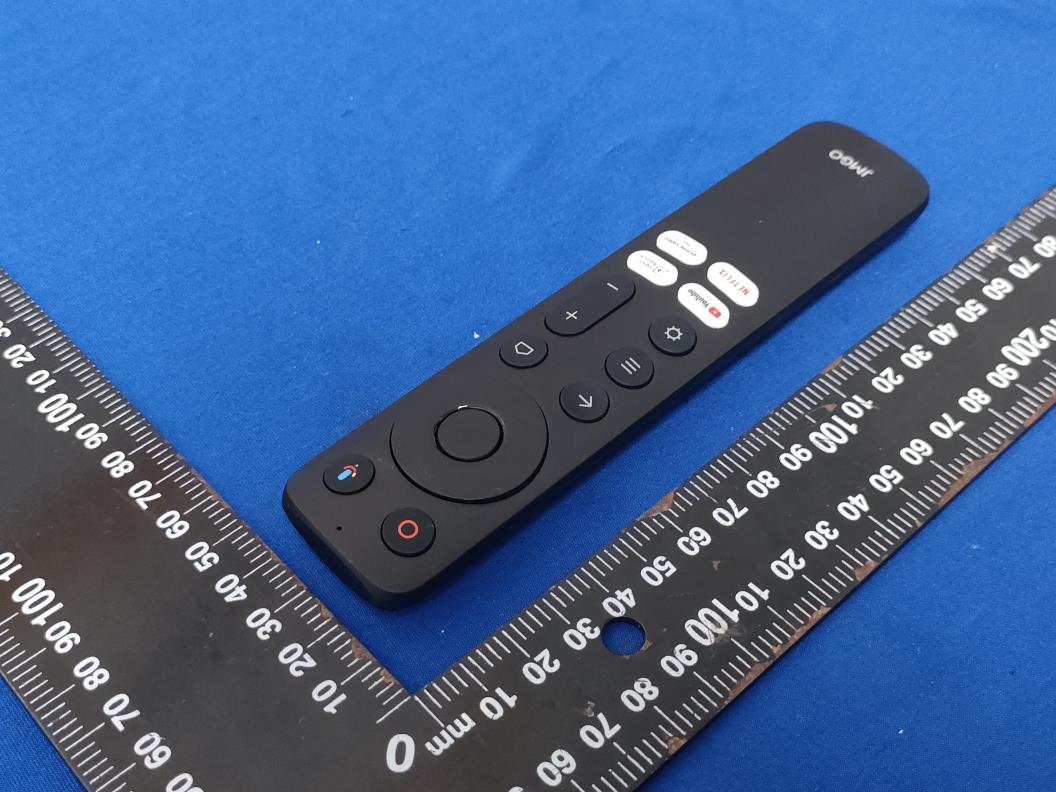

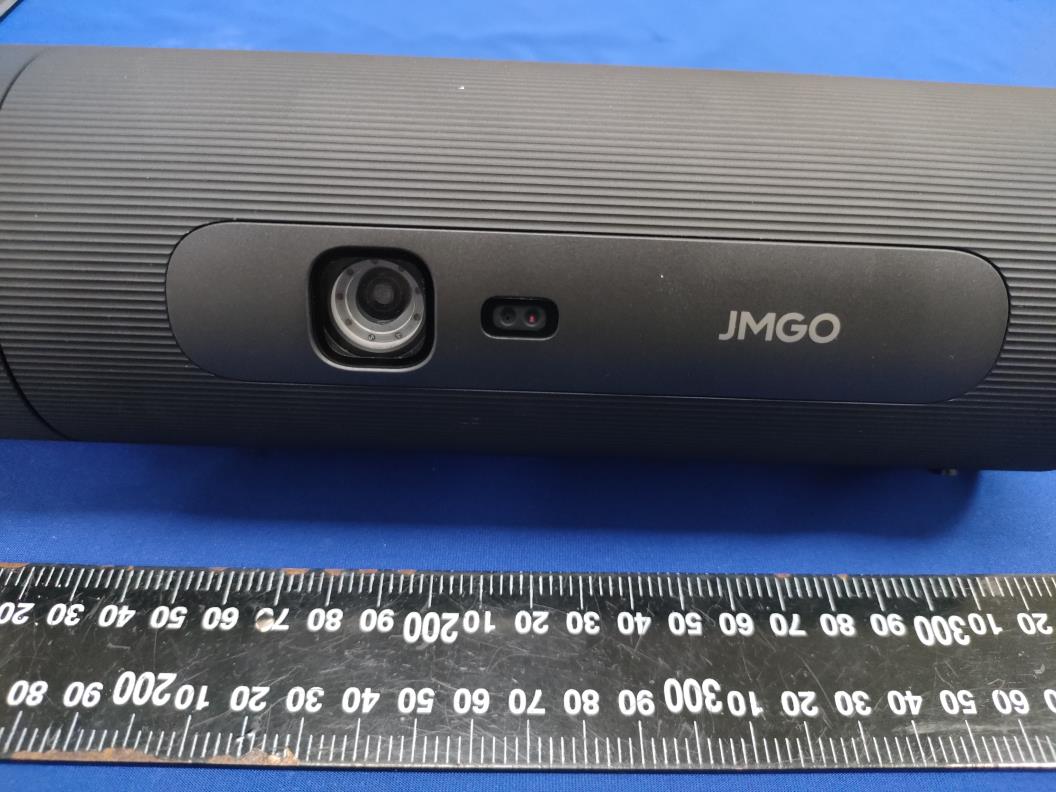

CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 1 of 7 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 2 of 7 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 3 of 7 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 4 of 7 7) EUT Photo 8) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 5 of 7 9) EUT Photo 10) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 6 of 7 11) EUT Photo 12) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 7 of 7 13) EUT Photo 14) EUT Photo

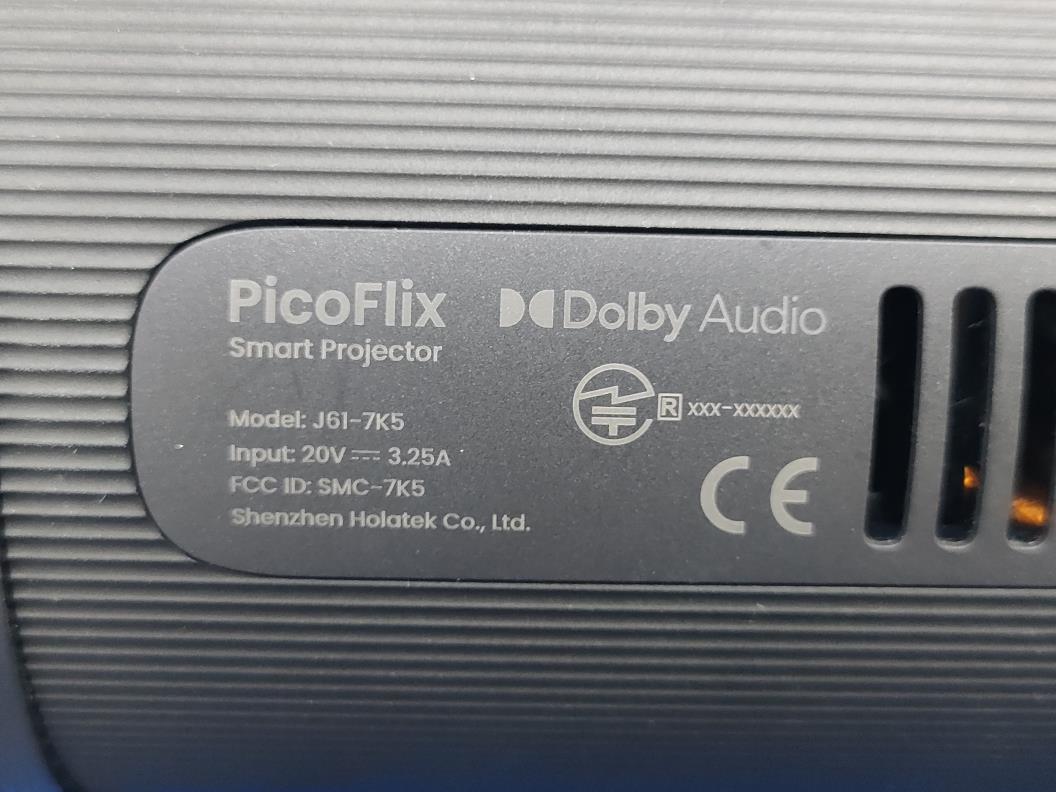

Label content Label laser engraving Position Label laser engraving Position

CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 1 of 15 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 2 of 15 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 3 of 15 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 4 of 15 7) EUT Photo 8) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 5 of 15 9) EUT Photo 10) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 6 of 15 11) EUT Photo 12) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 7 of 15 13) EUT Photo 14) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 8 of 15 15) EUT Photo 16) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 9 of 15 17) EUT Photo 18) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 10 of 15 19) EUT Photo 20) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 11 of 15 21) EUT Photo 22) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 12 of 15 23) EUT Photo 24) EUT Photo (BT ANT) CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 13 of 15 25) EUT Photo 26) EUT Photo (WIFI ANT A) CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 14 of 15 27) EUT Photo 28) EUT Photo (WIFI ANT B) CERPASS TECHNOLOGY CORP. Report No.: 24060213 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 Page No. : 15 of 15 29) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 1 of 7 FCC RF EXPOSURE REPORT Applicant : Shenzhen Holatek Co., Ltd. Address : #12,Building 1,Chongwen Park, Nanshan Zhiyuan,3370 Liuxian Ave, Nanshan District, Shenzhen, China. Equipment : Smart projector Model No. : J61-7K5, J61-7K6, J61-7K7, J61-7K8, J61-7KR, J61-7KS, J61-7KT, J61-7KU, J61-7KV, J61-7KW, J61-7KX, J61-7KY, J61-7KZ Trade Name : JMGO FCC ID. : SMC-7K5 I HEREBY CERTIFY THAT: The sample was received on Jul. 08, 2024 and the testing was completed on Jul. 19, 2024 at Cerpass Technology Corp.The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Leevin Li / Supervisor CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 2 of 7 Contents 1. Test Configuration of Equipment under Test ........................................................................................... 4 1.1 Feature of Equipment ............................................................................................................................... 4 1.2 General Information of Test ....................................................................................................................... 5 2. Radio Frequency Exposure ....................................................................................................................... 6 CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 3 of 7 History of this test report Version No. Report No Date Description Rev.01 24060213-DRFCC07 Jul. 22, 2024 Initial Issue CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 4 of 7 1.Test Configuration of Equipment under Test 1.1 Feature of Equipment Equipment Smart projector Model Name J61-7K5, J61-7K6, J61-7K7, J61-7K8, J61-7KR, J61-7KS, J61-7KT, J61-7KU, J61-7KV, J61-7KW, J61-7KX, J61-7KY, J61-7KZ Model Discrepancy All models are identical to each other except for appearance color. Model J61-7K5 is the representative for final test. Frequency Range BT/BLE/ WIFI 2.4G: 2400MHz-2483.5MHz WIFI 5G: 5150MHz-5250MHz, 5250MHz-5350MHz, 5470MHz -5725MHz, 5725MHz -5850MHz Modulation Type BT: GFSK, π/4-DQPSK, 8DPSK BLE: GFSK 2.4GHz 802.11b: CCK, DQPSK, DBPSK 802.11g/n: BPSK, QPSK, 16QAM, 64QAM 5GHz 802.11a/n: BPSK, QPSK, 16QAM, 64QAM 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM Data Rate BT: GFSK:1Mbps, π/4-DQPSK: 2Mbps, 8DPSK:3Mbps BLE: GFSK: 1Mbps, 2Mbps, 125kbps, 500kbps WIFI 2.4GHz: 802.11b: 1, 2 ,5.5,11Mbps 802.11g: 6,9,12,18,24,36,48,54Mbps 802.11n: MCS0-MCS15, HT20/HT40 WIFI 5GHz: 802.11a: 6,9,12,18,24,36,48,54Mbps 802.11n: MCS0-MCS15, HT20/HT40 802.11ac: MCS0-MCS9, VHT20/40/80 Working Temperature 0°C to 35°C EUT Power Rating: DC 20V supplied by adapter DC 7.3V from Battery Adapter Spec. Mode: XY-PD065U75 Input: 100-240V~ 50/60Hz 1.5A Max Output: 5V ⎓3A, 9V ⎓3A, 12V ⎓3A, 15V ⎓3A, 20V ⎓3.25A 65.0W Note: 1.The EUT not support TPC Function. 2.EUT support Client mode without radar detection. 3.For more details, please refer to the User’s manual of the EUT. CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 5 of 7 1.2 General Information of Test Test Site Cerpass Technology Corporation(Cerpass Laboratory) Address: Room 102, No. 5, Xing'an Road, Chang'an Town, Dongguan City, Guangdong Province Tel: +86-769-8547-1212 Fax: +86-769-8547-1912 FCC Designation No.: CN1288 Frequency Range Investigated: Conducted: from 150kHz to 30 MHz Radiation: from 9kHz to 40,000MHz Test Distance: The test distance of radiated emission from antenna to EUT is 3 M. CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 6 of 7 2. Radio Frequency Exposure Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A TEST RESULTS No non-compliance noted. Calculation Given d GP E  = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S  = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) /100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S  =   = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC07 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-511-0 V1.1 Page No. : 7 of 7 Maximum Permissible Exposure Bluetooth Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm2) Limit (mW/cm2) 2402-2480 (BR/EDR) 8.866 9.87 1.4 20 0.003 1 2402-2480 (BLE) 7.68 8.68 1.4 20 0.002 1 Wlan Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm2) 2412-2462 25.54 26.54 1.70 20 0.133 5150-5250 15.23 16.23 3.00 20 0.017 5250-5350 14.58 15.58 3.20 20 0.015 5470-5725 14.26 15.26 3.17 20 0.014 5725-5850 15.50 16.50 3.50 20 0.020 Maximum Permissible Exposure (Co-location) the sum of the ratios of the spatially averaged results to the appli…

Text truncated - open the document above for the full version.

Sample Confirmation Letter Supplier Name：SHENZHEN YINGJIACHUANG TECHNOLOGY ELECTRONIC CO. LTD Material Name: WiFi1 2.4G/5.8G Black FPC built-in Antenna（C61A） Material No.： 23040312 / Material Description： / Version: _______A0______ Drawing Version：_______A0______ Supplier Approved This needs to be stamped, and each acknowledgment letter needs to be stamped with a riding seal. Shenzhen Holatek Approved R&D/Engineering Quality Approved Product Center R&D Supply-Chain Center Quality Management Department Yin FeiJie Yang YunGang Xiao Han Address：Building C, Hongyu Guangming Valley, No. 11, Shiwei Community, Matian Office, Guangming District, Shenzhen Phone：+86-755-27810060/23192199 Fax：+86-0755-27810057 第 2 页 共 15 页 Directory Page Content 1 Cover 2 Directory 3 Product drawings 4 Specification 5 Process Flow Diagram 6 BOM list 7 Performance testing reports 8 SGS Environmental Protection Report for Raw Materials 第 3 页 共 15 页 Product drawings： 第 4 页 共 15 页 Specification： Electrical Specifications Frequency Range 2400-2500/5150-5850MHz VSWR ＜2.0 Input Impedance 50 Ω Direction All Gain(2.4G) 1.6 dBi Gain(5.1G) 3.0 dBi Gain(5.8G) 3.5 dBi Mechanical Specifications Cable Color Black Input connector XD Cable length 65mm (Total Length) Working Temperature -20°C~+70°C Working Humidity 20%~80% Environmental performance test: Project Test condition Standard Storage Conditions In the absence of specified test temperature, humidity, air pressure is as follows: 1.Temperature is - 20 °C ~ + 70 °C 2.Relative humidity of 45% to 85% 3.Air pressure is 86 kpa to 106 kpa Electrical and mechanical properties is normal High and low temperature test Between 70 °C and -20 °C for 5 loops, then 1- 2 h under normal conditions, check the appearance quality. Size should meet the requirements and should satisfy the content with the electrical and mechanical properties Constant damp and hot resistance test 95 + / - 3% relative humidity, temperature test: 40 °C. Lasts 2 h after, try to take out the determination of electrical properties, within 5 min after try 1-2 h under article normal thing, check the appearance quality Size should meet the requirements and should satisfy the content with the electrical and mechanical properties vibration test Vibration frequency range: 10-55 Hz, vibration frequency range of displacement amplitude: 0.35 MM, acceleration amplitude: 50.0 M/S, sweep cycles: 30 times Electrical and mechanical properties is normal Fall down test 1 m high altitude in accordance with the perpendicular axis free drop 3 times Electrical and mechanical properties is normal 第 5 页 共 15 页 第 6 页 共 15 页 Process Flow Diagram Cut Cable/ Terminating Weld Test Quality inspection Packaging 第 7 页 共 15 页 BOM list FPC、Cable、Terminal、PE packaging bag、Carton 第 8 页 共 15 页 Performance testing reports： Antenna physical image： Antenna performance test chart： Frequency （MHZ） 2400 2450 2500 5150 5725 5850 VSWR（dB） 1.56 1.65 1.93 1.65 1.64 1.55 第 9 页 共 15 页 WIFI 1 and WIFI 2 isolation test diagram WIFI 1 and BT isolation test diagram Frequency （MHz） 2400 2450 2500 5150 5725 5850 WIFI1 and BT isolation (dB) -40 -31 -30 -36 -29 -39 WIFI1 and WIFI2 isolation (dB) -33 -29 -29 -22 -28 -33 第 10 页 共 15 页 2D、3D test data (WIFI 1)： Frequency Efficiency (%) Gain.(dBi) 2400MHz 35.21 1.54 2410MHz 32.33 1.45 2420MHz 38.42 1.52 2430MHz 34.27 1.47 2440MHz 36.24 1.48 2450MHz 34.45 1.57 2460MHz 36.93 1.60 2470MHz 34.91 1.46 2480MHz 34.60 1.58 2490MHz 35.21 1.47 2500MHz 34.40 1.51 5150MHz 41.44 2.94 5250MHz 40.43 3.00 5350MHz 35.27 3.20 5450MHz 41.96 3.17 5550MHz 43.37 3.16 5650MHz 41.27 3.16 5750MHz 42.28 3.04 5850MHz 40.40 3.50 Phi 0 2D : Phi 90 2D Theta 90 2D 第 11 页 共 15 页 3D 2400： 3D 2450： 3D 2500： 第 10 页 共 15 页 3D 5150： 3D 5500： 3D 5850： 第 11 页 共 15 页 OTA active test data： Item Measurement Band Channel Frequency Total 1 TRP WIFI_B (11M) 1 2412 10.97 2 TRP WIFI_B (11M) 6 2437 11.01 3 TRP WIFI_B (11M) 11 2462 11.58 4 TIS(EIRP) WIFI_B (11M) 1 2412 -74.82 5 TIS(EIRP) WIFI_B (11M) 6 2437 -76.84 6 TIS(EIRP) WIFI_B (11M) 11 2462 -75.49 7 TRP WIFI_G (54M) 1 2412 9.73 8 TRP WIFI_G (54M) 6 2437 9.17 9 TRP WIFI_G (54M) 11 2462 8.85 10 TIS(EIRP) WIFI_G (54M) 1 2412 -62.83 11 TIS(EIRP) WIFI_G (54M) 6 2437 -63.79 12 TIS(EIRP) WIFI_G (54M) 11 2462 -63.32 13 TRP WIFI_N_ISM (65M) 1 2412 13.2 14 TRP WIFI_N_ISM (65M) 6 2437 10.84 15 TRP WIFI_N_ISM (65M) 11 2462 10.05 16 TIS(EIRP) WIFI_N_ISM (65M) 1 2412 -57.88 17 TIS(EIRP) WIFI_N_ISM (65M) 6 2437 -58.88 18 TIS(EIRP) WIFI_N_ISM (65M) 11 2462 -58.52 19 TRP WIFI_A (54M) 36 5180 14.39 20 TRP WIFI_A (54M) 149 5745 13.95 21 TRP WIFI_A (54M) 165 5825 13.18 22 TIS(EIRP) WIFI_A (54M) 36 5180 -74.12 23 TIS(EIRP) WIFI_A (54M) 149 5745 -73.03 24 TIS(EIRP) WIFI_A (54M) 165 5825 -74.48 Material RoHS conformity declaration form This is to certify that the delivery to your company's components, raw materials, auxiliary materials used and the additives in the production engine ord with RoHS environmental requirements of the restrictions on the use of hazardous substances directive (RoHS directive 2011/65 / EC) About components used raw materials, packaging materials, auxiliary materials and additives used in the production process such as composition of the report is as follows： Component /Part Name Material Composition ICP report # Test Org. Test Date Content of harmful substances (ppm) PASS? Cd Pb Hg Cr 6+ PBB PBDE PASS FPC Ink ETR23701480 SGS 23/07/13 ND ND ND ND ND ND PASS 3M9471LE SHAEC23021627701 SGS 23/12/27 ND ND ND ND ND ND PASS Cooper foil A2240082746101006E CTI 24/03/01 ND ND ND ND ND ND PASS Wire Series Coaxial Cables CANEC24002746206 SGS 24/02/23 ND ND ND ND ND ND PASS Terminal Copper CANEC24000977302 SGS 24/01/22 ND 6 ND ND ND ND PASS Au plating A2230400553101001E CTI 23/08/12 ND ND ND ND ND ND PASS Rubber core ETR23705931 SGS 23/08/04 ND ND ND ND ND ND PASS Enviro nmenta lly friend ly Tin wire Environmenta lly friendly Tin wire SZXEC23001647204 SGS 23/07/28 ND 63 ND ND ND ND PASS Tube Tube CANEC24001723028 SGS 24/01/29 ND…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC06 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 D-FD-501-0 V1.1 Page No. : 1 of 24 FCC DFS TEST REPORT Applicant : Shenzhen Holatek Co., Ltd. Address : #12,Building 1,Chongwen Park, Nanshan Zhiyuan,3370 Liuxian Ave, Nanshan District, Shenzhen, China. Equipment : Smart projector Model No. : J61-7K5, J61-7K6, J61-7K7, J61-7K8, J61-7KR, J61-7KS, J61-7KT, J61-7KU, J61-7KV, J61-7KW, J61-7KX, J61-7KY, J61-7KZ Trade Name : JMGO FCC ID : SMC-7K5 I HEREBY CERTIFY THAT: The sample was received on Jul. 08, 2024 and the testing was completed on Jul. 19, 2024 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Leevin Li /Supervisor CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC06 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 D-FD-501-0 V1.1 Page No. : 2 of 24 CONTENTS 1. Summary of Test Procedure and Test Results ...................................................................................... 4 1.1. Applicable Standards ................................................................................................................. 4 2. Test Configuration of Equipment under Test ......................................................................................... 5 2.1. Feature of Equipment under Test ............................................................................................... 5 2.2. Description of Test System ......................................................................................................... 6 2.3. General Information of Test ........................................................................................................ 7 2.4. Measurement Uncertainty .......................................................................................................... 7 3. Test Equipment and Ancillaries Used for Tests ..................................................................................... 8 4. Antenna Requirements ......................................................................................................................... 9 4.1. Standard Applicable ................................................................................................................... 9 4.2. Antenna Construction and Directional Gain ............................................................................... 9 5. Dynamic Frequency Selection ............................................................................................................ 10 5.1. List of Measurement and Examinations ................................................................................... 10 5.2. Test Setup ................................................................................................................................ 12 5.3. DFS Detection Threshold ......................................................................................................... 14 5.4. Channel Availability Check Time .............................................................................................. 15 5.5. Radar Burst at the Beginning of the Channel Availability Check Time .................................... 16 5.6. Radar Burst at the End of the Channel Availability Check Time .............................................. 17 5.7. U-NII Detection Bandwidth ....................................................................................................... 18 5.8. Statistical Performance Check ................................................................................................. 19 5.9. In-Service Monitoring ............................................................................................................... 20 5.10. Non-Occupancy Period ............................................................................................................ 22 CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC06 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 D-FD-501-0 V1.1 Page No. : 3 of 24 History of this test report Version No. Report No Date Description Rev.01 24060213-DRFCC06 Jul. 19, 2024 Initial Issue CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC06 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 D-FD-501-0 V1.1 Page No. : 4 of 24 1. Summary of Test Procedure and Test Results 1.1. Applicable Standards ANSI C63.10:2013 FCC Rules and Regulations Part 15 Subpart E §15.407 KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D03 Client Without DFS New Rules v01r02 FCC Rule Description of Test Result 15.407 Dynamic Frequency Selection PASS *The lab has reduced the uncertainty risk factor from test equipment, environment and staff technicians which according to the standard on contract. Therefore, the test result will only be determined by standard requirement. CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC06 CERPASS TECHNOLOGY CORP. Issued date : Jul. 22, 2024 D-FD-501-0 V1.1 Page No. : 5 of 24 2. Test Configuration of Equipment under Test 2.1. Feature of Equipment under Test Equipment Smart projector Model Name J61-7K5, J61-7K6, J61-7K7, J61-7K8, J61-7KR, J61-7KS, J61-7KT, J61-7KU, J61-7KV, J61-7KW, J61-7KX, J61-7KY, J61-7KZ Model Discrepancy All models are identical to each other except for appearance color. Model J61-7K5 is the representative for final test. Frequency Range BT/BLE/ WIFI 2.4G: 2400MHz-2483.5MHz WIFI 5G: 5150MHz-5250MHz, 5250MHz-5350MHz, 5470MHz -5725MHz, 5725MHz -5850MHz Modulation Type BT: GFSK, π/4-DQPSK, 8DPSK BLE: GFSK 2.4GHz 802.11b: CCK, DQPSK, DBPSK 802.11g/n: BPSK, QPSK, 16QAM, 64QAM 5GHz 802.11a/n: BPSK, QPSK, 16QAM, 64QAM 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM Data Rate BT: GFSK:1Mbps, π/4-DQPSK: 2Mbps, 8DPSK:3Mbps BLE: GFSK: 1Mbps, 2Mbps, 125kbps, 500kbps WIFI 2.4GHz: …

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC05 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-513-0 V1.1 Page No. : 1 of 214 FCC RADIO TEST REPORT Applicant : Shenzhen Holatek Co., Ltd. Address : #12,Building 1,Chongwen Park, Nanshan Zhiyuan,3370 Liuxian Ave, Nanshan District, Shenzhen, China. Equipment : Smart projector Model No. : J61-7K5, J61-7K6, J61-7K7, J61-7K8, J61-7KR, J61-7KS, J61-7KT, J61-7KU, J61-7KV, J61-7KW, J61-7KX, J61-7KY, J61-7KZ Trade Name : JMGO FCC ID : SMC-7K5 Standard : FCC part 15 Subpart E §15.407 I HEREBY CERTIFY THAT: The sample was received on Jul. 08, 2024 and the testing was completed on Jul. 19, 2024 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Leevin Li /Supervisor CERPASS TECHNOLOGY CORP. Report No.: 24060213-DRFCC05 Cerpass Technology Corp. Issued date : Jul. 22, 2024 D-FD-513-0 V1.1 Page No. : 2 of 214 CONTENTS 1. Summary of Test Procedure and Test Results ...................................................................................... 5 1.1. Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ......................................................................................... 6 2.1. Feature of Equipment under Test ............................................................................................... 6 2.2. Carrier Frequency of Channels .................................................................................................. 7 2.3. Test Mode and Test Software ..................................................................................................... 9 2.5. Description of Test System ....................................................................................................... 14 2.6. General Information of Test ...................................................................................................... 15 2.7. Measurement Uncertainty ........................................................................................................ 15 3. Test Equipment and Ancillaries Used for Tests ................................................................................... 16 4. Antenna Requirements ....................................................................................................................... 18 4.1. Standard Applicable ....................................................…

Text truncated - open the document above for the full version.
