(ti l) Camer a Analog Microphone ( op ti ona l) Crystal 16MHz A D C in put RX/TX:2404-2468MHz MCU Fujitsu RF module PM108 SPI BUS 3.3V CLK out GPIO PCM digital in (optional) Nuvoton PCB codec NAU8814 3.3V ADC input MB9BF104N Cmos Sensor D111 20mm Speaker 1.8V DB0-15 CS,RS,WR,RD,RESET 2.8V NAU8814 74HC 374 33V IR X 10 Pairing Switch GPIO VCC Winbond SPI Flash8MB SPI BUS 3.3V Color light 3 . 3V Crystal 16MHz /Reset Temperature Sensor 3.3V DC jack 5V 600mA DC/DC AP3406 3.3V 18V On/Off SW 5V 1 . 8V PT7M820118TA3EPT7M820128TA3E 2.8V

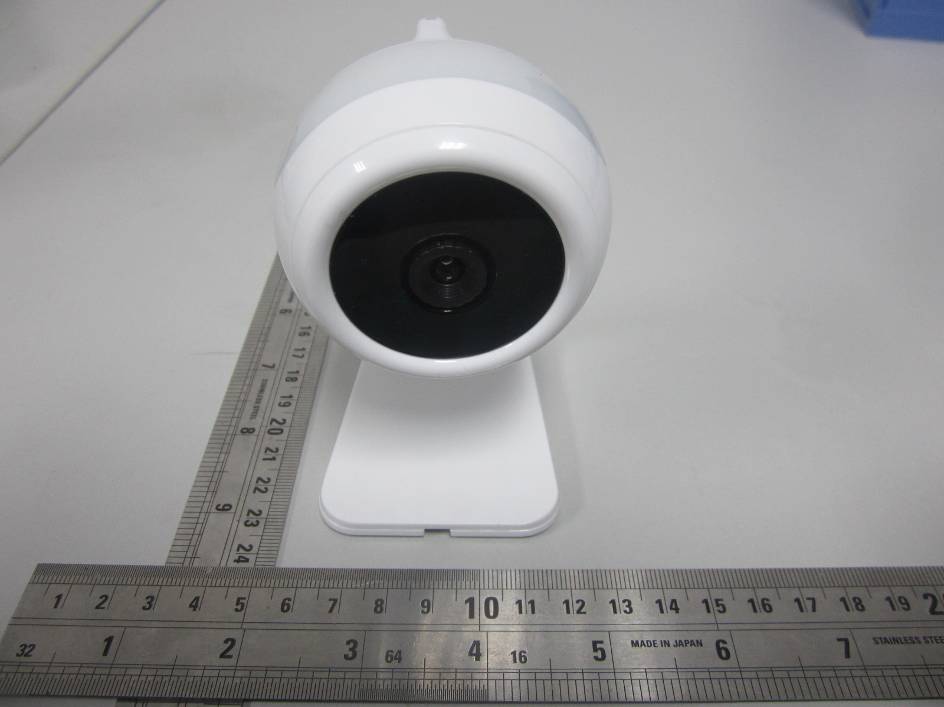

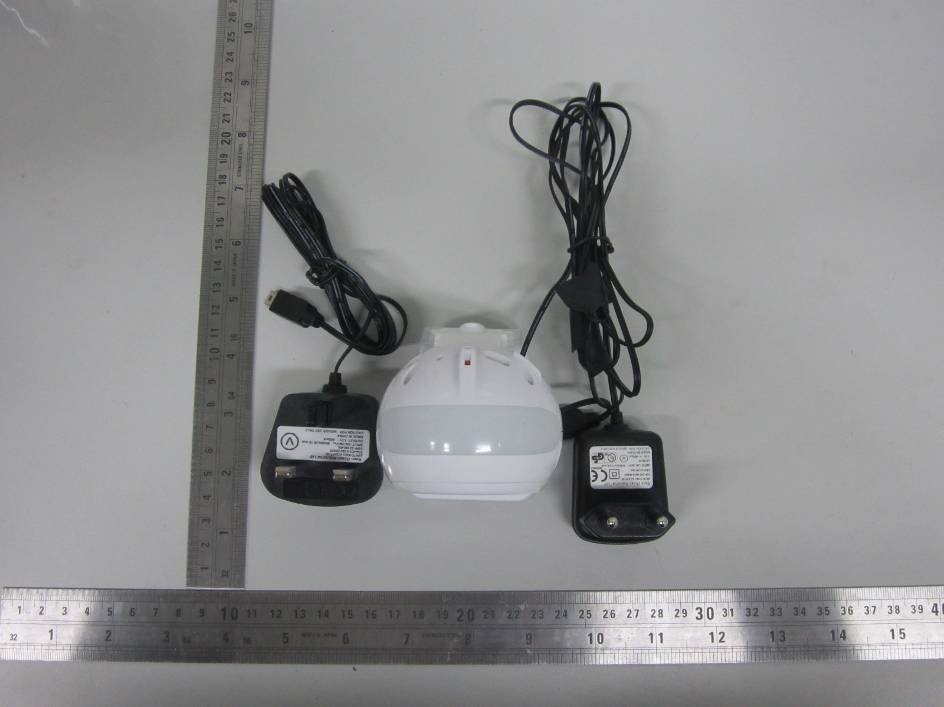

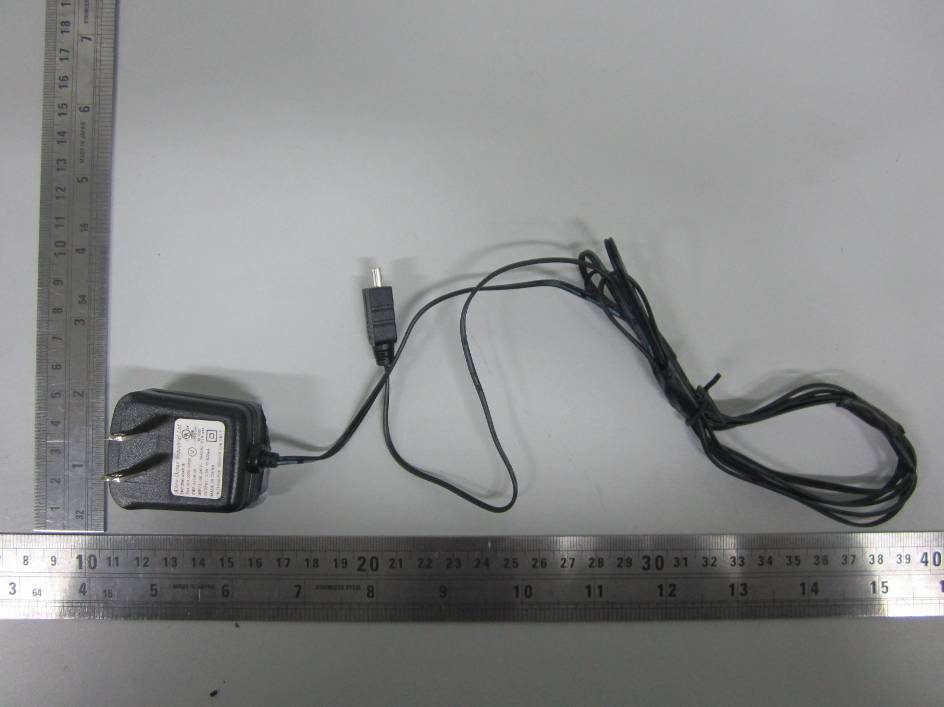

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with Adapter View EUT – Front View EUT – Rear View EUT – Bottom View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board with Camera Top View EUT – Main Board Top View EUT – Main Board Bottom View Antenna EUT – Main Board Bottom Shielding off View EUT – LED Board Top View EUT – LED Board Bottom View EUT – Power Board Top View EUT – Power Board Bottom View

Circuit description Camera Unit: The MB9BF104N is the main processor of the Camera unit. It controlled the RF module PM108, Image processor QP9D111, IR LEDs, audio codec NAU8814, and power management network. The PM108 RF module utilizes RF transceivers operating at high data throughput. Each transceiver will contain its own packet ID and same data packet format, i.e. 32bit preamble, 32 bit ID, Max. payload 128 byte. On each transceiver, there are 32 non overlapping channels, and will adopt FHSS modulation according to the frequency table below. The hopping table follows a pseudo random hopping sequence controlled by MCU. Hopping frequency is about 1000 time per second, packet length duration is from 80us to 600us is used to communicate with the camera unit, through the 2.4GHz FHSS RF link. The MB9BF104N are through the SPI bus to control the PM108. And MB9BF104N will provide the 16MHz clock to the PM108 using the GPIO pin. The image processor QM9D111 is controlled by the MB9BF104N from the 8bit parallel data bus and I2C bus. And the MB9BF104N will encode the image data from the COMS sensor moduleQP9D111. The MB9BF104N will provide the 4MHz to the D111 used the GPIO pin. And MB9BF104N controlled 10 x IRLED for night version operation. The audio codec IC NAU8814, which is used for encode and decode the in/output audio signal. Also, the power management network of the handset is handled by the MB9BF104N. The power management network converts the 5V input from DC adaptor to 3.3V,, 2.8V, and 1.8V power rail. These different power rails are used to power up different parts of the system. The MB9BF104N can be reset by the Reset RC circuit

Hopping Information 1. Scope of frequency used in this product is limited between 2.404 and 2.468GHz, which is divided into 33 channels (channel 1 to channel 33) with an interval of 2 MHz every two channels.The input bandwidth of the receiver is 1 MHz. It employs 1000 hoppings per second. 2. Below is the corresponding table of channels No. and channels’ frequencies. Channel Frequency Channel Frequency CH1 2404MHz CH17 2436MHZ CH2 2406MHz CH18 2438MHz CH3 2408MHz CH19 2440MHz CH4 2410MHz CH20 2442MHz CH5 2412MHz CH21 2444MHz CH6 2414MHz CH22 2446MHz CH7 2416MHz CH23 2448MHz CH8 2418MHz CH24 2450MHz CH9 2420MHz CH25 2452MHz CH10 2422MHz CH26 2454MHz CH11 2424MHz CH27 2456MHz CH12 2426MHz CH28 2458MHz CH13 2428MHz CH29 2460MHz CH14 2430MHz CH30 2462 MHz CH15 2432MHz CH31 2464MHz CH16 2434MHz CH32 2466MHz CH33 2468MHz Hopping Sequence Example of a 33 hopping sequence in data mode: 2408，2426，2434，2464，2406，2432，2418，2448，2458，2460，2440，2416，2446 2424，2430，2404，2442，2410，2436，2466，2420，2454，2412，2462，2468，2414 2422，2428，2438，2450，2452，2456，2444， 2436MHz

B 11 REV:SIZE:CODE: DRAWN:DATED: DATED:CHECKED: QUALITY CONTROL:DATED: DATED:RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OFSCALE: REVISION RECORD APPROVED:ECO NO: A B D DATE: 123456 D C A B C LTR IR1 850nm IR2 850nm IR3 850nm IR4 850nm IR5 850nm IR6 850nm IR7 850nm IR8 850nm IR9 850nm IR10 850nm 1 2 J1 R1 75 R2 75 R3 75 R4 75 R5 75 VCC pairingLIGHT_DET switch NTC ThermistorsThree-color light USB_D+USB_D- 1 2 N3 1 2 GND PT1 1 3 2 SW1 1 2 CORF1 1 W1 1 W2 1 W3 1 W4 1 2 3 4 5 6 7 8 9 10 11 BH2 1 W5 1 W6 C1 10uF +3V3 +3V3 USB_D+ USB_D- SWITCH SWITCH THERMISTORS THERMISTORS CORP_2 CORP_1 CORP_2 CORP_1 +3V3 PAIRING PAIRING LIGHT_DET LIGHT_DET USB_D- USB_D+ 1 USB+5V 2 D- 3 D+ 4 ID 5 USB_GND USB L1 1 W1 1 W4 1 W2 1 W3 L2 R1 0 R20 VAR1VAR2 +5V RX/TX:2404-2468MHz

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 TEST REPORT For SVAT Electronics 4080 Montrose Road, Niagara Falls, ON L2H 1J9 Canada FCC ID: SMH-32104 Report Type: Original Report Product Type: Digital Video Baby Monitor Test Engineer: Ares Liu Report Number: R1DG111209004-00 Report Date: 2012-02-28 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG111209004-00 FCC Part15.247 Page 2 of 35 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................3 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................3 EQUIPMENT MODIFICATIONS.......................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................3 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................3 SUMMARY OF TEST RESULTS...............................................................................................................................3 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..........................................................3 APPLICABLE STANDARD..............................................................................................................................................3 FCC §15.203 – ANTENNA REQUIREMENT ............................................................................................................3 APPLICABLE STANDARD..............................................................................................................................................3 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................3 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .......................................................................................3 APPLICABLE STANDARD..............................................................................................................................................3 MEASUREMENT UNCERTAINTY....................................................................................................................................3 EUT SETUP..................................................................................................................................................................3 EMI TEST RECEIVER SETUP.........................................................................................................................................3 TEST PROCEDURE........................................................................................................................................................3 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................3 TEST RESULTS SUMMARY............................................................................................................................................3 TEST DATA..................................................................................................................................................................3 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS.............................................................................3 APPLICABLE STANDARD..............................................................................................................................................3 MEASUREMENT UNCERTAINTY....................................................................................................................................3 EUT SETUP..................................................................................................................................................................3 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP..........................................................................…
