SMHLVTW301PDigital Wireless Video Baby Monitor

USeRS MANUAL www.myLevana.com Model #: LV-TW301 ClearVu ® Digital Video Monitor w/Color Changing Night Light TW301 Manual.indd 122/09/2010 8:35:13 AM We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: Phone: 1.866.946.7828 LEVANA Canada LEVANA USA Fax: 1.888.771.1701 4080 Montrose Road 60 Industrial Parkway #Z64 Web: www.myLEVANA.com Niagara Falls, ON Cheektowaga NY 14227 Canada, L2H 1J9 USA 14305 Warranty Terms 1. LEVANA products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at LEVANA’s option. 2. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered with contrary to the applicable instruction manual. 3. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this warranty. 4. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself and no other warranty, expressed or implied is provided. LEVANA assumes no responsibilities for any other claims not specifically mentioned in this warranty. 5. This warranty does not cover the shipping cost, insurance or any other incidental charges. 6. You MUST call LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #). 7. This warranty is valid only in Canada and the continental U.S. 8. This warranty cannot be re-issued. PRODUCT WARRANTY INFORMATION Please visit our web site at www.myLEVANA.com for information about your product’s warranty 2 TW301 Manual.indd 222/09/2010 8:35:14 AM 3 PRODUCT WARRANTY INFORMATION ........................................................ 2 INTRODUCTION ...................................................................................... 4 WHAT’S INCLUDED .................................................................................. 4 OPTIONAL ACCESSORIES .......................................................................... 4 FEATURES .............................................................................................. 5 BUTTONS AND CONNECTIONS - MONITOR .................................................. 6 BUTTONS AND CONNECTIONS - CAMERA .................................................... 8 INSTALLATION ........................................................................................ 10 INSTALLING AC ADAPTER FOR THE CAMERA ......................................... 10 CHARGING THE MONITOR ................................................................... 10 CAMERA OPERATION ............................................................................... 10 POWER ON/OFF ................................................................................ 10 VOICE ACTIVATION ............................................................................ 11 RAINBOW NIGHT LIGHT ..................................................................... 11 AUTOMATIC NIGHT VISION ................................................................. 11 MONITOR OPERATION .............................................................................. 12 POWER SWITCH ................................................................................ 12 CHANNEL SELECTION ........................................................................ 12 VOLUME CONTROL ............................................................................ 12 LCD BRIGHTNESS CONTROL ................................................................ 12 RESET BUTTON ................................................................................. 12 PAIRING CAMERAS ................................................................................. 13 TROUBLESHOOTING ................................................................................ 14 SPECIFICATIONS ..................................................................................... 14 FCC STATEMENT ..................................................................................... 15 SAFETY INSTRUCTIONS ............................................................................ 16 TABLE OF CONTENTS TW301 Manual.indd 322/09/2010 8:35:17 AM 4 INTRODUCTION Thank-you for your purchase of the Levana ClearVu® Digital Video Monitor. Using advanced digital 2.4GHz ClearVu® technology, it enables you to transmit picture and sound signals wirelessly up to 450 feet away! We know that you will be pleased with the quality and features of your new baby monitor. WHAT’S INCLUDED • Baby Monitor • Camera • Camera Mount • Charging Base • 2 x Power Adapters • 1 x Lithium Ion Battery for Monitor • User’s Manual OPTIONAL ACCESSORIES Extra Camera: LV-TW301-C This system supports up to 3 additional cameras! TW301 Manual.indd 422/09/2010 8:35:20 AM 5 FEATURES Advanced ClearVu® Digital Technology Feel free to take the monitor with you around the house and even outside! ClearVu Technology ensures that you will always see and hear with perfect clarity and the signal remains strong up to 450 feet away. Rechargeable Monitor When you’re not on the move simply put your monitor on its base to recharge – no batteries required! Enjoy up to 4 hours of continuous audio and video monitoring with a fully charged monitor. Automatic Night Vision The built-in night vision allows you to see your child, even in complete darkness. When the lights go down the system automatically adjusts to the level of light. With 10 ft of night vision range, the came…

Text truncated - open the document above for the full version.

SVAT Electronics 4080 Montrose Rd. Niagara Falls, ON L2H 1J9 FCC Confidential Authorization Date; 2010-09-26 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC m: SMHLVTW301 P Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics of EUT---(Long terrn) • Block Diagram---(Long term) • Circuit Description---(Long term) The above materials contain trade secrets and proprietary information not customarily released to the public, The public disclosure of these materials may be harmful to the applicant and 'provide unjustified benefits to its competitors_ The applicant understands that pl1fsuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Typed or Printed Name~ Andrew Wright Title; Assistant Product Manager Company Name: SVAT Electronics - SfueTronlcs Group

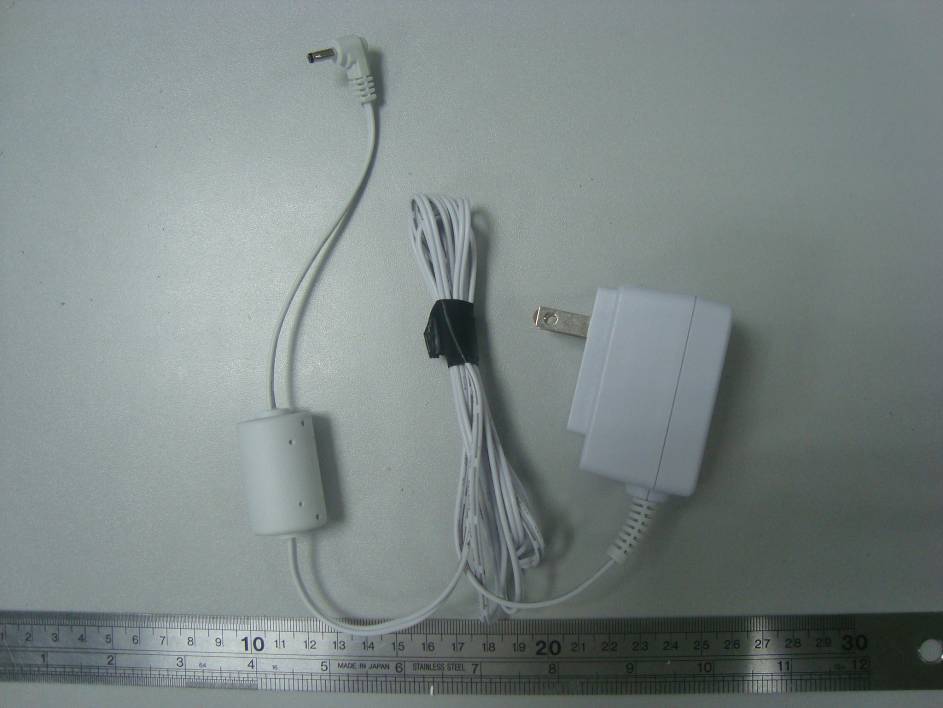

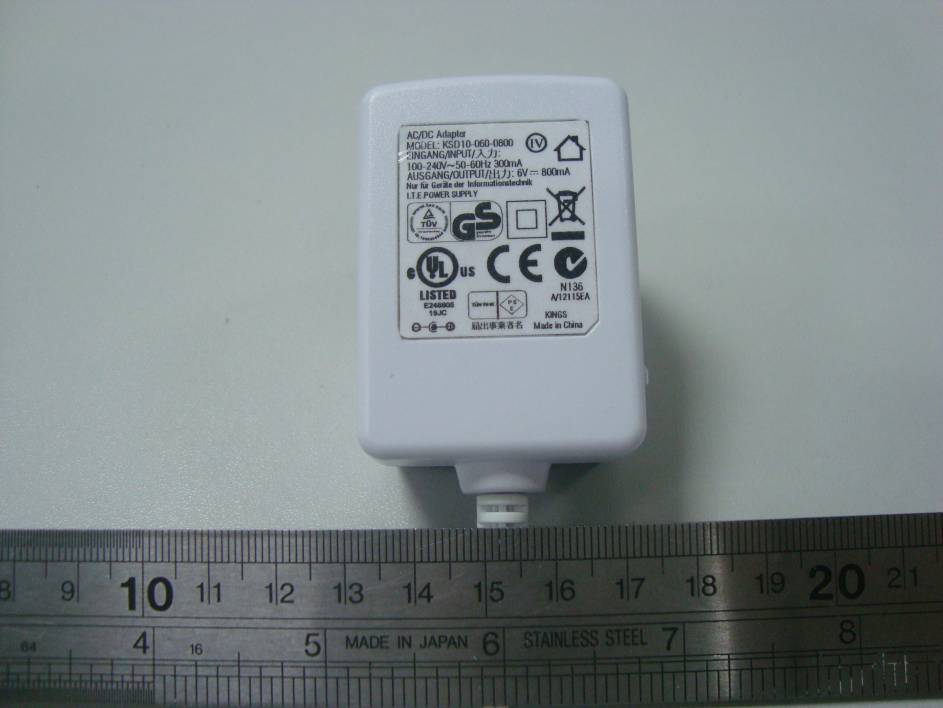

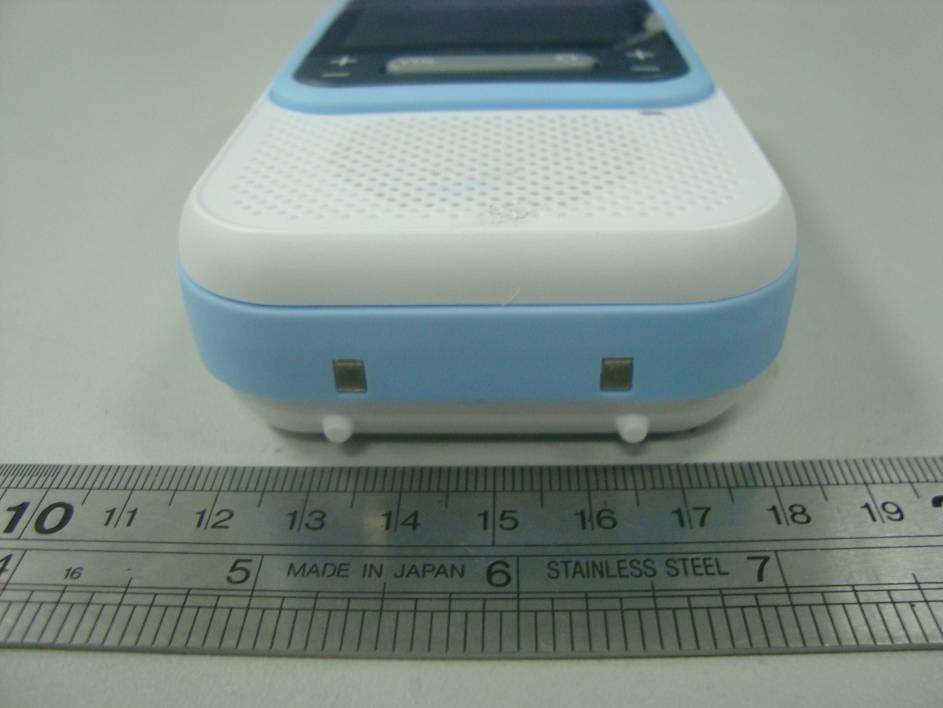

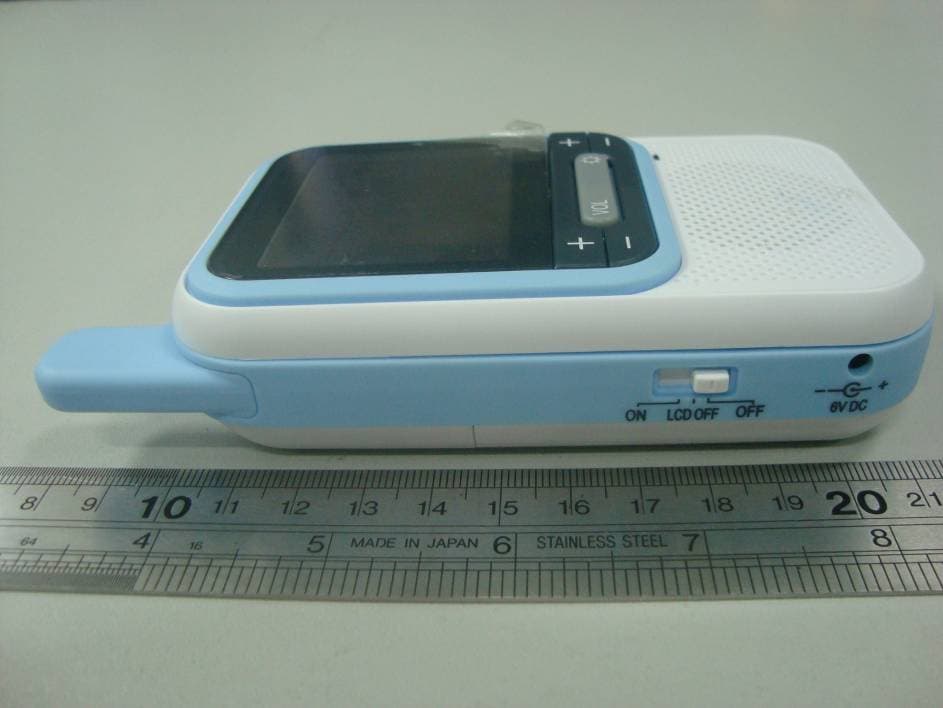

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Back Side View EUT – Adapter View EUT – Adapter Information View EUT – Charging Base Top View EUT – Charging Base Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Main Board Shielded off BottomView EUT – LCD Top View 1 EUT – LCD Top View 2 EUT – LCD Top View 3 EUT – LCD Bottom View EUT – Antenna View EUT – Adapter Main Board Top View EUT – Adapter Main Board Bottom View EUT – Battery View EUT – Charging Base Cover off View EUT – Charging Base Board Top View EUT – Charging Base Board Bottom View

SVAT Electronics FCC ID: SMHLVTW301P Report No.: RSZ10082403 Page 8 of 35 FCC Part15.247 Test Report FCC §15.247 (i), §1.1307(b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum peak output power at antenna input terminal: 16.69 (dBm) Maximum peak output power at antenna input terminal: 46.67 (mW) Prediction distance: >20 (cm) Predication frequency: 2437.875 (MHz) Antenna Gain (typical): 1.2 (dBi) Antenna Gain (typical): 1.3 (numeric) The worst case is power density at predication frequency at 20 cm: 0.0121 (mW/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mW/cm 2 ) Result: Complies at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 MEASUREMENT AND TEST REPORT For SVAT Electronics 4080 Montrose Rd, Niagara Falls, ON, Canada, L2H 1J9 FCC ID: SMHLVTW301P Report Type: Original Report Product Type: 2.4 GHz Baby Monitor Test Engineer: Leon Chen Report Number: RSZ10082403 Report Date: 2010-09-14 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 SVAT Electronics FCC ID: SMHLVTW301P Report No.: RSZ10082403 Page 2 of 35 FCC Part15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §15.247 (i), §1.1307(b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..............................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §15.203 – ANTENNA REQUIREMENT ............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC §15.207(a) – AC LINE CONDUCTED EMISSIONS ......................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS...........................................................................14 APPLICABLE STANDARD............................................................................................................................................14 MEASUREMENT UNCERTAINTY................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conducted Emissions - Front View AC Line Conducted Emissions - Side View Below 1 GHz: Radiated Emissions - Front View Below 1 GHz: Radiated Emissions - Rear View Above 1 GHz: Radiated Emissions - Front View Above 1 GHz: Radiated Emissions - Rear View
