SMHLVTW501BLevana Twinkle501

USeRS MANUAL www.myLevana.com Model #: Safe’N See Digital Video Monitor W/ Talk-To-Baby Intercom Model #: LV-TW501 TW501 Manual.indd 116/09/2010 12:45:56 PM We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: Phone: 1.866.946.7828 LEVANA Canada LEVANA USA Fax: 1.888.771.1701 4080 Montrose Road 60 Industrial Parkway #Z64 Web: www.myLEVANA.com Niagara Falls, ON Cheektowaga NY 14227 Canada, L2H 1J9 USA 14305 Warranty Terms 1. LEVANA products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at LEVANA’s option. 2. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered with contrary to the applicable instruction manual. 3. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this warranty. 4. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself and no other warranty, expressed or implied is provided. LEVANA assumes no responsibilities for any other claims not specifically mentioned in this warranty. 5. This warranty does not cover the shipping cost, insurance or any other incidental charges. 6. You MUST call LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #). 7. This warranty is valid only in Canada and the continental U.S. 8. This warranty cannot be re-issued. PRODUCT WARRANTY INFORMATION Please visit our web site at www.myLEVANA.com for information about your product’s warranty 2 TW501 Manual.indd 216/09/2010 12:45:57 PM 3 INTRODUCTION PRODUCT WARRANTY INFORMATION .................................................................. 2 INTRODUCTION ................................................................................................ 3 FEATURES ........................................................................................................ 4 WHAT’S INCLUDED ............................................................................................ 5 BUTTONS AND CONNECTIONS - MONITOR ............................................................. 6 BUTTONS AND CONNECTIONS - CAMERA .............................................................. 8 SETTING UP YOUR SYSTEM ................................................................................. 10 PLACING THE BABY MONITOR ............................................................... 10 BATTERY OPERATION .......................................................................... 10 ATTACHING POWER TO THE CAMERA ..................................................... 10 USING THE RECHARGEABLE BATTERY .................................................... 11 ATTACHING POWER TO THE CHARGING BASE .......................................... 11 CHARGING THE MONITOR AND RECHARGEABLE BATTERY ......................... 11 CAMERA OPERATION ......................................................................................... 12 SWITCHING THE CAMERA ON/OFF ......................................................... 12 NIGHT VISION .................................................................................... 12 MONITOR OPERATION ....................................................................................... 13 SWITCHING THE CAMERA ON/OFF ......................................................... 13 SETTING THE BRIGHTNESS ................................................................... 13 ADJUSTING THE TEMPERATURE MEASUREMENT ..................................... 13 SWITCHING THE NIGHT LIGHT ON/OFF ................................................... 14 SWITCHING THE VIBRATION FUNCTION ON/OFF ..................................... 14 ADJUSTING THE VOX SENSITIVITY ......................................................... 15 SELECTING A LULLABY ......................................................................... 15 INTERCOM FEATURE ............................................................................ 16 RANGE .............................................................................................. 16 ADJUSTING THE VOLUME ..................................................................... 16 PAIRING THE DEVICES ....................................................................................... 17 TROUBLESHOOTING .......................................................................................... 18 SPECIFICATIONS ............................................................................................... 19 FCC STATEMENT ............................................................................................... 20 SAFETY INSTRUCTIONS ...................................................................................... 20 TABLE OF CONTENTS Congratulations on your purchase of the Levana TW501 Digital Video Baby Monitor! This monitor uses advanced Clearvu® digital technology that will deliver a crystal clear view of your baby’s room no matter where you are in the house. Feel free to relax and take comfort in knowing that your child is in good hands with Levana. TW501 Manual.indd 316/09/2010 12:46:00 PM 4 FEATURES FEATURES ClearVu® Digital Wireless Technology ClearVu® technology ensures outstanding image and sound clarity so that you can watch and listen to your child up to 450ft away. With Levana, you’ll never miss a moment. Temperature Monitoring to Ensure Safety Many studies indicate that your baby’s room sh…

Text truncated - open the document above for the full version.

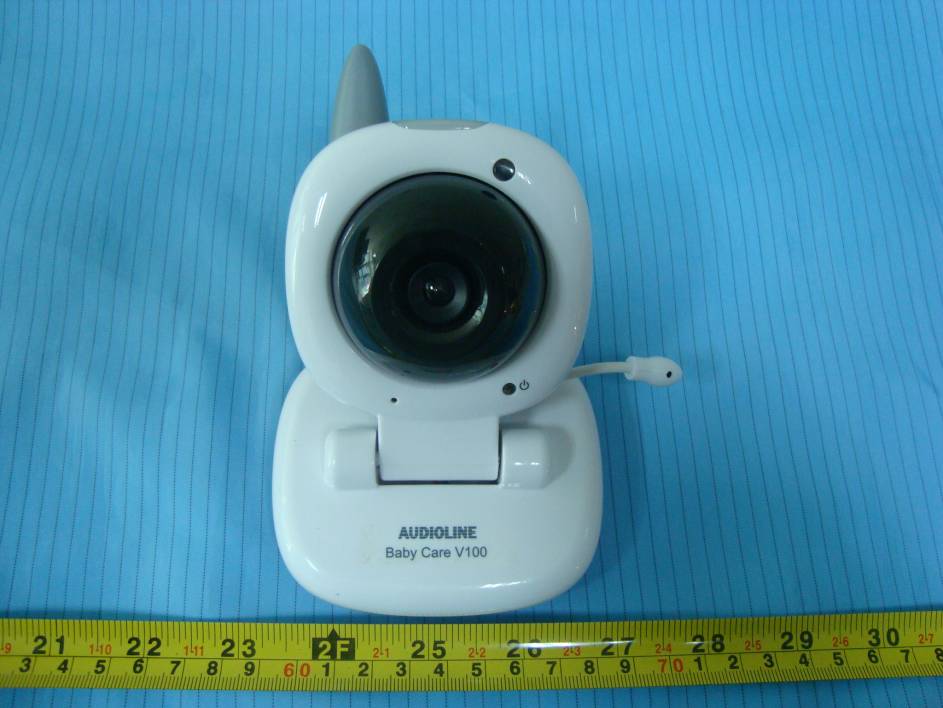

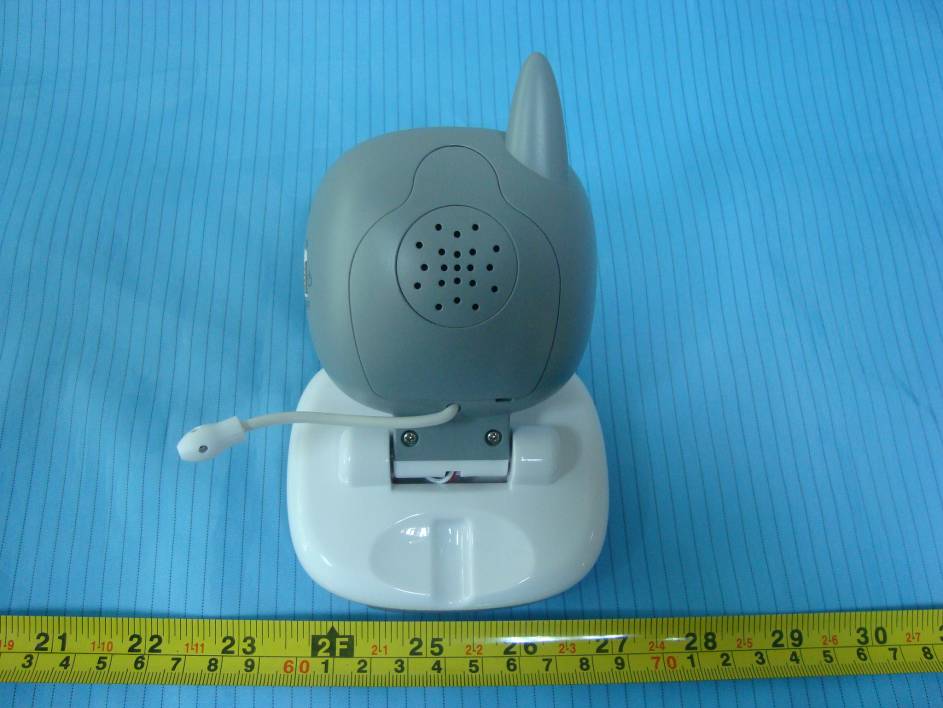

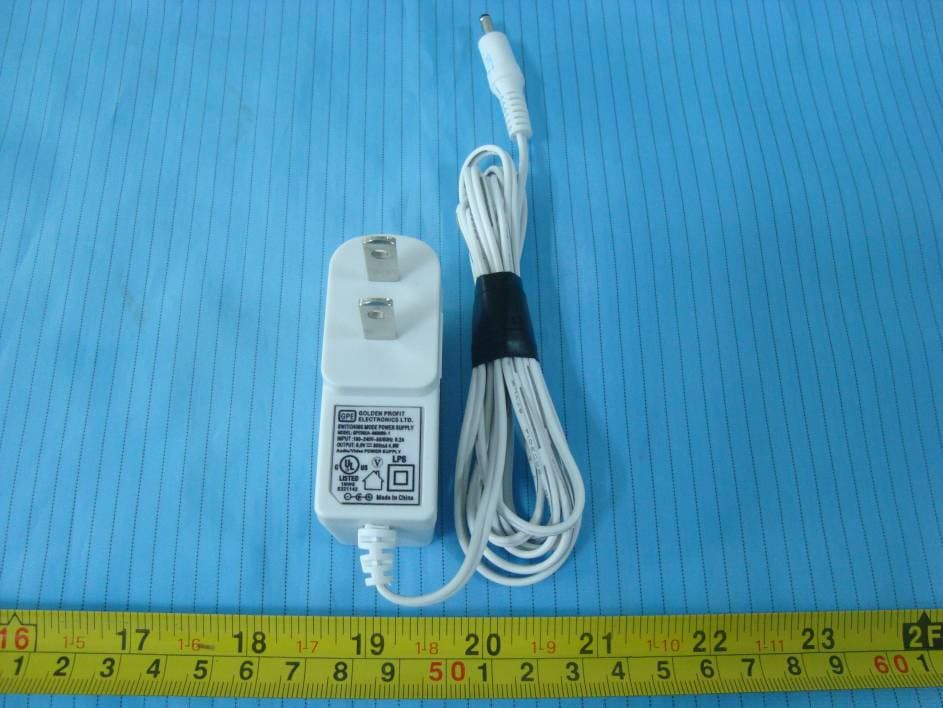

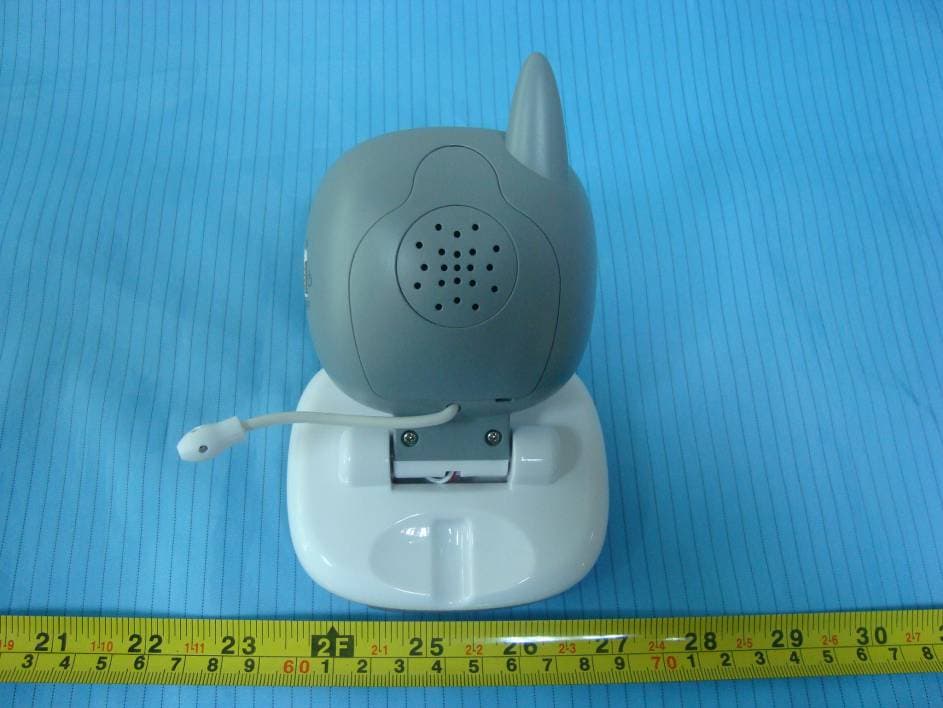

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Adapter View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Rear Cover off View EUT – Cover off View EUT – Main Board with Camera Lens View EUT – Main Board without Camera Lens View EUT – Main Board with Antenna View EUT – Main Board without Antenna View EUT – Main Board Shielding off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Loudspeaker and Temperature Sensor View EUT – Battery Compartment View EUT – Antenna View EUT – Adapter Interfaces Front View EUT – Adapter Interfaces Rear View

SVAT Electronics FCC ID: SMHLVTW501B Report No.: RSZ10100805 Page 9 of 39 FCC Part15.247 Test Report FCC §15.247 (i), §1.1307 (b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum peak output power at antenna input terminal: 16.40 (dBm ) Maximum peak output power at antenna input terminal: 43.65 (mW) Prediction distance: >20 (cm) Predication frequency: 2404 (MHz) Antenna Gain (typical): 2 (dBi) Antenna Gain (typical): 1.58 (numeric) The worst case is power density at predication frequency at 20 cm: 0.01377(mW/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mW/cm 2 ) Result: Complies at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 MEASUREMENT AND TEST REPORT For SVAT Electronics 4080 Montrose Rd, Niagara Falls, ON, Canada, L2H 1J9 FCC ID: SMHLVTW501B Report Type: Original Report Product Type: 2 . 4 G H z Digital Video Camera Test Engineer: Back Huang Report Number: RSZ10100805 Report Date: 2010-11-15 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 SVAT Electronics FCC ID: SMHLVTW501B Report No.: RSZ10100805 Page 2 of 39 FCC Part15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §15.247 (i), §1.1307 (b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE).................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §15.203 – ANTENNA REQUIREMENT ..........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207(a) – AC LINE CONDUCTED EMISSIONS ......................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.205, §15.209 & §15.247(d) – RADIATED SPURIOUS EMISSIONS......................................................15 APPLICABLE STANDARD............................................................................................................................................15 MEASUREMENT UNCERTAINTY...............................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conducted Emissions - Front View (Adapter Mode) AC Line Conducted Emissions - Side View (Adapter Mode) Below 1 GHz: Radiated Emissions - Front View (Adapter Mode) Below 1 GHz: Radiated Emissions - Rear View (Adapter Mode) Below 1 GHz: Radiated Emissions - Front View (Battery Mode) Below 1 GHz: Radiated Emissions - Rear View (Battery Mode) Above 1 GHz: Radiated Emissions - Front View (Adapter Mode) Above 1 GHz: Radiated Emissions - Rear View (Adapter Mode)
