SMW56AZBTV.92/V.90 Modem Bluetooth Combo Card

Release 1.0 04/22/2005 Table of Contents 1.Product specification .............................................................................................................................3 1.1 Specification of MODEM ..........................................................................................................3 1.2. Specification of Bluetooth ........................................................................................................4 2. Hardware Installation Steps ..................................................................................................................5 3.MODEM Driver Installation ....................................................................................................................6 3.1 Windows 98SE ...........................................................................................................................6 3.2 Windows ME...............................................................................................................................7 3.3 Windows 2000............................................................................................................................8 3.4 Windows XP ...............................................................................................................................9 3.5 Select Country for MODEM.......................................................................................................10 4.Bluetooth software Installation ............................................................................................................. 11 4.1 Driver install .............................................................................................................................. 11 5. AT Command......................................................................................................................................12 5.1 Basic AT Commands................................................................................................................13 5.2 AT& Commands .......................................................................................................................23 5.3 AT\ Commands - Error correction control..................................................................................29 5.4 AT% Commands.......................................................................................................................31 5.5 AT+MS Command ....................................................................................................................34 5.6 AT+F Commands - Fax Support...............................................................................................36 5.7 AT* Commands - Black List Support.........................................................................................39 5.8 AT# Commands - Voice Modem Support..................................................................................41 5.9 AT#UD Command - Modem Diagnostics Support .....................................................................47 5.10 S-Registers .............................................................................................................................48 1.Product specification 1.1 Specification of MODEM 56AZBT is a V.92/V.90 modem designed combine with Class2 Bluetooth support of Azalia riser form factors. The chipset solution we adopt SmartLink/SmartRiser565 and CSR BlueCore2 single chip Bluetooth™ system for implement high performance Modem and Bluetooth features. ¾ Modem : z V.92 (up to 56 Kbps down, 48 Kbps up) z Quick Connect (V.92) z Modem on Hold (V.92) z V.90 (up to 56 Kbps down, 33.6 Kbps up) z V.34( 4.8 Kbps to 33.6 Kbps) z V.32 bis (4.8 Kbps to 14.4 Kbps) z V.23 (75 bps up, 1200 bps down) z V.22 bis (1200/2400 bps) z V.21, Bell 103 / Bell 212 z Automode z V.44/V.42 bis/MNP5 data compression z V.42/MNP 2-4 error correction z Hayes AT Command z TIES escape code z ACPI power management ¾ Fax : z Group 3, Class 1 z V.17 z V.29 z V.27 ter ¾ WHQL : z WLP 2.0 compliant ¾ Voice Features : z ADPCM voice compression z Digital Answering Machine ¾ Telephony Services : z Ring Detection z Wake Up on Ring z On/Off hook control z Call progress monitor z DTMF detection and generation z Voice/fax/modem distinction z Caller ID (optional) ¾ Video Conferencing : z V.80/H.324 interface support ¾ International Approvals : z Single board layout for multiple country certification: FCC, CTR21, JATE and others ¾ Operating System Support : z Windows (XP, 2000, ME, 98SE, 98, 95, NT4), Linux ¾ Diagnostic Tool : z Modem Helper 1.2. Specification of Bluetooth ¾ Features z Complete 2.4GHz radio transceiver and baseband z Bluetooth ™ version 1.1 compliant (upgradable to ver.1.2) z Bluetooth ™ Class 2 operation z Park, Sniff, Hold and Sleep low power modes ¾ General z Data Transmission Rate up to 723 kbps (asynchronous) z Link Distance better than 10 meters (33 feet) in free space ¾ General z Modulation : Frequency Hopping Spread Spectrum (FHSS) with Gaussian Frequency Shift Keying (GFSK) z Frequency Range : 2.40GHz– 2.4835GHz (ISM Band) z RF Channels : 79 channels for USA, Japan, and Europe (except France) z RF Output Power : +4 dBm ma x. , Class 2 (upgradeable to 20dBm) z Sensitivity : Better than –[email protected]% BER z Max. Input Level : - 20dBm ¾ Baseband z Link Mode : ACL & SCO link supported z Network Capabilities : Piconet : point –to- point & point-to-multipoint and Scatternet supported z Security : 9 Initialization: 4-digit PIN code 9 Authentication: Security Mode 2 support 9 Encryption: 128-bit Data Encryption support z Data Packets : DM1/DH1, DM3/DH3, DM5/DH5 ¾ Operating System Support : z Windows XP/2000/ME/9x 2. Hardware Installation Steps 1. Turn computer power off and unplug your computer from the power supply. 2. Remove the computer cover. 3. Insert Modem/Bluetooth combo card into MDC 1.5 connector of mother board. 4. Plug one end of the telephone cable into MODEM “LINE” jack . Plu…

Text truncated - open the document above for the full version.

Release 1.0 04/22/2005 Table of Contents 1.Product specification .............................................................................................................................3 1.1 Specification of MODEM ..........................................................................................................3 1.2. Specification of Bluetooth ........................................................................................................4 2. Hardware Installation Steps ..................................................................................................................5 3.MODEM Driver Installation ....................................................................................................................6 3.1 Windows 98SE ...........................................................................................................................6 3.2 Windows ME...............................................................................................................................7 3.3 Windows 2000............................................................................................................................8 3.4 Windows XP ...............................................................................................................................9 3.5 Select Country for MODEM.......................................................................................................10 4.Bluetooth software Installation ............................................................................................................. 11 4.1 Driver install .............................................................................................................................. 11 5. AT Command......................................................................................................................................12 5.1 Basic AT Commands................................................................................................................13 5.2 AT& Commands .......................................................................................................................23 5.3 AT\ Commands - Error correction control..................................................................................29 5.4 AT% Commands.......................................................................................................................31 5.5 AT+MS Command ....................................................................................................................34 5.6 AT+F Commands - Fax Support...............................................................................................36 5.7 AT* Commands - Black List Support.........................................................................................39 5.8 AT# Commands - Voice Modem Support..................................................................................41 5.9 AT#UD Command - Modem Diagnostics Support .....................................................................47 5.10 S-Registers .............................................................................................................................48 1.Product specification 1.1 Specification of MODEM 56AZBT is a V.92/V.90 modem designed combine with Class2 Bluetooth support of Azalia riser form factors. The chipset solution we adopt SmartLink/SmartRiser565 and CSR BlueCore2 single chip Bluetooth™ system for implement high performance Modem and Bluetooth features. ¾ Modem : z V.92 (up to 56 Kbps down, 48 Kbps up) z Quick Connect (V.92) z Modem on Hold (V.92) z V.90 (up to 56 Kbps down, 33.6 Kbps up) z V.34( 4.8 Kbps to 33.6 Kbps) z V.32 bis (4.8 Kbps to 14.4 Kbps) z V.23 (75 bps up, 1200 bps down) z V.22 bis (1200/2400 bps) z V.21, Bell 103 / Bell 212 z Automode z V.44/V.42 bis/MNP5 data compression z V.42/MNP 2-4 error correction z Hayes AT Command z TIES escape code z ACPI power management ¾ Fax : z Group 3, Class 1 z V.17 z V.29 z V.27 ter ¾ WHQL : z WLP 2.0 compliant ¾ Voice Features : z ADPCM voice compression z Digital Answering Machine ¾ Telephony Services : z Ring Detection z Wake Up on Ring z On/Off hook control z Call progress monitor z DTMF detection and generation z Voice/fax/modem distinction z Caller ID (optional) ¾ Video Conferencing : z V.80/H.324 interface support ¾ International Approvals : z Single board layout for multiple country certification: FCC, CTR21, JATE and others ¾ Operating System Support : z Windows (XP, 2000, ME, 98SE, 98, 95, NT4), Linux ¾ Diagnostic Tool : z Modem Helper 1.2. Specification of Bluetooth ¾ Features z Complete 2.4GHz radio transceiver and baseband z Bluetooth ™ version 1.1 compliant (upgradable to ver.1.2) z Bluetooth ™ Class 2 operation z Park, Sniff, Hold and Sleep low power modes ¾ General z Data Transmission Rate up to 723 kbps (asynchronous) z Link Distance better than 10 meters (33 feet) in free space ¾ General z Modulation : Frequency Hopping Spread Spectrum (FHSS) with Gaussian Frequency Shift Keying (GFSK) z Frequency Range : 2.40GHz– 2.4835GHz (ISM Band) z RF Channels : 79 channels for USA, Japan, and Europe (except France) z RF Output Power : +4 dBm ma x. , Class 2 (upgradeable to 20dBm) z Sensitivity : Better than –[email protected]% BER z Max. Input Level : - 20dBm ¾ Baseband z Link Mode : ACL & SCO link supported z Network Capabilities : Piconet : point –to- point & point-to-multipoint and Scatternet supported z Security : 9 Initialization: 4-digit PIN code 9 Authentication: Security Mode 2 support 9 Encryption: 128-bit Data Encryption support z Data Packets : DM1/DH1, DM3/DH3, DM5/DH5 ¾ Operating System Support : z Windows XP/2000/ME/9x 2. Hardware Installation Steps 1. Turn computer power off and unplug your computer from the power supply. 2. Remove the computer cover. 3. Insert Modem/Bluetooth combo card into MDC 1.5 connector of mother board. 4. Plug one end of the telephone cable into MODEM “LINE” jack . Plu…

Text truncated - open the document above for the full version.

Jun. 20, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: SMW56AZBT Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Block Diagram 3. Operational Description 4. BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hari Wang/DIRECTOR C-COM CORPORATION

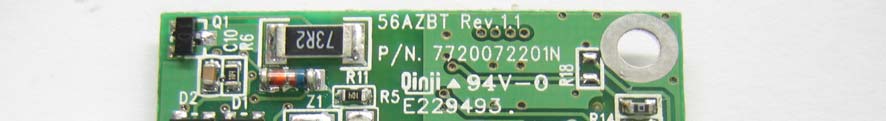

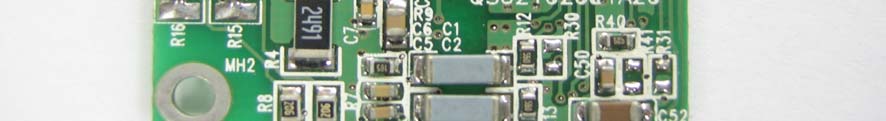

Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 02, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 PHOTOGRPHS OF EUT Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 02, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 02, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA

FCC ID LABEL FORMAT AND LOCATION Applicant: C-COM CORPORATION FCC ID: SMW56AZBT FCC ID: SMW56AZBT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

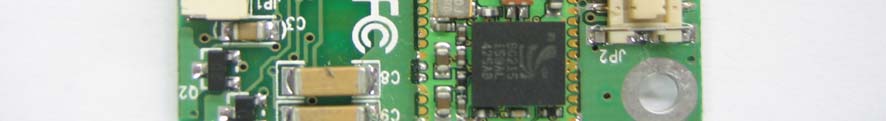

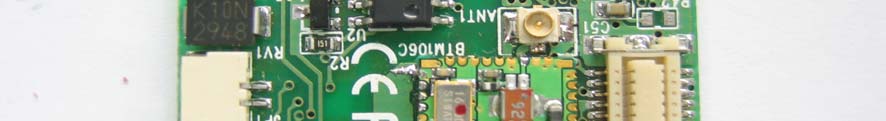

Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 02, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 PHOTOGRPHS OF EUT Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 02, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 02, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA

Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 20, 2005 Page: 1 of 57 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT LIMIT OF MODULE APPROVE OF Product Name: V.92/V.90 Modem Bluetooth Combo Card Brand Name: SmartLink Model Name: 56AZBT Model Differences: N/A FCC ID: SMW56AZBT Report No.: ER/2005/40026 Issue Date: Jun. 20, 2005 FCC Rule Part: §15.247 Prepared for: C-COM CORPORATION 5F, NO. 9, Park Ave. II, SBIP Hsinchu, Taiwan, R.O.C. Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 20, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: C-COM CORPORATION 5F, NO. 9, Park Ave. II, SBIP Hsinchu, Taiwan, R.O.C. Product Name: V.92/V.90 Modem Bluetooth Combo Card Brand Name: SmartLink FCC ID Number: SMW56AZBT Model No.: 56AZBT Model Difference: N/A Report Number: ER/2005/40026 Date of test: May. 10, 2005 ~ May. 30, 2005 Date of EUT Received: Apr. 25, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Te s t B y : Date Jun. 02, 2005 Henk Huang Prepared By: Date Jun. 02, 2005 Eva Kao Approved By: Date Jun. 02, 2005 Vincent Su Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 20, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Version Version No. Date 00 Jun. 02, 2005 01 Jun. 20, 2005 Report No.: ER/2005/40026 ID: SMW56AZBT Issue Date: Jun. 20, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility.........................................................................................................................................8 1.5. Special Accessories .............................................................................................................................8 1.6. Equipment Modifications....................................................................................................................8 2. SYSTEM TEST CONFIGURATION ............................................................................................9 2.1. EUT Configuration .............................................................................................................................9 2.2. EUT Exercise ......................................................................................................................................9 2.3. Test Procedure.....................................................................................................................................9 2.4. Configuration of Tested System........................................................................................................10 3. SUMMARY OF TEST RESULTS ...............................................................................................11 4. DESCRIPTION OF TEST MODES ............................................................................................11 5. CONDUCTED EMISSION TEST................................................................................................12 5.1. Standard Applicable ..........................................................................................................................12 5.2. EUT Setup............................…
