SMWBHT-106RBluetooth Wireless Headset

1. INTRODUCTION Thank you for selecting this Bluetooth headset BHT-106R. This Bluetooth headset uses 2.4GHz Bluetooth technology for communication – without the inconvenience of wires. This Bluetooth headset is compatible with devices that support the Bluetooth Headset and Hands-free profiles. To be able to use the headset with a mobile phone, the phone needs to have build-in Bluetooth technology, or a compatible Bluetooth phone adaptor. 2. KEY DIAGRAM 3. GETTING START To use your headset, please follow these simple steps : 1. Charge the BHT-106R’ s battery 2. Switch your headset BHT-106R on 3. Pair your headset BHT-106R with a Bluetooth Telephone I. CHARGE YOUR HEADSET BATTERY When the headset BHT-106R is on and the battery becomes low, the LED will blink green color for 3 minutes to remind you the headset needs to be recharged, at the moment , please use AC charger to charge the battery immediately . II. SWITCH YOUR HEADSET ON/OFF turn on : press and hold Functi on Button simultaneously until LED blinks red (approximate 7 seconds) ,then release . turn off : press and hold Func tion Button simultaneously until LED blinks green (approximate 2 seconds),then release . III. PAIR YOUR HEADSET WITH A BLUETOOTH TELEPHONE Prior to using your headset for the first time, you must pair it with another Bluetooth device, such as a mobile telephone. The Bluetooth connection between the headset and your phone can be established by setting up a paired link. With a pa ired link , the phone remembers the headset’s ID, and these 2 items are th en paired together – eliminating the need to repeat the setup proce ss with future use. Only paired devices can utilize Auto Answer and Auto-Transfer functions. The information below describes pairing instructions for a typical device. For specific instructions, refer to your mobile telephone user guide. Function Button LED Earhoo k Vo l u m e + Button Vo l u m e - Button 1. Function Button － Power on/off 2. Volume+ Button － Volume Up 3. Volume- Button － Volume Down ½ Be able to curve ½ Earhook need to be p lugged into the hole of earhook on the back 4. PLEASE NOTE : 1. The battery pack for your head set is already installed when you get your headset. The battery is not fully charged when you get the headset. Before you can use th e headset, you need to charge the headset’s self-contained battery for up to 3~4 hours. To charge the headset, please follow this guide : Connect the included AC charger to the main power supply and then to the headset charger port. While charging, the LED will indica te green color and remains on until charging is complete. When charging is complete, the green LED light will go out, you can then remove the charger from the headset. 2. Please make sure that the button has been pressed indeed when you use this headset. 5. PAIRING PROCEDURE 1. Switch off BHT-106R and turn on your mobile phone, Make sure the Bluetooth feature of your telephone is turned on. 2. On your BHT-106R ( under off mode ), press and hold Function Button simultaneously for 10 seconds until the LED blinks Red/ Green rapi dly, then release the Function Button , headset now enters into pairing mode. 3. Your headset BHT-106R is now entering into pairing mode and will remain discoverable by other Bluetooth devices for 60 seconds. 4. On your mobile phone, search for devices by selecting DISCOVER from the Bluetooth options menu. Check your mobile phone display and follow the instruction. 5. Select BHT-106R on the menu of your phone, enter the PIN code 0000 , when your phone menu prompts you, and the phone will start to pair the headset with the phone ( the device ID is now stored in the phone’s memory ). 6. Your phone screen will advise that pairing has been successful, and headset indicator light will then go to stand-by mode. ( LED blinks red 1 times per 3 seconds ) . Then go to connect mode ( LED blinks red 3 times per 4 seconds ) 7. If your mobile phone is Bluetooth 1.1 , you need to manually connect to headset by selecting CONNECT item from your phone , Bluetooth 1.2 mobile phone will automatically connect to headset . 8. Once the headset and phone have been successfully paired, you are ready to place and receive calls. 6. USING YOUR HEADSET (AFTER PAIRED ) z Answering a call To answer a call, just press the Function Button to answer the call. z Ending a call To end a call, press the Function Button to terminate the call at any time . z Reject a call To reject a call, wait for the headset to ring, keep holding the “function button” for 2 seconds to reject a call. z Voice Transfer ( hands-free function ) Just turn the Bluetooth headset on/off when you are talking, to determine the voice be tran sferred to mobile phone or headset . This function is subject to your mobile phone supporting call transfer function. z Last number redial ( hands-free function ) If you want to dial the last number called using your headset during connect mode , press and hold “Volume-“ button simultaneously for 3 seconds to redial the last number. z Voice dialing ( ha nds-free function ) Make sure that your mob ile phone supports voice dialing function and voice tags are st ored. Pressing the “function button” under connect mode, you will hear short beep tone and then speak the voice tag name, then the phone will automatically dial your selection. z Operating environment 1. 90 % relative Humidity . 2. Operating temperature range -20 °C to 60 °C 3. Storage temperature range -40 °C to 85 °C 7. OPERATING FLOW CHART Turn on Bluetooth mobile phone and enable Bluetooth function To turn on BHT-106R ,Press and hold “FunctionButton” for 10 seconds until the LED blinks Red/ Green rapidly, thenrelease the “Function Button”, h eadset now entering into pairing mode PAIRING PROCEDURE On your Bluetooth mobile phone, search for Bluetooth device BHT-106R by selecting“DISCOVER” from Bluetooth options menu Select discovered BHT-106R on the menu of your phone Enter the PIN C ode “ 0000 ＂ P airing has been successful …

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: C-COM CORPORATION Address: 8F-6,No.110,Sec.3,Chung-Shan Rd. City: Chung-Ho, Taipei Country: Taiwan Declare that: Name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Taipei County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: Bluetooth Wireless Headset Type designation: BHT-106R Trademark: SmartLink on our behalf. Date: Dec. 12, 2005 City: Chung-Ho, Taipei Name: Hari Wang Signature:

Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL OF EUT Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Right View of EUT Top View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: C-COM CORPORATION FCC ID: SMWBHT-106R FCC ID: SMWBHT-106R This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

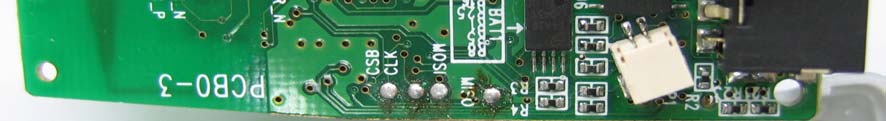

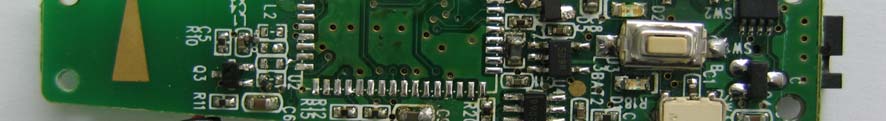

Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL OF EUT Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal View of EUT – 1 Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal View of EUT – 2 Internal View of EUT – 3 Antenna Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal View of EUT – 4

Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw „ RF EXPOSURE „ Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be oper- ated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. „ Measurement Result: This is a portable device and the Max peak output power is 1.76 dBm (0.00150W) lower than low threshold 60/fGHz mW (24.43mW), d<2.5cm in general population category； The SAR measurement is not necessary.

Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 Page: 1 of 53 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Bluetooth Wireless Headset Brand Name: SmartLink Model Name: BHT-106R Model Difference: N/A FCC ID: SMWBHT-106R Report No.: ER/2005/30005 Issue Date: Dec. 08, 2005 FCC Rule Part: §15.247 Prepared for C-COM CORPORATION 8F-6,No.110,Sec.3,Chung-Shan Rd., Chung-Ho, Taipei, Taiwan, R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: C-COM CORPORATION 8F-6,No.110,Sec.3,Chung-Shan Rd., Chung –Ho, Taipei, Taiwan, R.O.C. Equipment Under Test: Bluetooth Wireless Headset Brand Name: SmartLink FCC ID Number: SMWBHT-106R Model No.: BHT-106R Model Difference: N/A File Number: ER/2005/30005 Date of test: Oct. 28, 2005 ~ Nov. 15, 2005 Date of EUT Received: Oct. 26, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Dec. 08, 2005 Sky Wang Prepared By: Date Dec. 08, 2005 Elisa Chen Approved By: Date Dec. 08, 2005 Vincent Su Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Dec. 08, 2005 Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................6 1.1. Product Description ............................................................................................................................6 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................6 1.3. Test Methodology ...............................................................................................................................6 1.4. Test Facility.........................................................................................................................................6 1.5. Special Accessories .............................................................................................................................6 1.6. Equipment Modifications....................................................................................................................6 2. SYSTEM TEST CONFIGURATION ............................................................................................7 2.1. EUT Configuration .............................................................................................................................7 2.2. EUT Exercise ......................................................................................................................................7 2.3. Test Procedure.....................................................................................................................................7 2.4. Configuration of Tested System..........................................................................................................8 3. SUMMARY OF TEST RESULTS .................................................................................................9 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1. Standard Applicable ..........................................................................................................................10 5.2. EUT Setup.....................................................................................................…

Text truncated - open the document above for the full version.

Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos Report No: ER/2005/30005 ID: SMWBHT-106R Issue Date: Dec. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Setup Photos
