SNE-ENERG-005Eve Energy

Get Started Prise en main Room • Pièce : Notes • Remarques : ✁ Cover (Page 1) BackCover with Sticker Placement (Page 16) Get started • Prise en main 1 Plug Eve Energy into a socket. Branchez Eve Energy sur une prise électrique. Download the Eve app from the App Store. Téléchargez l‘app Eve sur l‘App Store. 2 (2)(3) If you have already set up another accessory, go to the Eve settings to add Eve Energy to your home. Si vous avez déjà configuré un autre accessoire, accédez aux réglages d‘Eve pour ajouter Eve Energy à votre domicile. Get started • Prise en main Open the Eve app and tap Add Accessory. Eve will now guide you through the setup process. Ouvrez l‘app Eve et touchez Ajouter un accessoire. Eve vous guidera alors tout au long du processus de configuration. 3 (4)(5) Enjoy • Profitez-en bien You can also use the button to switch Eve Energy on and off. Vous pouvez également utiliser le bouton pour allumer et éteindre Eve Energy. Control Contrôle Set schedules (no home hub required) Configuration des programmes (aucun concentrateur requis) Enable child lock Activation du verrouillage enfant Monitor energy consumption Suivi de la consommation d’énergie Adjust status LED Réglage du voyant d’état Install firmware updates Installation des mises à jour du programme interne Control Contrôle Configure guest access Configuration de l’accès invité Control Contrôle Eve Energy can be controlled using the Eve app, the Home app, and Siri. Vous pouvez contrôler Eve Energy à l’aide de l’app Eve, de l’app Maison et de Siri. (6) (7) 2sprachige Version Securely access Eve Energy while you’re away from home and set up powerful automations. Any Apple T V HD, Apple T V 4K or HomePod using the same iCloud account as your iPhone will automatically serve as a home hub, no further setup required. Accédez à Eve Energy en toute sécurité lorsque vous êtes loin de chez vous, et configurez de puissantes automatisations. Vous pouvez utiliser automatiquement une Apple T V HD, une Apple T V 4K ou un HomePod utilisant le même compte iCloud que votre iPhone comme concentrateur, sans la moindre configuration supplémentaire. Schedules automatically control devices connected to Eve Energy - completely autonomously, independently of your iPhone or home hub. Set schedules that match your daily routine using the Eve app. Les programmes contrôlent automatiquement les appareils connectés à Eve Energy, de façon complètement autonome, indépendamment de votre iPhone ou de votre concentrateur. Configurez des programmes adaptés à vos habitudes quotidiennes à l’aide de l’app Eve. Enjoy • Profitez-en bien 9:41 ScheduleCancelDone At sunrise PROGRAM 1 ON OFF 11:30 PM New Event MONTUEWEDTHUFRISATSUN 6 AM6 PM 5:00 PM PROGRAM 2 ON OFF At sunset New Event MONTUEWEDTHUFRISATSUN 6 AM6 PM (8) (9) Projected cost can be calculated based on the consumption of the last minute, day or week. Go to Settings > General > Energy Cost to enter your electricity rate and accurately calculate costs. Le coût estimé peut être calculé en fonction de la consommation de la dernière minute, du dernier jour ou de la dernière semaine. Accédez à Réglages > Général > Coût énergétique pour saisir votre tarif d’électricité et calculer les coûts avec précision. Eve Energy is designed to safeguard your personal data. All data is fully encrypted and only transferred directly between your Eve Energy and iPhone, iPad or home hub. Learn more at evehome.com/privacy Eve Energy est conçu pour protéger vos données personnelles. Toutes les données sont entièrement chiffrées. Elles sont toujours transférées directement entre Eve Energy et votre iPhone, votre iPad ou votre concentrateur. Pour en savoir plus, consultez la page evehome.com/fr/vie-privee Enjoy • Profitez-en bien 9:41 ScheduleCancelDone Projected Cost Based Cost Total Cost Total Consumption 36$/yr 4.59$ 34.22kWh Consumption Power 27W WEEKDAYMINUTE 6AM6PM TODAYNOW No Eve Cloud Pas de cloud Eve No Registration Pas d‘inscription No Profiling Pas de profilage (10) (11) Legal Information • Informations légales This device complies with part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and receiver; consult the dealer or an experienced radio/ T V technician for help. This Class B digital apparatus complies with Canadian ICES-003. This equipment complies with FCC RF and IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by Eve Systems could void your authority to operate this device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux …

Text truncated - open the document above for the full version.

eve. Confidentiality Letter Date: 2021-01-13 Subject: Confidentiality Request for FCC ID: SNE-ENERG-005 and IC: 11192A-ENERG005 ; Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part ofthe subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit D ShortTenn 12] Pennanent Block Diagrams 12] Short Term Extemal Photos rgj ShortTenn D Pennanent Interna! Photos D ShortTenn rgj Permanent Operation Description/Theory of Operation D ShortTerm rgj Pennanent Part List/Tune-Up Procedure D ShortTenn rgj Permanent Schematics rgj Short Tenn Test Setup Photos rgj Short Tenn D Permanent User's Manual Eve Systems LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details ofthe design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as pennanently confidential be pennanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. · Short-Term Confidentiality: The applicant requests the exhibits selected above as short tenn confidential be withheld from public view for a period of 180 days from the date ofthe Grant ofEquipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event infonnation regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: Philipp Guse (Signature/Title) (Print name) Eve System LLC, 100 Pine St., Suite 1250, San Francisco CA 94111, USA ..,

Eve Systems LLC 100 Pine St., Suite 1250, San Francisco CA 94111, USA Eve Systems GmbH Rotkreuzplatz 1 80634 München Germany - RF circuit function: The product are based on the nRF52840 modules The major part of this IC is a Bluetooth, IEEE 802.15.4-2006, Proprietary 2.4GHz compliant transceiver. The Proprietary 2.4GHz function of this product will be turned off using software. Will not be used by the final consumer. Philipp Guse Title: Senior Product Manager Signature:

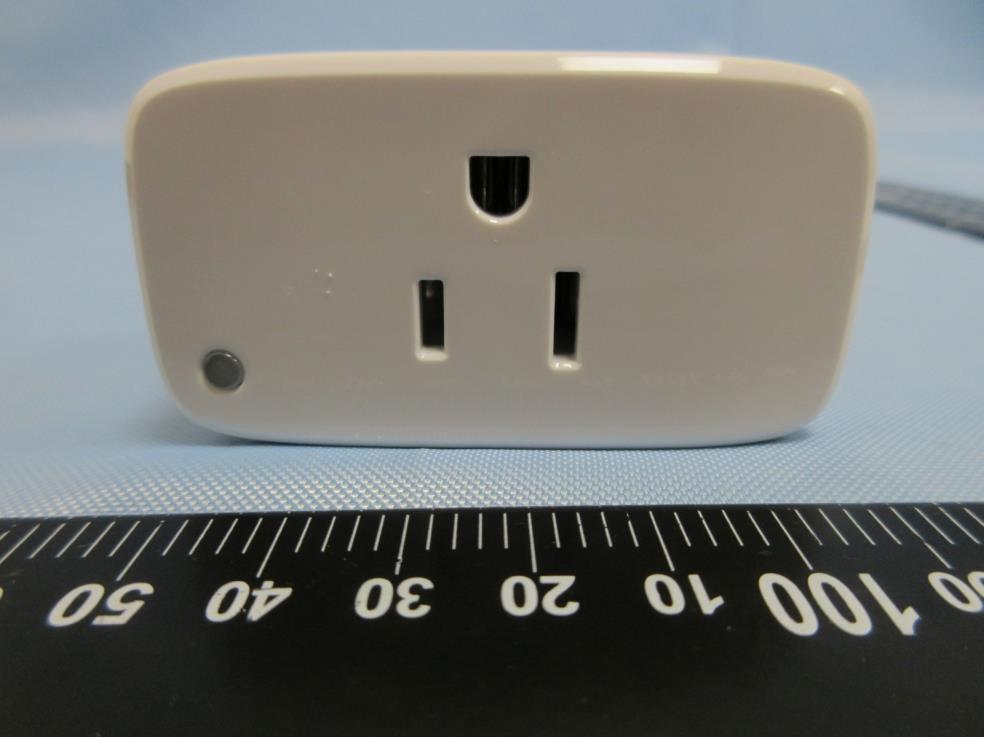

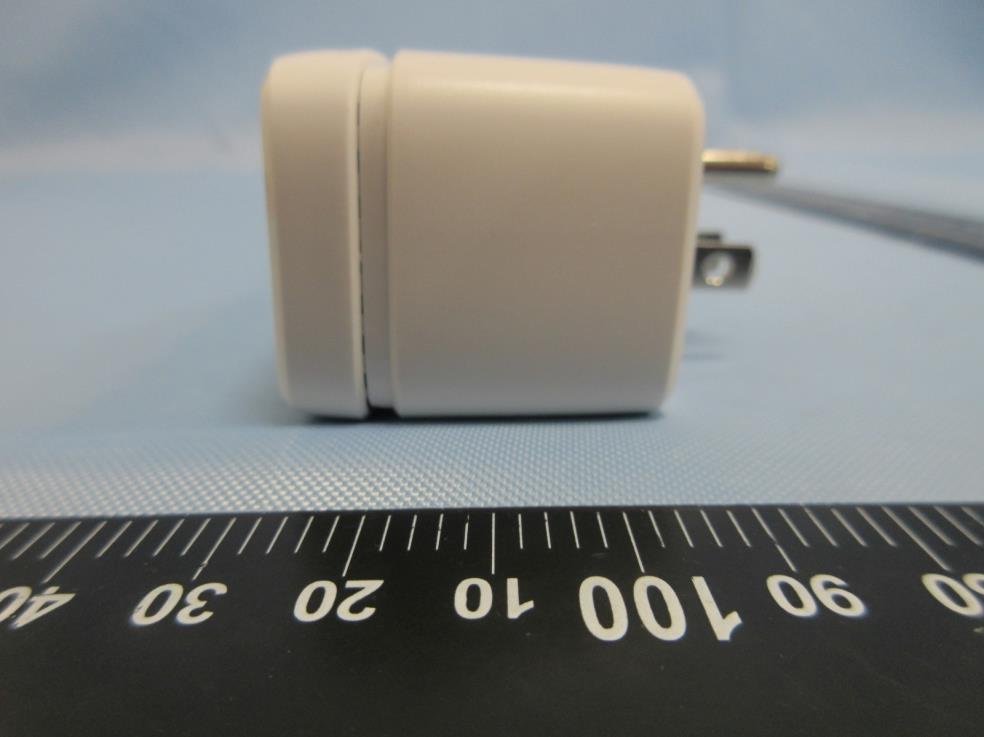

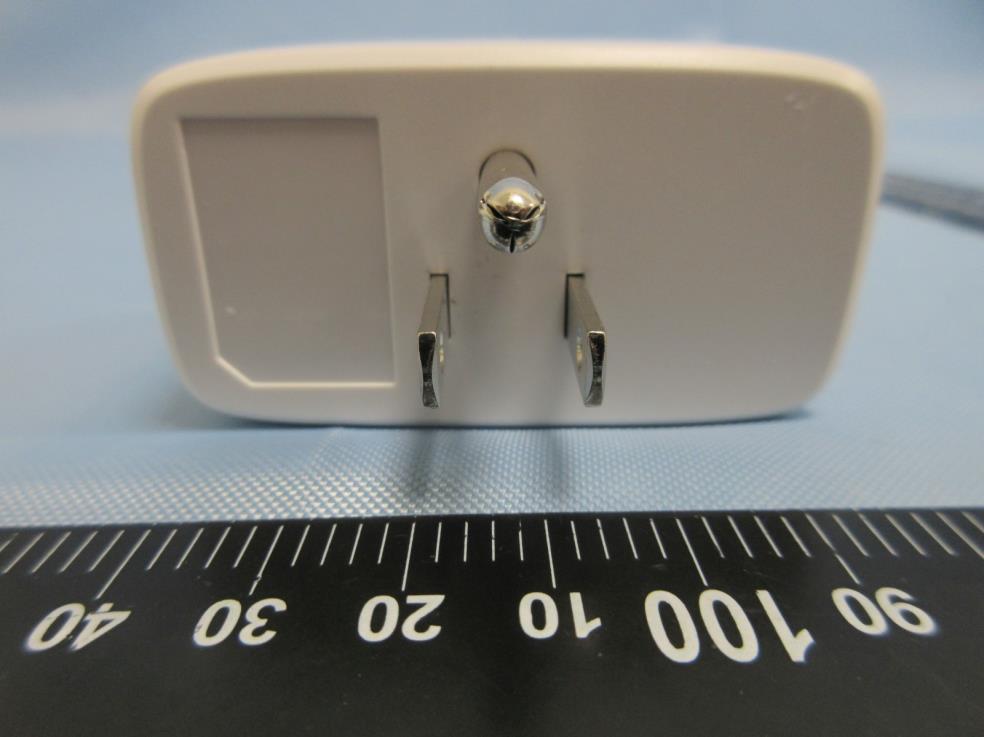

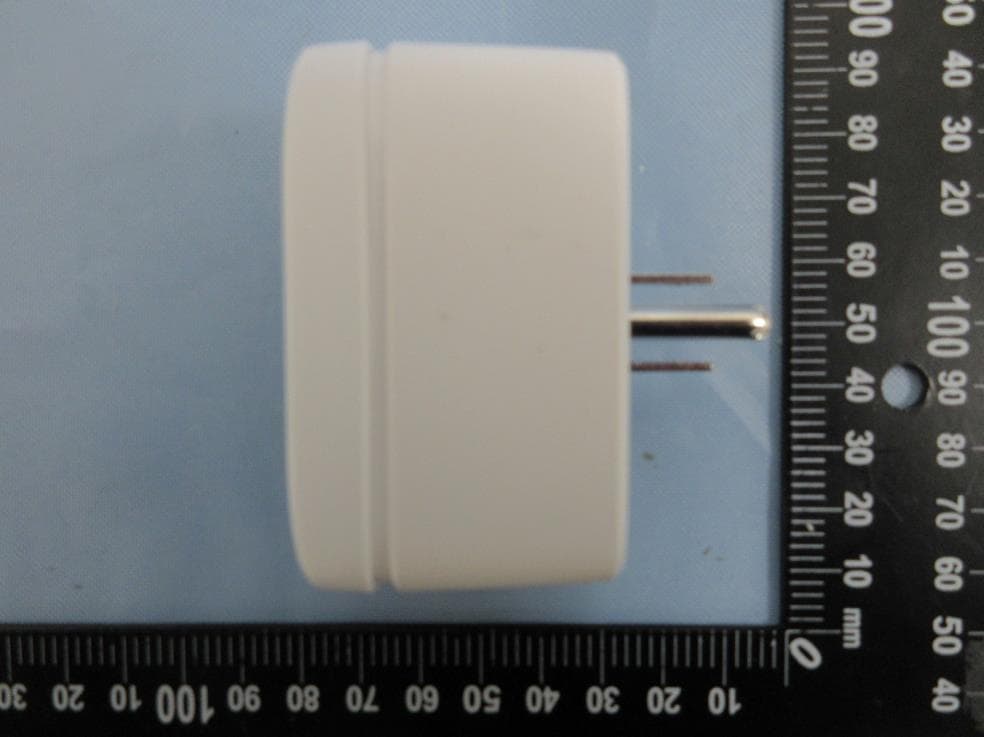

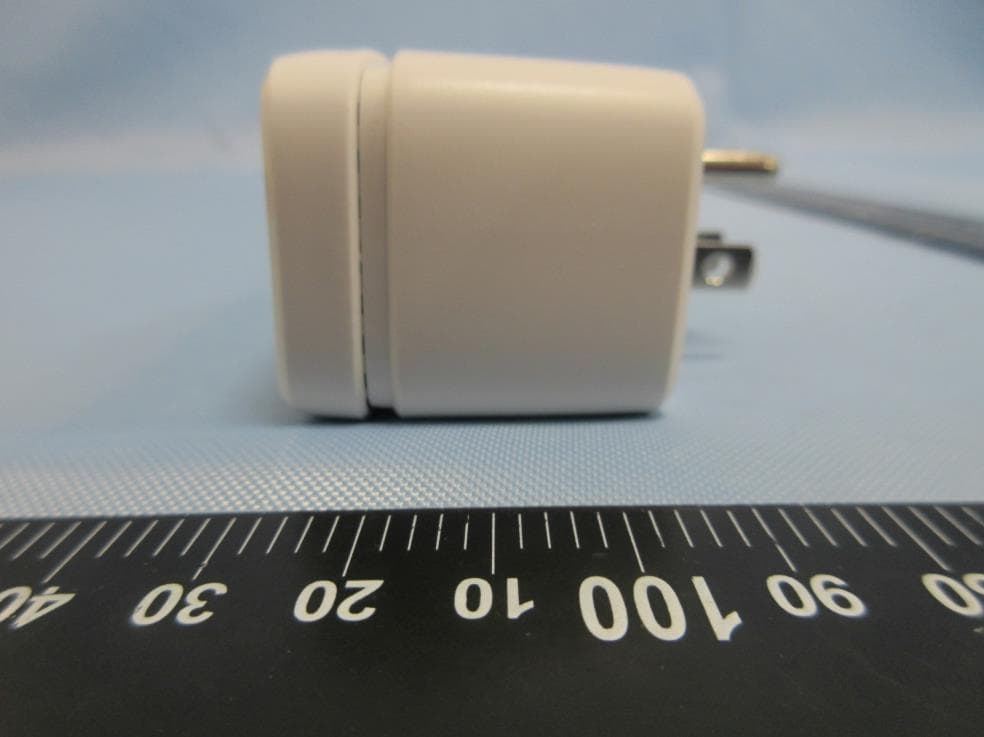

Appendix EP Photo Documentation Page 1 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Appendix EP Photo Documentation Page 2 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Appendix EP Photo Documentation Page 3 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101

Label & label location

Appendix EP Photo Documentation Page 4 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Appendix EP Photo Documentation Page 5 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Appendix EP Photo Documentation Page 6 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Appendix EP Photo Documentation Page 7 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Appendix EP Photo Documentation Page 8 of 8 CN219XQV(P15C-BLE) 001, CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-BLE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Antenna

Produkte Products Prüfbericht - Nr.: Test Report No. ReferenceTest Report No: ULRTC568820300000023F/ 24F/25F/26FError! Reference source not found. Seite 1 von 2 Page 1 of 2 1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 RSS-102 Issue 5 March 2015, section 2.5.2  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 v06 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain, the RF power density can be calculated as below: S (mW/cm 2 ) = PG/4πR 2 Produkte Products Prüfbericht - Nr.: Test Report No. ReferenceTest Report No: ULRTC568820300000023F/ 24F/25F/26FError! Reference source not found. Seite 2 von 2 Page 2 of 2 a) EUT RF Exposure Evaluation standalone operations Test Mode Maximum conducted Power Antenna Gain (dBi) Measured e.i.r.p S (mW/cm 2 ) = PG/4πR 2 Limit (mW/cm 2 ) (dBm) (mW) (dBm) (mW) BLE 8.19 6.59 1.5 9.69 9.31 0.0019 1.0 Thread 8.25 6.68 1.5 9.75 9.44 0.0019 1.0 b) EUT RF Exposure Evaluation simultaneous transmission operations Not supported.  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz;  RF exposure evaluation exempted power: 2.670 W a) EUT RF Exposure Evaluation standalone operations: Test Mode Measured Peak Power Antenna Gain (dBi) Measured e.i.r.p (mW) (dBm) (mW) (dBm) (mW) BLE 8.19 6.59 1.5 9.69 9.31 Thread 8.25 6.68 1.5 9.75 9.44 b) EUT RF Exposure Evaluation simultaneous transmission operations Not supported. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN219XQV(P15C-BLE) 001 Auftrags-Nr.: Order no.: 238494656 Seite 1 von 27 Page 1 of 27 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2020-11-30 Auftraggeber: Client: Eve Systems LLC 100 Pine St., Suite 1250, San Francisco CA 94111 USA Prü fgegenstand: Test item: Eve Energy Bezeichnung / Typ-Nr.: Identification / Type no.: 20EBU4101 Auftrags-Inhalt: Order content: FCC Part 15C Test report (BLE) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2020-11-06 Prü fmuster-Nr.: Test sample no: A002977592-004 A002977592-006 Prü fzeitraum: Testing period: 2021-01-14 - 2021-01-21 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass überprü ft von: reviewed by: Mars Lin genehmigt von: authorized by: Brenda Chen Datum: Date: 2021-01-22 Ausstellungsdatum: Issue date: 2021-01-22 Stellung / Position: Senior Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN219XQV(P15C-BLE) 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass - FCC KDB 447498 D01 v06 RF Exposure Compliance Refer to report no. CN219XQV(FCC-MPE) 001 Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN219XQV(P15C-BLE) 001 Seite 3 von 27 Page 3 of 27 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 13 4.5 TEST SETUP DIAGRAM ........................................................................................ 14 5. TEST RESULTS ................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 15 5.1.1 Antenna Requirement .............................................................................................................15 5.1.2 Peak Output Power ........................................................…

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN219XQV(P15C- THREAD) 001 Auftrags-Nr.: Order no.: 238494656 Seite 1 von 27 Page 1 of 27 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2020-11-30 Auftraggeber: Client: Eve Systems LLC 100 Pine St., Suite 1250, San Francisco CA 94111 USA Prü fgegenstand: Test item: Eve Energy Bezeichnung / Typ-Nr.: Identification / Type no.: 20EBU4101 Auftrags-Inhalt: Order content: FCC Part 15C Test report (THREAD) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2020-11-06 Prü fmuster-Nr.: Test sample no: A002977592-007 A002977592-010 Prü fzeitraum: Testing period: 2021-01-13 - 2021-01-21 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass überprü ft von: reviewed by: Mars Lin genehmigt von: authorized by: Brenda Chen Datum: Date: 2021-01-22 Ausstellungsdatum: Issue date: 2021-01-22 Stellung / Position: Senior Project Engineer Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN219XQV(P15C-THREAD) 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass - FCC KDB 447498 D01 v06 RF Exposure Compliance Refer to report no. CN219XQV(FCC-MPE) 001 Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN219XQV(P15C-THREAD) 001 Seite 3 von 27 Page 3 of 27 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 13 4.5 TEST SETUP DIAGRAM ........................................................................................ 14 5. TEST RESULTS ................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 15 5.1.1 Antenna Requirement .............................................................................................................15 5.1.2 Peak Output Power ...........................................…

Text truncated - open the document above for the full version.

Appendix SP Photo Documentation Page 1 of 5 CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View 1) Photograph 2: Set-up for Spurious Emissions (Front View 2) Appendix SP Photo Documentation Page 2 of 5 CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Photograph 3: Set-up for Spurious Emissions (Back View 1) Photograph 4: Set-up for Spurious Emissions (Back View 2) Appendix SP Photo Documentation Page 3 of 5 CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Photograph 5: Set-up for Spurious Emissions (Back View 3) Photograph 6: Set-up for Spurious Emissions (Back View 4) Appendix SP Photo Documentation Page 4 of 5 CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Photograph 7: Set-up for AC Mains (Front View) Photograph 8: Set-up for AC Mains (Back View) Appendix SP Photo Documentation Page 5 of 5 CN219XQV(P15C-THREAD) 001, CN219XQV(FCC-MPE) 001, CN2127P8(RSS247-THREAD) 001, CN2127P8(IC-MPE) 001 Product: Eve Energy Type Identification: 20EBU4101 Support Unit
