Asus Mobile Tucana Cell Phone User Guide Welcome Congratulations on your purchase of an Asus Mobile Tucana Cell Phone. The following illustration displays the features found on the front of your phone. 1 4 7 2 3 5 6 9 8 0 Left/Menu Soft Key Press to display menu or select left menu functions. Send/Answer Key Press to turn on the power or end a call. Right Soft Key Press to select right menu items Power/End Key Press turn on the power, end a call, exit menu. Speaker Strap Eyelet Attach phone strap to carry easily. Screen Up/Down Navigation Key Scroll through menu items. Keypad Overview The Tucana’s stylish design and color display make it a pleasure to carry around. The Tucana’s has features to meet your communication needs and more. Stay in touch with wireless networking The Tucana is a phone for people who want to stay in touch with the world. In addition to all the basic calling and messaging functions you would expect with a cell phone, it supports multimedia messaging, allowing you to send and receive pictures. Wireless networking capabilities allow you to check e- mail or browse web services covering news, entertainment, reservations, finance, navigation services (GPS), and more. Manage your time with the PIM The Tucana is a phone for people on the go. The Personal Information Manager (PIM) helps you schedule appointments in the calendar, set alarms, or jot down important notes. Play and create with camera, photo editing, games The Tucana is also a phone for people with a sense of creativity and fun. Not only does it include a built-in camera, but it offers a variety of photo editing options. Finally, for moments of fun, there are games and a music composer. Unpacking list The following items come included in the box with your phone. Note: Please save the original box and packing materials in case you need to repack any items or send them for servicing. User M anual Cell phone Battery charger User manual Contents Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Unpacking list . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . 1 Inserting the SIM card and battery . . . . . . . . . . . 1 Turning the phone on . . . . . . . . . . . . . . . . . . . . . 3 Turning the phone off . . . . . . . . . . . . . . . . . . . . . 3 Charging the battery . . . . . . . . . . . . . . . . . . . . . . 4 Making a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . 5 Adjusting the volume . . . . . . . . . . . . . . . . . . . . . 5 Using Your Phone. . . . . . . . . . . . . . . . . . . . . . . 6 Standby mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Function keys . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Text entry: The basics . . . . . . . . . . . . . . . . . . 12 Choosing text entry methods . . . . . . . . . . . . . 12 Multitap text entry. . . . . . . . . . . . . . . . . . . . . . 13 T9™ text entry . . . . . . . . . . . . . . . . . . . . . . . . 15 Calling Features . . . . . . . . . . . . . . . . . . . . . . . 17 Redialing a number. . . . . . . . . . . . . . . . . . . . . . 17 Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Showing or hiding personal information . . . . . 17 Canceling an incoming call . . . . . . . . . . . . . . . . 18 Call logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Returning a missed call . . . . . . . . . . . . . . . . . 18 Answer mode . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Call barring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Timing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 International calls . . . . . . . . . . . . . . . . . . . . . . . 20 Emergency numbers. . . . . . . . . . . . . . . . . . . . . 20 Phone Book. . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adding contacts . . . . . . . . . . . . . . . . . . . . . . . . 21 Editing contacts . . . . . . . . . . . . . . . . . . . . . . . . 21 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Copying contact information to SIM card . . . . 22 Searching for a contact . . . . . . . . . . . . . . . . . 22 Deleting a contact . . . . . . . . . . . . . . . . . . . . . 22 Using a group list . . . . . . . . . . . . . . . . . . . . . . 22 Using a fixed dialing list . . . . . . . . . . . . . . . . . 23 Speed Dialing. . . . . . . . . . . . . . . . . . . . . . . . . 23 Viewing your own number.. . . . . . . . . . . . . . . 23 Viewing the status of the phone . . . . . . . . . . . 23 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Sending messages . . . . . . . . . . . . . . . . . . . . . . 24 Text messages (SMS) . . . . . . . . . . . . . . . . . . . 24 Multimedia Messages (MMS) . . . . . . . . . . . . . . 27 Composing a new multimedia message . . . . 27 Information Services . . . . . . . . . . . . . . . . . . . . . 30 Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using the Camera and Managing Photos. . . 32 Taking a photo . . . . . . . . . . . . . . . . . . . . . . . . . 32 Self-portrait. . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Managing your photos . . . . . . . . . . . . . . . . . . . 35 Adding effects to your photos. . . . . . . . . . . . . 36 Fun and Games. . . . . . . . . . . . . . . . . . . . . . . . 41 Album . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Composer . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

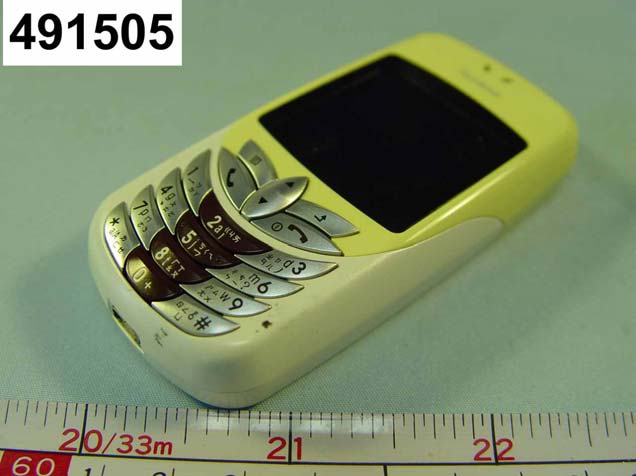

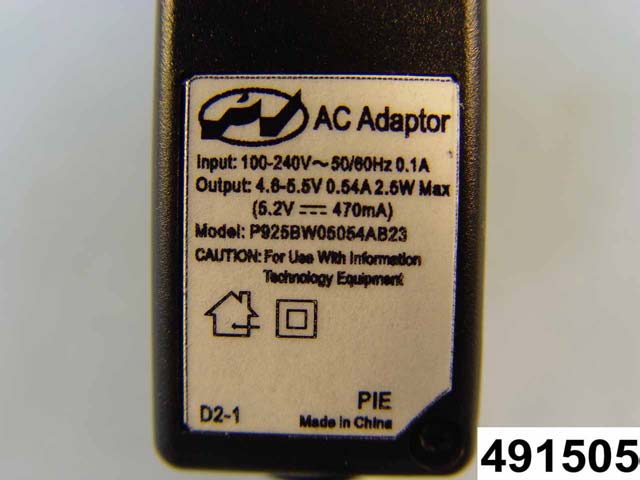

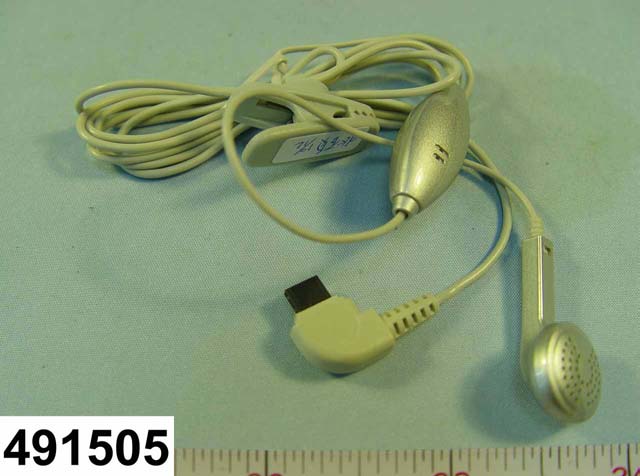

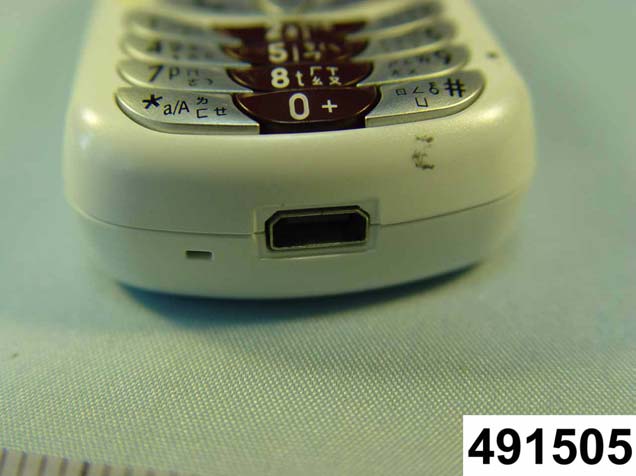

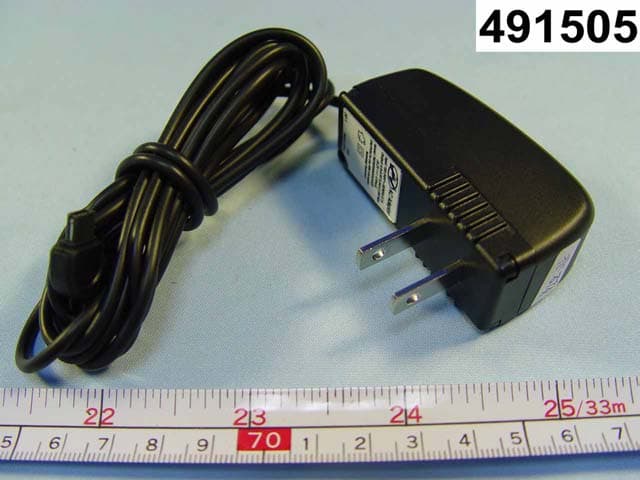

FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255

Label Label

FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG491505 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 05, 2004 FAX : 886-2-2696-2255

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 Specific Absorption Rate (SAR) Test Report for Asmobile Communication Inc. on the Tri-band GPRS Mobile Phone Report No. : FA491505-1-2-01 Trade Name : ASUS Model Name : Tucana FCC ID : SNFG01 Date of Testing : Oct. 19, 2004 Date of Report. : Nov. 05, 2004 Date of Review : Nov. 05, 2004 ‚ The test results refer exclusively to the presented test model/sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 Table of Contents 1. Statement of Compliance----------------------------------------------------------------------------------------------------------------- 1 2. Administration Data ------------------------------------------------------------------------------------------------------------------------ 2 2.1 Testing Laboratory -------------------------------------------------------------------------------------------- 2 2.2 Detail of Applicant--------------------------------------------------------------------------------------------- 2 2.3 Detail of Manfacturer----------------------------------------------------------------------------------------- 2 2.4 Application Detail---------------------------------------------------------------------------------------------- 2 3.General Information------------------------------------------------------------------------------------------------------------------------- 3 3.1 Description of Device Under Test (DUT)---------------------------------------------------------------- 3 3.2 Product Photo-------------------------------------------------------------------------------------------------- 4 3.2.1 DUT with Battery ------------------------------------------------------------------------------------- 4 3.3 Applied Standards:-------------------------------------------------------------------------------------------- 5 3.4 Device Category and SAR Limits------------------------------------------------------------------------- 6 3.5 Test Conditions: ----------------------------------------------------------------------------------------------- 6 3.5.1 Ambient Condition------------------------------------------------------------------------------------ 6 3.5.2 Test Configuration ------------------------------------------------------------------------------------ 6 4.Specific Absorption Rate (SAR)--------------------------------------------------------------------------------------------------------- 7 4.1 Introduction ----------------------------------------------------------------------------------------------------- 7 4.2. SAR Definition ------------------------------------------------------------------------------------------------ 7 5. SAR Measurement Setup ----------------------------------------------------------------------------------------------------------------- 8 5.1.DASY4 E-Field Probe System----------------------------------------------------------------------------- 9 5.1.1.ET3DV6 E-Field Probe Specification ----------------------------------------------------------10 5.1.2 ET3DV6 E-Field Probe Calibration-------------------------------------------------------------10 5.2 DATA Acquisition Electronics (DAE) --------------------------------------------------------------------11 5.3 Robot------------------------------------------------------------------------------------------------------------12 5.4 Measurement Server ---------------------------------------------------------------------------------------12 5.5 SAM Twin Phantom -----------------------------------------------------------------------------------------12 5.6. Device Holder for SAM Twin Phantom ----------------------------------------------------------------14 5.7 Data Storage and Evaluation -----------------------------------------------------------------------------15 5.7.1 Data Storage------------------------------------------------------------------------------------------15 5.7.2 Data Evaluation --------------------------------------------------------------------------------------15 5.8. Test Equipment List-----------------------------------------------------------------------------------------18 6. Tissue Simulating Liquids ------------------------------------------------------------------------------------------------------------- 19 7. Uncertainty Assessment---------------------------------------------------------------------------------------------------------------- 21 8. SAR Measurement Evaluation -------------------------------------------------------------------------------------------------------- 23 8.1 Purpose of System Performance check ---------------------------------------------------------------23 8.2 System Setup -------------------------------------------------------------------------------------------------23 8.3Validation Results---------------------------------------------------------------------------------------------25 9. Description for DUT Testing Position ---------------------------------------------------------------------------------------------- 26 10. Measurement Procedures------------------------------------------------------------------------------------------------------------ 31 11. SAR Test Results ------------------------------------------------------------------------------------------------------------------------ 33 11.1 Right Cheek-------------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA491505-1-2-01

FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Pa ge No. 1 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 FCC TEST REPORT for 47 CFR Part 24E Equipment : Tri-band GPRS Mobile Phone Model No. : Tucana FCC ID : SNFG01 Filing Type : Certification Applicant : Asmobile Communication Inc. No. 11, Lane 120, Li-Te Rd., Peitou, Taipei 112, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Pa ge No. 2 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Pa ge No. 3 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Table of Contents Rule Description Page Test Report 4 2.1033(c) General Information Required 5 2.1033(c)(14) Rule Summary 9 General Information 10 Standard Test Conditions and Engineering Practices 11 2.1046(a) EIRP Carrier Power (Radiated) 12 2.1051, 2.1049(c), 24, 24.238(b). Transmitter Conducted Measurements 17 Conducted Spurious Emission 23 2.1053(a) Field Strength of Spurious Radiation 28 2.1055(a)(1) Frequency Stability (Temperature Variation) 42 2.1055(b)(1) Frequency Stability (Voltage Variation) 45 Antenna Factor & Cable Loss 46 List of Measuring Equipments 47 Uncertainty of Test Site 48 Appendix A External Product Photograph Appendix B Internal Photograph Appendix C Set up Photograph FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Pa ge No. 5 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 24E, Confidentiality Sub-Part 2.1033 I(1): Name and Address of Applicant: Asmobile Communication Inc. No. 11, Lane 120, Li-Te Rd., Peitou, Taipei 112, Taiwan, R.O.C. Manufacturer ASUSTek Computer Inc No. 11, Lane 120, Li-Te Rd., Peitou, Taipei 112, Taiwan, R.O.C. I(2): FCC ID: SNFG01 Model Number: Tucana I(3): Instruction Manual(s): Please See Attached Exhibits I(4): Type of Emission: 300 KGXW I(5): FREQUENCY RANGE, MHz: 1850.2 to 1909.8 I(6): Power Rating, Watts: 0.955 (conducted) 1.982 (EIRP) x Switchable Variable N/A I(7): Maximum Power Rating, Watts: 1 FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Pa ge No. 6 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Subpart 2.1033 (continued) I(8): Voltages & Currents in All Elements in Final RF Stage, Including Final Transistor or Solid State Device: Collector Current, A = 0.5 Collector Voltage, Vdc = 4.2 Supply Voltage, Vdc = 4.2 I(9): Tune-Up Procedure: Please See Attached Exhibits I(10): Circuit Diagram/Circuit Description: Please See Attached Exhibits I(11): Label Information: Please See Attached Exhibits I(12): Photographs: Please See Attached Exhibits I(13): Digital Modulation Description: ___ Attached Exhibits x N/A I(14): Test and Measurement Data: Follows FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 8 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Certificate of NVLAP Accreditation FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 9 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Sub-part 2.1033I(14): Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2, Sub-part J, Sections 2.947, 2.1033I, 2.1041, 2.1046, 2.1047, 2.1079, 2.1051, 2.1053, 2.1055, 2.1057 and the following individual Parts: 22 – Public Mobile Services 22 Subpart H – Cellular Radiotelephone Service x 24 – Personal Communications Services FCC TEST REPORT Report No. : FG491505 …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 25 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Name of Test: Conducted Spurious Emission GSM 1900 CH661 3G-7G FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 26 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Name of Test: Conducted Spurious Emission GSM 1900 CH661 7G-13.6G FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 27 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Name of Test: Conducted Spurious Emission GSM 1900 CH661 13.6G-19.1G FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 28 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Name of Test: Field Strength of Spurious Radiation Specification: 47 CFR 2.1053(a) Guide: ANSI/TIA/EIA-603-1992/2001, Paragraph 1.2.12 and Table 16 Measurement Procedure 1.2.12.1 Definition: Radiated spurious emissions are emissions from the equipment when transmitting into a non-radiating load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. 1.2.12.2 Method of Measurement 98. Connect the equipment as illustrated B) Adjust the spectrum analyzer for the following settings: 98. Resolution Bandwidth 100 kHz (<1 GHZ), 1 MHZ (> 1GHz). 2) Video Bandwidth ≥ 3 times Resolution Bandwidth 3) Sweep Speed ≤2000 Hz/second 4) Detector Mode = Mean or Average Power C) Place the transmitter to be tested on the turntable in the standard test site. If the antenna is detatchable, The transmitter is transmitting into a non-radiating load which is placed on the turntable. The RF cable to this load should be of minimum length. FCC TEST REPORT Report No. : FG491505 SPORTON International Inc. FCC ID SNFG01 TEL : 886-2-2696-2468 Page No. 29 of 48 FAX : 886-2-2696-2255 Issued Date Nov. 05, 2004 Name of Test: Field Strength of Spurious Radiation (Cont.) 98. For each spurious measurement the test antenna should cover the measured frequency. Measurements shall be made from the lowest radio frequency generated in the equipment to the tenth harmonic of the carrier, except for the region close to the carrier equal to ± the test bandwidth (see section 1.3.4.4). 98. For each spurious frequency, raise and lower the test antenna from 1 m to 4 m to obtain a maximum reading on the spectrum analyzer with the test antenna at horizontal polarity. Repeat this …
