SOLCP-501Personal Computer

Caution : Any changes or modifications in construction of this device, which are not expressly approved by the party responsible for compliance, could void the user’s authority to operate the equipment. Note : This equipment has been tested and found to comply with limits for Class B di gital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency ener gy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particula r installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 5 Personal Computer CP-501,CP-501L,CP-502,C-502L GA CARD ATI9800PRO ELSA980FX Appendix 5. Block Diagram ODD LG52X COMBO M/B ASUS P4P800SE CPU PENTIUM 4-3.0E HDD RAM SS80G 7200 SS512DDR3200

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd.. Appendix 3 Personal Computer CP-501,CP-501L,CP-502,C-502L Appendix 3. Photographs of EUT Front of EUT Rear of EUT

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 2 Personal Computer CP-501,CP-501L,CP-502,C-502L Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC Label This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No :CP-501,CP-501L, CP-502,C-502L FCC ID : SOLCP-501 CoupDEN Co., Ltd. Made in Korea

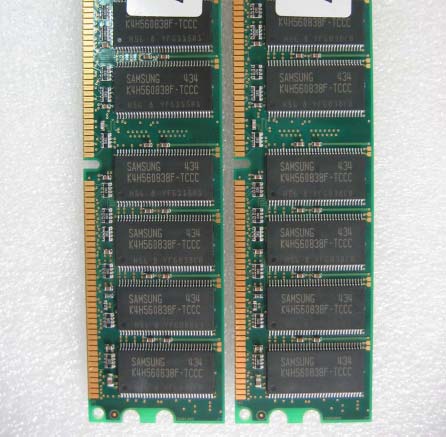

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L Appendix 4. Internal Photographs of EUT Main Board Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L VGA CARD Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L RAM Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L HDD Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L CD-ROM Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L Power Supply CPU Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L CP-501L CP-502 Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-501,CP-501L,CP-502,C-502L CP-502L

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Personal Computer CP-501,CP-501L,CP-502,C-502L 3. Product Information 3.1 Equipment Description 3.2 Variations covered by this report Model Difference : The only different figure of the products are their outward appearance. (Please show the EUT Photographs.) Technical Deviation : Tested by model CP-501. 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc.

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 This report only respoe and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 16 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : Personal Computer MODEL/TYPE NO : CP-501, CP-501L, CP-502, CP-502L FCC ID : SOLCP-501 TRADE NAME : COUPDEN APPLICANT : CoupDEN Co., Ltd. 4F., 373-4 Seogyo-dong, Mapo-ku, Seoul, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : October 09, 2004 DATES OF ISSUE : October 20, 2004 TEST REPORT No. : BWS-04-EF-0064 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Personal Computer(CP-501, CP-501L, CP-502, CP-502L) has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. October 20, 2004 (Date) Tae-hyun Nam Chief Engineer Laboratory Division BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL : +82 31 762 0124 FAX: +82 31 762 0126 Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Personal Computer CP-501,CP-501L,CP-502,C-502L TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Personal Computer CP-501,CP-501L,CP-502,C-502L FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : CoupDEN Co., Ltd. Company Address : 3F, Duckyoung B/D, 1357-7, Secho-Dong, Secho-Gu, Seoul 137-070, Korea Phone/Fax : Phone : +82-2-582-9511 / Fax : +82-2-581-2983 Company Name : CoupDEN Co., Ltd. Company Address : 3F, Duckyoung B/D, 1357-7, Secho-Dong, Secho-Gu, Seoul 137-070, Korea Phone/Fax : Phone : +82-2-582-9511 / Fax : +82-2-581-2983 z EUT Type : Personal Computer z Model Number : CP-501, CP-501L, CP-502, CP-502L z FCC Identifier : SOLCP-501, CP-501L, CP-502, CP-502L z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2000 z Date of Tests : October 09, 2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea TEL: +82-31-762-0124 FAX: +82-31-762-0126 z Test Report No. : BWS-04-EF-0064 Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Personal Computer CP-501,CP-501L,CP-502,C-502L 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the CoupDEN Co., Ltd. Personal Computer Model : CP-501, CP-501L, CP-502, CP-502L. Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Personal Computer CP-501,CP-501L,CP-502,C-502L 3. Product Information 3.1 Equipment Description 3.2 Variations covered by this report Model Difference : The only different figure of the products are their outward appearance. (Please show the EUT Photographs.) Technical Deviation : Tested by model CP-501. 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Personal Computer CP-501,CP-501L,CP-502,C-502L 4. Description of Tests 4.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance wi…

Text truncated - open the document above for the full version.

Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 1 Personal Computer CP-501,CP-501L,CP-502,C-502L Appendix 1. Test Setup Photographs Conducted Emission Test Setup Report No: BWS-04-EF-0064 FCC ID : SOLCP-501 Date of Test : October 09, 2004 CoupDEN Co., Ltd. Appendix 1 Personal Computer CP-501,CP-501L,CP-502,C-502L Radiated Emission Test Setup
