SOLCP370Personal Computer

series CP 303 / CP 350 / CP 370 POWER / FAN CONTROL RESET CD DOOR 3.5 DOOR (USB/ SOUND/MIC INSERT) CD DOOR VENTILATION HOLE M o d e l F r o n t

Front panel - One touch seperating Power & Fan Control Unit Changeable holder - Front panel holder (Changeable) DAF (Dynamic Air Flow) Chassis - Dinamic air flow for best Ventilation function) 5.25 inch Bay 3.25 inch Bay UMZ (Universal Maintenance Zone) - Sensational performance to change CPU UJF (Universal Joint Frame) - New type top frame of chassis and seperated top cover Power cable holder at chassis to keep inside PC tidy Great expension module by seperable top chassis I I I I I I I I I I 01 02 03 04 05 06 07 08 09 10 C o m p o n e n t s make verious extension fuction for users own type PC and Chip set cooler with installed main-board Power button Reset button Fan controller Dial PC inside Temp. indicator Blue - Best Temp. Violet - Temp. (45~55C) : Put controller middle Speed Red - Temp more than 65C : Put controller at High Speed S o u n d I / O a n d U S B I n s t a l l a t i o n P o w e r a n d H D D , L E D I n s t a l l a t i o n F a n C o n t r o l l e r

A s s e m b l y Front panel CD-door Front panel holder DAF Chassis 5.25 3.5 UMZ UJF PSU lines holder Top chassis expension module Top cover (plastic) Side panel (L) Side panel (R) 140mm cooling fan (air from outside to inside) 120mm cooling fan (air from inside to outside) 80mm cooling fan (air from inside to outside) 120mm cooling fan (air from inside to outside) 120mm cooling fan (air from outside to inside) - CPU 120mm cooling fan (air from outside to inside) - Graphic Card CPU Intel® Pentium D830 3.0GHz System memory 512MB or above Hard Disk Drive 160GB or above (Serial ATA type) CD-ROM Drive - CD-ROM : Sony CDU5221 (52x reading, E-IDE type) - CD-RW/DVD Drive : Toshiba Samsung Storage TS-H492 (52x32x52 CD-RW, 16x DVD-ROM Combo. Serial connector - On-Board (9pin male, 1ea) Parallel connector - On-Board (25pin female, 1ea) Keyboard connector - On-Board (6pin PS/2 type, 1ea) Mouse connector - On-Board (6pin PS/2 type 1ea) Sound connector - Line-In, Line-Out, Mic-In, RS Out, CS Out, SPDIF Out-Optical and Coaxial Audio port Front-End connector - On-Sub Board in front bezel (Mic jack, Earphone jack and USB connector 2ea - 1394 connector, 1ea (option for buyer) USB connector - On-Board (4ea), Front-End (2ea) VGA Card - GeForce 6600 128MB for dual display(Analog+DVI-I) and TV out Expansion slot - PCI-16x slot 1ea, PCI-1x slot 2ea and PCI slot 3ea Case spec. - Dimension : 180mm(W) x 410mm(H) x 450mm(D) - Bay : 1) 3.5 inch x 7ea(hidden 6 bays included) 2) 5.25 inch x 4ea - Weight : 5.5Kg (net), 6.5Kg(gross) with packing parts Cooling Solution - 120mm x 2ea for CP303 (fixed 1500rpm) - 120mm x 2ea for CP350, 370 (from 900~1600rpm) with Fan controller and 120mm Fan (fixed 1500rpm) Cable -Power cable : 1.8m Power Supply Unit (Seventeam BLP-300BLP) - 300W Maximum - AC Input Voltage : 115~230VAC, - AC Input Frequency : 50 ~ 60Hz Environmental conditions - Operating Temperature : 5°C~35°C , Storage Temperature : -20°C~ 55°C - Operating Humidity :30% ~80%(RH) , Storage Humidity : 30% ~80%(RH) S y s t e m S p e c i f i c a t i o n 01_ 11_ 12_ 13_ 14_ 15_ 16_ 17_ 18_ 02_ 03_ 04_ 05_ 06_ 07_ 08_ 09_ 10_ FCC Compliance Statement Caution : Any changes or modifications in construction of this device, which are not expressly approved by the party responsible for compliance, could void the user’s authority to operate the equipment. Note : This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Report No: BWS-06-EF-0039 FCC ID : SOLCP-370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 5 Personal Computer CP-370 Appendix 5. Block Diagram

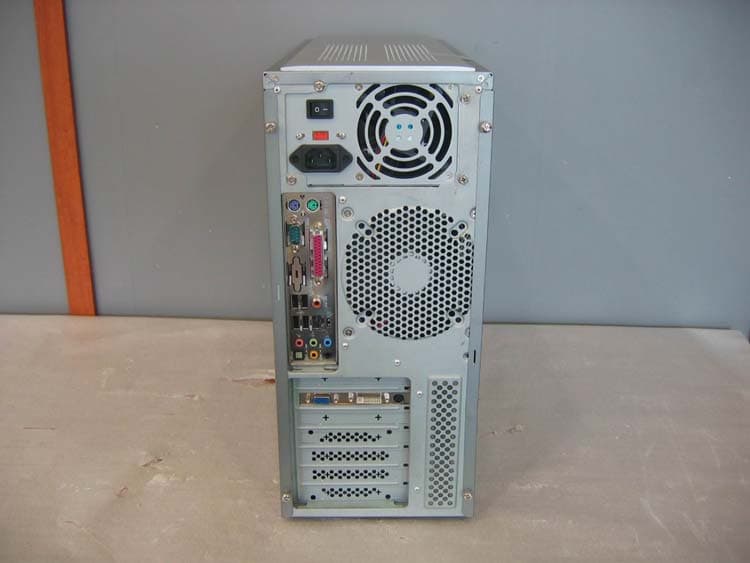

Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd.. Appendix 3 Personal Computer CP370 Appendix 3. Photographs of EUT Front of EUT Rear of EUT

Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 2 Personal Computer CP370 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Made in Korea Model No :CP370 FCC ID : SOLCP370 CoupDEN Co., Ltd. FCC Label

Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-370 Appendix 4. Internal Photographs of EUT Main Board Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-370 VGA CARD Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-370 RAM HDD Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-370 CD-ROM Power Supply Report No: BWS-06-EF-0039 FCC ID : SOLCP370 Date of Test : May 16, 2006 CoupDEN Co., Ltd. Appendix 4 Personal Computer CP-370 CPU

CoupDEN Co., Ltd. Page 5 of 16 Personal Computer CP370 3. Product Information 3.1 Equipment Description System Specification for CP370 1) CPU - Intel® Pentium D830 3.0GHz 2) System memory - 512MB or above 3) Hard Disk Drive - 160GB or above (Serial ATA type) 4) CD-ROM Drive - CD-ROM : Sony CDU5221 (52x reading, E-IDE type) - CD-RW/DVD Drive : Toshiba Samsung Storage TS-H492 (52x32x52 CD-RW, 16xDVD-ROM Combo) 5) Serial connector - On-Board (9pin male, 1ea) 6) Parallel connector - On-Board (25pin female, 1ea) 7) Keyboard connector - On-Board (6pin PS/2 type, 1ea) 8) Mouse connector - On-Board (6pin PS/2 type 1ea) 9) Sound connector - Line-In, Line-Out, Mic-In, RS Out, CS Out, SPDIF Out-Optical and Coaxial Audio port 10) Front-End connector - On-Sub Board in front bezel (Mic jack, Earphone jack and USB connector 2ea - 1394 connector, 1ea (option for buyer) 11) USB connector - On-Board (4ea), Front-End (2ea) 12) VGA Card - GeForce 6600 128MB for dual display(Analog+DVI-I) and TV out 13) Expansion slot - PCI-16x slot 1ea, PCI-1x slot 2ea and PCI slot 3ea 14) Case spec. - Dimension : 180mm(W) x 410mm(H) x 450mm(D) - Bay : 1) 3.5 inch x 7ea(hidden 6 bays included) 2) 5.25 inch x 4ea - Weight : 5.5Kg (net), 6.5Kg(gross) with packing parts 15) Cooling Solution - 120mm x 2ea for CP303 (fixed 1500rpm) - 120mm x 2ea for CP350, 370 (from 900~1600rpm) with Fan controller and 120mm Fan (fixed 1500rpm) 16) Cable - Power cable : 1.8m 17) Power Supply Unit (Seventeam BLP-300BLP) - 300W Maximum - AC Input Voltage : 115~230VAC, - AC Input Frequency : 50 ~ 60Hz 18) Environmental conditions - Operating Temperature : 5°C~35°C , Storage Temperature : -20°C~ 55°C - Operating Humidity : 30% ~80%(RH) , Storage Humidity : 30% ~80%(RH) 3.2 Variations covered by this report Technical Deviation : Tested by model CP-501. 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc.

CoupDEN Co., Ltd. Page 1 of 16 Personal Computer CP370 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : Personal Computer MODEL/TYPE NO : CP370 FCC ID : SOLCP370 TRADE NAME : COUPDEN APPLICANT : CoupDEN Co., Ltd. 4F., 373-4 Seogyo-dong, Mapo-ku, Seoul, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : May 16, 2006 DATES OF ISSUE : May 30, 2006 TEST REPORT No. : BWS-06-EF-0039 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Personal Computer(CP370) has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Prepared by : Reviewed by: Lee, Cheol Ho/EMC Engineer BWS TECH INC. Nam, Tae-hyun/Chief Engineer BWS TECH INC. BWS TECH INC. 611-1, Maesan-ri, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, Korea TEL: +82-31-333-5997, FAX: +82-31-333-0017 http://www.bws.co.kr CoupDEN Co., Ltd. Page 2 of 16 Personal Computer CP370 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual CoupDEN Co., Ltd. Page 3 of 16 Personal Computer CP370 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Name : CoupDEN Co., Ltd. Applicant Address : 3F, Duckyoung B/D, 1357-7, Secho-Dong, Secho-Gu, Seoul 137-070, Korea Manufacturer Name : CoupDEN Co., Ltd. Manufacturer Address : 3F, Duckyoung B/D, 1357-7, Secho-Dong, Secho-Gu, Seoul 137-070, Korea Contact Person : Seon-Hyun, Cho / Manager Phone/Fax : Phone : +82-2-582-9511 / Fax : +82-2-581-2983 z EUT Type : Personal Computer z Model Number : CP370 z FCC Identifier : SOLCP370 z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2003 z Date of Tests : May 16, 2006 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 611-1, Maesan-ri, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : : BWS-06-EF-0039 CoupDEN Co., Ltd. Page 4 of 16 Personal Computer CP370 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the CoupDEN Co., Ltd. Personal Computer Model : CP370. CoupDEN Co., Ltd. Page 5 of 16 Personal Computer CP370 3. Product Information 3.1 Equipment Description System Specification for CP370 1) CPU - Intel® Pentium D830 3.0GHz 2) System memory - 512MB or above 3) Hard Disk Drive - 160GB or above (Serial ATA type) 4) CD-ROM Drive - CD-ROM : Sony CDU5221 (52x reading, E-IDE type) - CD-RW/DVD Drive : Toshiba Samsung Storage TS-H492 (52x32x52 CD-RW, 16xDVD-ROM Combo) 5) Serial connector - On-Board (9pin male, 1ea) 6) Parallel connector - On-Board (25pin female, 1ea) 7) Keyboard connector - On-Board (6pin PS/2 type, 1ea) 8) Mouse connector - On-Board (6pin PS/2 type 1ea) 9) Sound connector - Line-In, Line-Out, Mic-In, RS Out, CS Out, SPDIF Out-Optical and Coaxial Audio port 10) Front-End connector - On-Sub Board in front bezel (Mic jack, Earphone jack and USB connector 2ea - 1394 connector, 1ea (option for buyer) 11) USB connector - On-Board (4ea), Front-End (2ea) 12) VGA Card - GeForce 6600 128MB for dual display(Analog+DVI-I) and TV out 13) Expansion slot - PCI-16x slot 1ea, PCI-1x slot 2ea and PCI slot 3ea 14) Case spec. - Dimension : 180mm(W) x 410mm(H) x 450mm(D) - Bay : 1) 3.5 inch x 7ea(hidden 6 bays included) 2) 5.25 inch x 4ea - Weight : 5.5Kg (net), 6.5Kg(gross) with packing parts 15) Cooling Solution - 120mm x 2ea for CP303 (fixed 1500rpm) - 120mm x 2ea for CP350, 370 (from 900~1600rpm) with Fan controller and 120mm Fan (fixed 1500rpm) 16) Cable - Power cable : 1.8m 17) Power …
