SPBMX1KCDMADual-Band CDMA Point of Sales Terminal

Axalto SA

Click to zoom

Application Details

Equipment Class: PCT - PCS Licensed Transmitter worn on body
Date of Grant: Nov 23, 2004
Application Purpose: Original Equipment
Date of Application: Nov 23, 2004
Equipment Note: Dual-Band CDMA Point of Sales Terminal
Frequency Range: 1851.25000000 - 1908.75000000
Company: Axalto SA
Country: France

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

ID Label/Location Info

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

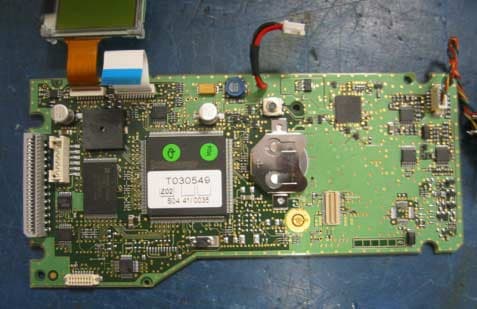

Internal Photos

AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000 AXALTO FCC ID: SPBMX1KCDMA EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Point of Sales Terminal Model: MagIC X1000

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.241025622.SPB Test Dates: Oct. 27 - Nov. 5, 2004 EUT Type: Dual-Band CDMA Point of Sales Terminal FCC ID: SPBMX1KCDMA Page 1 of 22 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Axalto SA Dates of Tests: Oct. 27 - Nov. 5, 2004 e-Payment Terminals & Systems Test Report S/N: SAR.241025622.SPB 50, Avenue Jean Jaurès Test Site: PCTEST Lab, Columbia, MD USA 92542 Montrouge Cedex FCC ID: SPBMX1KCDMA APPLICANT NAME: AXALTO SA EUT Type: Dual-Band CDMA Point of Sales Terminal Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 - 1908.75 MHz (PCS) Max. RF Output Power: 0.224 W CDMA (23.5 dBm) Conducted 0.224 W PCS (23.5 dBm) Conducted Max. SAR Measurement: 0.38 W/kg CDMA Body SAR 0.21 W/kg PCS Body SAR Trade Name/Model(s): AXALTO MagIC X1000 CDMA T0468XX FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: F60AB466] This wireless portable device has shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and RSS-102, and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.241025622.SPB Test Dates: Oct. 27 - Nov. 5, 2004 EUT Type: Dual-Band CDMA Point of Sales Terminal FCC ID: SPBMX1KCDMA Page 2 of 22 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................10 9. MEASUREMENT UNCERTAINTIES...................................................................................11 10. SAR TEST DATA SUMMARY............................................................................................12 11. SAR TEST EQUIPMENT...................................................................................................13 12. CONCLUSION...............................................................................................................14 13. REFERENCES..................................................................................................................15 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................16 EXHIBIT B. SAR DATA SUMMARY..........................................................................................17 PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.241025622.SPB Test Dates: Oct. 27 - Nov. 5, 2004 EUT Type: Dual-Band CDMA Point of Sales Terminal FCC ID: SPBMX1KCDMA Page 3 of 22 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[6] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as …

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231007415.O9E Test Dates: Oct. 24-27, 2003 EUT Type: Dual-Band CDMA Wireless Module FCC ID: O9EQ2438 Page 1 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification WAVECOM, INC. Dates of Tests: Oct. 24-27, 2003 4810 Eastgate Mall, 2 nd Floor Test Report S/N: 22/24.231007415.O9E San Diego, CA 92121 Test Site: PCTEST Lab, Columbia MD FCC ID O9EQ2438 APPLICANT WAVECOM, INC. Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band CDMA Wireless Module Model: Q2438 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 23.5 dBm Conducted Emission Designator(s): 1M25F9W (CDMA) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Modular device. Output power is conducted. This device is authorized for mobile use only. The maximum antenna gain should not exceed 6 dBi. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231007415.O9E Test Dates: Oct. 24-27, 2003 EUT Type: Dual-Band CDMA Wireless Module FCC ID: O9EQ2438 Page 2 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 FREQUENCY STABILITY 10-13 6.1 PLOTS OF EMISSIONS 14 7.1 LIST OF TEST EQUIPMENT 15 8.1 SAMPLE CALCULATIONS 16 9.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EUT PHOTOGRAPHS ATTACHMENT H: BLOCK DIAGRAM(S) ATTACHMENT I: SCHEMATIC DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: USER’S MANUAL ATTACHMENT M: MPE REPORT PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231007415.O9E Test Dates: Oct. 24-27, 2003 EUT Type: Dual-Band CDMA Wireless Module FCC ID: O9EQ2438 Page 3 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: WAVECOM, INC. Address: 4810 Eastgate Mall, 2 nd Floor San Diego, CA 92121 • FCC ID: O9EQ2438 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. RF Output Power: 23.5 dBm Conducted • FCC Classification(s): PCS Licensed Transmitter (PCB) • Equipment (EUT) Type: Dual-Band CDMA Wireless Module • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: Oct. 24-27, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.231007415.O9E PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231007415.O9E Test Dates: Oct. 24-27, 2003 EUT Type: Dual-Band CDMA Wireless Module FCC ID: O9EQ2438 Page 4 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and t…

Text truncated - open the document above for the full version.

Test Report

© 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438 © 2003 PCTEST Lab WAVECOM, Inc. Model: Q2438

Test Setup Photos

Contact Information

Applicant

Serge Barbier

[email protected]01 46 00 53 68Fax: 01 46 00 53 51

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	220.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is limited to the specific configurations tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. The highest reported Body SAR values are: Part 22 - Body-worn: 0.76 W/kg; Part 24 - Body-worn: 0.58W/kg.
