SPI-420KPMRPROXIMITY SENSOR

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: SPI-420KPMR FCC Rule Part: 15 Subpart C ACS Report Number: 04-0035-15C Manufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP Manual A7763A 10/04 Installation Instructions For Profile Series Hardwired Networked v.S1 Cylindrical Lock Table of Contents This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced TV technician for help This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme avec la norme NMB-003 du Canada. Warning 1 Warning:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Warning General Description.....................................................1 Specifications ............................................................1 Features ..................................................................1 Parts Breakdown .......................................................2-3 Installation Instructions ...............................................4-9 Operational Check ......................................................10 1 2 3 4 5 6 7 Page Warning ! To comply with “Fire Listed” doors, battery operated units must be replaced with alkaline batteries only. For installation assistance, contact SARGENT at 800-810-WIRE (9473) 1 For installation assistance, contact SARGENT at 800-810-WIRE (9473) The SARGENT Profile Series v.S1 Keypad Cylindrical Lock is designed for areas which require stand alone authorized entry. It is a self-contained microprocessor-controlled keypad with non-volatile memory. The keypad will hold a total of 2000 (S1-LU, S1-PK, S1-PA) different user codes. This product is operated by six (6) “AA” alkaline batteries or by the SARGENT 3267 9VDC power supply. General Description 2 Specifications • Latch – 1/2" standard 3/4" throw fire-rated double doors (optional) (41- prefix) • Deadlocking latch • Outside lever controlled by keypad, or key retracts latch • Inside lever retracts latch • Locks furnished for 1-3/4" doors only • U.L. Listed Features • Non volatile memory • Motor driven, battery operated • Battery operated with 6 “AA” alkaline batteries • Low battery alert–4 chirps after code entry • Optional external power, sargent 3267 9vdc power supply • External remote “request to enter” • Master, Emergency or Supervisory code will unlock door when low battery has expired • 2000 (S1-LU, S1-PK, S1-PA) users • Programming is done at a central computer for monitoring and access control of each door via a gateway and network wiring using TekControl™ software • Pin Code, Proximity Card, Fob are optional • Operates utilizing any two to six digits per code. Digits may be repeated and codes may start with zero • Cylinder override • Entry of three wrong User Codes disables all codes for ten seconds. Yellow LED on solid • Piezo horn can be heard with each keystroke or turned off by Master or Supervisory Code 3 4 Profile Series v. S1 Cylindrical Lock TEKControl Software Data (RS232) TEKLock 4200 Access Control Server (Gateway) 120VAC L/N/G Ethernet LAN Network Interface Card Profile Series v. S1 1 2 3 2 Parts Breakdown For installation assistance, contact SARGENT at 800-810-WIRE (9473) 5 Profile Series v. S1 Cylindrical Lock 1 17 21 Optional 21 21 10 11 13 15 6 2 7 12 18 16 9 14 7 21 3 25 23 5 24 19 4 3 For installation assistance, contact SARGENT at 800-810-WIRE (9473) Profile Series v. S1 Cylindrical Lock ITEM PART No. DESCRIPTION REQ’D 110-20002-3/4" Backset Latch (Standard)1 10-20533-3/4" Backset Latch (23 Prefix)1 10-20585" Backset Latch (25 Prefix)1 10-26343/4" Throw (41 Prefix)1 210-3136Outside Escutcheon Key Pad, Key Pad/Prox (S1-LU, S1-PK)1 10-3137Outside Escutcheon Prox Only (S1-PA)1 10-3016Outside Escutcheon Housing Only1 52-2432Key Pad/Proximity Bezel Assembly w/ Harness (S1-LU, S1-PK)1 52-2431Prox Only Bezel Assembly w/ Harness/(S1-PA) 1 310-3132Inside Escutcheon and 2000 User Controller (S1-LU)1 10-3133Inside Escutcheon and Key Pad/Prox or Prox Only Controller (S1-PA, S1-PK)1 10-3015Inside Escutcheon Housing Only1 52-28912000 User Key Pad Controller Assembly (S1-LU)1 52-28922000 User Prox Only or Prox Key Pad Controller Assy. (S1-PA, S1-PK)1 410-0523“B” Inside Lever/Passage1 10-2204“J” Inside Lever/Passage NOTE: Coastal Levers & Cylinders other than Standard— See 10 Line Parts Pages 1 10-0501“L” Inside Lever/Passage1 10-0545“P” Inside Lever/Passage1 10-0534“B” Inside Lever (75- Handicap Warning)1 10-2245“J” Inside Lever (75- Handicap Warning)1 10-0512“L” In…

Text truncated - open the document above for the full version.

11450 Technology Circle Duluth Ga 30097 678-473-8376 CONFIDENTIALITY REQUEST Federal Communications Commission Date: 12-21-04 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Single Access Lock Inc. respectfully requests confidentiality of certain materials provided with the submission of the 420 MR KP under FCC ID: SPI-420KPMR in accordance with FCC Regulations 0.459. The confidentiality request applies to the following exhibits: Schematics Block Diagram Parts Lists Theory of Operation The 420 MR KP has been developed at considerable effort and expense by Single Access Lock Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Herbert Guck Signature: Title: COO Date:

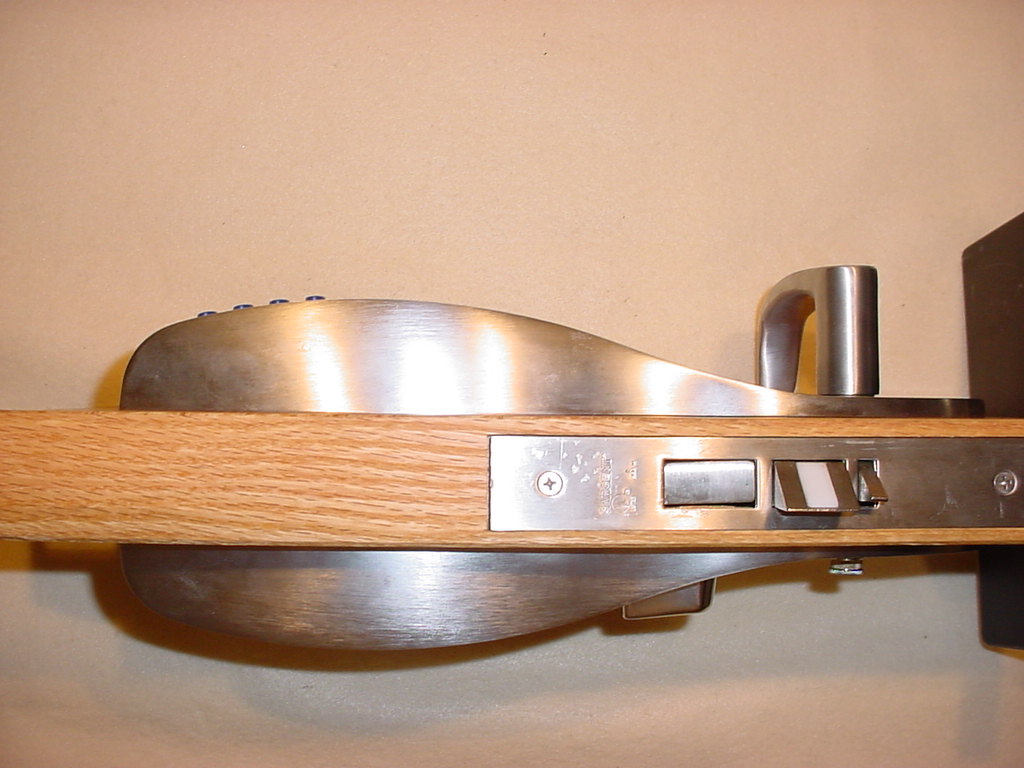

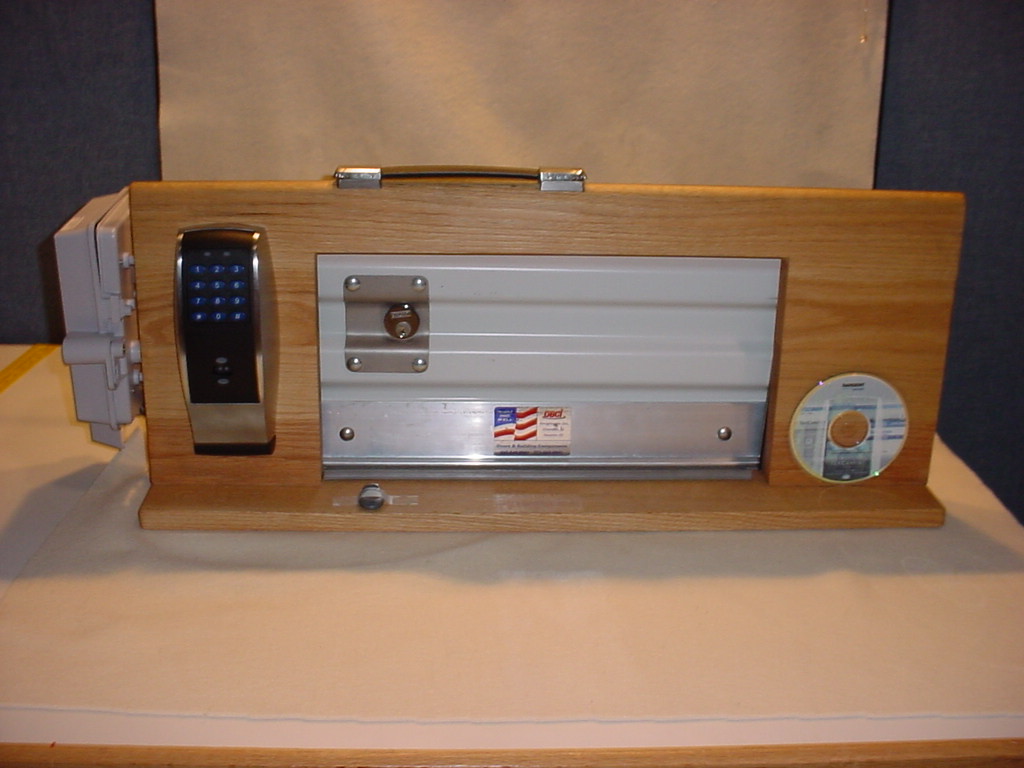

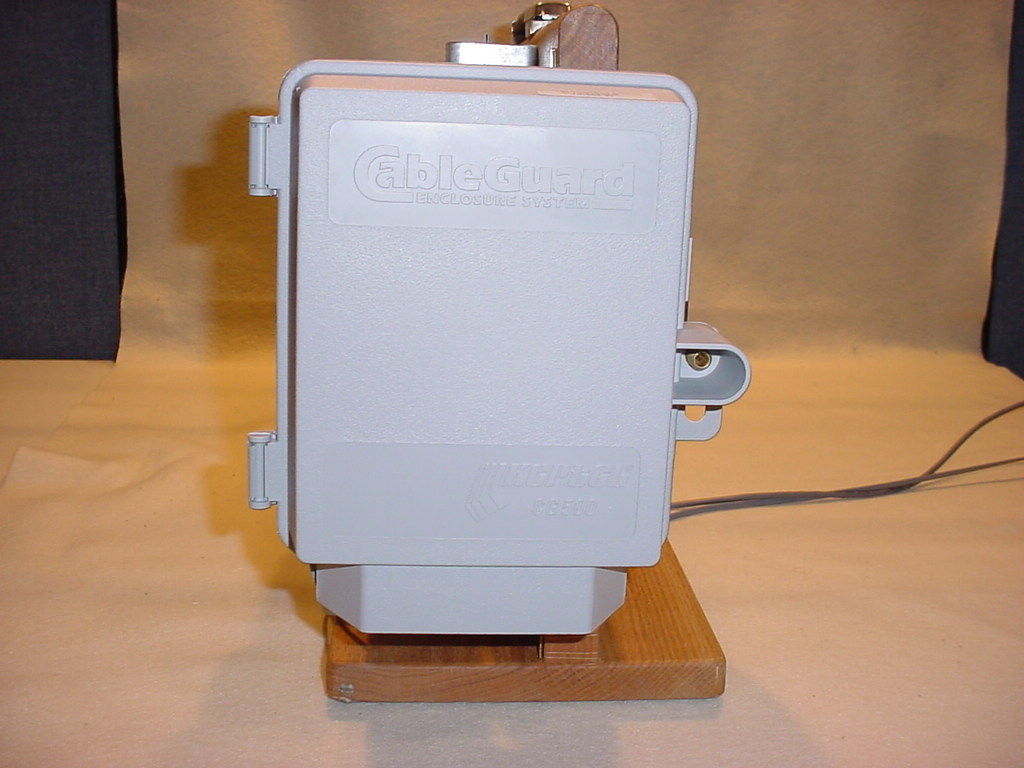

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: SPI-420KPMR FCC Rule Part: 15 Subpart C ACS Report Number: 04-0035-15C Manufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP External Photographs Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Low Profile Enclosure (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Low Profile Enclosure (Rear View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Low Profile Enclosure (Side View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Rollup Door Enclosure (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Rollup Door Enclosure (Front View Close-up) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Rollup Door Enclosure (Rear View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: Rollup Door Enclosure (Side View)

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: SPI-420KPMR FCC Rule Part: 15 Subpart C ACS Report Number: 04-0035-15C Manufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP Label Information 0.5” TYP 1.0” TYP FCC ID: SPI-420KPMR THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 1 420MR KP Labeling FCC Guide FCC label locations 12-08-04 2 Installing the Power harness and FCC label on 420MR 1. Locate the power harness cable. Install to power board. Feed the cable connector through the hole in the base and through the water seal. Connect to the right side of the power board . 2. Once connected coil the SALock data cable and power cable together and place on the inside cover of the housing. Once completed install the FCC label on the inside cover left lower corner .Label InformationFCC ID: SPI-420KPMRFCC Rule Part: 15 Subpart CManufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proxim ity Sensor Model: 420 KP 3 FCC location on the 420 KP version The 420 KPis installed inside the lock body. FCC label is on hous ing cover under back of lock cover Front of lock housing on outside of door Lock housing inside door cover over electronics After removing housing cover a cover is over the electronics. On this cover in the upper right hand corner will be the FCC label FCC Label

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: SPI-420KPMR FCC Rule Part: 15 Subpart C ACS Report Number: 04-0035-15C Manufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP Internal Photographs Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Control Board (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Control Board (Back View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Power Supply Board (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Power Supply Board (Back View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Transmitter Board (Front View - Antenna) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Transmitter Board (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Transmitter Board (Rear View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: Control Pad Board (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: Control Pad Board (Rear View)

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: SPI-420KPMR FCC Rule Part: 15 Subpart C ACS Report Number: 04-0035-15C Manufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP Band-Edge Plots Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Ref.Lvl 97.00 dB uV Marker 64.55 dB uV 110.00 kHz Res.Bw 1 kHz[imp] TG.Lvl off CF.Stp 3.200 kHz Vid.Bw 3 kHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 109 kHz Span 32 kHz Center 125 kHz Sweep 220 ms Stop 141 kHz F1 Figure 1. Band-edge Plot

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Test Report FCC Part 15 Certification ACS Report Number: 04-0035-15C Manufacturer: Standard Access Locks Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP FCC ID: SPI-420KPMR Enclosure Variants: Low Profile Standard Door Access Lock Rollup Door Access Lock Test Begin Date: November 18, 2004 Test End Date: November 18, 2004 Report Issue Date: November 24, 2004 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Reviewed by: Prepared by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 10 pages Table of Contents 1.0 General 3 1.1 Introduction 3 1.2 Product Description 3 1.3 Manufacturer Information 4 2.0 Location of Test Facility 4 2.1 Description of Test Facility 4 2.1.1 Open Area Test Site 4 2.1.2 Conducted Emissions Test Site 5 3.0 Applicable Standards and References 6 4.0 List of Test Equipment 6 5.0 EUT Setup Block Diagram 6 6.0 Summary of Emission Tests 7 6.1 Test Requirement 7 6.1.1 Conducted Emissions 7 6.1.2 Radiated Emissions 7 6.2 Test Methodology 7 6.1.1 Conducted Emissions 7 6.1.2 Radiated Emissions 7 6.3 Test Data 8 6.1.1 Conducted Emissions 8 6.1.2 Radiated Emissions 10 7.0 CONCLUSION 10 Additional Exhibits Included In Filing Internal Photographs External Photographs Test Setup Photographs Product Labeling BOM Installation/Users Guide Theory of Operation System Block Diagram Schematics Model: 420 KP FCC ID: SPI-420KPMR ACS Report: 04-0035-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Introduction The purpose of this report is to demonstrate compliance with Part 15.209 of the FCC’s Code of Federal Regulations. 1.2 Product Description The 420 KP is an electronic door locking assembly equipped with a proximity sensor used for keyless entry. The 420 KP is designed for installation in various enclosure types. Photographs of the variant enclosures are shown in detail in another exhibit in this filing. Low profile The Low Profile unit represents a motorized locking solution housed in a metal frame mounted to the door unit it self. The 420 KP board in housed inside the medal enclosure similar to the electronic strike housing on the inside of the door unit behind the keypad or proximity reader. Roll up door This application allows the 420 KP to complete an electric current that activates a solenoid that allows the lock to disengage and release a lever opening the lock. The 420 controller board is housed in an enclosure similar to the electronic strike or in a plastic housing that is located at the door assembly above the opening and connected to a power source. The electronics for each enclosure type are identical. 1.3 Manufacturer Information The EUT is manufactured by Standard Access Locks Single Access Lock Inc. (SALock.inc.) 11450 Technology Circle Duluth, GA 30097 Contact: Herbert Guck Phone: 678-473-8376 2.0 LOCATION OF TEST FACILTY All testing was performed by qualified ACS personnel located at the following address: ACS, Inc. 5015 B.U. Bowman Drive Buford, GA 30518 (770) 831-8048 www.acstestlab.com Model: 420 KP FCC ID: SPI-420KPMR ACS Report: 04-0035-15C Advanced Compliance Solutions Page 4 2.1 DESCRIPTION OF TEST FACILITY Both the Open Area Test Site (OATS) and Conducted Emissions site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS holds accreditation to ISO 17025 for the test method contained in this test report among others. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 ƒ NVLAP Lab Code: 200612 2.1.1 Open Area Test Site The Semi-Anechoic Chamber Test Site consists of a 20’ x 30’ x 18’ shielded enclosure. The chamber is lined with Toyo Ferrite Grid Absorber, model number FFG-1000. The ferrite tile grid is 101 x 101 x 19mm thick and weighs approximately 550 grams. These tiles are mounted on steel panels and installed directly on the inner walls of the chamber. The turntable is 150cm in diameter and is located 160cm from the back wall of the chamber. The chamber is grounded via 1 - 8’ copper ground rod, installed at the center of the back wall, it is bound to the ground plane using 3/4" stainless steel braided cable. The turntable is all steel, flush mounted table installed in an all steel frame. The table is remotely operated from inside the control room located 25’ from the range. The turntable is electrically bonded to the surrounding ground plane via steel fingers installed on the edge of the turn table. The steel fingers make constant contact with the ground plane during operation. Behind the turntable is a 3’ x 6’ x 4’ deep shielded pit used for support equipment if necessary. The pit is equipped with 1 - 4” PVC chases from the turntable to the pit that allow for cabling to the EUT if necessary. The underside of the turntable can be accessed from the pit so cables can be supplied to the EUT from the pit. A diagram of the Semi-Anechoic Chamber Test Site is shown in Figure 3.3-1 below: Figure 2.1.1-1: Semi-Anechoic Chamber Test Site 5 Feet Diamete r 3 Meters 30 Feet 20 Feet Model: 420 KP FCC ID: SPI-420KPMR ACS Report: 04-0035-15C Advanced Compliance Solutions Page 5 2.1.2 Conducted Emissions Test Site Description The AC mains conducted EMI site is a shielded room with the following dimensions: ¾ Height: 3.0 Meters ¾ Width: 3.6 Meters ¾ Length: 4.9 …

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Certification Test Report FCC ID: SPI-420KPMR FCC Rule Part: 15 Subpart C ACS Report Number: 04-0035-15C Manufacturer: Standard Access Lock Equipment Type: Electronic Door Lock Equipped with Proximity Sensor Model: 420 KP Test Setup Photographs Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Radiated Emissions – Low Profile Enclosure (Rear View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Radiated Emissions – Low Profile Enclosure (Front View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Radiated Emissions – Rollup Door Enclosure (Rear View) Model: 420 KP Advanced Compliance Solutions FCC ID: SPI-420KPMR 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Radiated Emissions – Rollup Door Enclosure (Front View)
