SQR-CL103Child Locator

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 14, 2004 RE: FCC ID: SQR-CL103_ATCB002010 Attention: Sam Chien I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. The manual for the device says that by pressing the transmitter key the first time that the transmitter has “successfully connected with the RX”. Please explain this function. Please verify that this does not mean that the transmitter is in any way transmitting a signal to the receiver except when and only when the transmitter key is pressed. 2. Please note that you have provided the manual as the operational description for this device. Please note that this is not an operational description (i.e. it does not provide a description of how the device works.) Please provide an operational description of the device. Please verify in this operational description that the device has no automatic transmitting functions and that the device operates only by pressing the transmit key button. 3. Please verify that this device is strictly for the purpose of and is restricted to the transmission of a control signal. 4. Please provide the equipment code for the device on the 731 form. 5. Please complete the information about the person signing the 731 form (complete section IV giving address and email of the person signing the 731.) Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

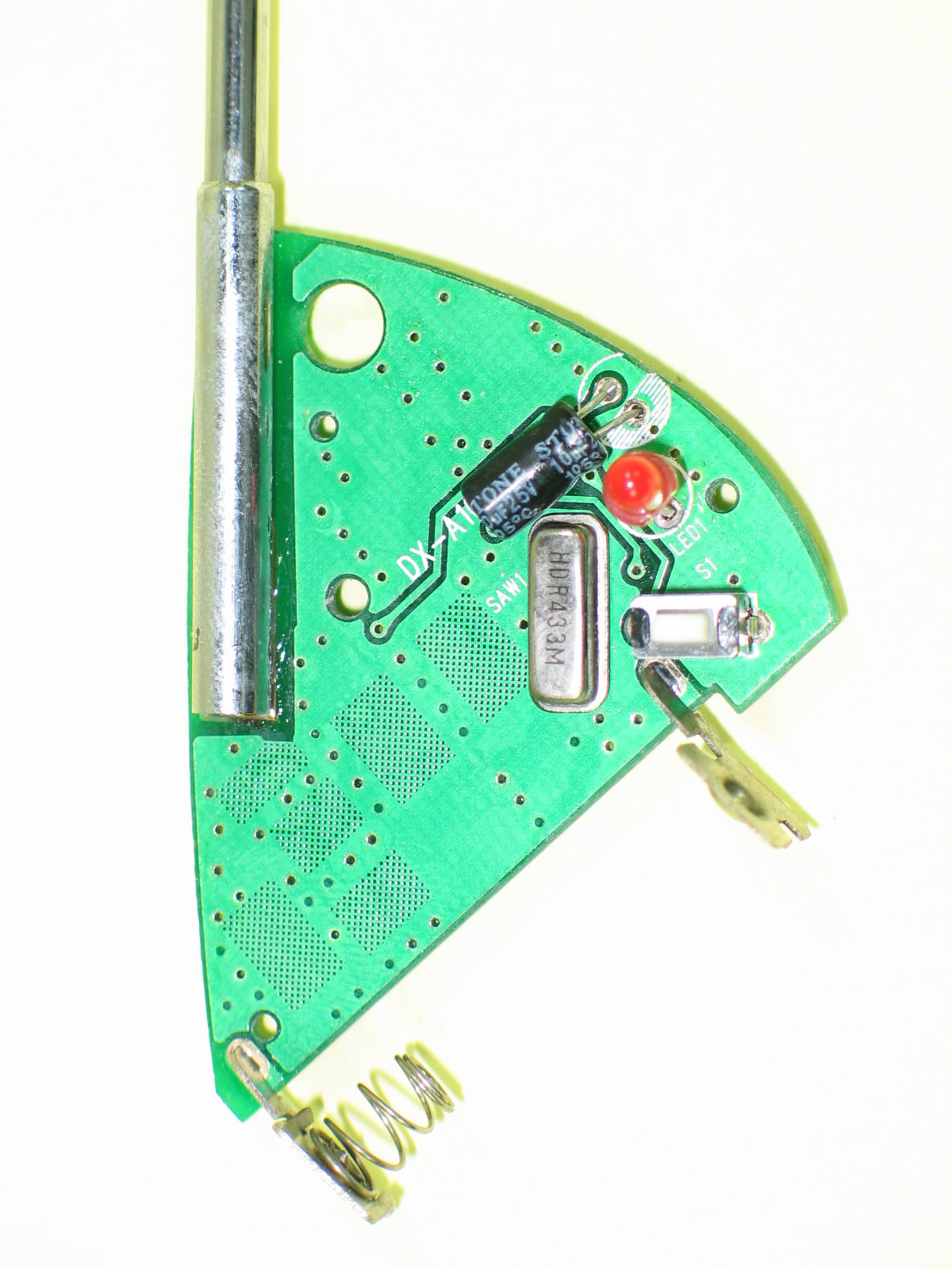

FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 3 FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 4 FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 5

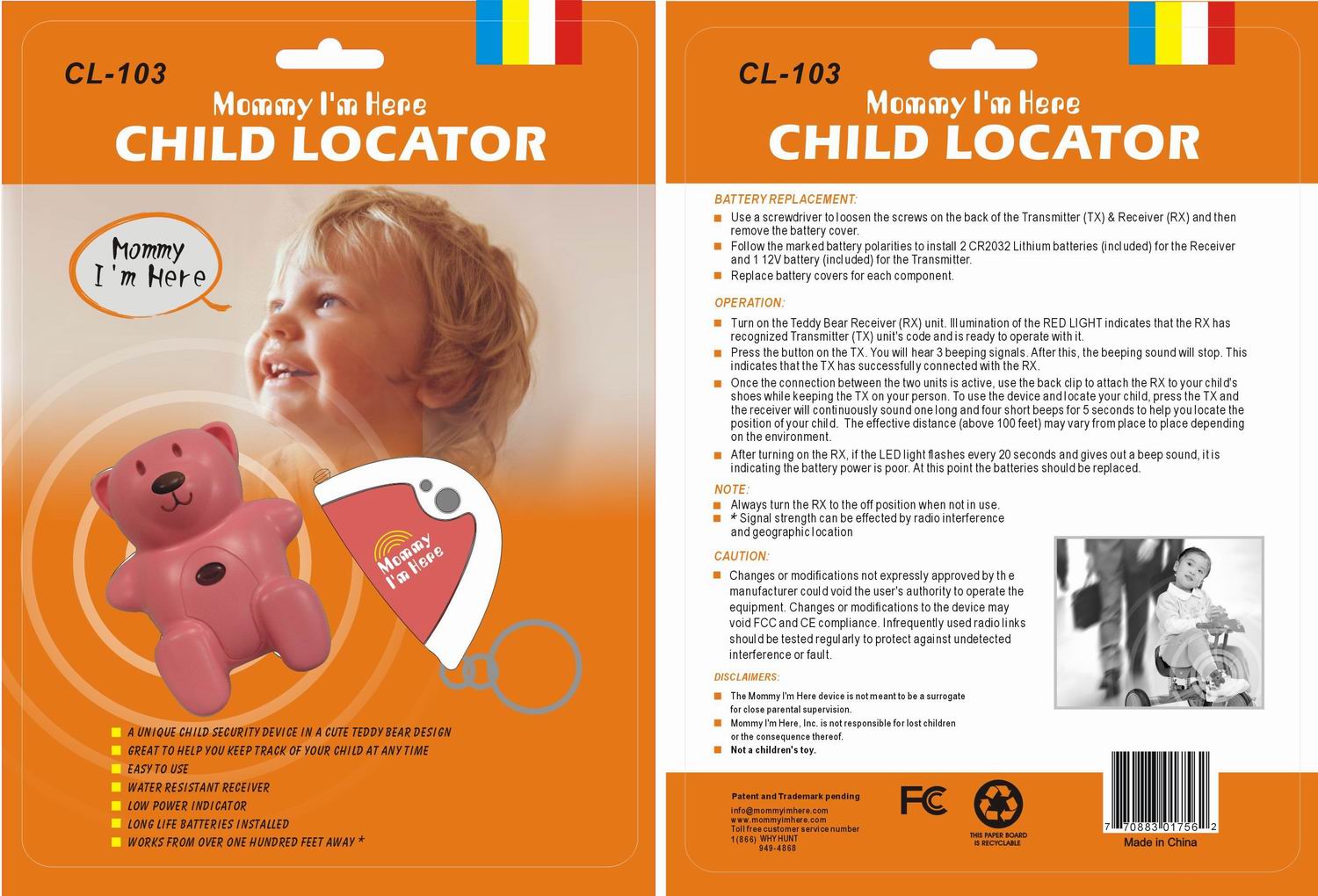

CL-103 Mommy I’m Here CHILD LOCATOR BATTERY REPLACEMENT: 1. Use a screwdriver to loosen the screws on the back of the Transmitter (TX) & Receiver (RX) and then remove the battery cover. 2. Follow the marked battery polarities to install 2 CR2032 Lithium batteries (included) for the Receiver and 1 12V battery (included) for the Transmitter. 3. Replace battery covers for each component. OPERATIONAL DESCRIPTION: 1. Turn on the Teddy Bear Receiver (RX) unit. Illumination of the RED LIGHT indicates that the RX is ready to cooperate with Transmitter (TX). Press the button on the TX. You will hear 3 beeping signals. After this, the beeping sound will stop. This indicates that the TX has successfully connected with the RX. Please note that when the TX connects to the RX, it does not mean that the transmitter transmits constantly. The signals only function as a reminder to users that the transmitter and the receiver are connected. Instead, the transmitter only transmits and performs its function to locate the receiver when users press the button on the transmitter. 2. Once the TX is connected to the RX, use the back clip to attach the RX to your child’s shoes while keeping the TX on your person. To use the device and locate your child, press the button on the TX again. The receiver will continuously sound one long and three short beeps for 5 seconds to help you locate the position of your child within the effective distance (above 150 feet). Range may vary from place to place depending on the environment. 3. After turning on the RX, the LED light flashes every 20 seconds and gives out a beep sound, it is indicating the battery power is poor. At this point the batteries should be replaced. NOTE: 1. Always turn the RX to the off position when not in use. 2. *Signal strength can be effected by radio interference and geographic location. CAUTION: Changes or modifications are not expressly approved by the manufacturer could void the user's authority to operate the equipment. Changes or modifications to the device may void FCC and CE compliance. Infrequently used radio links should be tested regularly to protect against undetected interference or fault. DISCLAIMERS: 1. The Mommy I’m Here device is not meant to be a surrogate for close parental supervision. 2. Mommy I’m Here, Inc. is not responsible for lost children or the consequence thereof. 3. Not a children’s toy. Toll free customer service number 1 (866) WHY HUNT 946-4868

FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : 1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report E.U.T. : Child Locator Trade Name : Mommy I'm Here Model : CL-103 FCC ID : SQR-CL103 Report No. : RF-A42-0411-254 Date of Report : December 6, 2004 Prepared for Mommy I'm Here Inc. 4428 Technology Drive, Fremont, CA, 94538, USA Prepared by Central Research Technology Co. EMC Test Laboratory No.11, Lane41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. NVLAP LAB CODE 200575-0 This report shall not be reproduced, except in full, without the written approval of Central Research Technology Co.. It may be duplicated completely in its entirely for legal use with the permission of the applicant. It should not be used to claim product endorsement by CNLA, NVLAP or any U.S. government agency. The test result in the report applies only to the sample tested. Total : 27 Pages 0905 ILAC MRA FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : 2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Certification of Compliance E.U.T. : Child Locator Trade Name : Mommy I'm Here Model : CL-103 FCC ID : SQR-CL103 Manufacturer : Wellmike Enterprise Co., Ltd. Applicant : Mommy I'm Here Inc. Address : 4428 Technology Drive, Fremont, CA, 94538, USA Arrival of Sample(s) : December 1, 2004 Date of Test : December 3, 2004 Applicable Standards : 47 CFR part 15, Subpart C Deviation : None Condition of Test Sample : Prototype We, Central Research Technology Co., hereby certify that one sample of the designated product was tested in our facility during the period mentioned above. The test records, data evaluation and Equipment Under Test (EUT) configurations shown in the present report are true and accurate representation of the measurements of the sample’s RF characteristics under the conditions herein specified. The test results show that the EUT as described in the present report is in compliance with the requirements set forth in the standards mentioned above and apply to the tested sample identified in the present report only. The test report shall not be reproduced, except in its entirety, without the written approval of Central Research Technology Co. FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : 3 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Contents 1 General Description .......................................................................... 4 1.1 GENERAL DESCRIPTION OF EUT............................................................................................................4 1.2 CHARACTERISTIC OF E.U.T....................................................................................................................4 1.3 TEST METHODOLOGY............................................................................................................................4 1.4 REQUIREMENT FOR COMPLIANCE...........................................................................................................5 1.5 LAYOUT OF SETUP................................................................................................................................7 1.6 TEST FACILITY......................................................................................................................................8 1.7 MEASUREMENT UNCERTAINTY...............................................................................................................8 2 Dwell Time ......................................................................................... 9 2.1 APPLIED STANDARD..............................................................................................................................9 2.2 MEASUREMENT PROCEDURE.................................................................................................................9 2.3 TEST CONFIGURATION.........................................................................................................................10 2.4 TEST INSTRUMENTS.............................................................................................................................10 2.5 TEST DATA......................................................................................................................................... 11 3 Radiated Emission.......................................................................... 12 3.1 APPLIED STANDARD............................................................................................................................12 3.2 MEASUREMENT PROCEDURE...............................................................................................................13 3.3 TEST CONFIGURATION.........................................................................................................................14 3.4 TEST INSTRUMENTS.............................................................................................................................15 3.5 TEST DATA.........................................................................................................................................16 4 Bandwidth ....................................................................................... 26 4.1 APPLIED STANDARD............................................................................................................................26 4.2 MEASUREMENT PROCEDURE...............................................................................................................26 4.3 TEST CONFIGURATION.........................................................................................................................26 4.4 TEST INSTRUMENTS.....................................................................…

Text truncated - open the document above for the full version.

FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 1 Photographs of the Test Configurations FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Radiated Emission Measurement Below 1G Z-axis FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Y- axis FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-3 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 X- axis FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-4 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 1G UP Z- axis FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-5 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Y- axis FCC Test Report Report No.:RF-A42-0411-254 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-6 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 X- axis
