SQT-RIPEX-154

Racom

VHF NARROWBAND RADIOMODEM

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Dec 20, 2012
Application Purpose: Original Equipment
Date of Application: Dec 20, 2012
Equipment Note: VHF NARROWBAND RADIOMODEM
Frequency Range: 154.00000000 - 174.00000000
Company: Racom
Country: Czech Republic

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

External Photos

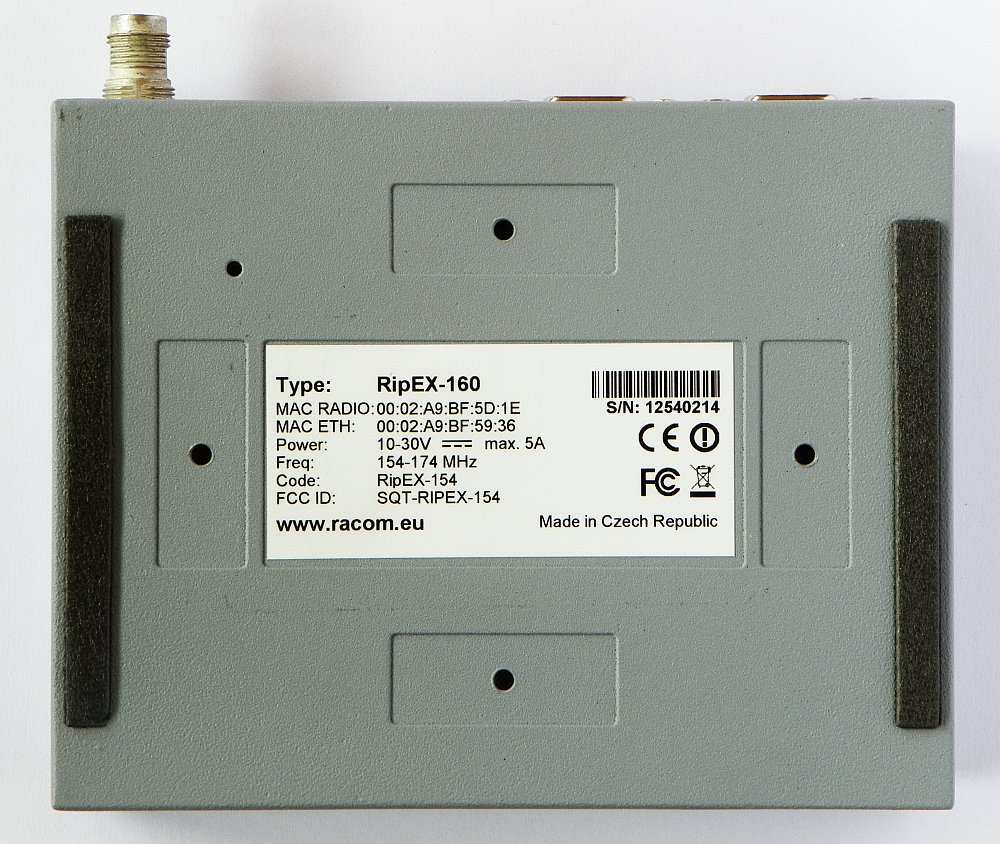

ID Label/Location Info

Internal Photos

Operational Description

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Jiri Hruska(Programme Manager)

[email protected]420566618035Fax: 420566618578

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	9	154 MHz - 174 MHz	2.28 W	NOTE 2	0.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance from all persons during normal operation as documented in this filing. The peak conducted output power at the antenna terminal must not exceed 10 W and the antenna gain must not exceed 12.5 dBi. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of � 1.1307(b)(3), for satisfying RF exposure compliance. NOTE 1: 4K35F1D, 8K90F1D NOTE 2: 5K00D1D, 5K00G1D, 10K0D1D, 10K0G1D
