USER GUIDE 1 / 3 Model: AFD-R4302 READER USER GUIDE Welcome to use Anfudi products. Before use the product, please read this User’s Guide. This guide contains important safety information about voltages and use. 1 NOTES 1.1 Do not use a power supply specifications other than specified in the instructions. 1.2 Do not attempt to repair the product. 1.3 Please take water-proof and lightning-proof measures, if use this product outdoor. 2 INSTRODUCTION 2.1 Model AFD-R4302 2.2 Specifications Read range：0-150m adjustable (free environment) Anti-collision：200 tags Processing rate：120 tags per second Error correction：CRC16 Sensitivity： -94dBm Dimensions： 125*105*28.5mm (antenna not included) Operating temperature： -10°C ～ +70°C Storage temperature： -20°C ～ +80°C Communication interface：RS 232、RS485 or 10/100M Ethernet Optional Power supply： 5～8V DC，≥500mA Antenna：Omni-directional, Standard λ/4 whip antenna Material ：Aluminum 2.3 Function AFD-R4302 is a RF (437MHz) receiver. It receives the RF signals emitted by the tags，and transmits the received data to the PC or other equipment. USER GUIDE 2 / 3 3 PANELS 3.1 Front panel Antenna 1 port Antenna 2 port 3.2 Rear panel Power input jack Signal light（green）:Antenna 1 received signal, flashing light Signal light（orange）：Antenna 2 received signal, flashing light Power light（red）：Switch on the power, the light work RJ45 RS232 and RS485 3.3 RS 232、RS485 connection instruction (DB9) Pin Pin name Pin instruction ２ TXD RS232 output ３ RXD RS232 input ５ GND Ground 6 B RS485 D-/B 7 A RS485 D+/A USER GUIDE 3 / 3 4 INSTALL Figures 1 2 3 4 are four threaded holes，use to fasten the reader device. 5 PACKING LIST Reader １ Power adapter １ Whip antenna ２ User guide １ Warranty card 1 Certificate of quality 1 6 FCC WARING Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 7 FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. † Consult the dealer or an experienced radio/TV technician for help.

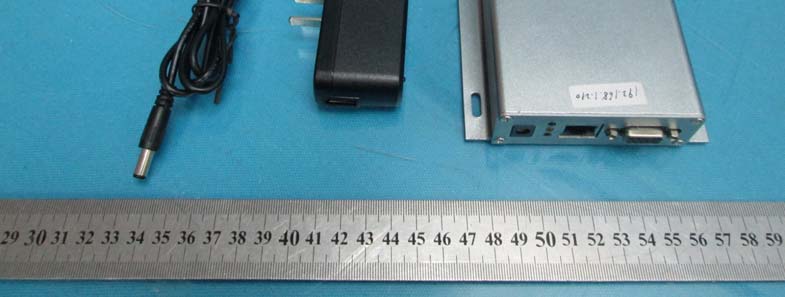

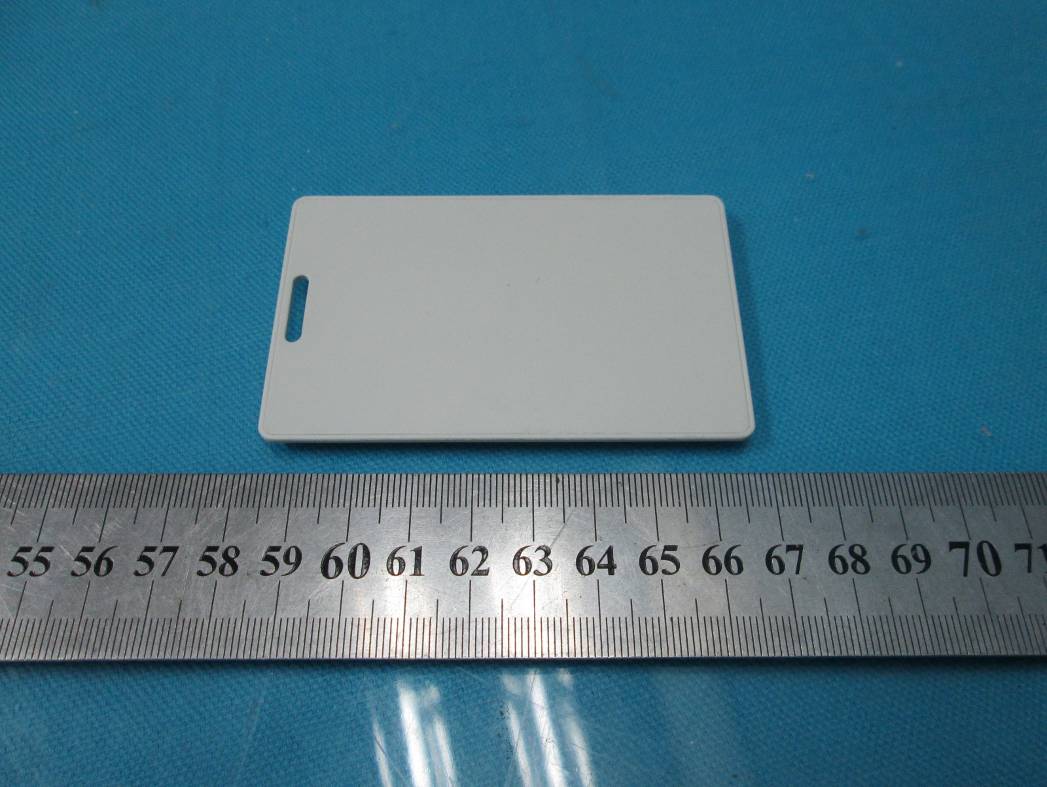

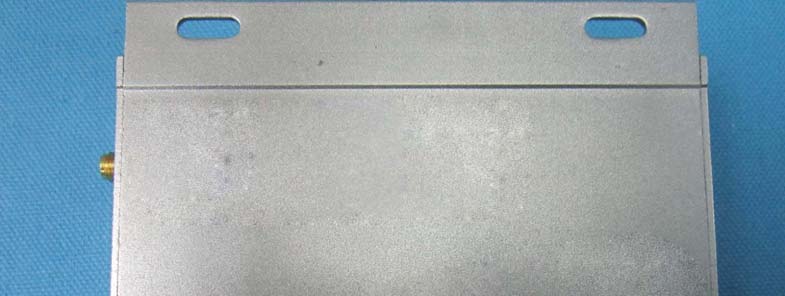

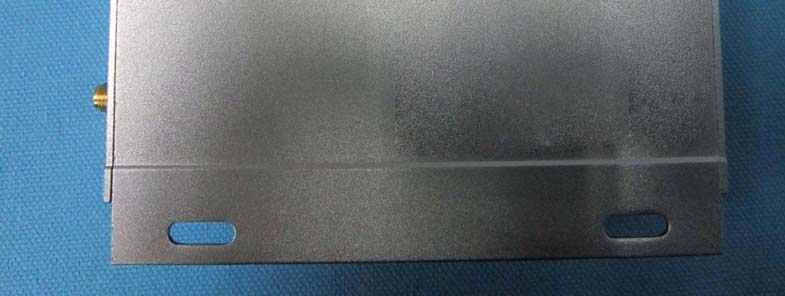

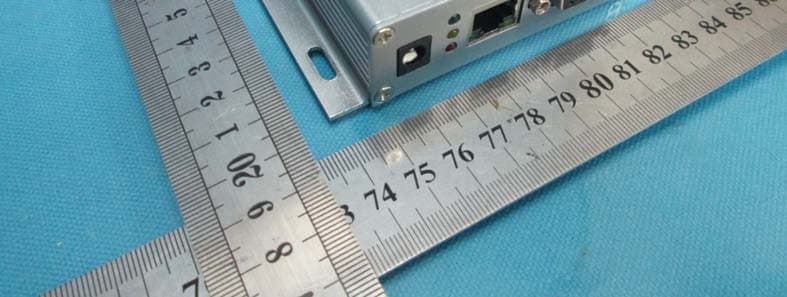

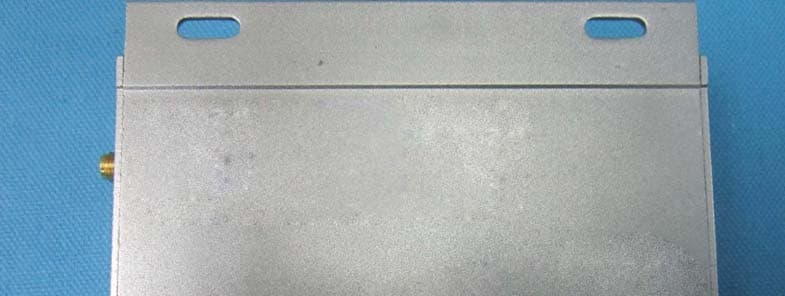

EXTERNAL PHOTOGRAPHS OF PRODUCT View of Product-1 View of Product-2 View of Product-3 View of Product-4

FCC ID: SR8R4302 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location Label Contents Label Size: L70mm*W20mm

INTERNAL PHOTOGRAPHS OF PRODUCT Internal View of EUT Front View of PCB Rear View of PCB

Report No. : EESZF04070017 Page 1 of 20 FCC TEST REPORT Product : RFID Reader Trade mark : N/A Model/Type reference : AFD-R4302 Serial Number : N/A Ratings : AC 100-240V 50/60Hz FCC ID : SR8R4302 Report Number : EESZF04070017 Date : Apr. 25, 2013 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart B: 2012 PASS Prepared for: Anfudi Technology(Xiamen) Co., Ltd 4F, 598#, Jiahe Road, Huli District, Xiamen, Fujian, P.R.China Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Apr. 25, 2013 Jimmy Li Lab manager Check No.: 1631587760 Report No. : EESZF04070017 Page 2 of 20 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..........................................................................................3 2. TEST SUMMARY .........................................................................................................3 3. MEASUREMENT UNCERTAINTY ...............................................................................3 4. PRODUCT INFORMATION AND TEST SETUP ..........................................................4 4.1. PRODUCT INFORMATION........................................................................................................................ 4 4.2. TEST SETUP CONFIGURATION.............................................................................................................. 4 5. FACILITIES AND ACCREDITATIONS .........................................................................4 5.1. TEST FACILITY............................................................................................................................................ 4 5.2. TEST EQUIPMENT LIST............................................................................................................................. 4 6. SYSTEM TEST CONFIGURATION...............................................................................5 6.1. JUSTIFICATION........................................................................................................................................... 5 6.2. PRODUCT EXERCISING SOFTWARE.................................................................................................... 5 7. CONDUCTED EMISSION TEST ..................................................................................6 7.1. LIMITS............................................................................................................................................................ 6 7.2. BLOCK DIAGRAM OF TEST SETUP....................................................................................................... 6 7.3. PROCEDURE OF CONDUCTED EMISSION TEST............................................................................... 6 7.4. GRAPHS AND DATA.................................................................................................................................. 7 8. RADIATED EMISSION TEST.......................................................................................9 8.1. LIMITS............................................................................................................................................................ 9 8.2. BLOCK DIAGRAM OF TEST SETUP ..................................................................................................... 9 8.3. PROCEDURE OF RADIATED EMISSION TEST.................................................................................. 10 8.4. GRAPHS AND DATA................................................................................................................................11 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................15 APPENDIX 2 PHOTOGRAPHS OF PRODUCT ................................................................17 (Note: N/A means not applicable) Report No. : EESZF04070017 Page 3 of 20 1. GENERAL INFORMATION Applicant: Anfudi Technology (Xiamen) Co., Ltd 4F, 598#, Jiahe Road, Huli District, Xiamen, Fujian, P.R.China Manufacturer: Anfudi Technology (Xiamen) Co., Ltd 4F, 598#, Jiahe Road, Huli District, Xiamen, Fujian, P.R.China Equipment Authorization: Certification FCC ID: SR8R4302 Product: RFID Reader Trade mark: N/A Model/Type reference: AFD-R4302 Serial Number: N/A Report Number: EESZF04070017 Sample Received Date: Apr. 07, 2013 Sample tested Date: Apr. 07, 2013 to Apr. 25, 2013 2. TEST SUMMARY The Product has been tested according to the following specifications: Standard Test Item Test FCC 15.107 Conducted Emission Yes FCC 15.109 Radiated Emission Yes 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted disturbance 3.2 Radiated disturbance (30MHz to 1GHz) 4.5 Radiated disturbance (1GHz to 6GHz) 4.8 Report No. : EESZF04070017 Page 4 of 20 4. PRODUCT INFORMATION AND TEST SETUP 4.1. PRODUCT INFORMATION Ratings: AC 100-240V 50/60Hz Adapter information: Manufacture: XIAMEN UME ELECTRONICS CO., LTD Model No. : SW-050100U Input : AC100-240V 50/60Hz Output: DC 5V 1.0A Product Description: The AFD-R4302 is a RF(437MHz) receiver. The product is powered by adaptor It receives the RF signals emitted by the tags，and transmits the received data to the PC or other equipment. Related Submittal(s) Grants: This is a single application for certification of a receiver. The transmitter for this receiveris authorized by Certification procedure with FCC ID: SR8T4303. 4.2. TEST SETUP CONFIGURATION See test photographs attached in Appendix 1 for the actual connections between Product and support equipment. Notes: 1. All the equipment/cables were placed…
