SR8T4303RFID Tag

USER GUIDE 1 / 2 Model: AFD-T4303 TAG USER GUIDE Welcome to use Anfudi products, in the product before use, please read this manual carefully, so that the safe and proper use of this product. 1 PICTURE 2 INSTRODUCTION 2.1 Model AFD-T4303 2.2 Specifications Communications Frequency 437MHz Read range 0-150m adjustable(free environment) Modulation G-FSK Communication Read Only Data rate 250kbps Anti-collision 200 tags Memory 128bytes(standard) ID 32bits Electrical USER GUIDE 2 / 2 Power supply Internal Battery,3.0V ( irreplaceable) Output power 10dBm Battery life 5 Years Physical Dimensions 86*54*3.9mm Material ABS Weight 18g Color White Environment Operating temperature -20°C ～ +60°C Storage temperature -40°C ～ +80°C Humidity 90% (non-condensing) IP Rating IP65 2.3 Functions AFD-T430 series Tag is a RF transmitting device ,main use with Reader interactive communication， Reader receive data from Tag，then send the received data to the PC or other equipment. 3 FCC WARING Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4 FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. † Consult the dealer or an experienced radio/TV technician for help.

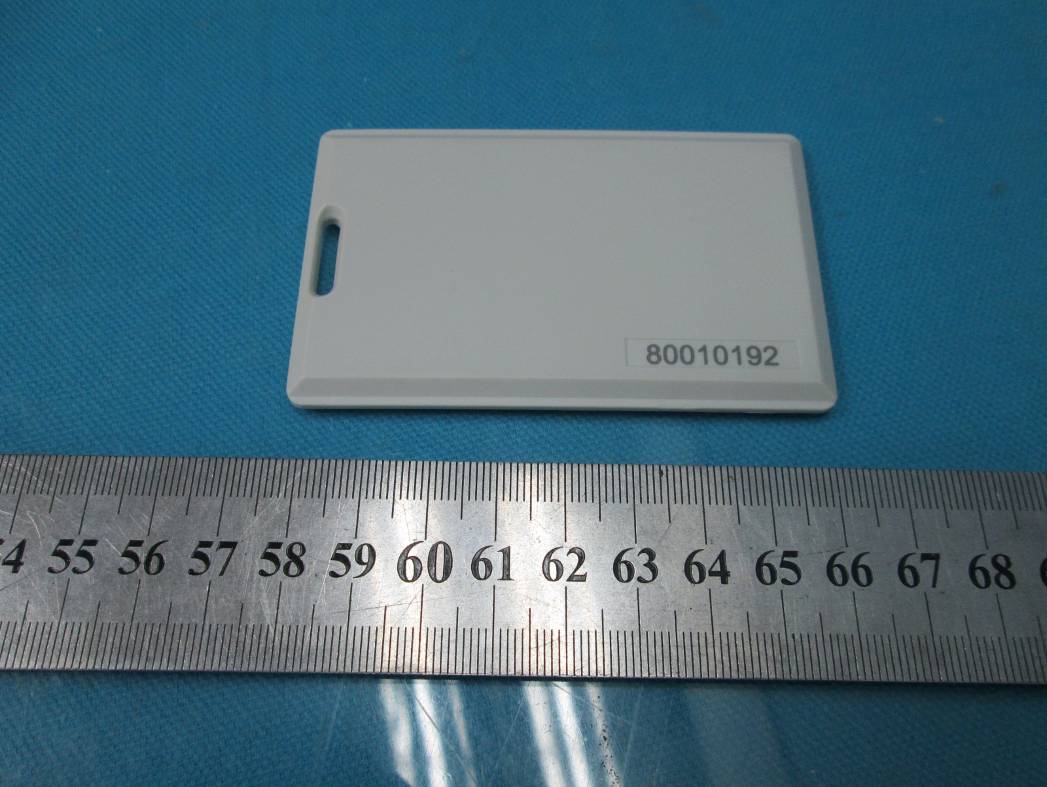

EXTERNAL PHOTOGRAPHS OF PRODUCT View of Product-1 View of Product-2

FCC ID: SR8T4303 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location Label Contents Label Size: L70mm*W20mm

INTERNAL PHOTOGRAPHS OF PRODUCT Internal View of EUT Front View of PCB Rear View of PCB

Report No.: EESZF04070019 Page 1 of 20 FCC TEST REPORT Product Name : RFID Tag Trade Name : N/A Model/Type reference : AFD-T4303 Serial Number : N/A Ratings : DC 3V FCC ID : SR8T4303 Report Number : EESZF04070019 Date : Apr. 25, 2013 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.231: 2012 PASS Prepared for: Anfudi Technology(Xiamen) Co., Ltd 4F, 598#, Jiahe Road, Huli District, Xiamen, Fujian, P.R.China Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Apr. 25, 2013 Jimmy Li Lab manager Check No.: 1631587760 Report No.: EESZF04070019 Page 2 of 20 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..........................................................................................3 2. TEST SUMMARY .........................................................................................................3 3. MEASUREMENT UNCERTAINTY ...............................................................................3 4. PRODUCT INFORMATION ..........................................................................................4 5. FACILITIES AND ACCREDITATIONS .........................................................................4 5.1 TEST FACILITY................................................................................................................................ 4 5.2 TEST EQUIPMENT LIST.................................................................................................................. 4 6. SYSTEM TEST CONFIGURATION..............................................................................5 6.1 JUSTIFICATION............................................................................................................................... 5 6.2 PRODUCT EXERCISING SOFTWARE ........................................................................................... 5 7. 20DB BANDWIDTH MEASUREMENT ........................................................................6 8. TIME MEASUREMENT ................................................................................................7 9. RADIATED EMISSIONS MEASUREMENT..................................................................9 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................17 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF PRODUCT............................................18 APPENDIX 3 INTERNAL PHOTOGRAPHS OF PRODUCT.............................................19 N/A means not applicable. Report No.: EESZF04070019 Page 3 of 20 1. GENERAL INFORMATION Applicant: Anfudi Technology (Xiamen) Co., Ltd 4F, 598#, Jiahe Road, Huli District, Xiamen, Fujian, P.R.China Manufacturer: Anfudi Technology (Xiamen) Co., Ltd 4F, 598#, Jiahe Road, Huli District, Xiamen, Fujian, P.R.China Equipment Authorization: Certification FCC ID: SR8T4303 Product Name: RFID Tag Trade Name: N/A Model/Type reference: AFD-T4303 Serial Number: N/A Report Number: EESZF04070019 Sample Received Date: Apr. 07, 2013 Sample tested Date: Apr. 07, 2013 to Apr. 25, 2013 The above equipment was tested by Centre Testing International for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart C and the measurement procedure according to ANSI C63.4:2003. 2. TEST SUMMARY Clause Test Item Rule Result 1 20dB bandwidth FCC Part15.231(c) PASS 2 Time measurement FCC Part15.231(e) PASS 3 Radiated Emission FCC Part15.231(e) & FCC Part15.209(a) PASS 4 Antenna Requirements FCC 15.203 PASS* * Integral antenna used. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Radiated disturbance (30MHz to 1GHz) 4.5 Radiated disturbance (1GHz to 6GHz) 4.8 Report No.: EESZF04070019 Page 4 of 20 4. PRODUCT INFORMATION Items Description Rating DC 3V Equipments Class Security/Remote Control Transmitter Modulation GFSK Frequency Range 437MHz Channel Number 1 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All test facilities used to collect the test data are located at Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equivalent standards. 5.2 TEST EQUIPMENT LIST Instrumentation: The following list contains equipments used at CTI for testing. The calibrations of the measuring instruments, including any accessories that may effect such calibration, are checked frequently to assure their accuracy. Adjustments are made and correction factors applied in accordance with instructions contained in the manual for the measuring instrument. Equipment used during the tests: 3M Semi-anechoic Chamber - Radiated Emission Test Equipment Manufacturer Model Serial No. Due Date 3M Chamber & Accessory Equipment ETS-LINDGRENFACT-3 3510 07/09/2013 Spectrum Analyzer Agilent E4443A MY45300910 01/18/2014 Receiver R&S ESCI 100435 07/19/2013 TRILOG Broadband Antenna schwarzbeck VULB 9163 401 07/21/2013 Multi device Controller ETS-LINGREN 2090 00057230 N/A Horn Antenna ETS-LINGREN 3117 00057407 07/07/2015 Microwave PreamplifierAgilent 8449B 3008A02425 07/19/2013 Report No.: EESZF04070019 Page 5 of 20 6. SYSTEM TEST CONFIGURATION 6.1 JUSTIFICATION For emission testing, the equipment under test (Product) setup to transmit continuously to simplify the measurement methodology. Care was taken to ensure proper power supply voltages during testing. During testing, all cables were manipulated to produce worst case emissions. It was powered by 3 V DC of battery. Only the worst case data were recorded in this test report. The signal is maximized through rotation and placement in the three orthogonal axes. The antenna height and polarization are varied during the …

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP TEST SETUP OF RADIATED EMISSION (30MHz-1GHz) TEST SETUP OF RADIATED EMISSION (above 1GHz)
