SSX-FM300SStereo FM Modulator

FM300 Installation Guide Features FM300 is a three-frequency stereo FM modulator with selectable FM frequencies of compact size. It allows the addition of auxiliary audio sources to any FM radio (even those lacking auxiliary inputs). It can be used with DVD players, MP3 players, Digital TV Turner, and more. How to install FM300 1. Find a suitable location for this FM modulator. 2. Plug the RCA/power cable to socket of unit (labeled “Audio Input + - “ ) located at the front of the FM300 . 3. Connect the male radio antenna connector to the car radio’s FM antenna input, and the female connector to the car antenna.. 4. Connect the Black wire power cable to chassis ground. 5. Connect the red wire to Digital TV Turner of other audio sources like DVD 6. Set the Frequency Select switch to either L, M or H. The frequency range for L,M and H are as follows : L : from 87.9 to 88.3MHz; M : from 88.6 to 89.0 MHz; H : from 89.3 to 89.7 MHz 7. Turn on the car radio and tune to the frequency selected in Step 6. 8. Once you determine the correct frequency, it is recommended to store the frequency using one of your radio’s preset keys. 9. Turn on the audio source (Digital TV turner or DVD) connected to the FM modulator. This audio source should now be heard over the vehicle speakers. 10. Adjust the volume control of the car radio to appropriate level. 11. Once you turned the audio source (Digital TV turner or DVD) off, your car radio returns to standard radio use. Specifications 1. Operating Voltage: 14.4V DC Norn. (Operating Range 10.8 to 15.6V DC) 2. Max. Current Consumption: 250MA 3. Operating Frequencies: FM1 : 88.1 + - 0.2 MHz FM2 : 88.8 + - 0.2 MHz FM3 : 89.5 + - 0.2 MHz 4. Frequency response ±3 dB: 40Hz ~ 11KHz 5. Channel separation: 22dB 6. S/N with Q-Peak CCIR Filter: 45 dB 7. THD @ 1KHZ: 1.8 % 8. RF isolation @ 30dB S/N (anti-inteference): 85 dB 9. Power cable length: 30 cm 10. Cabinet size: 88 (L) x 68 (W) x 18 (D) mm For a Class B digital device or peripheral, the instructions furnished the user shall include The following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID:SSX-FM300S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product: FM STEREO MODULATOR Model : FM300S

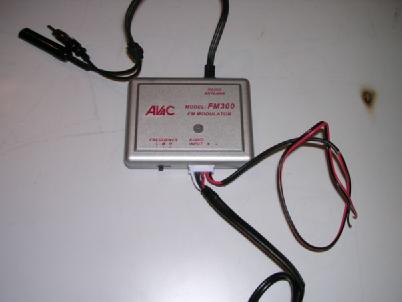

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID:SSX-FM300S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

PAGE 1 OF 1 ---------------------------------------------------------------------------------------------------------------------------------------------------- Unit 13, Goldfield Indy Centre, 1 Suit Wo Road, Fotan, Shatin, N.T., Hong Kong Tel: 26935102 Fax: 26028923 Subject : 88-108MHz Bandwidth Requirement (200kHz) If this message is wrongly addressed, please fax back to us. Thank you No. of Pages including this page : 1 Dear Sir or Madam, The transmitter FM300 contains a BA1404 FM modulator IC and it has a limiter circuitry built in. (See block diagram). The maximum deviation of the fundamental emission does not exceed the 200kHz bandwidth limit. For and on behalf of (Company): Beauty Sound Ltd General Manager – K.S. CHU (Position)

FCC ID: SSX-FM300S Circuit Description The 88.3-89.8MHz LCR oscillator drives the base of IC the final/buffer amplifier. The modulation provided by IC. The output of IC has the matching network consisting of L1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 35cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12Volt (car battery) primary battery

15K 22UF 1N4001 47UF/16V 8P 2P 3P 5P 0.1

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 1 of 22 No. : HM153349 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: UBUY Industrial Corporation 1F, No. 17, Lane 442, Chungcheng Road, Yunghe Shih, Taipei Hsien, Taiwan Description of Samples: Model name: FM Stereo Modulator Model no.: FM300S Brand name: N/A FCC ID: SSX-FM300S Date Samples Received: 2005-02-01 Date Tested: 2005-03-02 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 5. K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 2 of 22 No. : HM153349 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 22 Content Page 2-3 of 22 1.0 General Details 1.1 Test Laboratory Page 4 of 22 1.2 Applicant Details Page 4 of 22 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 22 Description of EUT operation 1.4 Date of Order Page 5 of 22 1.5 Submitted Samples Page 5 of 22 1.6 Test Duration Page 5 of 22 1.7 Country of Origin Page 5 of 22 1.8 Additional Information of EUT Page 6 of 22 2.0 Technical Details 2.1 Investigations Requested Page 7 of 22 2.2 Test Standards and Results Summary Page 7 of 22 3.0 Test Results 3.1 Emission Page 8-15 of 22 3.2 Bandwidth Measurement Page 16-19 of 22 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 3 of 22 No. : HM153349 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 20 of 22 Appendix B Photographs Page 21-22 of 22 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 4 of 22 No. : HM153349 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant UBUY Industrial Corporation 1F, No. 17, Lane 442, Chungcheng Road, Yunghe Shih, Taipei Hsien, Taiwan HKSTC Code Number for Applicant GLT001 Manufacturer 1. Sunwind Electronic Limited. Jiumen Zhai, No. 2 Area, Humen Town, Dongguan, Guangdong, China 2. Jin Cheng Electronics Manufactory Dongguan Shi Dong Cheng Qu Sang Yuan Shi Jing Gong Ye Qu 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 5 of 22 No. : HM153349 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: FM Stereo Modulator Manufacturer: 1. Sunwind Electronic Limited. 2. Jin Cheng Electronics Manufactory Brand Name: N/A Additional Brand Name: Ubuy, Clarion, Directed, Blackmore, Mitek, Profithint, Cerwin Vega Model Number: FM300S Additional Model Number: FM300 Input Voltage: 12Vd.c. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a UBUY Industrial Corporation, FM Stereo Modulator. The transmitter is a 1 switch transmitter. The EUT continues to transmit while switch is being pressed. Modulation by IC. and type is frequency modulation. 1.4 Date of Order 2005-02-01 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2005-03-02 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 6 of 22 No. : HM153349 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-03-08 TEST REPORT Page 7 of 22 No. : HM153349 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepa…
