SSX-FM700WFM Stereo Transmitter

� � � � � � �

PAGE 1 OF 1 ---------------------------------------------------------------------------------------------------------------------------------------------------- Unit 13, Goldfield Indy Centre, 1 Suit Wo Road, Fotan, Shatin, N.T., Hong Kong Tel: 26935102 Fax: 26028923 Subject : 88-108MHz Bandwidth Requirement (200kHz) Dear Sir or Madam, The transmitter FM700W contains a BH1417 FM modulator IC and it has a limiter circuitry built in. (See block diagram). The maximum deviation of the fundamental emission does not exceed the 200kHz bandwidth limit. For and on behalf of Beauty Sound Ltd General Manager – K.S. CHU

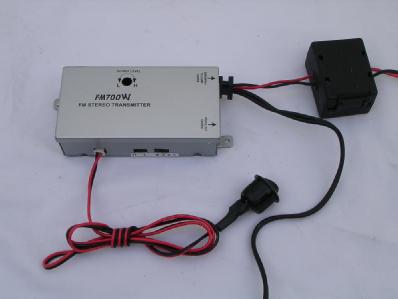

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: SSX-FM700W Circuit Description The 88.3-107.9MHz LCR oscillator drives the base of Q4 the final/buffer amplifier. The modulation provided by RCA input. The output of Q4 has the matching network consisting of L3, L4 and C8 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12Volt.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 1 of 23 No. : HM152811 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: UBUY Industrial Corporation 1F, No. 17, Lane 442, Chungcheng Road, Yunghe Shih, Taipei Hsien, Taiwan Description of Samples: Model name: FM Stereo Transmitter Model no.: FM700W Brand name: N/A FCC ID: SSX-FM700W Date Samples Received: 2004-11-04 Date Tested: 2004-12-01 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 5. K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 2 of 23 No. : HM152811 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 1.0 General Details 1.1 Test Laboratory Page 4 of 23 1.2 Applicant Details Page 4 of 23 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 23 Description of EUT operation 1.4 Date of Order Page 5 of 23 1.5 Submitted Samples Page 5 of 23 1.6 Test Duration Page 5 of 23 1.7 Country of Origin Page 5 of 23 1.8 Additional Information of EUT Page 6 of 23 2.0 Technical Details 2.1 Investigations Requested Page 7 of 23 2.2 Test Standards and Results Summary Page 7 of 23 3.0 Test Results 3.1 Emission Page 8-17 of 23 3.2 Bandwidth Measurement Page 18-20 of 23 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 3 of 23 No. : HM152811 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 21 of 23 Appendix B Photographs Page 22-23 of 23 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 4 of 23 No. : HM152811 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant UBUY Industrial Corporation 1F, No. 17, Lane 442, Chungcheng Road, Yunghe Shih, Taipei Hsien, Taiwan HKSTC Code Number for Applicant GLT001 Manufacturer 1. Sunwind Electronic Limited. Jiumen Zhai, No. 2 Area, Humen Town, Dongguan, Guangdong, China 2. Jin Cheng Electronics Manufactory Dongguan Shi Dong Cheng Qu Sang Yuan Shi Jing Gong Ye Qu 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 5 of 23 No. : HM152811 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: FM Stereo Transmitter Manufacturer: 1. Sunwind Electronic Limited. 2. Jin Cheng Electronics Manufactory Brand Name: N/A Additional Brand Name: Clarion, Directed, Prology, Autosonik, Soundlinx, Razor, Carmate, Electus, Eurovox, Maplin Model Number: FM700W Additional Model Number: FM-700W, FM-200W, WFM700W, FM300W, RFM200W, AFM2000W, FMM1029W, QM-3800W Input Voltage: 12Vd.c 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a UBUY Industrial Corporation, FM Stereo Transmitter. The transmitter is a 3 button transmitter. The EUT continues to transmit while button is being pressed. Modulation by IC. and type is frequency modulation. 1.4 Date of Order 2004-11-04 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2004-12-01 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 6 of 23 No. : HM152811 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-12-04 TEST REPORT Page 7 of 23 No. : HM152811 香港新界大埔工業村大宏街10號 10 Dai Wang …

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
