STCEX-1101QLIP-VDSL Modem

User Manual of Modem Manual of IP-VDSL EX-1101QL User Manual of Modem [Before Using this Modem] This manual on IP-VDSL EX-1101QL Modem describes how to install and operate it, your understanding and using for it is highly recommended. Class B This Modem made for Home A pplication is registered on EMI/EMC, can be used for residential as well as out of residential Area CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment WA R N I N G This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: This equipment has been tested and found to comply with the limit of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient / Relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help User Manual of Modem Contents 1. Product introduce 2. Packing contents confirmation of IP-VDSL EX-1101QL 3. Connect cables 4. System composition 5. Specification of IP-VDSL EX-1101QL User Manual of Modem 1. Introductions IP-VDSL EX-1101QL is Modem providing very high speed Data Service and common Telephone Service to User through residential Telephone Line. IP-VDSL EX-1101QL is Modem providing various Multimedia Service such as high seed Internet connection, Internet Broad casting, Remote Diagnosis, Monitoring Conference, VoD etc.. 2. Accessories of IP-VDSL EX-1101QL modem manual adapter Ethernet cable (RJ45) Phone cable (RJ11) User Manual of Modem 3. Connect cables Caution : Confirmation of power switch off of EX-1101 QL Modem before connecting the cables. Ø VDSL Line connection (LINE PORT) Connecting the residential Telephone wire of using Telephone to Telephone Socket of wall and IP-VDSL Line Port Ø Telephone connection (PHONE PORT) Connecting RJ11 Cable: Phone Cable(included Accessory) to Phone Port on EX1101QL Modem and Telephone. Ø PC connection (LAN PORT) Connecting Ethernet Cable:CRJ45 Cable(included Accessory) to LAN Port on EX- 1101QL Modem and LAN Card on P/C. Ø Power Adapter connection(5V DC PORT) Connecting Power Adaptor Cable(included Accessory) to DC Input Port on EX1101QL Modem User Manual of Modem 4. System composition ● front Name LED Color ability DATA(VDSL Data) GREEN Lighting on connecting to Link, Blinking on sending and receiving the Data. LINK (VDSL Link) GREEN Lighting on connecting to Link 100M LAN GREEN Lighting on being 100M LAN to P/C LAN GREEN Lighting on connecting to P/C POWER GREEN Lighting on connecting to correct Power User Manual of Modem ● back name use Descriptions LINE VDSL line PORT Sending and receiving the VDSL data and Connecting to Telephone socket on the wall. PHONE Telephone connection PORT Connecting to Telephone through the micro filters. F.G Frame alarm Terminal for Frame Ground LAN Ethernet PORT Connecting to LAN card of the PC using the straight type LAN cable. RESET Reset Switch Making Modem be Initial Condition DC 5V 2A Power input termi nal Connecting Power Adaptor TO mODEM PWR Power switch Providing Power to modem. User Manual of Modem 5. Specification of IP-VDSL EX-1101QL Item Specification VDSL standard z ETSI VDSL Standard z ITU ITU-T G.993.1 IEEE v standard z IEEE 802.3 10Base-TX z IEEE 802.3u 100Base-TX Ethernet Interface z 10/100Base-TX (IEEE 802.3, Auto-negotiation) z Connector : RJ-45 VDSL Interface z Connector : RJ-11 POTS Interface Interface z Connector : RJ-11 Modulation Quadrature Amplitude Modulation (QAM) Transmission Full-duplex, Frequency Division Multiplexing (FDD) data Rate z Asymmetrical : 50/6Mbps ~ 1.5/0.4Mbps(M1) Band Plan z Plan998 PSD MASK VDSL ETSI, ANSI, ITU-T(G.993.1) VDSL Standards Upstream Power-back-off Support Upstream Power-back-off Loopback Support remote and local loopback for network connection test CPE Configuration VDSL z VDSL Automatic setting of line speed z Automatic setting (10/100Base-T Auto-Negotiation) of port parameter. Connector z Two RJ-11 Connector (LINE, PHONE) User Manual of Modem z A RJ-45 Connector (LAN) z P/W input terminal(tab) (5V DC) LED DATA, LINK, 100M LAN, LAN, POWER environment z temperature : 0 ~ 50°C ( in work), -40~70°C (in keeping) z humidity : 5 ~ 90% Standard OF Modem z Dimension : 24(W) x 133(H) x 108(H) mm z Weight : 200g Power OF Modem z Input : 100~240VAC, 50~60Hz, DC 5V/2A z Electric power gauge : 5 Watt (Max) User Manual of Modem Certification of guarantee Name of Product 50M IP-VDSL modem Name of Model IP-VDSL EX-1101QL Serial Number Purchase Date Insurance period 1 year Name Te l Address Customer E-Mail Regulations of compensation for user Damaged Modem shall be compensated under the regulations of compensation for user Guarantee in detail 1. This product is made through strict quality control and test process. 2. 1 year warrantee shall be provided for user without case of no #3. 3. It shall be charged for providing technique and machine parts, in following cases. z Carelessness Using…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 16, 2004 RE: Tellion Inc. FCC ID: STCEX-1101QL After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please adjust the confidentiality Letter and authorization to include the correct FCC ID. 2) The block diagram should show the frequencies of all oscillators in the TX device (CFR 2.1033(a)(5)). Please provide. 3) There appears to be a grounding terminal on the device. Many home users will likely not use this terminal as there is not an easy way to connect this in a home. Unless the device does not function without the frame ground connection attached (which is not typically the case), both grounded and ungrounded configurations should be investigated. Please note that it has been seen on this type of device that use (or non-use) of this terminal usually will significantly affect both the radiated and AC power line results. It does not appear that configurations were investigated both with and without this connection. 4) FYI....The current FCC rules have incorporated ANSI C63.4 into the rules. There are many minor differences between this and earlier versions. Please take this into consideration on future applications. 5) FYI...Note that this device appears to contain a DSL interface, which is subject to Part 68 requirements. This application will only cover the Part 15 requirements of this device. 6) FYI....In the future, please make sure the authorization and confidentiality letters are dated. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1. FRONT 2. REAR

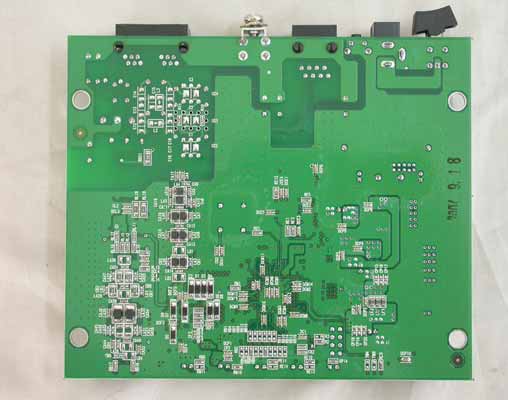

INTERNAL PHOTO 1. MAIN 1.1 Front 1.2 Rear

Tellion Inc. FCC ID XXXEX-1101QL -Operational description- IP-VDSL EX-1101QL is Modem providing very high speed Data Service and common Telephone Service to User through residential Telephone Line. IP-VDSL EX-1101QL is Modem providing various Multimedia Service such as high seed Internet connection, Internet Broad casting, Remote Diagnosis, Monitoring Conference, VoD etc..

Compliance Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date2004-12-03 ~ Test location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This is certified that the above mentioned producs have been tested for the sample provided by client - No part of this document may be duplicated or reproduced by any means without the express written permission of the Estech Co., Ltd. OK, Pass = Passed, Fail = Failed, N/A = not applicable Tellion, Inc. 5th Fl, BONA Venture Town 1586-7 Seocho 3-Dong, Seocho-Gu, Seoul 137-719, KOREA 82-2-3474-0308 Measurement facility registration number Senior Engineer J.M. Yang Director T.K. Lee 94696 (Signature) (Signature) Date of issue2004-12-17 ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2002 , ANSI C 63.4 2001 EX-1101QL NONE Tellion, Inc. KOREA Report Number : ESTF150412-004 , Web : www. estech. co. kr Page 1 of 14 Report NumberESTF150412-004 Manufacturer Country of origin Applicant Product 2004-12-17 IP-VDSL Modem 3 4 5 6 8 8 8 9 10 10 10 11 12 14 Appendix 1. Spectral diagram Appendix 2. Phorographs of EUT in side PCB Appendix 3. Block diagram of EUT Appendix 4. Circuit Diagram 7. Photogra phs of test setup ........................................................................... 8. Photogra phs of EUT .................................................................................... 6. Measurement of conducted emission ............................................................ 6.1 Measurement e quipment ........................................................................... 6.2 Environmental conditions ........................................................................... 6.3 Test data ................................................................................................ Report Number : ESTF150412-004 , Web : www. estech. co. kr Page 2 of 14 5. Measurement of radiated emission ............................................................... 5.1 Measurement e quipment ........................................................................... Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards ............................................................................................. 4. Measurement condition ................................................................................. 5.2 Environmental conditions ........................................................................ 5.3 Test data ............................................................................................. ... 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : 3 rd Fl., Chungdam Bldg., 119-1 Chungdam-dong Kangnam-gu , Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) FCC : Filed Laboratory at Federal Communications Commission This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150412-004 , Web : www. estech. co. kr Page 3 of 14 3. Test Standards Test Standard : FCC PART 15 (2002) Test Method : ANSI C 63.4 (2001) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets out the regulations under which an intentional, unintentional, or incidental radiator may be operated without an individual license. It also contains the technical specifications, administrative requirements and other conditions relating to the marketing of Part 15 devices. Report Number : ESTF150412-004 , Web : www. estech. co. kr Page 5 of 14 2. Description of EUT 2.1 Summary of Equipment Under Test Product: Model Number : Serial Number : Manufacturer : Country of origin : Rating : Receipt Date : 2.2 General descriptions of EUT Report Number : ESTF150412-004 , Web : www. estech. co. kr Page 4 of 14 IP-VDSL Modem EX-1101QL NONE Tellion, Inc. KOREA Input : 100~240VAC, 50~60Hz, DC 5V/2A Electric power gauge : 5 Watt (Max) 2004-10-05 USING OSC FREQ25MHZ 4. Measurement Condition 4.1 EUT Operation. 4.2 Configuration and Peripherals * The EUT was in the following operation mode during all testing * The operational conditions of the EUT was determined by the manufacturer according to the typical use of the EUT with respect to the expected hightest level of emission * Using ping command between external Network, Transmission and Receiving test at between external Network Report Number : ESTF150412-004 , Web : www. estech. co. kr Page 6 of 14 4.3…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo(GROUND) 1.1. Front 1.2. Rear 2. Conducted Emission setup photo(NOT GROUND) 2.1. Front 2.2. Rear 3. Radiated Emission setup photo(GROUND) 3.1 Front 3.2. Rear 4. Radiated Emission setup photo 4.1 Front 4.2. Rear
