SU7318TRS8Part 15 Security / Remote Control Transmitter

Transmitter S8318LIPW4KC 1A - General information The Transmitter Solutions type S8318LIPW4KC is a key chain style transmitter operating at 318 MHz. It has been designed for use with programmable telephone entry, security, and access control systems operating with a 318 MHz frequency receiver. The protocol is Linear compatible and the code sent by the transmitter includes a 14 bit security code which allows up to 16384 code CONTENTS 1A - General information 1B - Technical specifications 1C - Main components 1 - TRANSMITTER OVERVIEW 3 - NUMBERING 4 - PROGRAMMING 5 - OPERATION 6 - BATTERY ACCESS 1B - Technical specifications Operating frequency318 MHz Number of keys:1- 2- 4 Battery :12V - 23A Battery life:18 - 24 months Protocol :Linear Number combinations :65,536 Different Facilities codes16 Operating temperature: -20°F÷+131°F (-20°C÷+55°C) Overall dimensions:2.51”x 1.52”x 0.58” Weight:1 oz. (20 gr.) combinations and 6 bits of facility code, which allows up to 64 facility codes.The Transmitter Solutions - R318 receiver which operates with this transmitter has a Wiegand 26 bit format output, which will operate any type of access control system equipped to accept a 26 bit Wiegand input. The A23 - 12V battery has a shelf life of about 6 months. The product fully complies with Part 15 of FCC Regulations and the 1C - Main components 7 - TROUBLESHOOTING Transmitter Solutions Thank you for choosing a Transmitter Solutions product . Please read this manual carefully before using the product. Made in Italy. Copyright © 2022 by Transmitter Solutions Button C 2 - TYPES Fig. 2 Green LED Button A Button B Button D Key-holder ring Manual with Patented TM ChargeGuard Circuit Patent Pending 3 - NUMBERING 6 - BATTERY ACCESS 4 - PROGRAMMING Each transmitter is manufactured and sold with a different factory set sequence number and facility code. The transmitter facility code and sequence number must be programmed into your system memory. Your own installer or reseller will provide you the necessary instructions for your system. 5 - OPERATION a. Firmly depress either button until the small Green LED illuminates. b. After the LED has illuminated, release the button. If the device you are attempting to activate does not respond, repeat steps a. and b. or consult section 6 (Troubleshooting) of this manual. To access the battery unscrew the fixing screw with a Phillips head screw-driver (fig.2). Slide out the battery door.Insert the 12V - A23 alkaline battery, respecting the polarity as indicated by the signs engraved on the battery site. IS-T8L318TSUK Rev. 1 del 4.11.2022 The warranty period of 318 transmitters is 24 months, beginning from the manufacturing date of the transmitter. During this period, if the product does operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of Transmitter Solutions. The warranty does not extend to the transmitter case which can be damaged by conditions outside the control of Transmitter Solutions or to battery life. Transmitter Solutions WARRANTY TRANSMITTER SOLUTIONS 2505 Chandler Avenue, Suite, 1 Las Vegas, NV 89120 - (866) 975-0101 - (866) 975-0404 Fax [email protected] 2 - RANGE S8 S8318LIPW1KC : 1 button Transmitter S8 S8318LIPW2KC : 2 buttons Transmitter S8 S8318LIPW4KC : 4 buttons Transmitter S8 Battery door Phillips head screw Transmitter Solutions - Type : S8 318LIPW4KC FCC ID : SU7318TRS8 This device complies with FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 15 of the Notice Any changes or modification to equipment not expressly approved by could void the manufacturer’s warranty. Transmitter Solutions Transmitter Solutions The system does not receive the transmitter signal. The transmitter LED is ON Check to verify the transmitter is programmed into your system PROBLEM SOLUTION The operating range is reduced Replace the transmitter batteries 8 - TROUBLESHOOTING 7 - BATTERY STATUS Led GREENNormal level~6000 pulses [*] - Normal range Led ORANGEAttention levelMax 300 pulses - Low range[*] Led REDLow levelReplace battery - No range Led color Battery level TX Status [ * ] : Depends on batteries type and operating conditions . Batteries life calculated with 1-sec pulses.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 17/6/2022 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: SU7318TRS8 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Gian Massimo Dalle Carbonare Product manager CDVI Wireless Spa

CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 PIVA. 03023780269 internet: www.erone.com - e-mail: [email protected] Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/17/2022 Request for Permanent Confidentiality Company name: CDVI Wireless SpA FCC ID: SU7318TRS8 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 CDVI Wireless SpA hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which CDVI Wireless SpA considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, CDVI Wireless SpA considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Gian Massimo Dalle Carbonare [Product manager] CDVI Wireless SpA Via Piave, 23 31020 S.Pietro di Feletto (TV ) - Italy

CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 PIVA. 03023780269 internet: www.erone.com - e-mail: [email protected] Declaration concerning Antenna Specification It is hereby declared that the product Model No.: S8TL318Ex FCC ID: SU7318TRS8 fulfils the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: n.a. Type of antenna: PCB Antenna Peak Gain of the antenna: 0 dB Frequency range: 318 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: CDVI WIRELESS SPA Address: Via Piave, 23 City: S.Pietro di Feletto (TV) ZIP / Postal code: 31020 Country: Italy Place: S.Pietro di Feletto Date: 11/10/2022 Signature:

19,30 mm 20,70 mm 14,6 mm 5,6 mm 5,6 mm TOTAL LENGHT PCB Antenna = 65,8 mm Only on current layer! Model number: S8TL318Ex FCC ID: SU7318TRS8 2 mm

19,30 mm 20,70 mm 14,6 mm 5,6 mm 5,6 mm TOTAL LENGHT PCB Antenna = 65,8 mm Only on current layer! Model number: S8TL318Ex FCC ID: SU7318TRS8 2 mm

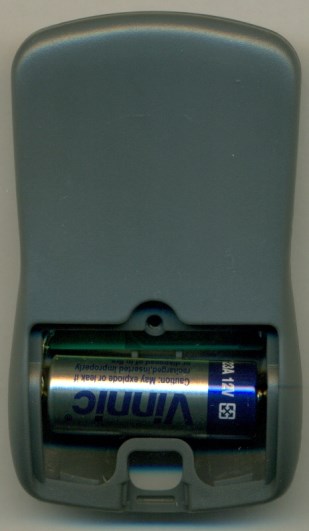

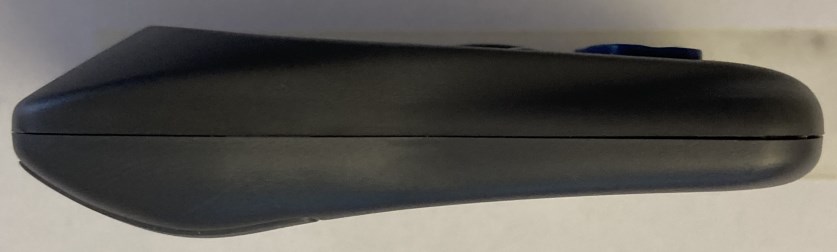

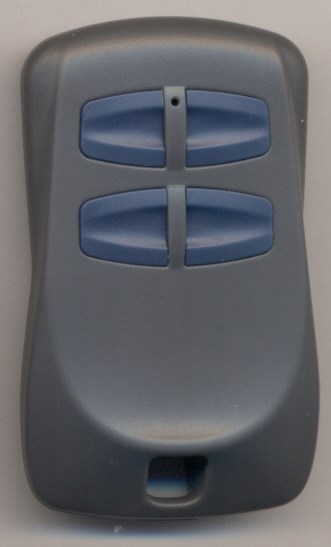

CDVI Wireless SPA TCF-199 Annex 1B = External Photos Pag 1 of 3 S8TL318Ex Annex 1B: S8TL318E1 Front external view Annex 1B: S8TL318E2 Front external view CDVI Wireless SPA TCF-199 Annex 1B = External Photos Pag 2 of 3 Annex 1B: S8TL318E4 Front external view Annex 1B: S8TL318E4x– Back external view w/battery door open Annex 1B: S8TL318E4x – Back external view w/battery door closed CDVI Wireless SPA TCF-199 Annex 1B = External Photos Pag 3 of 3 Annex 1B: S8TL318E4x – Side external view Annex 1B: S8TL318E4x – Top external view Annex 1B: S8TL318E4x – bottom external view

CDVI Wireless SPA TCF-199 Annex 2 = Labels Pag 1 of 1 S8TL318Ex LABELS – Scale 1:1 The specifications of the transmitter are written on the back with a laser machine S8318LIPW4KC Freq. 318 MHz FC001 - SN 12345 FCC-ID: SU7318TRS8 Lot. xx/2022 Complies with FCC Rules Part.15

CDVI Wireless SPA TCF-199 Annex 1A = Internal Photos Pag 1 of 2 S8TL318Ex Annex 1A: S8TL318E1 – Electronic card front internal view Annex 1A: S8TL318E2 – Electronic card front internal view Annex 1A: S8TL318E4– Electronic card front internal view CDVI Wireless SPA TCF-199 Annex 1A = Internal Photos Pag 2 of 2 Annex 1A: S8TL318Ex – Electronic card back internal view Annex 1A: S8TL318Ex – back internal view Annex 1A: S8TL318Ex – back internal view w/battery

ONE WORLD  OUR APPROVAL www.nemko.com KDB 447498 D01 General RF Exposure Guidance v06 (October 23, 2015) 1. Declaration of RF exposure compliance for exemption from routine evaluation limits FCC ID: SU7318TRS8 Model number: S8TL318E4 Manufacturer: Controlled Entry Distributors Inc. 4.3.1. Standalone SAR test exclusion considerations: A portable device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that the RF source's radiating structure(s) is/are within 20 centimetres of the body of the user. Under §2.1093(c)(1) is stated that: Evaluation of compliance with the exposure limits in § 1.1310 is necessary for portable devices having single RF sources with more than an available maximum time-averaged power of 1 mW, more than the ERP listed in Table 1 to § 1.1307(b)(3)(i)(C), or more than the P th in the following formula, whichever is greater. The following formula shall only be used in conjunction with portable devices do not exempt by § 1.1307(b)(3)(i)(C) at distances from 0.5 centimetres to 20 centimetres and frequencies from 0.3 GHz to 6 GHz: d = the minimum separation distance (cm) in any direction from any part of the device antenna(s) or radiating structure(s) to the body of the device user. f = is the lower operating frequency [GHz] Remark: If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). CALCULATION According to ANSI C63.10-2013, § 9.5: EIRP = E meas + 20 Log (d meas ) −104.7 where EIRP is the equivalent isotropically radiated power, in dBm E meas is the field strength of the emission at the measurement distance, in dBμV/m (see test report No.: 466676TRFWL, § 8.4) d meas is the measurement distance, in m Maximum Output Power = 69.1 + 20 Log (3) – 104.7 = -26.1 dBm = 0.0025 mW < 1 mW According to § 2.1093(c)(1), the product exempts from the SAR test requirements. FCC SAR Exemption per KDB 447498 ONE WORLD  OUR APPROVAL www.nemko.com 2. Attestation ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: October 11, 2022 Name: Oscar Frau

ONE WORLDOURAPPROVAL Test report 466676TRFWL Date of issue: 2022-07-15 Applicant for ISED: -- Applicant for FCC: Controlled Entry Distributors Inc. 2500 South 3850 West, Suite A Salt Lake City, UT 84120 Product: Remote Control Key Model: S8TL318E4 FCC ID: ISED Registration number: SU7318TRS8 -- Specifications:  FCC 47 CFR Part 15 Subpart C, §15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Report reference ID: 466676TRFWL Page 2 of 30 Test location Company name Nemko Spa Address Via del Carroccio, 4 – 20853 Biassono (MB) – Italy City Biassono – Province (MB) – Italy Postal code 20853 Country Italy Telephone +39 2201201 Facsimile -- Toll free -- Website www.nemko.com Site number FCC: 682159 Tested by Giuseppe Bazzi Reviewed by Roberto Giampaglia Date 15 July, 2022 Signature of reviewer Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Report reference ID: 466676TRFWL Page 3 of 30 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer info ............................................................................................................................................................................. 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test methods ............................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Applicability .............................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C test results ............................................................................................................................................................................ 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ........................................................................................................................................................... 6 3.5 Test plan and measurement techniques .................................................................................................................................................................. 6 3.6 EUT setup diagram ................................................................................................................................................................................................... 7 3.7 EUT sub assemblies .................................................................................................................................................................................................. 8 Section 4. Engineering considerations .................................................................................................................................................................. 9 4.1 Modifications incorporated in the EUT..................................................................................................................................................................... 9 4.2 Technical judgment .................................................................................................................................................................................................. 9 4.3 Deviations from laboratory tests procedures ......................................................................................................................................…
