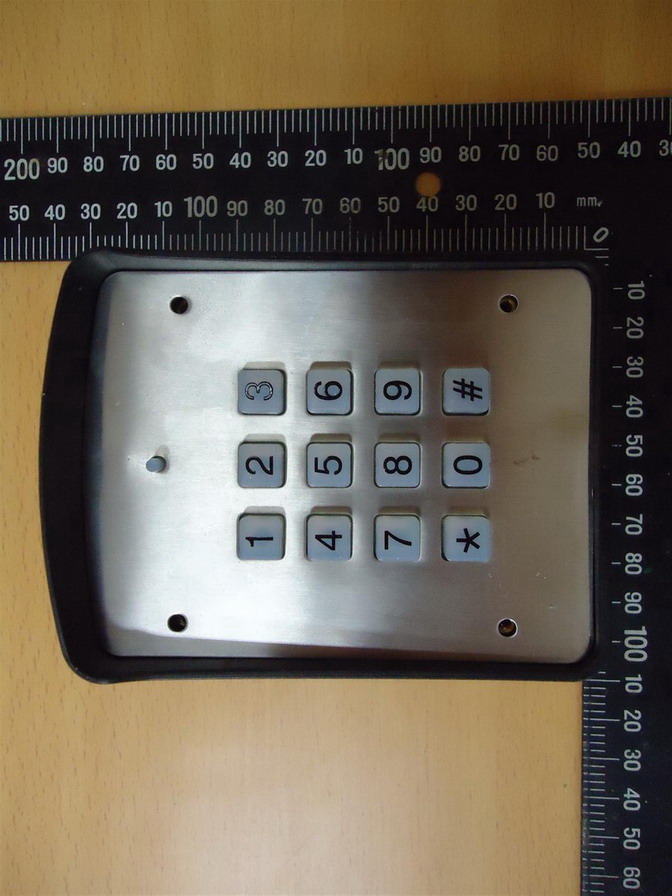

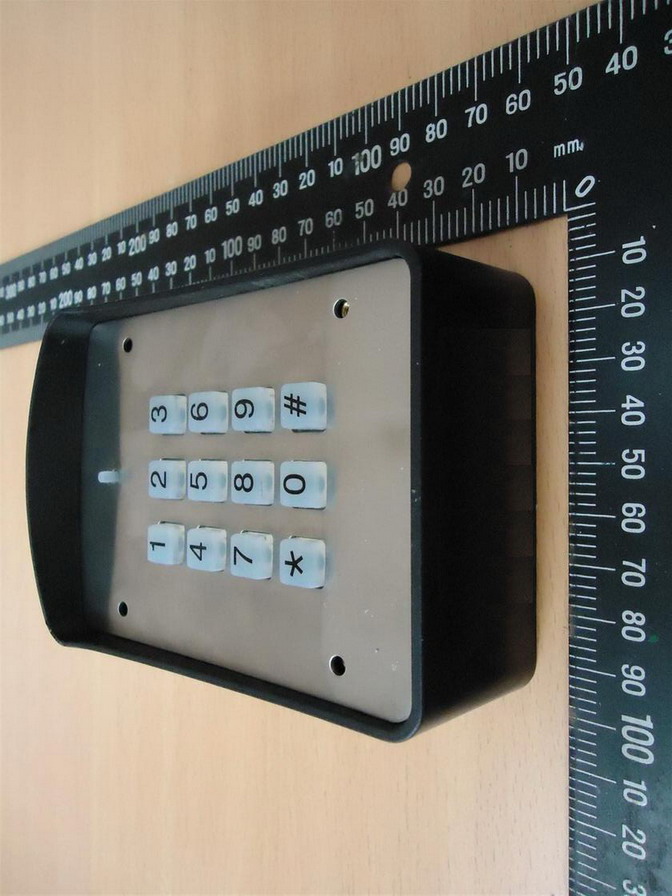

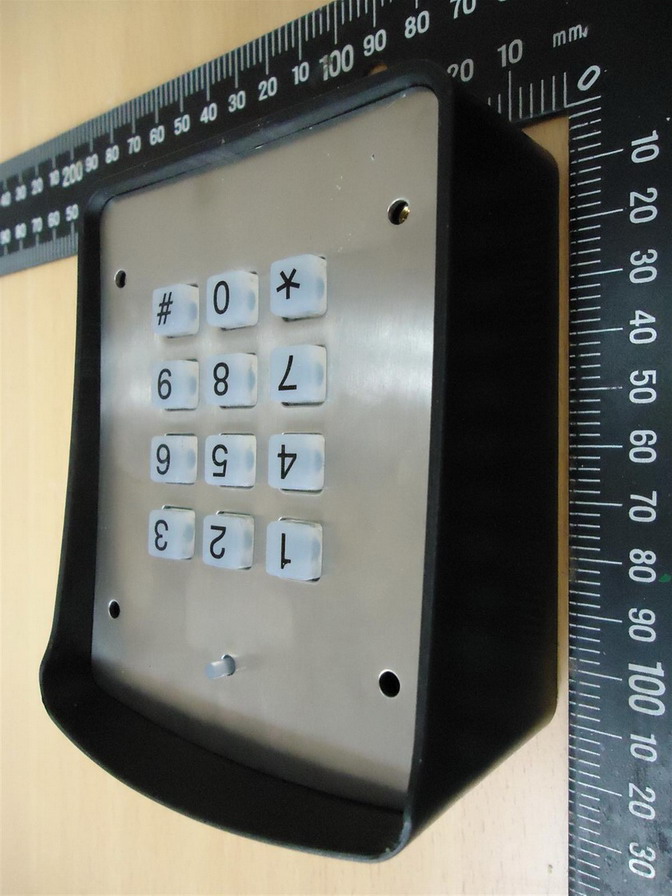

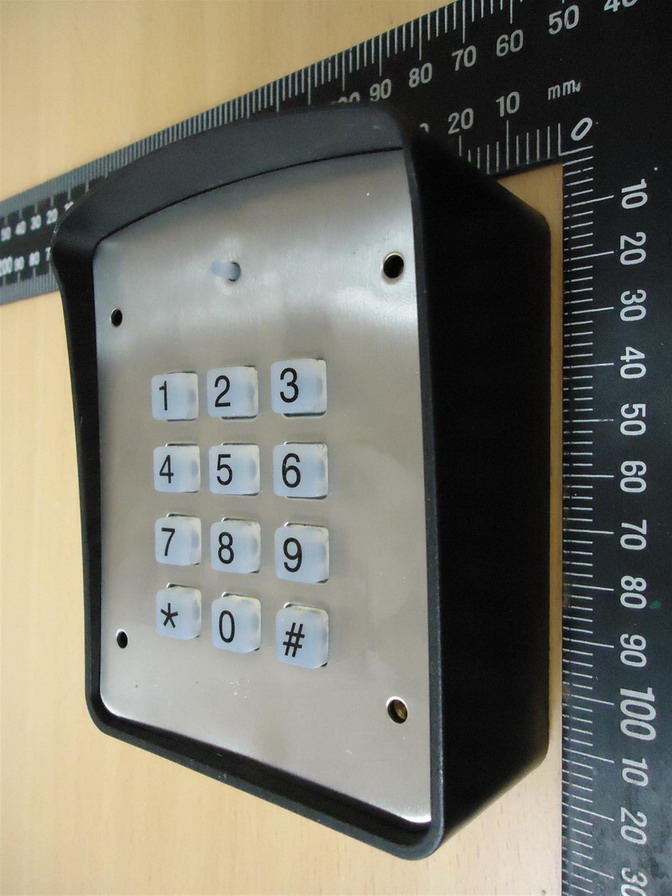

CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269 internet: www.erone.com - e-mail: [email protected] TCF-160 07/2015 Pag 1 of 23 TECHNICAL CONSTRUCTION FILE PRODOTTO (Product ) Marchio (Brand) TRANSMITTER SOLUTIONS Serie (Serie) KEYPAD DOLPHIN Modello (Types) KPD2641C6P DOCUMENTO ( Document ) TCF-1 60 FILE D: \Prodotti\Tastiere Dolphin\Dolphin 6ch proximity\TCF- 160.doc N° PAGINE (Page Number) 23 ALLEGATI (Attachments) 0 DATA DI RILASCIO (Date of issue) 30 /7/2015 REVISIONE (Revision) 0 Realizzato (Performed) G.M.Dalle Carbonare -------------------------------------------- Verificato (Verified) L. Braido -------------------------------------------- Approvato (Approved) G.M.Dalle Carbonare -------------------------------------------- CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269 internet: www.erone.com - e-mail: [email protected] TCF-160 07/2015 Pag 2 of 23 SUMMARY 1.0 Introduction .............................................................................................................................3 2.0 Technical characteristics .......................................................................................................4 3.0 System components ..............................................................................................................4 4.0 Description ..............................................................................................................................7 5.0 Schematic block diagram ......................................................................................................9 6.0 Reference regulations ..........................................................................................................10 7.0 Electrical diagrams ...............................................................................................................11 8.0 Component Layout ...............................................................................................................15 9.0 Component list......................................................................................................................17 10.0 PCB Boards ..........................................................................................................................18 11.0 PHOTOS ...............................................................................................................................21 CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269 internet: www.erone.com - e-mail: [email protected] TCF-160 07/2015 Pag 3 of 23 1.0 Introduction The keypad DOLPHIN type KPD2641C6P is an encoded radio keypad operating at 433,92 Mhz in AM/ASK. Best use of the product is to control: gates, garage doors, rolling shutters, sun-blinds, anti-burglar appliances, lightings, etc. The code has a very high security encoding system (KeeLoq ® Hopping code). The code sent by the transmitter changes at every activation, avoiding any scanning and copying risk. A special algorithm allows keeping synchronized transmitter and receiver. The radio transmission is enabled only after the dialing of a security user code. There are 6 different channels 1-2-3-4-5-6, that can activate many receivers or relays. The internal memory can store up to 22 different security user codes and 1 Master code. The appliance is equipped with a very sensitive proximity sensor, which turns on the backlight, allowing a comfortable dialing of the code. As long as your hand remains next to the keypad the backlight stay on. The product fully complies with the FCC cfr 47 part 15. 1.1 Product references BRAND : Transmitter Solutions SERIES : KEYPAD DOLPHIN TYPES : KPD2641C6P MANUFACTURER : CDVI WIRELESS S.p.A. Via Piave, 23 I-31020 S.PIETRO DI FELETTO ( TV) ITALY Tel: +39-0438-450860 Fax: +39-0438-455628 CONTACT : Ing. G. Massimo Dalle Carbonare – Product Manager CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269 internet: www.erone.com - e-mail: [email protected] TCF-160 07/2015 Pag 4 of 23 2.0 Technical characteristics Number of keys: .............................................................. 12 Number of channels:....................................................... 6 Supply: ............................................................................. 3,6 Vdc Battery duration: .............................................................. about 30 months (with 30 activations / day ) Battery type: ................................................................... Lit hium LS14505 Current consumption: Sl eep mode .................................... 22 μA Transmission .................................. 30 mA Carrier frequency: ........................................................... 433,920 MHz Modulation: ...................................................................... AM/ASK E.r.p.( rated ): .................................................................. 5 - 10 μW Modulating signal frequency: ......................................... 834 bit/sec Dynamic code system..................................................... Keeloq® Hopping code Security Code combinations number: ........................... 2exp64 User security code number: ........................................... 22 Master security code ....................................................... 1 Range in open space: ..................................................... from 50 to 100 m Operating temperature: .................................................. from -10 °C to +55 °C Dimensions: ..................................................................... 115 x 90 x 55 mm Weight: ............................................................................. 210 gr IP Pr…
