SUMMB6800Mobile Bridge

Top Global USA. ----MB6800 User Guide MobileBridge Gateway Series MB6800 Wireless Cellular Data Gateway User Guide Version 1.1.1 （Firmware v1.1.1） 2007-3-8 Top Global USA, any modification of this product will not issue a separate notice. All Rights Reserved. - 1 - Top Global USA. ----MB6800 User Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates，uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Top Global declares that MB6800 (FCC ID: SUMMB6800 ) is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A. - 2 - Top Global USA. ----MB6800 User Guide CONTENT FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT................2 IMPORTANT NOTE:......................................................................................................................2 FCC RADIATION EXPOSURE STATEMENT:..........................................................................2 CONTENT....................................................................................................................................3 1 INTRODUCTION....................................................................................................................6 2 INSTALLING THE MB6800..................................................................................................7 2.1 VERIFY KIT CONTENTS......................................................................................................7 2.2 WRITE PRODUCT IDENTIFICATION.....................................................................................8 2.3 POWER UP THE MB6800....................................................................................................8 2.4 LED INDICATORS...............................................................................................................9 2.5 INITIALIZE THE MB6800 UNIT..........................................................................................9 3 MANAGEMENT....................................................................................................................15 3.1 OVERVIEW.......................................................................................................................15 3.2 PAGE STRUCTURE............................................................................................................17 3.2.1 Shortcut..................................................................................................................17 3.3 PAGE OPERATION.............................................................................................................19 3.4 CONFIGURATION PAGES DESCRIPTION.............................................................................20 3.4.1 System...................................................................................................................20 3.4.2 Interfaces...............................................................................................................27 3.4.3 Service...................................................................................................................45 3.4.4 Firewall...................................................................................................................48 3.4.5 Security Services..................................................................................................55 3.4.6 Tools.......................................................................................................................58 3.4.7 Status.....................................................................................................................64 3.4.8 Diagnostics............................................................................................................66 - 3 - Top Global USA. ----MB6800 User Guide 4 TROUBLESHOOTING........................................................................................................69 4.1 OVERVIEW.......................................................................................................................69 4.2 INTRODUCTION................................................................................................................69 5 DEFAU…

Text truncated - open the document above for the full version.

Request for non-disclosure RF_501_02 Top Global USA, Inc 4605 Barranca Parkway Suit 101G Irvine, California, 92604 USA To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: SUMMB6800) Reference number: MB6800 Date: 2007/05/24 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), Top Global USA, Inc. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( SUMMB6800) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Top Global USA, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name: Qiao Huijun Signature:

RF_160, Issue 01 Declaration of Authorization We Name: Top Global USA, Inc. Address: Bake Parkway, Suite 106, City: Lake Forest, CA 92630 Country: USA Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Nei-hu Taipei City 114 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product Description: 3G Mobile Router Model: MB6800 Brand: Top Global on our behalf. Date: 2007/ 05/ 24 City: Lake Forest Name: Qiao Huijun Signature:

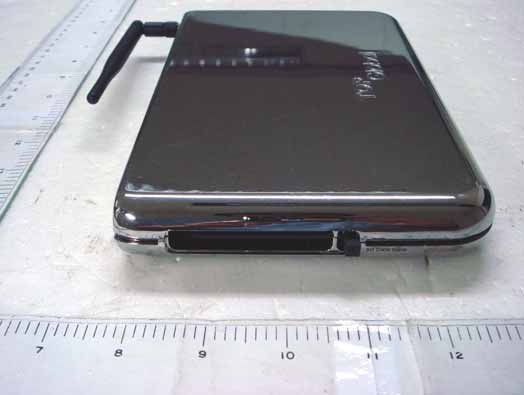

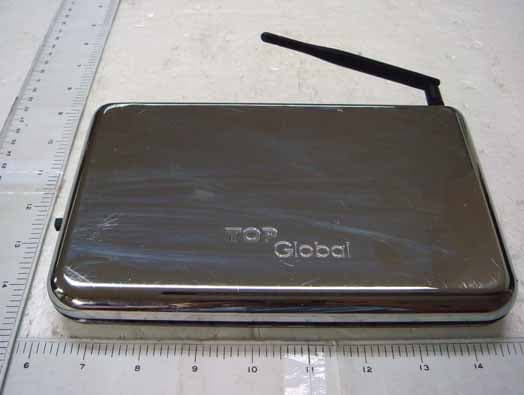

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 1 of 10 FCC Test Report: FI07050201-A Appendix A. Photographs of EUT 07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 2 of 10 FCC Test Report: FI07050201-A 07050201-A 07050201-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 3 of 10 FCC Test Report: FI07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 4 of 10 FCC Test Report: FI07050201-A 07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 5 of 10 FCC Test Report: FI07050201-A 07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 6 of 10 FCC Test Report: FI07050201-A 07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 7 of 10 FCC Test Report: FI07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 8 of 10 FCC Test Report: FI07050201-A 07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 9 of 10 FCC Test Report: FI07050201-A 07050201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 10 of 10 FCC Test Report: FI07050201-A 07050201-A 07050201-A

1.1. Test Result of RF Exposure Evaluation . Product: Mobile Bridge . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: May. 18, 2007 Temperature: 25 Humidity: 66 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.93 0.010 06 2437 15.10 0.010 11 2462 15.12 0.010 Modulation Standard: IEEE 802.11g Test Date: May. 18, 2007 Temperature: 25 Humidity: 66 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 15.14 0.010 06 2437 15.09 0.010 11 2462 15.46 0.011 The MPE is calculated as 0.011 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 1 of 55 FCC Test Report: FI07050201-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : Top Global USA, Inc. Address : 4605 Barranca Parkway Suit 101G, Irvine California 92604, USA Equipment : Mobile Bridge Model No. : MB6800 FCC ID : SUMMB6800 Trade Name : Top Global Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 2 of 55 FCC Test Report: FI07050201-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 7 2.3 Test Mode and Test Software.....................................................................................................8 2.4 Description of Test System......................................................................................................... 8 2.5 Connection Diagram of Test System.......................................................................................... 9 2.6 General Information of Test......................................................................................................10 2.7 Measurement Uncertainty ........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit..................................................................................................................................12 4.2 Test Procedures.......................................................................................................................12 4.3 Typical Test Setup ...................................................................................................................13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................16 5. Test of Radiated Emission ...............................................................................................................17 5.1 Test Limit..................................................................................................................................17 5.2 Test Procedures.......................................................................................................................18 5.3 Typical Test Setup ....................................................................................................................19 5.4 Measurement equipment ......................................................................................................... 19 5.5 Test Result and Data................................................................................................................20 5.6 Test Photographs .....................................................................................................................36 6. 6dB Bandwidth Measurement Data .................................................................................................37 6.1 Test Limit ..................................................................................................................................37 6.2 Test Procedures .......................................................................................................................37 6.3 Test Setup Layout ....................................................................................................................37 6.4 Measurement equipment ......................................................................................................... 37 6.5 Test Result and Data................................................................................................................37 7. Maximum Peak Output Power .........................................................................................................41 7.1 Test Limit ..................................................................................................................................41 7.2 Test Procedures ..............................................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 16 of 55 FCC Test Report: FI07050201-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 22, 2007 36 of 55 FCC Test Report: FI07050201-A 5.6 Test Photographs Front View Rear View
