SV2BTHS100Bluetooth Headset

0"FQE0"X3052 " " " " " User Manual " " " PBH 100 Bluetooth Headset PBH 100 User Manual V1.30.qxd 2005/2/2 AM 10:15 Page 1 1"FQE0"X3052 " Table of Contents I. Introduction.............................................................................................. 2 Package Contents..................................................................................... 2 Features.................................................................................................... 2 Overview of Bluetooth Headset .............................................................. 3 II. Start Use Headset................................................................................... 4 Charging the Battery................................................................................ 4 To Recharge the Battery .......................................................................... 4 Turning the Headset On/Off .................................................................... 5 Turning On........................................................................................ 5 Turning Off....................................................................................... 5 Pairing the Headset and Phone................................................................ 6 Wearing the Headset Over the Ear........................................................... 7 Controlling Headset Volume.................................................................... 7 Increasing and Decreasing Volume................................................... 7 Resetting the Headset .............................................................................. 7 Connecting to Other Devices................................................................... 7 Making and Receiving Calls.................................................................... 8 Understanding Your Headset Indicators .................................................. 9 III. Troubleshooting.................................................................................. 10 IV. FAQ....................................................................................................... 11 V. Regulatory Compliance Notices....................................................... 12 FCC Class B Equipment Notice – PBH100 Bluetooth Headset............ 12 European CE Notice Certification and Safety Approvals/General Information............................................................................................ 13 VI. Limited Warranty............................................................................... 14 PBH 100 User Manual V1.30.qxd 2005/2/2 AM 10:15 Page 2 2"FQE0"X3052 " I. Introduction Thank you for purchasing this PBH100 Bluetooth Headset. The Bluetooth headset is the next generation of mobile accessories – a comfortable and portable Bluetooth headset for hands free communication with your Bluetooth enabled mobile phone. The headset allows the user to communicate between various Bluetooth devices, including cellular phones, personal digital assistants, and laptop computers. Bluetooth is a short- range wireless communication technology. It allows wireless connections between Bluetooth devices. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM (Industrial Scientific and Medical) frequency band. Within the ISM band (2.4GHz
2.4835GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters (class II). Package Contents
Bluetooth™ Headset
Earpiece
Charger
USB charge cable
User’s manual " Features
Fully compliant with Bluetooth™ version 1.1.
Supports Bluetooth™ headset profile and hands-free profile.
Comfortable, ergonomic and lightweight design for long wear use.
Optimized acoustic design.
Easy to operate user interface for call answer/initiate, volume control, mute and pairing.
Allows voice dialing on voice dial capable phones.
Compatible with all Bluetooth™ mobile phones. (Bluetooth™ version 1.1)
Rechargeable lithium polymer battery.
Bi-color LED indicator shows headset status - active, ready, battery low or charge status.
PC USB port charging capability.
Compliance with BQB, FCC, CE. PBH 100 User Manual V1.30.qxd 2005/2/2 AM 10:15 Page 3 3"FQE0"X3052 Overview of Bluetooth Headset " " " " " " " " " " " " " " " " " " " " " " " " 1. Indicator Light: -One blue LED provides a visual cue regarding the status of the headset. -One red LED indicates the rechargeable battery power status. 2. Microphone: -Receives audio from speaker. 3. Speaker & Earpiece: -Plays the sound you receive on the call. -Earpiece for comfortable wear. 4. Volume Control: -Two buttons of volume up and volume down for adjusting the speaker (receive) and ring tone. 5. Charging Port: -One USB mini B type receptacle for battery charger. -Only works with supplied AC/DC adaptor. 6. Multifunction Button (MFB): -Controls various functions of the headset. " 1.Indicator Light 3. Speaker & Ear piece 2. Microphone 4. Volume Control Button 5.Charging Port 6.Multifunction Button PBH 100 User Manual V1.30.qxd 2005/2/2 AM 10:15 Page 4 4"FQE0"X3052 " II. Start Use Headset Charging the Battery
Hqt"hktuv"vkog"wug."before you can use your headset, you need to charge its self-contained battery for two hours. Tgejctikpi"
When you hear two rapid high tones through the headset speaker or red LED indicator flashes, repeated at 30-second intervals, the headset battery needs to be recharged. It will take approximately 2 hours to fully charge the battery. To Recharge the Battery 1. Plug the travel charger into an AC outlet. 2. Connect detachable cable of USB type A plug into travel charger. 3. Connect another end of detachable cable of USB type mini B plug into charging port of headset. 4. The red indicator on the headset turns on. 5. When the battery is full, the red indicator turns off. A fully charged headset battery will provide up …

Text truncated - open the document above for the full version.

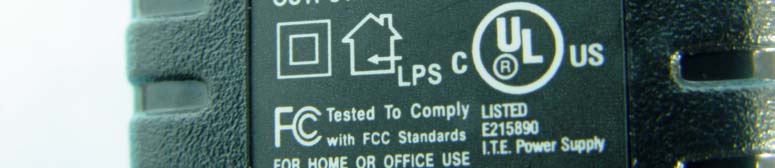

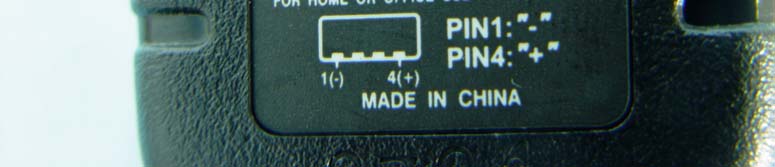

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID:SV2BTHS100 Label Location

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: SV2BTHS100 Report No.RF940106L02 Operational Description The transmitter of the EUT (Bluetooth Headset) is powered by 3.7Vdc from battery and 5Vdc from host equipment. The antenna is Chip antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. For more detailed instruction, please take a look at the user’s manual.

FCC ID: SV2BTHS100 Report No: SA940106L02 1 RF EXPOSURE REPORT REPORT NO.: SA940106L02 MODEL NO.: PBH100, BT302, GSS100, BT112B-HS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Beyond Achieve Enterprises Ltd. ADDRESS: Registered address: P.O. Box 957, Offshore Incorporations centre, Road Town, Tortola, British Virgin Islands. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: SV2BTHS100 Report No: SA940106L02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: SV2BTHS100 Report No: SA940106L02 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: SV2BTHS100 Report No: SA940106L02 4 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power-0.590.873 EIRP Power-0.590.873 *Note: The antenna is Chip antenna with 0dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 0.873mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

FCC ID: SV2BTHS100 Report No.: RF940106L021Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940106L02 MODEL NO.: PBH100 (refer to page 6 for other models) RECEIVED: Jan. 06, 2005 TESTED: Mar. 01 ~ Mar. 03, 2005 ISSUED: Mar. 04, 2005 APPLICANT: Beyond Achieve Enterprises Ltd. ADDRESS: P.O. Box 957, Offshore Incorporations centre, Road Town, Tortola, British Virgin Islands. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 52 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: SV2BTHS100 Report No.: RF940106L022Report Format Version 2.0.2 TABLE OF CONTENTS 1CERTIFICATION ....................................................................................................... 4 2SUMMARY OF TEST RESULTS ............................................................................... 5 2.1MEASUREMENT UNCERTAINTY............................................................................. 5 3GENERAL INFORMATION........................................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .......................................................................... 6 3.2DESCRIPTION OF TEST MODES ............................................................................ 7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ...........................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................... 11 3.4DESCRIPTION OF SUPPORT UNITS .................................................................... 11 4TEST PROCEDURES AND RESULTS ................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT .......................................................... 12 4.2NUMBER OF HOPPING FREQUENCY USED ....................................................... 12 4.2.1LIMIT OF HOPPING FREQUENCY USED .............................................................12 4.2.2TEST INSTRUMENTS.............................................................................................12 4.2.3TEST PROCEDURES .............................................................................................13 4.2.4DEVIATION FROM TEST STANDARD ...................................................................13 4.2.5TEST SETUP...........................................................................................................14 4.2.6TEST RESULTS ......................................................................................................14 4.3DWELL TIME ON EACH CHANNEL ....................................................................... 16 4.3.1LIMIT OF DWELL TIME USED................................................................................16 4.3.2TEST INSTRUMENTS.............................................................................................16 4.3.3TEST PROCEDURES .............................................................................................17 4.3.4DEVIATION FROM TEST STANDARD ...................................................................17 4.3.5TEST SETUP...........................................................................................................17 4.3.6TEST RESULTS ......................................................................................................18 4.4CHANNEL BANDWIDTH ......................................................................................... 22 4.4.1LIMITS OF CHANNEL BANDWIDTH ......................................................................22 4.4.2TEST INSTRUMENTS.............................................................................................22 4.4.3TEST PROCEDURE................................................................................................23 4.4.4DEVIATION FROM TEST STANDARD ...................................................................23 4.4.5TEST SETUP...........................................................................................................23 4.4.6EUT OPERATING CONDITION ..............................................................................23 4.4.7TEST RESULTS ......................................................................................................24 4.5HOPPING CHANNEL SEPARATION ...................................................................... 27 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION ......................................................27 4.5.2TEST INSTRUMENTS.............................................................................................27 4.5.3TEST PROCEDURES .............................................................................................28 4.5.4DEVIATION FROM TEST STANDARD ...................................................................28 4.5.5TEST SETUP...........................................................................................................28 4.5.6TEST RESULTS ......................................................................................................29 4.6MAXIMUM PEAK OUTPUT POWER ...................................................................... 32 FCC ID: SV2BTHS100 Report No.: RF940106L023Report Format Version 2.0.2 4.6.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................32 4.6.2INSTRUMENTS............................................................................…

Text truncated - open the document above for the full version.

FCC ID: SV2BTHS100 Report No.: RF940106L0251Report Format Version 2.0.2 5 PHOTOGRAPHS OF THE TEST CONFIGURATION
