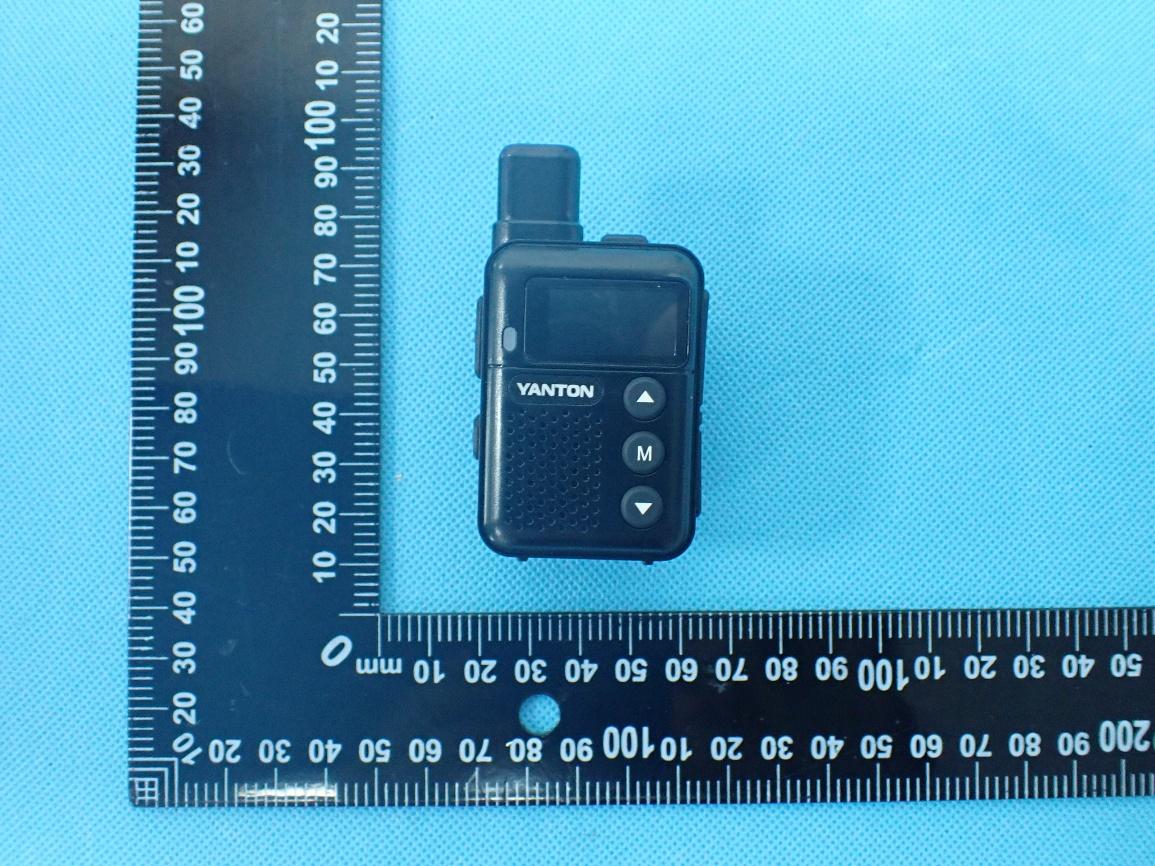

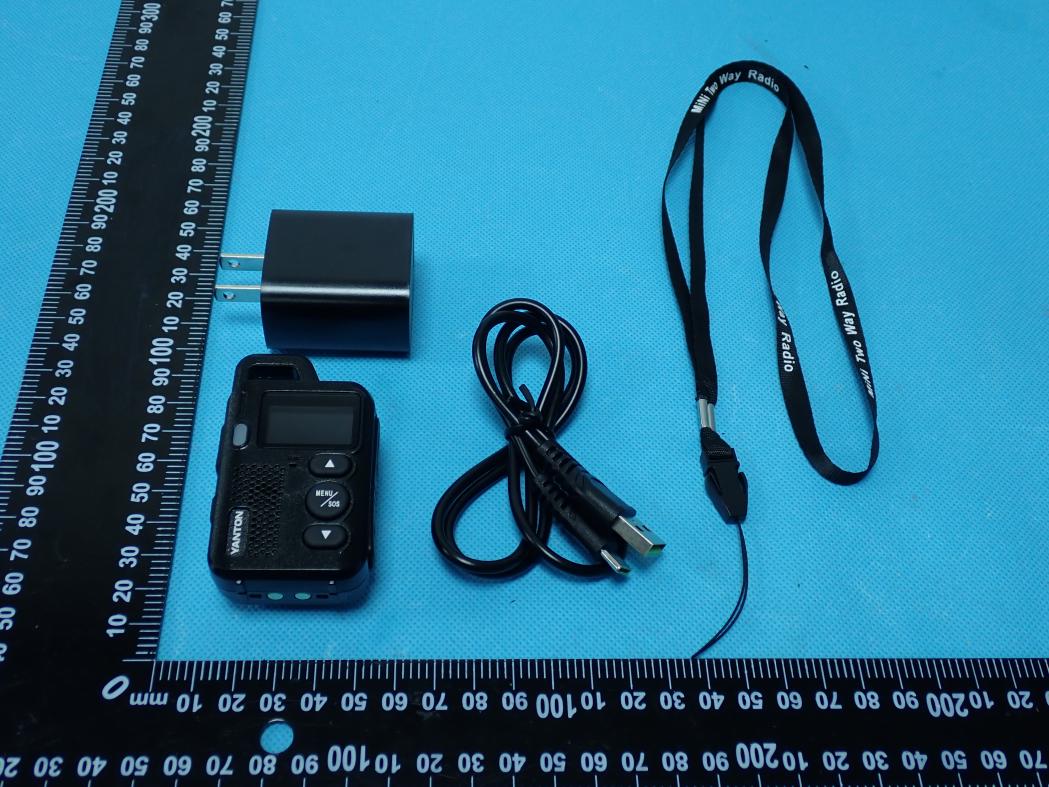

SV8-X5DSUPER MINI POC RADIO

ԥ௲Յவۨս͹^ISڐي͹^IS௎ܑࣴMՅਇ SUPER MINIPOCRADIO T-X5D ԥ௲Յவۨս͹^ISڐي͹^IS௎ܑࣴMՅਇ EU Statement We declare that the radio is compliance with Radio equipment Directive (RED) 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: xxxxxx The device in the environment with the temperature between 0-40燠 and operating under 2000m, otherwise, it may damage your radio. For this device, Head SAR and Body SAR was performed with the device configured in the positions according to EN 50566:2017/A1:2023 & EN IEC/IEEE 62209-1528:2021, and face-up SAR was performed with the device 25mm from the phantom, and Body SAR was performed with the device 0mm from the phantom. Body SAR was also performed with the headset and belt clip attached and without. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. EU warning information: 1,Adapter shall be installed near the equipment andshallbe easily accessible. LTE Band 1/3/7/8/20/28 FCC: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference in radio communications. However, there is no guarantee that interference will not occur in a particular situation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This radio is designed for and classified as “General population/unccupational Use Only". DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. DO NOT transmit for more than 50% of total radio use time, more than 50%of the time can cause RF exposure compliance requirements to be exceeded. This transmitter may operate with the antenna(s) documented in this filing inPush-to-Talk and body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configurations as documented in this filing and the separation distance between user and the device or its antenna shall be at least 2.5 cm. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 42 of 77 Test_Graph_band2_1905MHz_10M_QPSK_1RB#HIGH_Band edge Test_Graph_band2_1905MHz_10M_QPSK_50RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 43 of 77 Test_Graph_band2_1857.5MHz_15M_16QAM_1RB#LOW_Band edge Test_Graph_band2_1857.5MHz_15M_QPSK_1RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 44 of 77 Test_Graph_band2_1857.5MHz_15M_QPSK_75RB#LOW_Band edge Test_Graph_band2_1902.5MHz_15M_16QAM_1RB#HIGH_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 45 of 77 Test_Graph_band2_1902.5MHz_15M_QPSK_1RB#HIGH_Band edge Test_Graph_band2_1902.5MHz_15M_QPSK_75RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 46 of 77 Test_Graph_band2_1860MHz_20M_16QAM_1RB#LOW_Band edge Test_Graph_band2_1860MHz_20M_QPSK_100RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 47 of 77 Test_Graph_band2_1860MHz_20M_QPSK_1RB#LOW_Band edge Test_Graph_band2_1900MHz_20M_16QAM_1RB#HIGH_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 48 of 77 Test_Graph_band2_1900MHz_20M_QPSK_100RB#LOW_Band edge Test_Graph_band2_1900MHz_20M_QPSK_1RB#HIGH_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 49 of 77 Appendix D: Unwanted spurious emissions at antenna terminals Test Result Band Bandwidth (MHz) UL Frequency (MHz) Modulation RB Size RB Offset Conclusion 2 1.4 1850.7 QPSK 6 LOW Pass 2 1.4 1880 QPSK 6 LOW Pass 2 1.4 1909.3 QPSK 6 LOW Pass 2 3 1851.5 QPSK 15 LOW Pass 2 3 1880 QPSK 15 LOW Pass 2 3 1908.5 QPSK 15 LOW Pass 2 5 1852.5 QPSK 25 LOW Pass 2 5 1880 QPSK 25 LOW Pass 2 5 1907.5 QPSK 25 LOW Pass 2 10 1855 QPSK 50 LOW Pass 2 10 1880 QPSK 50 LOW Pass 2 10 1905 QPSK 50 LOW Pass 2 15 1857.5 QPSK 75 LOW Pass 2 15 1880 QPSK 75 LOW Pass 2 15 1902.5 QPSK 75 LOW Pass 2 20 1860 QPSK 100 LOW Pass 2 20 1880 QPSK 100 LOW Pass 2 20 1900 QPSK 100 LOW Pass Note: Both QPSK and 16QAM modulation modes were tested. Since the QPSK mode produced the worst-case results, only the corresponding QPSK test results are included in this report. Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 50 of 77 Test Graphs Test_Graph_band2_1850.7MHz_1.4M_QPSK_6RB#LOW_30M_1G_TX Test_Graph_band2_1850.7MHz_1.4M_QPSK_6RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 51 of 77 Test_Graph_band2_1850.7MHz_1.4M_QPSK_6RB#LOW_10G_20.0G_TX Test_Graph_band2_1880MHz_1.4M_QPSK_6RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 52 of 77 Test_Graph_band2_1880MHz_1.4M_QPSK_6RB#LOW_1G_10G_TX Test_Graph_band2_1880MHz_1.4M_QPSK_6RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 53 of 77 Test_Graph_band2_1909.3MHz_1.4M_QPSK_6RB#LOW_30M_1G_TX Test_Graph_band2_1909.3MHz_1.4M_QPSK_6RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 54 of 77 Test_Graph_band2_1909.3MHz_1.4M_QPSK_6RB#LOW_10G_20.0G_TX Test_Graph_band2_1851.5MHz_3M_QPSK_15RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 55 of 77 Test_Graph_band2_1851.5MHz_3M_QPSK_15RB#LOW_1G_10G_TX Test_Graph_band2_1851.5MHz_3M_QPSK_15RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 56 of 77 Test_Graph_band2_1880MHz_3M_QPSK_15RB#LOW_30M_1G_TX Test_Graph_band2_1880MHz_3M_QPSK_15RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 57 of 77 Test_Graph_band2_1880MHz_3M_QPSK_15RB#LOW_10G_20.0G_TX Test_Graph_band2_1908.5MHz_3M_QPSK_15RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 58 of 77 Test_Graph_band2_1908.5MHz_3M_QPSK_15RB#LOW_1G_10G_TX Test_Graph_band2_1908.5MHz_3M_QPSK_15RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 59 of 77 Test_Graph_band2_1852.5MHz_5M_QPSK_25RB#LOW_30M_1G_TX Test_Graph_band2_1852.5MHz_5M_QPSK_25RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 60 of 77 Test_Graph_band2_1852.5MHz_5M_QPSK_25RB#LOW_10G_20.0G_TX Test_Graph_band2_1880MHz_5M_QPSK_25RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 61 of 77 Test_Graph_band2_1880MHz_5M_QPSK_25RB#LOW_1G_10G_TX Test_Graph_band2_1880MHz_5M_QPSK_25RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 62 of 77 Test_Graph_band2_1907.5MHz_5M_QPSK_25RB#LOW_30M_1G_TX Test_Graph_band2_1907.5MHz_5M_QPSK_25RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 63 of 77 Test_Graph_band2_1907.5MHz_5M_QPSK_25RB#LOW_10G_20.0G_TX Test_Graph_band2_1855MHz_10M_QPSK_50RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 64 of 77 Test_Graph_band2_1855MHz_10M_QPSK_50RB#LOW_1G_10G_TX Test_Graph_band2_1855MHz_10M_QPSK_50RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 65 of 77 Test_Graph_band2_1880MHz_10M_QPSK_50RB#LOW_30M_1G_TX Test_Graph_band2_1880MHz_10M_QPSK_50RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 66 of 77 Test_Graph_band2_1880MHz_10M_QPSK_50RB#LOW_10G_20.0G_TX Test_Graph_band2_1905MHz_10M_QPSK_50RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 67 of 77 Test_Graph_band2_1905MHz_10M_QPSK_50RB#LOW_1G_10G_TX Test_Graph_band2_1905MHz_10M_QPSK_50RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 68 of 77 Test_Graph_band2_1857.5MHz_15M_QPSK_75RB#LOW_30M_1G_TX Test_Graph_band2_1857.5MHz_15M_QPSK_75RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 69 of 77 Test_Graph_band2_1857.5MHz_15M_QPSK_75RB#LOW_10G_20.0G_TX Test_Graph_band2_1880MHz_15M_QPSK_75RB#LOW_30M_1G_TX Shenzh…

Text truncated - open the document above for the full version.

Report No.: TZ0439260501PH04 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0439260501PH04 Page 2 of 2 RF Conducted Test

Report No.: TZ0439260501PH04 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0439260501PH04 Page 2 of 2 Conducted Emissions Test RF Conducted Test

Report No.: TZ0439260501FRF10 Page 1 of 26 This publication may be reproduced, in whole or in part, for non-commercial purposes provided that Shenzhen Tongzhou Testing Co., Ltd. is acknowledged as the copyright holder and source. The laboratory assumes no liability for any consequences arising from the reader’s interpretation of reproduced material. This report is valid only for the specific sample(s) tested under the stated conditions. No part of the test results may be extracted or reproduced without written authorization from the laboratory. The test methods used in this report fully complied with the applicable standards without any deviation. TEST REPORT Report Number : TZ0439260501FRF10 Product Name : SUPER MINI POC RADIO Model/Type reference : T-X5D, T-X52 FCC ID : SV8-X5D Prepared for : Quanzhou YANTON Electronics Co., Ltd. YANTON Building, Jinxia Road, Xiamei Town, Nan'an,China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 22, FCC CFR Title 47 Part 24, FCC CFR Title 47 Part 27, ANSI C63.26:2015 Date of Test : 2026-05-06 ~ 2026-06-08 Date of Issue : 2026-06-18 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0439260501FRF10 Page 2 of 26 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-06-18 Valid Initial release Report No.: TZ0439260501FRF10 Page 3 of 26 TABLE OF CONTENTS 1. S U M MARY ............................................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. Normal Accessory setting ...................................................................................................... 6 1.5. Related Submittal(s) / Grant (s) ............................................................................................. 6 1.6. Modifications ........................................................................................................................... 6 2. TEST E N V I R O N M E N T ............................................................ 7 2.1. Test Facility ............................................................................................................................. 7 2.2. Measurement uncertainty ...................................................................................................... 7 3. S U M M A R Y O F T E S T R E S U L T S ................................................. 8 3.1. Environmental conditions ...................................................................................................... 9 4. E Q U I P M E N T S U S E D D U R I N G T H E T E S T ................................... 10 5. T E S T CONDIT I ONS AND RESULTS ......................................... 11 5.1. Conducted Output Power / E.I.R.P / E.R.P / Peak-to-Average Ratio (PAR) ..................... 11 5.2. Occupied Bandwidth and Emission Bandwidth ................................................................ 13 5.3. Band Edge compliance ........................................................................................................ 14 5.4. Spurious Emission on Antenna Port .................................................................................. 16 5.5. Radiated Spurious Emssion ................................................................................................ 17 5.6. Frequency Stability under Temperature & Voltage Variations ......................................... 24 6. T E S T S E T U P P H O T O S O F T H E E U T ........................................ 26 7. E X T E R N A L P H O T O S O F T H E E U T .......................................... 26 8. I N TER N AL P H O T O S OF T H E EUT ............................................ 26 Report No.: TZ0439260501FRF10 Page 4 of 26 1. S U M MARY 1.1. Client Information Applicant : Quanzhou YANTON Electronics Co., Ltd. Address : YANTON Building, Jinxia Road, Xiamei Town, Nan'an,China Manufacturer : Quanzhou YANTON Electronics Co., Ltd. Address : YANTON Building, Jinxia Road, Xiamei Town, Nan'an,China 1.2. Description of Device (EUT) Product Name : SUPER MINI POC RADIO Trade Mark : YANTON Model Number : T-X5D, T-X52 Model Declaration : The appearance is different. Test Model : T-X5D Power Supply : Input: DC 3.7V by battery or DC 5V by adapter Hardware version : YUT-X5-EC800-MB-01 B Software version : V1.0 1.3. Wireless Function Tested in this Report E-UTRA E-UTRA Operation Frequency : FDD Band 2 (UL: 1850 – 1910 MHz/DL: 1930 – 1990 MHz) FDD Band 4 (UL: 1710 – 1755 MHz/DL: 2110 – 2155 MHz) FDD Band 5 (UL: 824 – 849 MHz/DL: 869 – 894 MHz) FDD Band 7(UL: 2500 – 2570 MHz/DL:2620 – 2690 MHz) FDD Band 66 (UL: 1710 – 1780 MHz/DL:2110 – 2200 MHz) Modulation Technology : OFDM (16QAM, QPSK) Antenna Type And Gain : Internal Antenna with 1.5 dBi Max Note 1: Antenna position refer to EUT Photos. Note 2: the above information was supplied by the applicant. Note 3: Due to the product design, for LTE 16QAM operation with 10/15/20 MHz, the EUT does not support the full resource block (RB) allocation, the maximum supported RB allocation is 27 RB. Report No.: TZ0439260501FRF10 Page 5 of 26 Test Channel List: Band Bandwidth(MHz) UL Frequency(MHz) Low Middle High 2 1.4 1850.7 1880 1909.3 3 1851.5 1880 1908.5 5 1852.5 1880 1907.5 10 1855 1880 1905 15 1857.5 1880 1902.5 20 1860 1880 1900 4 1.4 1710.7 1732.5 1754.3 3 1711.5 1732.5 1753.5 5 1712.5 1732.5 1752.5 10 1715 1732.5 1750 15 1717.5 1732.5 1747.5 20 1720 1732.5 1745 5 1.4 824.7 836.5 848.3 3 825…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 42 of 77 Test_Graph_band66_1775MHz_10M_QPSK_1RB#HIGH_Band edge Test_Graph_band66_1775MHz_10M_QPSK_50RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 43 of 77 Test_Graph_band66_1717.5MHz_15M_16QAM_1RB#LOW_Band edge Test_Graph_band66_1717.5MHz_15M_QPSK_1RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 44 of 77 Test_Graph_band66_1717.5MHz_15M_QPSK_75RB#LOW_Band edge Test_Graph_band66_1772.5MHz_15M_16QAM_1RB#HIGH_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 45 of 77 Test_Graph_band66_1772.5MHz_15M_QPSK_1RB#HIGH_Band edge Test_Graph_band66_1772.5MHz_15M_QPSK_75RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 46 of 77 Test_Graph_band66_1720MHz_20M_16QAM_1RB#LOW_Band edge Test_Graph_band66_1720MHz_20M_QPSK_100RB#LOW_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 47 of 77 Test_Graph_band66_1720MHz_20M_QPSK_1RB#LOW_Band edge Test_Graph_band66_1770MHz_20M_16QAM_1RB#HIGH_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 48 of 77 Test_Graph_band66_1770MHz_20M_QPSK_100RB#LOW_Band edge Test_Graph_band66_1770MHz_20M_QPSK_1RB#HIGH_Band edge Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 49 of 77 Appendix D: Unwanted spurious emissions at antenna terminals Test Result Band Bandwidth (MHz) UL Frequency (MHz) Modulation RB Size RB Offset Conclusion 66 1.4 1710.7 QPSK 6 LOW Pass 66 1.4 1745 QPSK 6 LOW Pass 66 1.4 1779.3 QPSK 6 LOW Pass 66 3 1711.5 QPSK 15 LOW Pass 66 3 1745 QPSK 15 LOW Pass 66 3 1778.5 QPSK 15 LOW Pass 66 5 1712.5 QPSK 25 LOW Pass 66 5 1745 QPSK 25 LOW Pass 66 5 1777.5 QPSK 25 LOW Pass 66 10 1715 QPSK 50 LOW Pass 66 10 1745 QPSK 50 LOW Pass 66 10 1775 QPSK 50 LOW Pass 66 15 1717.5 QPSK 75 LOW Pass 66 15 1745 QPSK 75 LOW Pass 66 15 1772.5 QPSK 75 LOW Pass 66 20 1720 QPSK 100 LOW Pass 66 20 1745 QPSK 100 LOW Pass 66 20 1770 QPSK 100 LOW Pass Note: Both QPSK and 16QAM modulation modes were tested. Since the QPSK mode produced the worst-case results, only the corresponding QPSK test results are included in this report. Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 50 of 77 Test Graphs Test_Graph_band66_1710.7MHz_1.4M_QPSK_6RB#LOW_30M_1G_TX Test_Graph_band66_1710.7MHz_1.4M_QPSK_6RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 51 of 77 Test_Graph_band66_1710.7MHz_1.4M_QPSK_6RB#LOW_10G_20.0G_TX Test_Graph_band66_1745MHz_1.4M_QPSK_6RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 52 of 77 Test_Graph_band66_1745MHz_1.4M_QPSK_6RB#LOW_1G_10G_TX Test_Graph_band66_1745MHz_1.4M_QPSK_6RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 53 of 77 Test_Graph_band66_1779.3MHz_1.4M_QPSK_6RB#LOW_30M_1G_TX Test_Graph_band66_1779.3MHz_1.4M_QPSK_6RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 54 of 77 Test_Graph_band66_1779.3MHz_1.4M_QPSK_6RB#LOW_10G_20.0G_TX Test_Graph_band66_1711.5MHz_3M_QPSK_15RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 55 of 77 Test_Graph_band66_1711.5MHz_3M_QPSK_15RB#LOW_1G_10G_TX Test_Graph_band66_1711.5MHz_3M_QPSK_15RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 56 of 77 Test_Graph_band66_1745MHz_3M_QPSK_15RB#LOW_30M_1G_TX Test_Graph_band66_1745MHz_3M_QPSK_15RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 57 of 77 Test_Graph_band66_1745MHz_3M_QPSK_15RB#LOW_10G_20.0G_TX Test_Graph_band66_1778.5MHz_3M_QPSK_15RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 58 of 77 Test_Graph_band66_1778.5MHz_3M_QPSK_15RB#LOW_1G_10G_TX Test_Graph_band66_1778.5MHz_3M_QPSK_15RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 59 of 77 Test_Graph_band66_1712.5MHz_5M_QPSK_25RB#LOW_30M_1G_TX Test_Graph_band66_1712.5MHz_5M_QPSK_25RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 60 of 77 Test_Graph_band66_1712.5MHz_5M_QPSK_25RB#LOW_10G_20.0G_TX Test_Graph_band66_1745MHz_5M_QPSK_25RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 61 of 77 Test_Graph_band66_1745MHz_5M_QPSK_25RB#LOW_1G_10G_TX Test_Graph_band66_1745MHz_5M_QPSK_25RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 62 of 77 Test_Graph_band66_1777.5MHz_5M_QPSK_25RB#LOW_30M_1G_TX Test_Graph_band66_1777.5MHz_5M_QPSK_25RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 63 of 77 Test_Graph_band66_1777.5MHz_5M_QPSK_25RB#LOW_10G_20.0G_TX Test_Graph_band66_1715MHz_10M_QPSK_50RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 64 of 77 Test_Graph_band66_1715MHz_10M_QPSK_50RB#LOW_1G_10G_TX Test_Graph_band66_1715MHz_10M_QPSK_50RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 65 of 77 Test_Graph_band66_1745MHz_10M_QPSK_50RB#LOW_30M_1G_TX Test_Graph_band66_1745MHz_10M_QPSK_50RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 66 of 77 Test_Graph_band66_1745MHz_10M_QPSK_50RB#LOW_10G_20.0G_TX Test_Graph_band66_1775MHz_10M_QPSK_50RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 67 of 77 Test_Graph_band66_1775MHz_10M_QPSK_50RB#LOW_1G_10G_TX Test_Graph_band66_1775MHz_10M_QPSK_50RB#LOW_10G_20.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 68 of 77 Test_Graph_band66_1717.5MHz_15M_QPSK_75RB#LOW_30M_1G_TX Test_Graph_band66_1717.5MHz_15M_QPSK_75RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 69 of 77 Test_Graph_band66_1717.5MHz_15M_QPSK_75RB#LOW_1…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 1 of 77 Appendix Test Data for LTE band 66(Conducted Measurement) Product Name: SUPER MINI POC RADIO Trade Mark: YANTON Test Model: T-X5D FCC ID: SV8-X5D Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: RF output power Test Result Band Bandwidth (MHz) UL Frequency (MHz) Modulation RB Size RB Offset Average Power (dBm) Peak Power (dBm) PAR (dB) Limit (dB) AntGain (dBi） EIRP (dBm) Limit (dBm) Conclusion 66 1.4 1710.7 QPSK 6 LOW 22.07 27.86 5.79 13 1.5 23.57 30 Pass 66 1.4 1710.7 QPSK 3 LOW 22.88 28.2 5.32 13 1.5 24.38 30 Pass 66 1.4 1710.7 QPSK 3 MID 22.83 28.14 5.31 13 1.5 24.33 30 Pass 66 1.4 1710.7 QPSK 3 HIGH 22.79 28 5.21 13 1.5 24.29 30 Pass 66 1.4 1710.7 QPSK 1 LOW 22.78 27.46 4.68 13 1.5 24.28 30 Pass 66 1.4 1710.7 QPSK 1 MID 22.75 27.24 4.49 13 1.5 24.25 30 Pass 66 1.4 1710.7 QPSK 1 HIGH 22.67 27.32 4.65 13 1.5 24.17 30 Pass 66 1.4 1710.7 16QAM 6 LOW 20.96 27.6 6.64 13 1.5 22.46 30 Pass 66 1.4 1710.7 16QAM 3 LOW 21.95 27.58 5.63 13 1.5 23.45 30 Pass 66 1.4 1710.7 16QAM 3 MID 21.94 27.56 5.62 13 1.5 23.44 30 Pass 66 1.4 1710.7 16QAM 3 HIGH 21.9 27.78 5.88 13 1.5 23.4 30 Pass 66 1.4 1710.7 16QAM 1 LOW 21.89 27.08 5.19 13 1.5 23.39 30 Pass 66 1.4 1710.7 16QAM 1 MID 21.88 26.99 5.11 13 1.5 23.38 30 Pass 66 1.4 1710.7 16QAM 1 HIGH 21.85 27.07 5.22 13 1.5 23.35 30 Pass 66 1.4 1745 QPSK 6 LOW 22.19 27.74 5.55 13 1.5 23.69 30 Pass 66 1.4 1745 QPSK 3 LOW 23.05 27.61 4.56 13 1.5 24.55 30 Pass 66 1.4 1745 QPSK 3 MID 23.04 27.6 4.56 13 1.5 24.54 30 Pass 66 1.4 1745 QPSK 3 HIGH 23 27.68 4.68 13 1.5 24.5 30 Pass 66 1.4 1745 QPSK 1 LOW 23.03 27.52 4.49 13 1.5 24.53 30 Pass 66 1.4 1745 QPSK 1 MID 23 27.41 4.41 13 1.5 24.5 30 Pass 66 1.4 1745 QPSK 1 HIGH 23.02 27.53 4.51 13 1.5 24.52 30 Pass 66 1.4 1745 16QAM 6 LOW 21.29 27.83 6.54 13 1.5 22.79 30 Pass Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 2 of 77 Band Bandwidth (MHz) UL Frequency (MHz) Modulation RB Size RB Offset Average Power (dBm) Peak Power (dBm) PAR (dB) Limit (dB) AntGain (dBi） EIRP (dBm) Limit (dBm) Conclusion 66 1.4 1745 16QAM 3 LOW 22.37 27.48 5.11 13 1.5 23.87 30 Pass 66 1.4 1745 16QAM 3 MID 22.37 27.49 5.12 13 1.5 23.87 30 Pass 66 1.4 1745 16QAM 3 HIGH 22.4 27.51 5.11 13 1.5 23.9 30 Pass 66 1.4 1745 16QAM 1 LOW 22.25 27.16 4.91 13 1.5 23.75 30 Pass 66 1.4 1745 16QAM 1 MID 22.22 27.1 4.88 13 1.5 23.72 30 Pass 66 1.4 1745 16QAM 1 HIGH 22.25 27.16 4.91 13 1.5 23.75 30 Pass 66 1.4 1779.3 QPSK 6 LOW 21.76 27.07 5.31 13 1.5 23.26 30 Pass 66 1.4 1779.3 QPSK 3 LOW 22.63 27.09 4.46 13 1.5 24.13 30 Pass 66 1.4 1779.3 QPSK 3 MID 22.6 27.12 4.52 13 1.5 24.1 30 Pass 66 1.4 1779.3 QPSK 3 HIGH 22.49 27.19 4.70 13 1.5 23.99 30 Pass 66 1.4 1779.3 QPSK 1 LOW 22.52 27.06 4.54 13 1.5 24.02 30 Pass 66 1.4 1779.3 QPSK 1 MID 22.51 26.84 4.33 13 1.5 24.01 30 Pass 66 1.4 1779.3 QPSK 1 HIGH 22.44 26.93 4.49 13 1.5 23.94 30 Pass 66 1.4 1779.3 16QAM 6 LOW 20.93 26.99 6.06 13 1.5 22.43 30 Pass 66 1.4 1779.3 16QAM 3 LOW 21.69 27.24 5.55 13 1.5 23.19 30 Pass 66 1.4 1779.3 16QAM 3 MID 21.69 27.23 5.54 13 1.5 23.19 30 Pass 66 1.4 1779.3 16QAM 3 HIGH 21.61 27.14 5.53 13 1.5 23.11 30 Pass 66 1.4 1779.3 16QAM 1 LOW 21.82 26.48 4.66 13 1.5 23.32 30 Pass 66 1.4 1779.3 16QAM 1 MID 21.8 26.29 4.49 13 1.5 23.3 30 Pass 66 1.4 1779.3 16QAM 1 HIGH 21.74 26.34 4.60 13 1.5 23.24 30 Pass 66 3 1711.5 QPSK 15 LOW 21.79 27.48 5.69 13 1.5 23.29 30 Pass 66 3 1711.5 QPSK 8 LOW 21.81 27.38 5.57 13 1.5 23.31 30 Pass 66 3 1711.5 QPSK 8 MID 21.8 27.45 5.65 13 1.5 23.3 30 Pass 66 3 1711.5 QPSK 8 HIGH 21.64 27.39 5.75 13 1.5 23.14 30 Pass 66 3 1711.5 QPSK 1 LOW 22.67 27.26 4.59 13 1.5 24.17 30 Pass 66 3 1711.5 QPSK 1 MID 22.55 27.17 4.62 13 1.5 24.05 30 Pass 66 3 1711.5 QPSK 1 HIGH 22.26 27.01 4.75 13 1.5 23.76 30 Pass 66 3 1711.5 16QAM 15 LOW 20.93 27.52 6.59 13 1.5 22.43 30 Pass 66 3 1711.5 16QAM 8 LOW 21.13 27.66 6.53 13 1.5 22.63 30 Pass 66 3 1711.5 16QAM 8 MID 21.14 27.71 6.57 13 1.5 22.64 30 Pass 66 3 1711.5 16QAM 8 HIGH 21.01 27.59 6.58 13 1.5 22.51 30 Pass 66 3 1711.5 16QAM 1 LOW 22.38 27.71 5.33 13 1.5 23.88 30 Pass 66 3 1711.5 16QAM 1 MID 22.29 27.65 5.36 13 1.5 23.79 30 Pass 66 3 1711.5 16QAM 1 HIGH 22.02 27.53 5.51 13 1.5 23.52 30 Pass 66 3 1745 QPSK 15 LOW 22.21 27.91 5.70 13 1.5 23.71 30 Pass 66 3 1745 QPSK 8 LOW 22.25 27.52 5.27 13 1.5 23.75 30 Pass 66 3 1745 QPSK 8 MID 22.26 27.48 5.22 13 1.5 23.76 30 Pass 66 3 1745 QPSK 8 HIGH 22.25 27.51 5.26 13 1.5 23.75 30 Pass 66 3 1745 QPSK 1 LOW 23.07 27.26 4.19 13 1.5 24.57 30 Pass 66 3 1745 QPSK 1 MID 23.09 27.25 4.16 13 1.5 24.59 30 Pass 66 3 1745 QPSK 1 HIGH 23.02 27.28 4.26 13 1.5 24.52 30 Pass Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 3 of 77 Band Bandwidth (MHz) UL Frequency (MHz) Modulation RB Size RB Offset Average Power (dBm) Peak Power (dBm) PAR (dB) Limit (dB) AntGain (dBi） EIRP (dBm) Limit (dBm) Conclusion 66 3 1745 16QAM 15 LOW 21.22 27.33 6.11 13 1.5 22.72 30 Pass 66 3 1745 16QAM 8 LOW 21.28 27.19 5.91 13 1.5 22.78 30 Pass 66 3 1745 16QAM 8 MID 21.29 27.17 5.88 13 1.5 22.79 30 Pass 66 3 1745 16QAM 8 HIGH 21.29 27.21 5.92 13 1.5 22.79 30 Pass 66 3 1745 16QAM 1 LOW 22.47 26.81 4.34 13 1.5 23.97 30 Pass 66 3 1745 16QAM 1 MID 22.42 26.76 4.34 13 1.5 23.92 30 Pass 66 3 1745 16QAM 1 HIGH 22.32 26.8 4.48 13 1.5 23.82 30 Pass 66 3 1778.5 QPSK 15 LOW 21.87 27.86 5.99 13 1.5 23.37 30 Pass 66 3 1778.5 QPSK 8 LOW 21.93 27.42 5.49 13 1.5 23.43 30 Pass 66 3 1778.5 QPSK 8 MID 21.92 27.4 5.48 13 1.5 23.42 30 Pass 66 3 1778.5 QPSK 8 HIGH 21.81 27.12 5.31 13 1.5 23.31 30 Pass 66 3 1778.5 QPSK 1 LOW 22.86 26.97 4.11 13 1.5 24.36 30 Pass 66 3 1778.5 QPSK 1 MID 22.65 26.79 4.14 13 1.5 24.15 30 Pass 66 3 1778.5 QPSK 1 HIGH 22.45 26.67 4.22 13 1.5 23.95 30 Pass 66 3 1778.5 16QAM 15 LOW 21.02 27.57 6.55 13 1.5 22.52 30 Pass 66 3 1778.5 16QAM 8 LOW 21.13 26.97 5.84 13 1.5 22.63 30 Pass 66 3 1778.5 16QAM 8 MI…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 43 of 51 Test_Graph_band7_2507.5MHz_15M_QPSK_75RB#LOW_10G_26.0G_TX Test_Graph_band7_2535MHz_15M_QPSK_75RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 44 of 51 Test_Graph_band7_2535MHz_15M_QPSK_75RB#LOW_1G_10G_TX Test_Graph_band7_2535MHz_15M_QPSK_75RB#LOW_10G_26.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 45 of 51 Test_Graph_band7_2562.5MHz_15M_QPSK_75RB#LOW_30M_1G_TX Test_Graph_band7_2562.5MHz_15M_QPSK_75RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 46 of 51 Test_Graph_band7_2562.5MHz_15M_QPSK_75RB#LOW_10G_26.0G_TX Test_Graph_band7_2510MHz_20M_QPSK_100RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 47 of 51 Test_Graph_band7_2510MHz_20M_QPSK_100RB#LOW_1G_10G_TX Test_Graph_band7_2510MHz_20M_QPSK_100RB#LOW_10G_26.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 48 of 51 Test_Graph_band7_2535MHz_20M_QPSK_100RB#LOW_30M_1G_TX Test_Graph_band7_2535MHz_20M_QPSK_100RB#LOW_1G_10G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 49 of 51 Test_Graph_band7_2535MHz_20M_QPSK_100RB#LOW_10G_26.0G_TX Test_Graph_band7_2560MHz_20M_QPSK_100RB#LOW_30M_1G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 50 of 51 Test_Graph_band7_2560MHz_20M_QPSK_100RB#LOW_1G_10G_TX Test_Graph_band7_2560MHz_20M_QPSK_100RB#LOW_10G_26.0G_TX Shenzhen Tongzhou Testing Co., Ltd Report No.: TZ0439260501FRF10 Page 51 of 51 Appendix E: Frequency stability Test Result Test Conditions (LTE Band 7(QPSK) /BW 20MHz) Frequency Range Frequency Error Verdict Temperature (°C) Voltage (Volt) >2500 <2570 Middle Channel Freq Reading @ Low End (MHz) Freq Reading @ High End (MHz) ≤2.5ppm 50 Normal Voltage 2501.0570 2568.9606 0.0061 PASS 40 Normal Voltage 2501.0570 2568.9607 0.0066 30 Normal Voltage 2501.0570 2568.9607 0.006…

Text truncated - open the document above for the full version.
