SVDMQMILWT-359Walkie Taklie

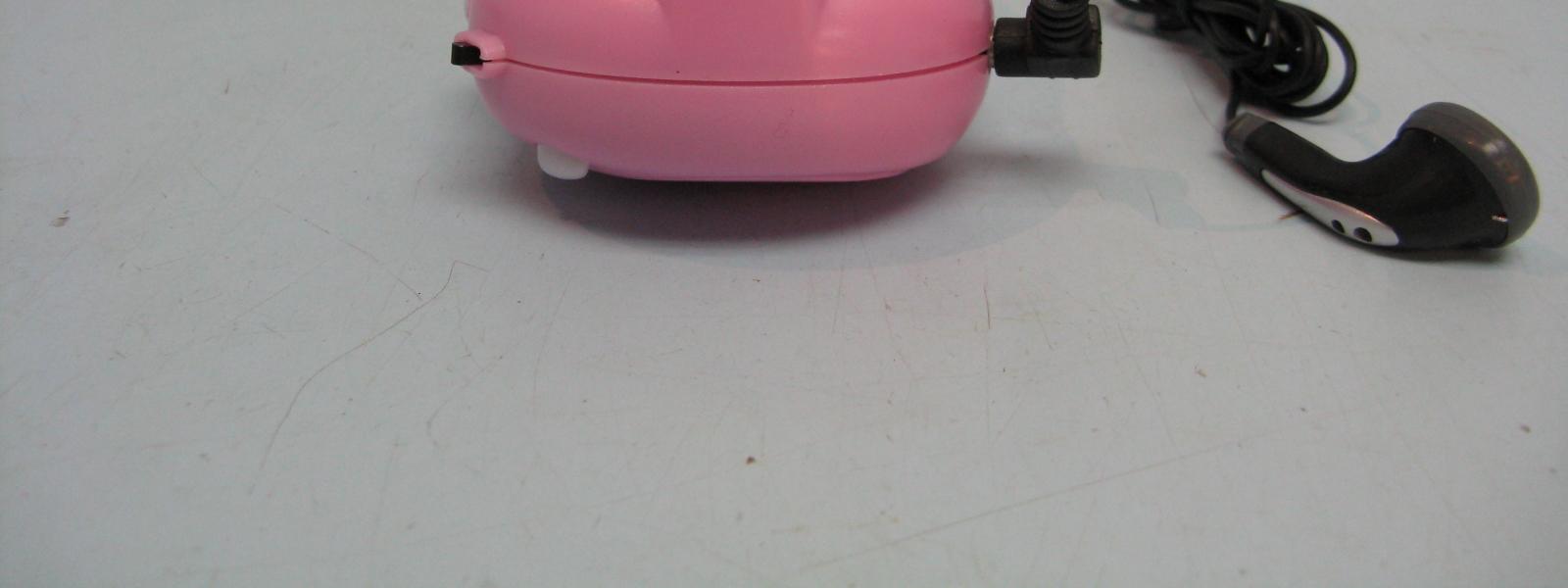

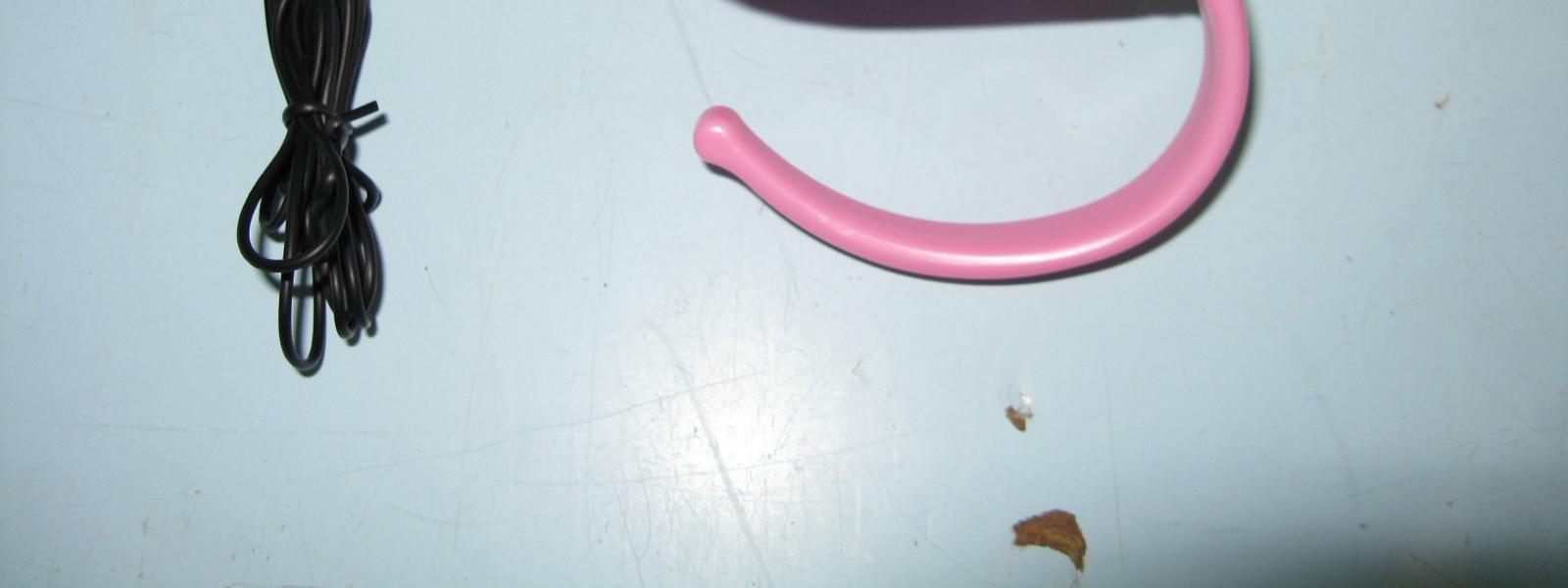

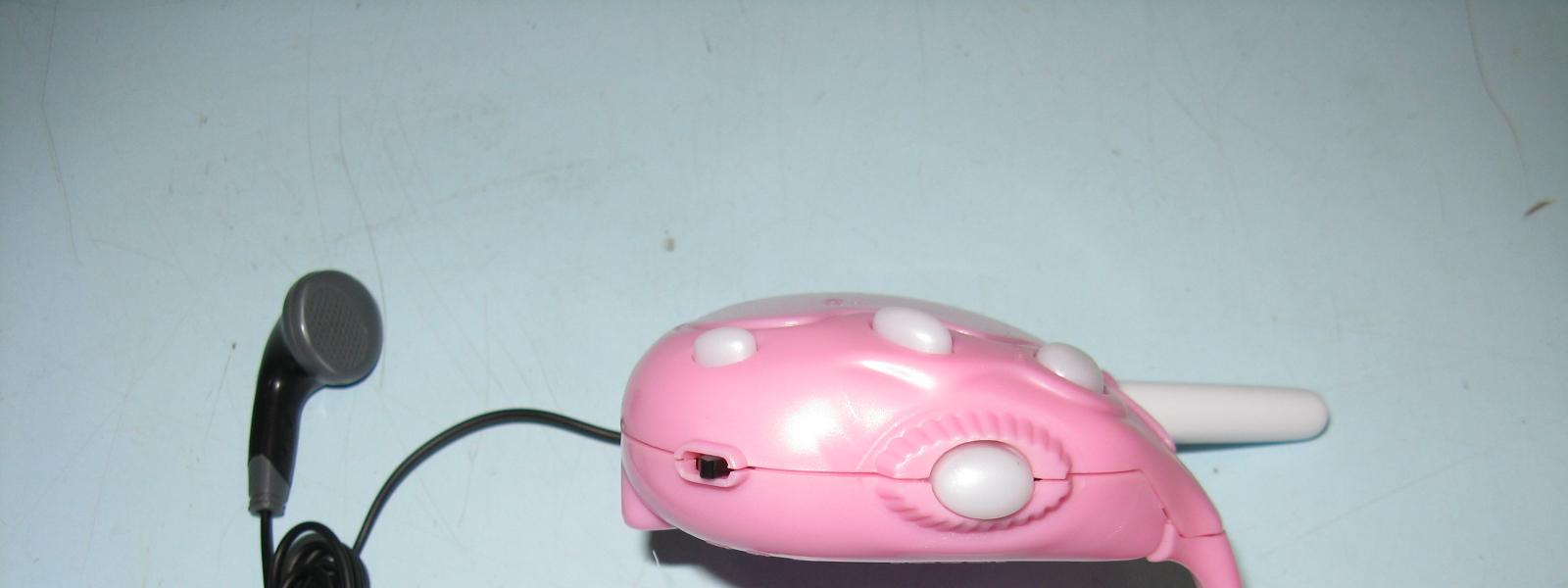

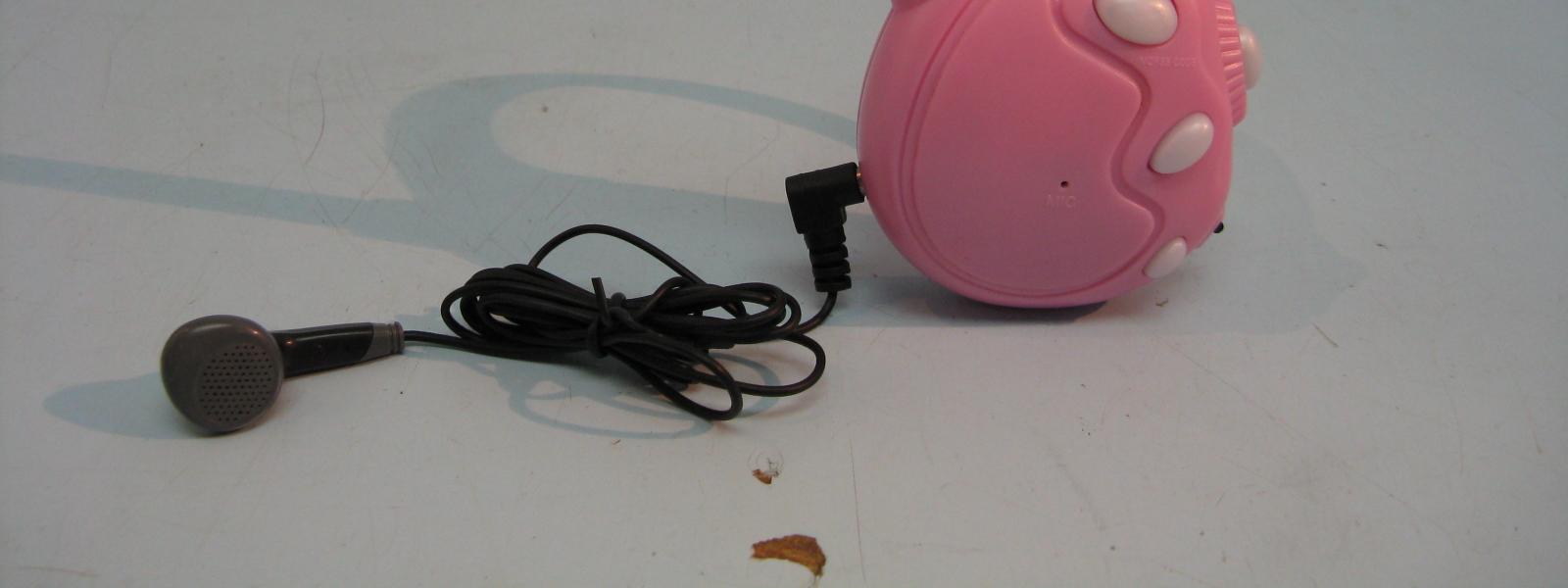

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: SVDMQMILWT-359 Circuit Description The 49.86 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC2. The output of Q2 has the matching network consisting of L4, R101 and T2 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 4 cm long atenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6 Volt (“LR44” size battery x 4) primary battery Operation Descriptions This Walkie Talkie operating at 49.86MHz band. The transmitter is powered by a 6V battery (“LR44” size battery x 4) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form amplitude modulating signal on the 49.86MHz carrier frequency. Remarks: The Walkie Talkie is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC; and type is amplitude modulation.

ItemPart No.DescriptionQty.Remark 1001-00359-00PCB 53.2*50.6*1.6mm2 2002-00386-03IC LM3862IC2 3003-09018-70Tr. 9018G2Q2 4004-00033-06Res. 3.3 ohm 2R18 5004-00068-06Res. 6.8 ohm2R25 6004-00150-06Res. 10 ohm2R15 7004-00220-06Res. 22 ohm2R23 8004-00560-06Res. 56 ohm2R102 9004-001150-06Res. 150 ohm2R103 10004-02680-06Res. 6K86R20 R24 R101 11004-03100-06Res. 10K2R17 12004-03150-06Res. 15K6R21 R22 R26 13004-03220-06Res. 22K2R19 14004-03330-06Res. 33K2R28 15009-44986-01Crystal 49.860MHz2X2 16010-00150-00Cer. Cap 15 PF2C24 17010-00330-01Cer. Cap 33 PF2C2 18010-00560-01Cer. Cap 39 PF2C20 19010-00820-01Cer. Cap 82 PF2C28 20010-01270-01Cer. Cap 270 PF2C31 21010-02300-00Cer. Cap 0.003uF2 C29 22010-02500-00Cer. Cap 0.005uF2C26 23010-03100-00Cer. Cap 0.01uF6C21 C19 C6 B.O.M. of WT-359 WALKIE TALKI 23010-03100-00Cer. Cap 0.01uF6C21 C19 C6 24010-03200-00Cer. Cap 0.02uF4C25 C30 25010-03400-00Cer. Cap 0.04uF2C22 26010-04100-00Cer. Cap 0.1uF2CC 27011-06100-21Ele. Cap 10uF2C23 28011-06470-21Ele. Cap 47uF2C15 29011-07220-21Ele. Cap 220uF2C27 30022-00500-00Condenser Mic -50db2M2 31012-99112-00COIL OSC M222A 7mmKM2T2 32023-00064-00Choke Coil 6.4uH2L4 33023-01000-03Choke Coil 100uH4 L2 L5 34 122-42413-00SWITCH PS42D03 2 35 120-12401-76SWITCH SK12D01-G6 2 36 -2.5mm Earphone w/Spk 32ohm 2 37 130-02511-00EARPHONE Jack EJ2511 2 38- Ferrite Bead 4 39 540-00013-00Button Cell AG13 8 40 -Spring Coil 4.0x50mm 2 41 090-01060-00J.W. 7x0.08x60mm 12 42 112-17050-00PVC Washer 1.7x5.5x0.3mm 2 43 125-26405-00Brass Nut 2x3x3.5mm 2 44 110-22606-20Screw 2.0x8PT 10 45-plastic1set 46-Manual1 END

STC Test Report Date : 2010-07-29 Page 1 of 15 No. : HM165535 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (JPP001): JP Products Co., Ltd. Rm 1303 Grandmark, No 8-10 Granville Road Tsimshatsui, Kowloon, Hong Kong Manufacturer: DALANG MEILI ELECT FTY Dongguan, China Description of Sample(s): Submitted sample(s) said to be Product: Walkie Talkie Brand Name: N/A Model Number: SVD MQMILWT359 FCC ID: SVDMQMILWT-359 Date Sample(s) Received: 2010-07-20 Date Tested: 2010-07-23 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-07-29 Page 2 of 15 No. : HM165535 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 15 Content Page 2 of 15 1.0 General Details 1.1 Test Laboratory Page 3 of 15 1.2 Applicant Details Page 3 of 15 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 15 Description of EUT operation 1.4 Date of Order Page 4 of 15 1.5 Submitted Samples Page 4 of 15 1.6 Test Duration Page 4 of 15 1.7 Country of Origin Page 4 of 15 2.0 Technical Details 2.1 Investigations Requested Page 5 of 15 2.2 Test Standards and Results Summary Page 5 of 15 3.0 Test Results 3.1 Emission Page 6-9 of 15 3.2 Bandwidth Measurement Page 10-12 of 15 Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 STC Test Report Date : 2010-07-29 Page 3 of 15 No. : HM165535 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant JP Products Co., Ltd. Rm 1303 Grandmark, No 8-10 Granville Road Tsimshatsui, Kowloon, Hong Kong Manufacturer DALANG MEILI ELECT FTY Dongguan, China STC Test Report Date : 2010-07-29 Page 4 of 15 No. : HM165535 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be Product: Walkie Talkie Manufacturer: DALANG MEILI ELECT FTY Brand Name: N/A Model Number: SVD MQMILWT359 Input Voltage: 6Vd.c. (“LR44” size battery x 4) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a JP Products Co., Ltd., Walkie Talkie. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmitter, Modulation by microphone, and type is amplitude modulation. 1.4 Date of Order 2010-07-20 1.5 Submitted Sample(s): 2 Sample(s) 1.6 Test Duration 2010-07-23 1.7 Country of Origin China STC Test Report Date : 2010-07-29 Page 5 of 15 No. : HM165535 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2009 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2010-07-29 Page 6 of 15 No. : HM165535 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
