SVV-COK001FM Transmitter, Carioke

Carioke™ Operating Instructions: 1) Attach the Carioke headset cable to the top of your Carioke player and place the headset snugly above the ears. The “wrap-around” headset is designed to be safe, tangle free, and legal to wear while driving in all states and countries. 2) Insert one end of the (included) Carioke cable into the “Music-In” Jack on the bottom of your Carioke player. 3) Insert the other end of the (included) Carioke cable into the headphone jack of your iPod, MP3 Player, Cell Phone or other music device that contains your favorite Karaoke music. Then pick a song and press PLAY. 4) Next, choose if you want to connect to your car’s stereo wirelessly or with a direct cable. 5) To connect wirelessly, simply tune your radio to one of the 4 following FM stations: 107.1, 107.3, 107.5, or 107.7 FM. Then, move the switch on the bottom of your Carioke player to the corresponding FM frequency with the best reception in you area. Note: In different areas of the city and country, different FM stations will have better reception than others. Try all four (4) of the frequencies to discover which station has the best reception in your area. 6) To connect with a direct cable, we have included a tape adapter that plugs into the “Music-Out” jack on the bottom of each Carioke player. This jack can also be used with the (included) Carioke cable to plug directly into any satellite radio or AUX “line-in” jack on any stereo. For even higher quality sound, or for vehicles with low FM reception we recommend a direct connection. Volume Balancing: There are essentially 4 volume controls: 1) Your Car’s Stereo 2) Carioke’s Microphone Volume (top) 3) Carioke’s Music Volume (top) 4) Your External Music device’s Volume, such as an iPod, MP3, CD or Tape Player. Adjust all 4 volume levels to find each vehicle’s optimal balance. Static or background noise can be resolved by balancing the 4 levels differently. Tip: Slightly fade your car’s speakers to the rear and slightly lower the treble. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Carioke™ Operating Instructions: 1) Attach the Carioke headset cable to the top of your Carioke player and place the headset snugly above the ears. The “wrap-around” headset is designed to be safe, tangle free, and legal to wear while driving in all states and countries. 2) Insert one end of the (included) Carioke cable into the “Music-In” Jack on the bottom of your Carioke player. 3) Insert the other end of the (included) Carioke cable into the headphone jack of your iPod, MP3 Player, Cell Phone or other music device that contains your favorite Karaoke music. Then pick a song and press PLAY. 4) Next, choose if you want to connect to your car’s stereo wirelessly or with a direct cable. 5) To connect wirelessly, simply tune your radio to one of the 4 following FM stations: 107.1, 107.3, 107.5, or 107.7 FM. Then, move the switch on the bottom of your Carioke player to the corresponding FM frequency with the best reception in you area. Note: In different areas of the city and country, different FM stations will have better reception than others. Try all four (4) of the frequencies to discover which station has the best reception in your area. 6) To connect with a direct cable, we have included a tape adapter that plugs into the “Music-Out” jack on the bottom of each Carioke player. This jack can also be used with the (included) Carioke cable to plug directly into any satellite radio or AUX “line-in” jack on any stereo. For even higher quality sound, or for vehicles with low FM reception we recommend a direct connection. Volume Balancing: There are essentially 4 volume controls: 1) Your Car’s Stereo 2) Carioke’s Microphone Volume (top) 3) Carioke’s Music Volume (top) 4) Your External Music device’s Volume, such as an iPod, MP3, CD or Tape Player. Adjust all 4 volume levels to find each vehicle’s optimal balance. Static or background noise can be resolved by balancing the 4 levels differently. Tip: Slightly fade your car’s speakers to the rear and slightly lower the treble. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

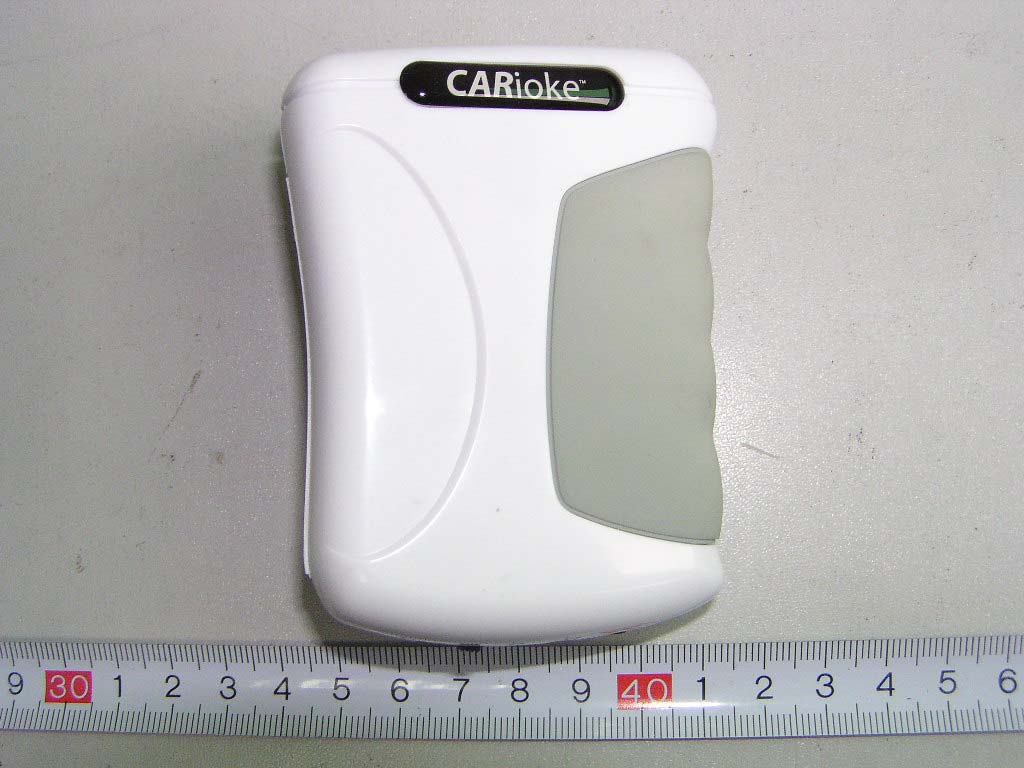

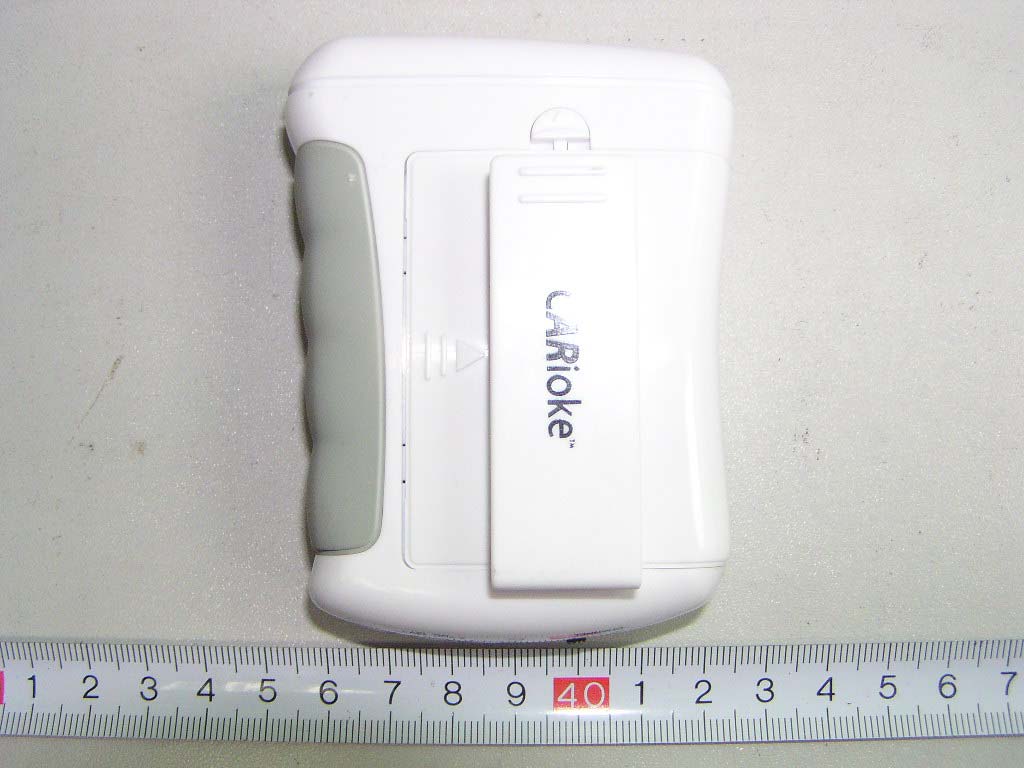

External Photos EUT –Top View EUT –Bottom View EUT -View

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.239 EMI MEASUREMENT AND TEST REPORT For Longmax Industries Ltd Flat B, 8/F, World Tech Centre, 95 How Ming Street FCC ID: SVV-COK001 April 18, 2006 This Report Concerns: Original Report Equipment Type: FM Transmitting, Carioke Test Engineer: Sam Lin Report No.: RSZ06031306 Test Date: April 17, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Longmax Industries Ltd FCC ID: SVV-COK001 Report # RSZ06031306 Page 2 of 15 FCC Part 15.239 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 §15.209/§15.35/§15.239- RADIATED EMISSION......................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 PLOT(S) OF TEST DATA..............................................................................................................................................11 §15.239 –OUT OF BANDEDGE ................................................................................................................................14 MEASUREMENT UNCERTAINTY..................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................14 Longmax Industries Ltd…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission - Front View Radiated Emission -Rear View
