SVVCED8000Shooting Timer with RF (Transmitter)

INTRODUCTION Congratulations on purchasing the CED8000 Shot Activated Timer, the most advanced timer on the market today, yet as easy to use as a mobile phone. The CED8000 Timer features a large backlit display, advanced programming, memory, and a range of features that make all other timers obsolete! Easy to use and so compact and lightweight, that it will fit into your shirt pocket! (95x89x33 mm / 3.75” x 3.5” x 1.35” closed) New features / functions never before seen on timers include: • Memory Recall / storage and unlimited shot record & review function • Preprogrammed NRA Bianchi, PPC, & Field Shooting Events • Sportsman Challenge Countdown Mode and Gunsmith Mode • Earphone plug / jack for private training. When in use, the timer’s buzzer is disconnected. • Custom PAR allows single or multiple time settings with variable delay intervals • Dual forward / reverse REVIEW function In addition to: • Large illuminated full function LCD display showing at a glance total time, splits, shot number, Par, & first shot time • Month, Day, Date, & Time displayed in 12 or 24 hour clock selection • Optional 50 yard RF remote capability for CED BigBoard or Time Keeper • 999.99 second time record capacity • Split & 1 st shot times displayed on all shots fired • Combined Comstock Function • Repetitive Mode (Face / Edge Simulation) • Fixed Time Function • Virginia Count Function • Instant, Fixed, Random or Custom Programmed Delays • Digital sensitivity shot detector with adjustable software filter • Auto rapid fire detection • Auto shut-off to conserve battery drain • Two stop plate input jacks (Man vs. Man), with multiple hit recording, ideal for air soft use. Displays both times and indicates winner. • Auxiliary jack, for external loud horn or target turning related use • Self-diagnostic test system • Loud, low frequency buzzer • Low battery LCD indicator • Custom case for easy storage and protection included ($16.95 value) • Custom headphone ear plug with volume control included ($7.95 value) A table of contents listing each of these features is indicated on the following pages for your easy reference. Please read this operation manual completely to familiarize you with all the features of the CED8000 and to ensure reliable operation. 1. TABLE OF CONTENTS PAGE * LOCATION AND FUNCTION OF KEY PARTS & CONTROLS ......... Cover * INTRODUCTION ......................................................................................... 1 Preparation * BATTERY ...................................................................................................... 5 Installation Low Battery Indicator Changing battery Operation * MENU / MODES ........................................................................................... 5 * PROGRAMMING THE TIMER ................................................................... 6 * DAY / DATE / TIME SETTING .................................................................. 6 * RFID SETTING (on RF models only) ............................................................ 6 RF remote capability * BASIC FUNCTIONS ..................................................................................... 7 Power On / Off Automatic Shut-Off mode Automatic Comstock Mode function Using Start / Review * LCD DISPLAY ............................................................................................. 8 Display features Illumination * MEMORY STORAGE ................................................................................. 8 Storing / reviewing strings of recorded data * CUSTOM PROGRAMMED FEATURES / FUNCTIONS .......................... 8 Return to Default Settings * FIXED / RANDOM / INSTANT DELAY SELECTION ........................... 8 - 9 Delay Features / Mode selection Selecting a delay * AUTO - START ........................................................... ................ .............. 9.... 2. TABLE OF CONTENTS (Continued) PAGE * PROGRAMMABLE PAR TIME SELECTION ........................................ 9 - 11 Selecting, Setting, Canceling Par * REPETITIVE MODE ................................................................................ 11 Use & function of mode * COMBINED COMSTOCK MODE .......................................................... 11 Use & function of mode * VIRGINIA COUNT MODE ...................................................................... 12 Use & function of mode * FIXED TIME MODE ................................................................................ 12 * NRA BIANCHI MODE ............................................................................ 12 - 13 The Practical Event The Barricade Event The Falling Plate Event * NRA PPC MODE ....................................................................................... 14 National Police Pistol Course - A National Police Pistol Course - B Modified Police Pistol Course Service / Off-Duty Revolver / Stock Semi-Auto Course * AUSTRALIAN PPC MODE ...................................................................... 15 APSM - Police & Service Match ASM - Service Match * EUROPEAN PPC – 1500 MODE ............................................................... 16 PPC-1500 Event * FIELD SHOOTING MODE ...................................................................... 17 Preprogrammed segmented preparation warnings * GUNSMITH MODE .................................................................................. 17 * COUNTDOWN MODE ............................................................................ 18 Reverse countdown from selected PAR 3. TABLE OF CONTENTS (Continued) PAGE * RPM (RAPID FIRE DETECTION) .......................................................... 18 Recording rapid fire / Filter settings * PAR-BUZZER ........................................................................................... 18 * SELF-DIAGNOSTIC TEST SYSTEM ..................................................... 18 - 19 Use / Function * HEADPHONE EAR JACK (E.P.) .................................…

Text truncated - open the document above for the full version.

MCU S1C8F360 Comparator LM339 Microphone LCD RF module gun sound Key Input Block diagram of CED8000 shooting timer Sensistivity Adjustment RF Amplifier Q2 Block diagram of CED8000 RF module Freq. Multiplier & RF Amplifier Q1 Modulator Encoded Data LC bandpass filter Xtal 62.8025MHz Y1

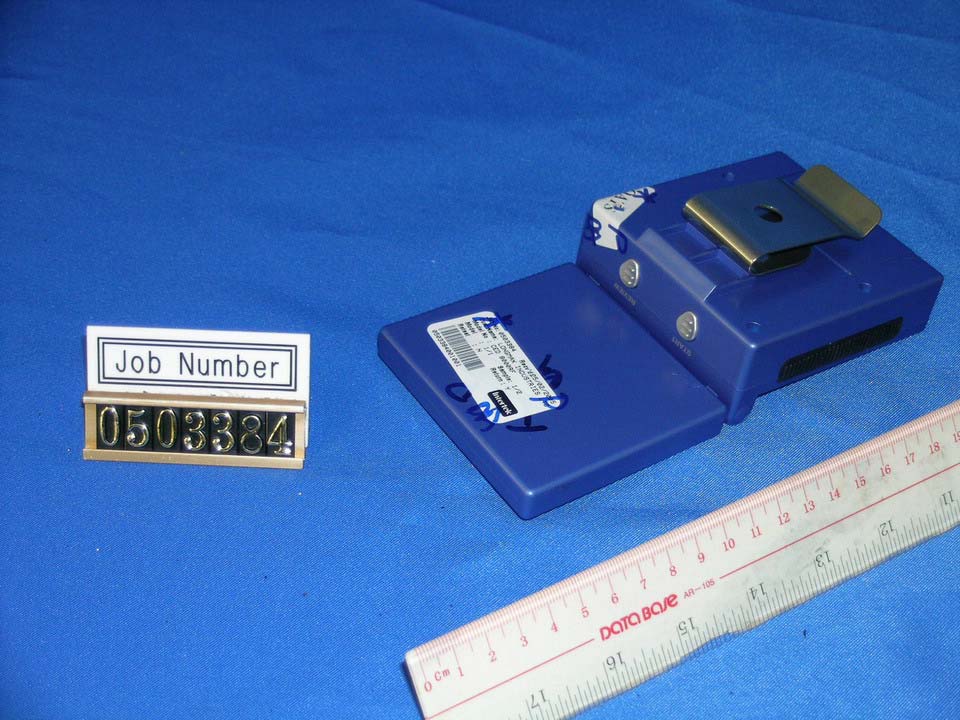

Test Setup FCC ID : SVVCED8000 External Photo - Front External Photo - Rear

Test Setup FCC ID : SVVCED8000 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : SVVCED8000 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : SVVCED8000 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : SVVCED8000 Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : SVVCED8000 Internal Photo - 9

CategoryPart NumberRefNameDescriptions ICLM339U1ComparatorTrigger Inputs, Voltage Inverter ICXC6201U2RegulatorVoltage regulation ICXC6204U3RegulatorVoltage regulation IC S1C8F360 U4 MCU Display, Output control ICNCP1403U5SwitcherVoltage step-up ICXC61CU6~7Voltage Detector Voltage Detection Crystal4.9152MHzY130ppmMain Clock for U4 Crystal32768HzY230ppmRTC for U4 Connector2 pinJ10.1" pitchTo buzzer Connector3.5mm phone jack J3To ext. Horn Connector3.5mm phone jack J4~5To ext. input switches Connector3.5mm phone jack J5To earplug Connector20pinJ170.1" pitchTo LCD Module Connector4pinJ180.1" pitchTo RF PCBA CategoryPart NumberRefNameDescriptions Transistor2SC3356Q1TransistorFrequency multiplier Transistor2SC3356Q1TransistorAmplifier Varicap diode1SV214D1DiodeFreq. modulation Capacitor3~10pFC2trimmerFundamental freq. tunning Capacitor3~10pFC7trimmer5th Harmonic tunning Capacitor3~10pFC13trimmerFilter Capacitor3~10pFC11trimmerOutput filter Master PCBA RF PCBA

CED8000-TIMER(V1.3).sch-1 - Tue Jan 25 10:46:36 2005 RF314v3.sch-1 - Wed Mar 16 15:12:50 2005

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Longmax Industries Ltd. Application For Certification (FCC ID: SVVCED8000) Transmitter 0503384 DL/ Sandy Lee March 22, 2005 INTERTEK TESTING SERVICES FCC ID: SVVCED8000 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: SVVCED8000 ii MEASUREMENT/TECHNICAL REPORT Longmax Industries Ltd. - MODEL: CED CED8000 Timer FCC ID: SVVCED8000 March 22, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: SVVCED8000 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .....................................................................................15 5.0 Product Labelling ................................................................................................17 6.0 Technical Specifications ....................................................................................19 7.0 Instruction Manual ..............................................................................................21 8.0 Miscellaneous Information .................................................................................23 8.1 Measured Bandwidth .........................................................................................24 8.2 Discussion of Pulse Desensitization ...................................................................25 8.3 Emissions Test Procedures................................................................................26 INTERTEK TESTING SERVICES FCC ID: SVVCED8000 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: SVVCED8000 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: SVVCED8000 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 314MHz. The EUT is powered by 9V d.c. (1 x 9V “1604A” battery). It transmits data (times, splits and number of shots) signal to the corresponding receiver. The receiver will display the readings if the channel selection of both units is the same. One of 10000 channels can be selected at each time. The durat…

Text truncated - open the document above for the full version.

Test Setup FCC ID : SVVCED8000 Radiated Photo - Front Radiated Photo - Rear RADIATED Model No.: CED8000 Timer Job No.: 0503384 RADIATED Model No.: CED8000 Timer Job No.: 0503384
