SW5HR800CHome Repeater System

HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 1 Home Repeater User’s Guide (Model#: JAS-HR800C) JAS Teletech 504-29, JAS Bldg. Younnam-dong, Mapo-gu, Seoul, Korea Tel: 82-2-330-5865 / Fax: 82-2-330-5879 www.jasteletech.com The information provided by JAS Teletech Co., Ltd. is believed to be complete and accurate. However, no responsibility is assumed by JAS Teletech Co., Ltd. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 2 Table of Contents 1. Security Precautions-----------------------------------3 2. Introduction 2.1 Overview------------------------------------------------3 2.2 Operational Concept-----------------------------------3 3. Installation 3.1 Contents & Feature------------------------------------4~5 3.2 Operating Displays and Connections---------------6~9 4. Appendix 4.1 Trouble Shooting--------------------------------------10 5. Specification---------------------------------------------11 6. Guidance for Antennas and Cable 6.1 Antenna-------------------------------------------------12~14 6.2 Cable-----------------------------------------------------14 7. Service-----------------------------------------------------15 HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 3 1. Security Precautions z Only use the power supply unit provided with the Home Repeater (DC 5 V / 1.2 A). Comply with the connection values and ratings when connecting the device to the mains. z Protect the Home Repeater from dampness. z Never open the device. For electrical safety reasons it may only be opened by authorized service technicians. z Dispose of the Home Repeater in environmentally safe manner. z Lightning protection is recommended for all installations 2. Introduction 2.1 Overview Home Repeater is designed to improve wireless reception in poor indoor coverage areas. Targeted as a cost effective solution for indoor coverage areas from 2,000-sq. ft. to 3,000-sq. ft, JAS Home Repeater will allow users to operate handsets within a building or weak coverage area while maintaining call clarity and quality. 2.2 Operational Concept The Home Repeater takes the signal from a Pick-up antenna outside a building, amplifies it and rebroadcasts it to the interior of the building with a Service antenna. The same process occurs in the opposite direction taking the signal from the mobile phone and sending it outside via the antenna and amplifier. Pick-up Antenna RF Cable (Base Transceiver Station) Service Antenna HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 4 3. Installation 3.1 Contents & Feature 3.1.1 Contents The package contains the following items: No. Contents Q’ty Remark 1 Home Repeater 1 unit Model #: HR800C 2 Adaptor 1 unit Power Supply for Home Repeater (110~220V/60Hz, +5V, 1.2A) 3 Bracket 1 unit It can make easier to mount the repeater on the wall 4 Screw 4 units They are used to mount bracket installation HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 5 3.1.2 Features of Home Repeater Front Panel Back Panel Upper Panel Bottom Panel Right Panel Left Panel HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 6 3.2 Operating Displays and Connections 3.2.1 Operating Displays: ① To BTS : Port for receiving the signal from BTS, and a signal pick-up antenna should be connected to the port. ② To Mobile: Port for emitting the amplified signal to mobiles, and service antenna such as dipole, patch, omni antenna should connected to the port. LED Displays The front panel of the Home Repeater contains LED displays that show the operating state and simplify installation and fault finding in the network. LED State Status On The Repeater has been switched on. ③ Power Off The Repeater has been switched off. Green The Repeater is working normally. ④ Down Link Blinking The Repeater is shut down. Green The Repeater is working normally. ⑤ Up Link Blinking The Repeater is shut down. ① ③ ④ ⑤ ② HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 7 3.2.1 Set up the Home Repeater To BTS To Mobile RF Cable AC 110/220V AC/DC Adaptor Power Cable Pick-up Antenna Inside Outside HR800C Copyright © 2005 JAS Teletech Co., Ltd. www.jasteletech.com 8 ※ Please read the following information before installing your Home Repeater. Many mistakes can be avoided by considering over this information 3.2.1.1 Power Consumption z The power supply of the Home Repeater accepts 110~220V, +5V, and 1.2A. 3.2.1.2 Operating Environment z Temperature range: 0°C~+50°C z Maximum Humidity: 95% 3.2.1.3 You need to determine the following things for the Home Repeater installation: z A position where the pick-up antenna is to be installed: a. The pick-up antenna should be located in a position with at least a 3’radius clear of obstructions and other radiating elements. b. You may decide the position with checking out with the antenna level bars of your mobile phone. If the number of antenna level bars of your mobile phone is one or two when you check on the position of patch antenna, it would be OK. z However, if there is no antenna level bars on your mobile phone, you had better change the position of patch antenna. z You should decide the position where the Home Repeater should be installed. a. You may install the Home Repeater on the wall or using wall mount bracket that are provided with Home Repeater. ※When you install Home Repeater, you must consider minimum isolation between pick-up antenna and Home Repeater. ; If there is not enough isolation insurance, the Home Repeater will be defective. As you can see the following illustration, the Home Repeater and pick-up antenna must be isolated from each other. If the building is made of concrete or other signal blocking material, the isolation is sufficient. z After you confirm the length of cable needed to connect from the pick-up a…

Text truncated - open the document above for the full version.

504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, 121-869 South Korea TEL No : +82 2 330 5861 FAX No : +82 2 330 5879 June 14, 2005 Federal Communications Commision Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : JAS Teletech Co., Ltd. FCC ID : SW5HR1900P Request for Confidentiality Gentlemen : In accordance with 0.457 and 0.459 of CFR 47, JAS Teletech Co., Ltd. Hereby requests confidentiality of the Schematics, Block diagram, Part list and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which JAS Teletech Co., Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, JAS Teletech Co., Ltd. Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Herry Kim / Manager

1 Philip Littlewood Von: Philip Littlewood [[email protected]] Gesendet: 17 June 2005 14:14 An: EunJung Yang Betreff: FCC Certification of JAS Teletech FCC ID: SW5HR800C - Booster Rules Dear EunJung Yang, Please make sure that the applicant is fully aware that the device must meet all criteria stated in Rule Parts 90.219 and 22.383. The contents of these rule parts are reproduced below for your convenience. § 22.383 In-building radiation systems. Licensees may install and operate in-building radiation systems without applying for authorization or notifying the FCC, provided that the locations of the in-building radiation systems are within the protected service area of the licensee’s authorized transmitter(s) on the same channel or channel block. § 90.219 Use of signal boosters. Licensees authorized to operate radio systems in the frequency bands above 150 MHz may employ signal boosters at fixed locations in accordance with the following criteria: (a) The amplified signal is retransmitted only on the exact frequency(ies) of the originating base, fixed, mobile, or portable station(s). The booster will fill in only weak signal areas and cannot extend the system’s normal signal coverage area. (b) Class A narrowband signal boosters must be equipped with automatic gain control circuitry which will limit the total effective radiated power (ERP) of the unit to a maximum of 5 watts under all conditions. Class B broadband signal boosters are limited to 5 watts ERP for each authorized frequency that the booster is designed to amplify. (c) Class A narrowband boosters must meet the out-of-band emission limits of § 90.209 for each narrowband channel that the booster is designed to amplify. Class B broadband signal boosters must meet the emission limits of § 90.209 for frequencies outside of the booster’s design pass-band. (d) Class B broadband signal boosters are permitted to be used only in confined or indoor areas such as buildings, tunnels, underground areas, etc., or in remote areas, i.e., areas where there is little or no risk of interference to other users. (e) The licensee is given authority to operate signal boosters without separate authorization from the Commission. Certificated equipment must be employed and the licensee must ensure that all applicable rule requirements are met. (f) Licensees employing either Class A narrowband or Class B broadband signal boosters as defined in § 90.7 are responsible for correcting any harmful interference that the equipment may cause to other systems. Normal co-channel transmissions will not be considered as harmful interference. Licensees will be required to resolve interference problems pursuant to § 90.173(b). A copy of this email message will be submitted to FCC as evidence that the applicant was informed about the requirement to comply with the criteria applicable to booster device operation. Regards, Philip Littlewood -------------------------------------------------- EMCCert DR. RASEK GmbH - Certification Institute - Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9016 Fax: +49-9194-8125 Email: [email protected] URL: http://www.emcc.de -------------------------------------------------- Der Inhalt dieser E-Mail ist fuer den Absender rechtlich nicht verbindlich. Informieren Sie uns bitte, wenn Sie diese E-Mail faelschlicherweise erhalten haben 2 (Fax: +49-9194-8125). Bitte loeschen Sie in diesem Falle die Nachricht. Jede Form der weiteren Benutzung ist untersagt. The content of this e-mail is not legally binding upon the sender. If this e-mail was transmitted to you by error, please inform us accordingly (Fax: +49-9194-8125). In such case you are requested to erase the message. Any use of such e-mail is strictly prohibited.

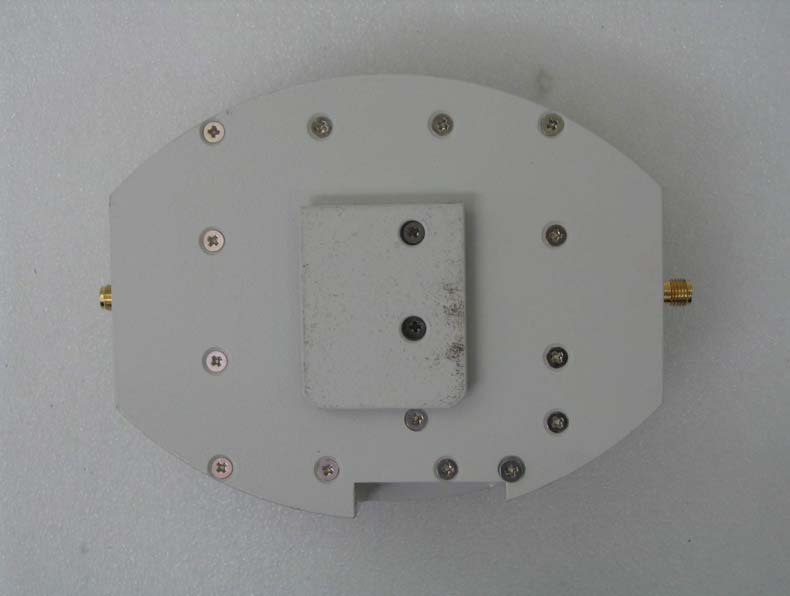

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) Appendix 3. External Photographs of EUT

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) Appendix 1. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and information to the user are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) JAS Teletech Co., Ltd. Home Repeater System Model : HR800C FCC ID : SW5HR800C FCC Label

BWS TECH Inc. 1 of 2 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 Appendix 4. Internal Photographs of EUT Up Link BWS TECH Inc. 2 of 2 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 Down Link

BWS TECH Inc. 1 of 1 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) Appendix 10. RF Exposure statement RF Exposure requirement per FCC Rules and Regulation CFR 47 Part 1.1307 Per the FCC Rules and Regulations as described in the OET Bulletin 65, this equipment is categorically excluded from routine evaluation because this equipment’s donor antenna is used at fixed installations with antenna mounted on outdoor, permanent structurers. "The service antenna is built in front of the repeater. It is a dipole antenna. The donor antenna is connected via cable. It is a patch antenna." This transmitter is intended for use at fixed station sites only, and is not to be marketed for mobile use. Under the Section 1.1307 of the FCC Rules, this transmitter is not subject to the Commission’s environmental rules pertaining to the Routine Evaluation for RF exposure prior to equipment authorization.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Licensed Non-Broadcasting Transceiver RF MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE PRODUCT : Home Repeater System MODEL/TYPE NO : HR800C FCC ID : SW5HR800C TRADE NAME : JAS Teletech Co., Ltd. APPLICANT : JAS Teletech Co., Ltd. FCC RULE PART(S) : FCC Part 22 Subpart H FCC PROCEDURE : Certification FCC CLASSIFICATION : Licensed Non-Broadcast Station Transmitter (TNB) EMISSION DESIGNATOR : F9W(CDMA) FREQUENCY RANGE : 824 MHz ~ 849 MHz (Up Link), 869 MHz ~ 894 MHz (Down Link) RF OUTPUT POWER : 5 mW DATES OF TEST : May 24, 2005 DATES OF ISSUE : June 3, 2005 TEST REPORT No. : BWS-05-RF-017 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This RF Reapter Model HR 1900P has been tested in accordance with the measurement procedures specified CFR 47 Part 2.947 and ANSI C63.4-2000 at the BWS TECH/RF Test Laboratory and has been shown to be complied with the FCC Technical Specification described above. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TaeHyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 764 0125 FAX: +82 31 764 0126 BWS TECH Inc . 2 of 50 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) TABLE OF CONTENTS Pages 1. General Information 3 2. DESCRIPTION OF ATTACHMENTS 4 3. INTRODUCTION 5 4. PRODUCT INFORMATION 6 5. DESCRIPTION OF TESTS 8 6. TEST RESULTS 16 7. TEST Data 17 8. TEST EQUIPMENT LIST 56 Appendix 1. FCC ID Label and Location Appendix 2. Test Setup Photos Appendix 3. External Photos Appendix 4. Internal Photos Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Layout Appendix 8. Part List Appendix 9. User Manual Appendix 10. RF Exposure statement BWS TECH Inc . 3 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) RF TEST REPORT Scope – Measurement and determination of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of relevant international standard 1. General Information Applicant Information Other Information z EUT Type : Home Repeater System z Model Name : HR800C z FCC Identifier : SW5HR800C z Brand Name : JAS Teletech Co., Ltd. z S/N : ProtoType z Freq. Range : 824 MHz ~ 849 MHz (Up Link) 869 MHz ~ 894 MHz (Down Link) z Max. Power Output : 5 mW CDMA – Single Channel z Emission Designator : F9W(CDMA) z FCC Classfication : Licensed Non-Broadcast Station Transmitter (TNB) z Rule Part(s) : FCC Part 22 Subpart H z Test Procedure : Certification z Dates of Tests : May 24, 2005 z Place of Tests : BWS TECH Inc. 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea EMC Testing Laboratory (FCC Registration Number : 553281) TEL: +82 31 764 0125 FAX: +82 31 764 0126 z Test Report No. : BWS-05-RF-017 Company Name : JAS Teletech Co., Ltd. Company Address : 504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, 121-869 Korea Phone/Fax : Phone : 82-2-330-5861 Fax : 82-2-330-5879 BWS TECH Inc . 4 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) 2. DESCRIPTION OF ATTACHMENTS Appendix 1. FCC ID Label and Location -. Sample FCC ID Label and location information is shown Appendix 2. Test Setup Photos -. Radiated Emission Test setup photos are shown Appendix 3. External Photos -. External photos are shown Appendix 4. Internal Photos -. Internal photos are shown Appendix 5. Block Diagram -. The block diagram is shown Appendix 6. Schematics -. The circuit diagrams are shown Appendix 7. Layout -. The layouts are shown. Appendix 8. Part List -. The part lists are shown. Appendix 9. User Manual -. The user operating manual is shown. Appendix 10. RF Exposure statement -. The RF exposure statement is shown. BWS TECH Inc . 5 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-05-RF-017 Date of Test : May 24, 2005 JAS Teletech Co., Ltd. Home Repeater System F CC ID: SW5HR800C (Model: H R800C) 3. INTRODUCTION The measurement tests were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281). All measurements contained in this application were conducted in accordance with FCC Rules and regulations CFR 47and American National Standard Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000). Measurement Procedure The radiated and spurious mea…
