SW5HRD-CP0819Dual Band Home Repeater

HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 1 Dual Band Home Repeater User’s Guide (Model#: HRD-CP0819) Hyon Corp Co,.Ltd 504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, 121-869, South Korea Tel: 82-2-325-1991 / Fax: 82-2-325-2442 www.jasteletech.com The information provided by Hyon Corp Co,.Ltd is believed to be complete and accurate. However, no responsibility is assumed by Hyon Corp Co,.Ltd for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 2 Table of Contents 1. Security Precautions----------------------------------------------------3 2. Introduction 2.1 Overview---------------------------------------------------3 2.2 Operational Concept--------------------------------------3 3. Contents and Features 3.1 Contents ---------------------------------------------------4 3.2 Features of Dual Band Home Repeater----------------5 3.3 Operating Displays and Connections------------------6 4. Operational Procedure 4.1 Measuring Instruments-----------------------------------8 4.2 Down Link Setting----------------------------------------8 4.3 Up Link Setting--------------------------------------------8 5. Specifications and Overall Diagram--------------------------------9 5.1 Specifications 5.2 Overall diagram 6. Maintenance and Troubleshooting 6.1 Maintenance ----------------------------------------------10 6.2 Troubleshooting-------------------------------------------11 7. Appendix 7.1 Relative product------------------------------------------12 8. Customer Care-------------------------------------------------------12 HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 3 1. Security Precautions - Only use the power supply unit provided with the Dual Band Home Repeater (DC 5.2 V/ 1A). Comply with the connection values and ratings when connecting the device to the mains. - Protect the Dual Band Home Repeater from dampness. - Never open the device. For electrical safety reasons it may only be opened by authorized service technicians. - Dispose of the Dual Band Home Repeater in environmentally safe manner. - Lightning protection is recommended for all installations. 2. Introduction 2.1 Overview Dual Band Home Repeater (JAS-HRD-CP0819) is designed to improve wireless receptions, for both CDMA & PCS, in poor indoor coverage areas. Targeted as a cost effective solution for indoor coverage areas from 2,000-sq. ft. to 3,000-sq. ft., Hyon Corp Dual Band Home Repeater will allow users to operate handsets within a building or weak coverage area while maintaining call clarity and quality. 2.2 Operational Concept The Dual Band Home Repeater takes the signal from a Pick-up antenna outside a building, amplifies it and rebroadcasts it to the interior of the building with a Service antenna. The same process occurs in the opposite direction taking the signal from the mobile phone and sending it outside via the antenna and amplifier. The Dual Bank Home Repeater minimized its size and weight for easy installation and usage. Also its elegant design helps it not to be standout from its environment. HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 4 3. Contents & Features 3.1 Contents The package contains the following items: No. Contents Q’ty Remark 1 Home Repeater 1 unit Model #: HRD-CP0819 2 Adaptor 1 unit Power Supply for Dual Band Home Repeater (110~220V/60Hz, +5V, 1.2A) 3 Screw 2 units They are used to mount bracket installation HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 5 3.2 Features of Dual Band Home Repeater Front Panel Back Panel Upper Panel Bottom Panel Right Panel Left Panel HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 6 3.3 Operating Displays and Connections 3.3.1 Operating Displays ① To BTS : Port for receiving the signal from BTS, and a signal pick-up antenna should be connected to the port. ② CDMA Service Status : Display status of receiving CDMA signal Green : Normal Blinking Red : Waning Red: Critical ③ Output Power Status : Display outgoing signal strength; top for CDMA and bottom for PCS. ④ PCS Service Status : Display status of Receiving PCS signal. Green : Normal Blinking Red : Waning Red: Critical ⑤ To Mobile : Port for emitting the amplified signal to mobiles, and service antenna such as dipole, patch, omni antenna should connected to the port. HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 7 3.3.2 Connections ① Before installation, Check out whether all the parts are included in the box or not. ② Pick-up antenna needs to be installed outside of building to receive both CDMA & PCS signal from the base station. There are two ports on the Dual Band Home Repeater: [To BTS] for pick-up antenna and [To Mobile] for service antenna. ③ Use power supply unit included in the box to connect the power. *Using other than the power supply unit provided with the Dual Band Home Repeater (DC 5.2 V / 1 A) may cause problems. Pick-up Antenna Home Repeater Service Antenna Roof HRD-CP0819 Copyright © 2006 Hyon Corp Co,.Ltd www.jasteletech.com 8 4. Operational Procedure After installation is over, use measuring tools to process operational test followed by orders below. 4.1 Measuring Tool Descriptions - Spectrum Analyzer: To measure spurious emission and wave, input and output power level. - Signal Generator: To measure repeater’s gain - RF Power Meter: To measure repeater’s output power - Site Master: To measure VSWR on antenna and antenna cable - Multi Tester: To measure AC input power and others 4.2 Down Link Setting Power Check: Use AC adaptor to connect the power to the repeater and check whether power is turned on. Base Station Input Power Check: Connect the Spectrum Analyzer, described above, to [To BTS] port on the repeater and check total power of down link input power level from the base station. Total power should between –5…

Text truncated - open the document above for the full version.

DATE: Feb. 14, 2006 Grantee : Hyon Corp Co,.Ltd FCC ID : SW5HRD-CP0819 SUB : Request for Confidentiality In accordance with 0.457 and 0.459 of CFR 47, Hereby requests confidentiality of the Schematics, Block diagram, Part list, Layout diagram and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. With best regards, Sang Park Manager/Global Business Team Hyon Corp Co,.Ltd FROM: Sang Park Hyon Corp Co,.Ltd Tel: 02-330-5865 Fax: 02-3143-5849 PAGE : 1 of 1 504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, 121-869, South Korea TEL: 822-330-5865 / FAX: 822-3143-5849 E-mail: [email protected] URL:http://www.hyoncorp.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046

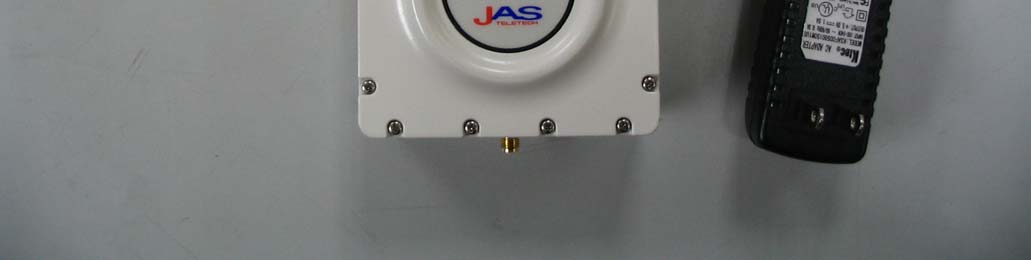

BWS TECH Inc. 1 of 4 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) Appendix 3. External Photos 1. EUT with Adapter BWS TECH Inc. 2 of 4 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 2. Front 3. Back BWS TECH Inc. 3 of 4 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 4. Left 5. Right BWS TECH Inc. 4 of 4 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 6. Upper 7. Bottom

BWS TECH Inc. 1 of 1 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) Appendix 1. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. FCC Warning Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Hyon Corp Co,.Ltd Dual Band Home Repeater Model : HRD-CP0819 FCC ID : SW5HRD-CP0819 FCC ID LABEL Caution Device must be restricted to occupation use to safety FCC RF exposure. See Instruction manual for s pecific operating requirement. Caution

BWS TECH Inc. 1 of 1 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) Appendix 4. Internal Photos 1. Front 2. Back

BWS TECH Inc. 1 of 1 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) Appendix 10. RF Exposure statement RF Exposure requirement per FCC Rules and Regulation CFR 47 Part 1.1307 Per the FCC Rules and Regulations as described in the OET Bulletin 65, this equipment is categorically excluded from routine evaluation because this equipment’s donor antenna is used at fixed installations with antenna mounted on outdoor, permanent structurers. The remote antenna is built in front of repeater. This transmitter is intended for use at fixed station sites only, and is not to be marketed for mobile use. Under the Section 1.1307 of the FCC Rules, this transmitter is not subject to the Commission’s environmental rules pertaining to the Routine Evaluation for RF exposure prior to equipment authorization.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH, Inc. RF MEASUREMENT REPORT CERIFICATION OF COMPLIANCE PRODUCT : Dual Band Home Repeater MODEL/TYPE NO : HRD-CP0819 FCC ID : SW5HRD-CP0819 TRADE NAME : APPLICANT : Hyon Corp Co,.Ltd FCC RULE PART(S) : FCC Part 2, Part 22H & Part 24E FCC PROCEDURE : Certification FCC CLASSIFICATION : Licensed Non-Broadcast Station Transmitter (TNB) EMISSION DESIGNATOR : F9W (CDMA), GXW (GSM) US-PCS / Downlink (1930 MHz – 1990 MHz) US-PCS / Uplink (1850 MHz – 1910 MHz) CDMA800 / Downlink (869 MHz – 894 MHz) FREQUENCY RANGE : CDMA800 / Uplink (824 MHz – 849 MHz) US-PCS 7 dBm / Total , 4 dBm / Tone RF OUTPUT POWER : CDMA800 7 dBm / Total , 7 dBm / 1FA DATES OF TEST : January 23, 2006 ~ February 6, 2006 DATES OF ISSUE : February 6, 2006 TEST REPORT No. : BWS-06-RF-0002 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This product has been tested in accordance with the measurement procedures specified CFR 47 Part 2.947 and ANSI C63.4- 2003 at the BWS TECH/RF Test Laboratory and has been shown to be complied with the FCC Technical Specification described above. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tae Hyun, Nam Chief of Laboratory Division BWS TECH Inc. www.bws.co.kr #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 BWS TECH Inc . 2 of 50 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Attachments 4 3. Introduction 5 4. Product Information 6 5. Test Results 7 6. Test Data 8~42 6.1 Power Line Conducted Emission 8~14 6.2 RF Power Output (Conducted) 15~20 6.3 Occupied Bandwidth 21~26 6.4 Spurious Emission of Antenna Terminals 27~40 6.5 Field Strength of Spurious Emission 41~42 7. Test Equipment List 43 Appendix 1. FCC ID Label and Location Appendix 2. Test Setup Photos Appendix 3. External Photos Appendix 4. Internal Photos Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational description Appendix 8. Part List Appendix 9. User Manual Appendix 10. RF Exposure statement BWS TECH Inc . 3 of 43 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) RF TEST REPORT Scope – Measurement and determination of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of relevant international standard 1. General Information Applicant Information Other Information z EUT Type : Dual Band Home Repeater z Model Name : HRD-CP0819 z FCC Identifier : SW5HRD-CP0819 z Brand Name : Hyon Corp Co,.Ltd z S/N : ProtoType US-PCS / Downlink (1930 MHz – 1990 MHz) US-PCS / Uplink (1850 MHz – 1910 MHz) CDMA800 / Downlink (869 MHz – 894 MHz) z Freq. Range : CDMA800 / Uplink (824 MHz – 849 MHz) US-PCS 7 dBm / Total , 4 dBm / Tone z Max. Power Output : CDMA800 7 dBm / Total , 7 dBm / 1FA z Emission Designator : F9W (CDMA), GXW (GSM) z FCC Classfication : Licensed Non-Broadcast Station Transmitter (TNB) z Rule Part(s) : FCC Part 2, Part 22H & Part 24E z Test Procedure : Certification z Dates of Tests : January 23, 2006 ~ February 6, 2006 z Place of Tests : BWS TECH Inc. #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea (FCC Registration Number : 553281) TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : BWS-06-RF-0002 Company Name : Hyon Corp Co,.Ltd Company Address : 504-29, JAS B/D. Younnam-Dong, Mapo-Gu, Seoul, 121-869 South Korea Phone/Fax : Phone : 82-2-330-5865 Fax : 82-2-3143-5849 BWS TECH Inc . 4 of 43 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 2. DESCRIPTION OF ATTACHMENTS Appendix 1. FCC ID Label and Location -. Sample FCC ID Label and location information is shown Appendix 2. Test Setup Photos -. Radiated Emission Test setup photos are shown Appendix 3. External Photos -. External photos are shown Appendix 4. Internal Photos -. Internal photos are shown Appendix 5. Block Diagram -. The block diagram is shown Appendix 6. Schematics -. The circuit diagrams are shown Appendix 7. Operational description -. The operational description are shown. Appendix 8. Part List -. The part lists are shown. Appendix 9. User Manual -. The user operating manual is shown. Appendix 10. RF Exposure statement -. The RF exposure statement is shown. BWS TECH Inc . 5 of 43 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 3. INTRODUCTION The measurement tests were conducted at the open area test site of BWS TECH Inc. facility located at #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 a…

Text truncated - open the document above for the full version.

BWS TECH Inc. 1 of 5 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) Appendix 2. Test Setup Photos 1. Field Strength of Spurious Emission / Below 1 GHz / Downlink 2. Field Strength of Spurious Emission / Below 1 GHz / Uplink BWS TECH Inc. 2 of 5 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 3. Field Strength of Spurious Emission / Above 1 GHz / Downlink 4. Field Strength of Spurious Emission / Above 1 GHz / Uplink BWS TECH Inc. 3of 5 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 5. Power Line Conducted Emission / Front / Downlink 6. Power Line Conducted Emission / Front / Uplink BWS TECH Inc. 4 of 5 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 7 . Power Line Conducted Emission / Back / Downlink 8 . Power Line Conducted Emission / Back / Uplink BWS TECH Inc. 5 of 5 FCC Part 22 & 24 Certification Report No: BWS-06-RF-0002 Data of Issue : February 6, 2006 Hyon Corp Co,.Ltd Dual Band Home Repeater FCC ID: SW5HRD-CP0819 (Model: HRD-CP0819) 9 . Power Line Conducted Emission / Side / Downlink 10 . Power Line Conducted Emission / Side / Uplink
