SW6MA-338Wireless microphone

-3 207.6 FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

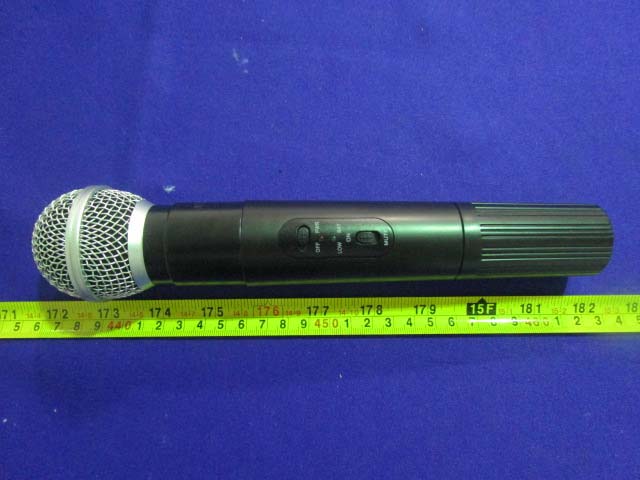

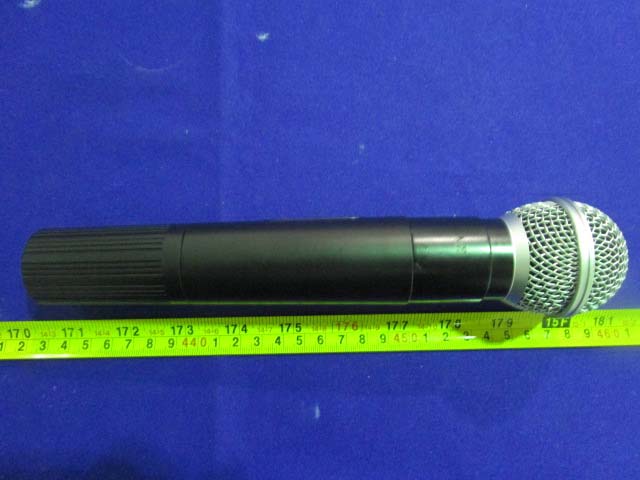

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Side View EUT –Side View EUT –Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Antenna View EUT –Uncover View EUT –Uncover View EUT –Main Board Top View EUT –Main Board Bottom View

Circuit Description In the transmitter, Signal according to dynamic cartridge oscillate to change audio signal input to processor. 31101 is for the signal compress and the oscillator, which can output twelve encoding signals corresponding to the working states. And the last frequencies are 180 and 207.6MHz. The transmitter is using “6F22”9V battery. At the receiver, the signal take back and oscillate fundamental frequency and frequency mixing, after will have 10.7MHz frequency decoding audio signal. One is audio signal amplifier, and according to the switch to 31101 audio amplifier to output. Another audio signal is no any input signal, and the decoder input the noise, after amplifier the noise can use signal, and test, to control the switch. MISHA 2015-09-25

No.FootprintCommentQuantityDesignators 1BATT1VCC13 2BATT1GND12 3Dio 226381D1 4IC Patch integration(16,SO16)UTC311011IC1 5K*A1voL-K1K-2 6K8POWER1K-1 7LED2ED2, ED1 8L inductance 13.3uH2L3, L2 9L Inductance33.3uH1L1 10Lcoil (3*3.5T*0.6C) - DUPLICATE3.5T4LL4, LL1, LL3, LL2 11SMD(0603A)*2C35, 1 12SMD(0603A)103P12 C34, C9, C7, C8, C11, C32, C16, C23, C13, C20, C5, C6 13SMD(0603A)47R3R7, R1, R13 14SMD(0603A)5K61R10 15SMD(0603A)2K24R11, R6, R2, R9 16SMD(0603A)330P3C4, C2, C1 17SMD(0603A)102P1C31 18SMD(0603A)150R2R23, R27 19SMD(0603A)A71C33 20SMD(0603A)6P1C29 21SMD(0603A)A51C24 22SMD(0603A)12P2C25, C22 23SMD(0603A)A61C30 24SMD(0603A)56K2R28, R15 25SMD(0603A)3P1C28 26SMD(0603A)A41C27 27SMD(0603A)68P2C26, C17 28SMD(0603A)100R1R24 29SMD(0603A)47K3R26, R21, R8 30SMD(0603A)10K3R25, R17, R12 31SMD(0603A)1P1C19 32SMD(0603A)27K1R20 33SMD(0603A)A21C18 34SMD(0603A)A11C14 35SMD(0603A)20P1C15 36SMD(0603A)1K2R22, R19 37SMD(0603A)A31C21 38SMD(0603A)47P1C12 39SMD(0603A)22P1C10 40SMD(0603A)15K1R16 41SMD(0603A)220K1R18 42SMD(0603A)3K31R14 43SMD(0603A)100K1R5 44SMD(0603A)4K71R4 45SMD(0603A)562P1C3 46SMD(7805,SOT-89)78051Q2 47SMD Point capacitance(4.7-10U)10U4CF9, CF8, CF1, CF2 48SMD Point capacitance(4.7-10U)4U76CF7, CF11, CF10, R3, CF3, CF12 49SMD Point capacitance(4.7-10U)1U2CF4, CF5 50SMD Point capacitance(47-100U) 47U1CF6 51Q SMD Triode(SOT-23 )R241Q5 52Q SMD Triode(SOT-23 )H103Q6, Q4, Q3 53Q SMD Triode(SOT-23 )90141Q1 54T306181T1 55T5402T4, T3 56T5391T2 57VR25021VR1 58X Crystal517.302/19.8181TX1 Page 1

Tune up procedure of microphone MA-338 1.Connect the power of 9V, to check whether the electric current can be normal or not. 2.Use debugger tone and coil inductor week, the main wave power and harmonic voltage raised to the highest. The max target power is 2mW. 3.Adjust the frequency to the desired frequency. 4.Connected to the low-frequency signal generator to the MIC inputs, in order to see the waveform whether can be normal or not. Adjusted to the desired maximum modulation. 5.Detection switch function whether can be normal (mute in energy). 6.If there are some Low pressure indication, try to adjust to the low voltage power supply to check the indicators whether can be normal or not. 7. Measurement Instrument: HP8920A

123456 A B C D 6 54321 D C B A MIC 19.5 3T5 2638 H10 10K 47P 15K A1 A5 C11 56K A6 6P 3P1P12P 102P 330P 103 56K 10K 330P 1K 5K6 22P 150R 103P 20P47K A2 47K 3P 27K 2K2 3K3 10K 100K 47R 9014 H10 R24 3U3 T40 T0618 1U 4U7 47R LED2 9V 3T5 3U3 3T5 3U3 4U7 4U7 10U 103P K-1 47U103P 103P 103P 78L05 10U 1U 2 4 6 8 101214 16 135 7 9 1113 15 31101 4U7 10U472P 330P 4U7 2K2 2K2 47R 220K 10U T39 1K68P A3 T40 150R 103P 47K A4 10K H10 100R68P 3T5 A7 103P103PC9 K-2 * 502 103P 2K2 LED1 56K

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 74 TEST REPORT For Enping Misha Electronic Co., Ltd Pingshi Development Area Enping City, Guangdong Province China FCC ID: SW6MA-338 Report Type: Original Report Product Type: Wireless microphone Test En gineer: Dean Liu Re port Number: RDG150911013-00A Re port Date: 2015-09-21 Reviewed B y: Sula Huang RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG150911013-00A FCC Part 74 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 EXTERNAL CABLE ........................................................................................................................................................ 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC §1.1310 & §2.1093- RF EXPOSURE .................................................................................................................... 7 APPLICABLE STANDARD .............................................................................................................................................. 7 FCC §2.1046 &§ 74.861- RF OUTPUT POWER ........................................................................................................ 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST DATA .................................................................................................................................................................. 8 FCC §74.861 (e)(2)- Crystal Controlled or Frequency sysnthesized ....................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §2.1047 & §74.861 - MODULATION CHARACTERISTIC .......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049&74.861 – OCCUPIED BANDWIDTH & EMISSION MASK ......................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST DATA ..................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions (Above 1 GHz)
