SWN-CLIQDOG TRAINING DEVICE(TRANSMITTER)

iQ Pet CLiQ by Dogtra Portable Remote Controlled Dog Training Collars Owner’s Manual Please read this manual before operating your system, and keep it for future reference. Product Safety and Health Statements Proper e-collar use iQ Pet e-collars are intended for the sole purpose of behavior modification of dogs. They are NOT intended for use on humans or use on other animals. iQ Pet and Dogtra Company does not assume any liability for the improper use of an iQ Pet e-collar. Aggressive dogs iQ Pet highly recommends consulting a dog training professional that specializes in dog aggression when using an e-collar to correct dogs that are aggressive towards other dogs, animals or people. Interference with other electronics devices iQ Pet’s industry-leading technology filtering system ensures minimal interference with other electronic devices (garage door openers, mobile phones, etc.). Our digital microprocessor offers thousands of unique codes to eliminate frequency match-up with other iQ Pet e-collars. iQ Pet recommends consulting your physician if you are going to use the e-collar and you have any type of medical devices. Inadvertent activation If the constant button is held down for 5 seconds or more, the unit will automatically shut down. It reactivates when the button is released and depressed again. Proper fit of the Receiver/Collar A loose fit can allow the collar to move around on the dog’s neck. When this happens, the contact points may rub the skin and cause irritation. If the unit is too loose, the contact points will not make proper contact and your dog will not receive consistent stimulation. Duration your dog can wear the unit Leaving the receiver/collar in the same location on the dog’s neck for an extended period of time can cause skin irritation. If the dog is to wear the e-collar for long periods, occasionally reposition the receiver/collar so that the contact points are moved to a different location on the dog’s neck. Make sure you check for skin irritation each time you use the unit. If your dog exhibits signs of skin irritation, consult with a veterinarian. Reaction to the stimulation Every dog has a different tolerance and reaction to the stimulation. Please look at your dog’s reaction to find just the right level of stimulation. The stimulation level may vary depending on the situation and level of distractions. Normally a distracted dog (chasing another dog, person, squirrel, etc.) will require a higher level of stimulation to control compared to when there is no distraction. Training Methods A variety of methods are available for using the e-collar for dog behavior modification. You can find online training videos at www.dogtra.com. Training files on getting started with your e-collar can also be found on www.dogtra.com by clicking on the Support tab. If you have any concerns in the training methods provided by iQ Pet, consult with a dog training professional. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. WARNING THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Table of Contents At a Glance••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Main Features of the iQ CLiQ•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Overview •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Understanding Your Training System ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1. How to Turn the Unit On and Off •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 2. How the Buttons Work •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 3. How to Fit the Collar on the Dog •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 4. Finding the Right Stimulation Level ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 5. Maximizing the Distance ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 6. Checking the Status Using the LED Indicator ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 7. Battery Replacement •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 8. Attaching the Collar Strap •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• General Training Tips •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Maintenance•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Troubleshooting Guide ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Warranty and Repair Information •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• At a Glance Included in Package Transmitter Receiver Detachable Strap 3V Coin Batteries (4) Owner’s Manual Optional Accessories To purchase optional accessories, please visit the Dogtra online store (shop.dogtra.com ) or call our customer service at 1-888-811-9111. Main Features of the iQ CLiQ Compact Size (Small to Medium dogs) Clicker Replaceable Batteries (4) Fully Waterproof Receiver/Collar Water resistant transmitter 100 Yard Range 100 Levels of Stimulation Momentary and Pulsating Stimulation Conductive Plastic Contact Points Ergonomic Handheld Transmitter and reduced seized Receiver/Collar Detachable Collar Strap Overview Transmitter Antenna Stimulation Intensity Dial LED Indicator On/Off Activation Magn…

Text truncated - open the document above for the full version.

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] SUBJECT: Response about request from TIMCO JOB #: 760KC13 Applicant: Dogtra Co., Ltd. Product: DOG TRAINING DEVICE Model: CLiQ FCC ID: SWN-CLIQ Dear Sir/Madam 1. 731 FORM: We received a confidential letter however the 731 form is marked “no” in the confidential section. Please revise the 731 form to be marked “yes” for long term confidentiality. Please refer revised 731 form. Best regards, KOSTEC Co., Ltd. Mi Young Lee / Test Engineer e-mail: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SWN-CLIQ Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Circuit Diagram PCB Layout Part List Technical operation description Block Diagram_CliQ Circuit Diagram_CliQ PCB Layout_CliQ Part List_CliQ Technical operation description_CliQ The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date: 2013.04. 29 Associate manager: Yong Byeong Chae

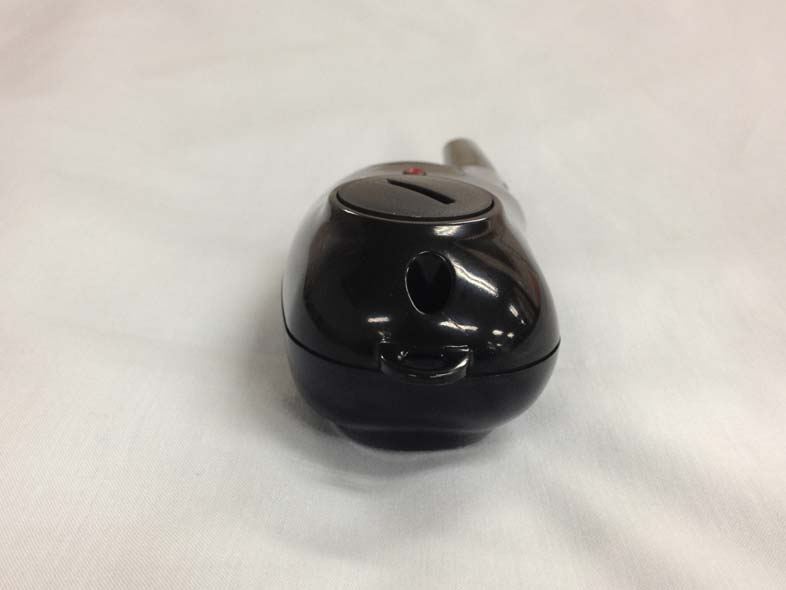

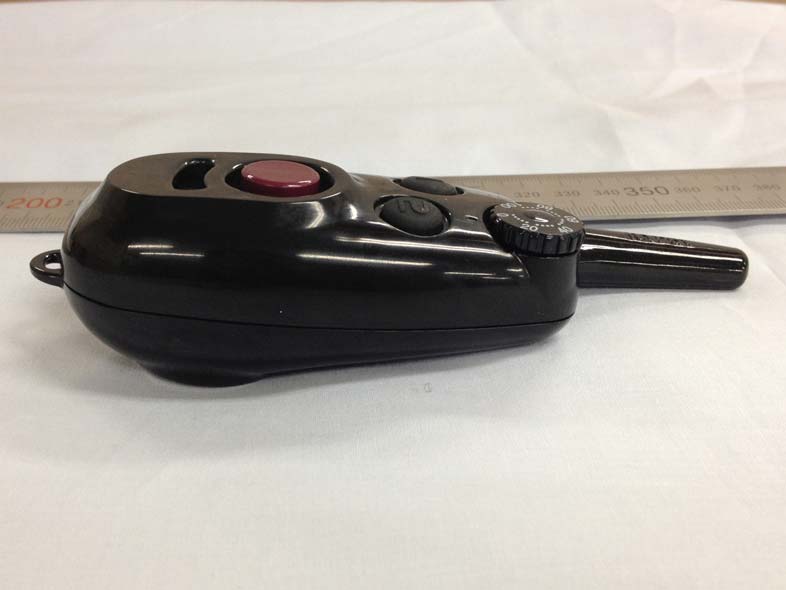

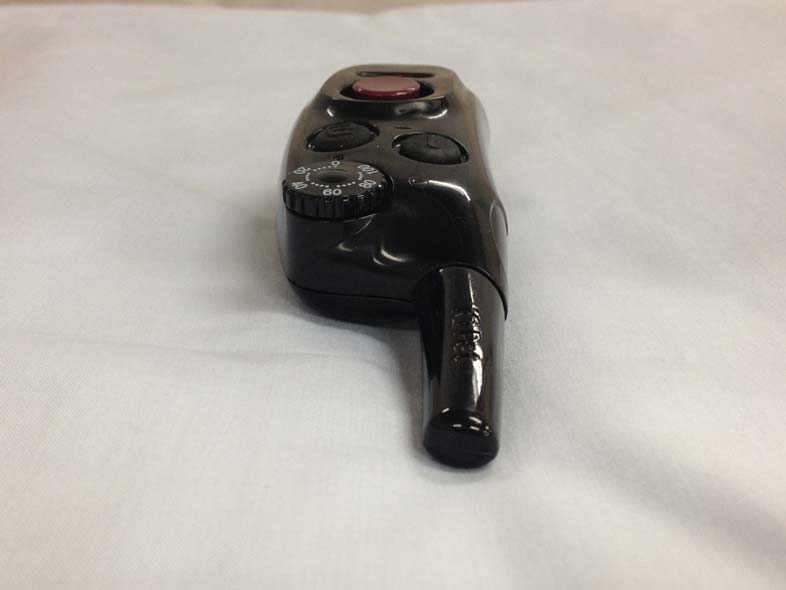

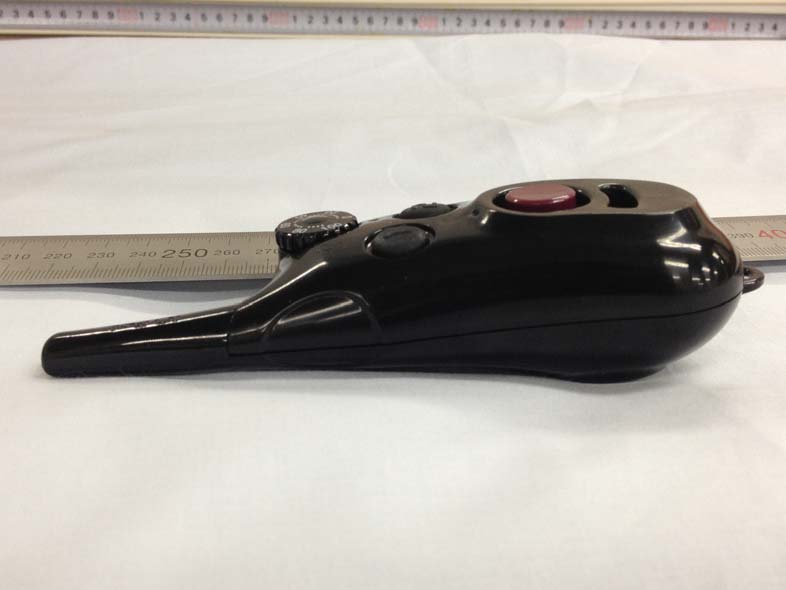

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-130004 Page: 1 / 3 Appendix 2. Photographs of EUT [External View] Front Rear Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-130004 Page: 2 / 3 [ Right View ] [ Left View ] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-130004 Page: 3 / 3 [ Top View ] [ Bottom View ]

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-130004 Page: 1 / 1 Appendix 4. Sample Label & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID is marked in the product label with model No. and below information is visible printed on the label. Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is located here.

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-130004 Page: 1 / 2 Appendix 3. Photographs of EUT [Internal View] [ Inside View ] [Main board Front] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-130004 Page: 2 / 2 [Main board Rear] BLANK

DOC. NO C-1304-01 ANTENNA SPECIFICATIONS REV. NO 0 Issued Date 2013-04-16 Page 1/6 Product Name : 434MHz Band 1/4λMonole Antenna Model Name: DT-434H-TX Contents 1. Descriptions 2. Application 3. Antenna Shape 4. Electrical Performance 5. Mechanical Specifications 6. Environmental Performance 7. Attachment Release Sign. Written Checked Checked Approved J.R.Park Date 20130416 20130416 CHINWOOTECH A4(210297) Model DT-434H-TX ANTENNA SPECIFICATIONS Docu-NO C-1304-01 Code NO Rev-NO 0 Customer PAGE 2/6 1. Descriptions This monopole Antenna has the 1/4wavelength helical elements designed for 434MHz band wireless communication unit. 2. Application ▣ Hand Held ▣ Fixed □ Mobile ▣ Out Door ▣ In Door □ Others 3. Antenna Shape See attached 4. Electrical Performance 4.1 Frequency Range 434 MHz Band 4.2 Impedance Nominal Value 50 Ohm 4.3 V.S.W.R Less than 1 : 2.0 4.4 Antenna Radiation Pattern Omni-Directional 4.5 Antenna Polarization Vertical CHINWOOTECH A4(210297) Model DT-434H-TX ANTENNA SPECIFICATIONS Docu-NO C-1304-01 Code NO Rev-NO 0 Customer PAGE 3/6 4.6 Antenna Gain ( dBi ) Unity ( 0dBi) 5. Mechanical Specifications 5.1 Element Material 0.7 SWC Finish Ni-plating Electrical Length 1/4 Wavelength 5.2 Connector Type Direct Soldering Material - Finish - 5.3 Antenna total length See Attached 5.4 Antenna Weight 3 gram CHINWOOTECH A4(210297) Model DT-434H-TX ANTENNA SPECIFICATIONS Docu-NO C-1304-01 Code NO Rev-NO 0 Customer PAGE 4/6 6. Environmental Resistance Performance 6.1 Operating Temperature – 30°C ~ 70°C 6.2 Storage Temperature – 40°C ~ 80°C 6.3 Humidity 95% RH / 50°C 7. Attached 1. Antenna Specifications Drawing 2. Antenna Performance Data CHINWOOTECH A4(210297) Model DT-434H-TX ANTENNA SPECIFICATIONS Docu-NO C-1304-01 Code NO Rev-NO 0 Customer PAGE 5/6 [Attached] 1. Antenna Specifications Drawing CHINWOOTECH CHINWOOTECH A4(210297) Model DT-434H-TX ANTENNA SPECIFICATIONS Docu-NO C-1304-01 Code NO Rev-NO 0 Customer PAGE 6/6 2. Antenna Performance Data ( Test Equipment : HP-8753ES ) -. Impedance / V.S.W.R CHINWOOTECH A4(210297)
