SWN-LC10UTDOG TRAINING DEVICE

1 R R DELUXE REMOTE RELEASE BIRD LAUNCHER Owner's Manual Please read this manual thoroughly before operating the RR DELUXE 2 IMPORTANT SAFETY AND PRODUCT INFORMATION WARNING Please read all safety and product information below before using your Dogtra product. Failure to follow these safety instructions could result in injury to you, your dog and others, or it could result in damage to your Dogtra product or other property. PRODUCT SAFETY Training Methods Dogtra products may be used with a variety of training methods. However, each dog may have a different reaction to training methods and to Dogtra products. Closely observe your dog when determining the right training method to use with your Dogtra product. Aggressive Dogs Do not use Dogtra products with aggressive dogs as such dogs may react adversely and cause injury to people or other dogs. Seek the assistance of a dog-training specialist or veterinarian when dealing with aggressive dogs. Children Dogtra products are not toys. Adult supervision and close attention are necessary when Dogtra products are used by or near children. PRODUCT DAMAGE Electrical Product Your Dogtra product contains electrical components and batteries. Do not use or keep your product near heat or flammable sources. Such use or storage may damage your 3 product and/or cause fire, explosion, injury, or property damage. Medical Device Interference Dogtra products contain electrical and magnetic components that emit low level electromagnetic waves and radio frequencies. These electromagnetic waves or radio frequencies may interfere with pacemakers, defibrillators, or other medical devices. Consult your physician or medical device maker before using your medical device with a Dogtra product. If you think that your Dogtra product is interfering with your pacemaker, defibrillator, or other medical device, stop using the Dogtra product. Inadvertent Activation The digital microprocessor offers thousands of unique codes to eliminate frequency match-up with other Dogtra e-collars. The Constant button will automatically shut down after being held down for 12 seconds or more as a safety feature. UNAUTHORIZED USE Your Dogtra product should be used only in a humane manner to train and educate your dog. Dogtra products are not intended for use in any other manner nor are they intended for use with other animals or with humans. BATTERY Your Dogtra product contains batteries. Take care when removing and installing batteries as your fingers may get caught. Dispose of batteries as provided by your local regulations. Do not disassemble, crush, heat, or otherwise alter the battery as it may cause fire, injury or property damage. 4 AT A GLANCE ................................................................... MAIN FEATURES ............................................................. IMPORTANT PRODUCT INFORMATION .................... DESCRIPTION OF TRANSMITTER PARTS ................. DESCRIPTION OF RECEIVER PARTS .......................... DESCRIPTION OF LAUNCHER PARTS (QL, PL) ....... QL, PL ASSEMBLY AND OPERATION ........................ QL, PL SPRING STRENGTH SETTINGS ...................... CHARGING THE BATTERY ............................................ MAXIMIZING THE DISTANCE ....................................... ACCESSORIES .................................................................. MAINTENANCE ................................................................ WARRANTY AND REPAIR INFORMATION .............. 5 6 7 8 10 12 15 22 24 26 27 28 29 CONTENTS 5 AT A GLANCE *RR DELUXE, QL and PL are sold separately Optional accessories Auto Charger The auto charger for the RR DELUXE has an input of 12-volts to 24-volts and has an output of 12-volts 300mAH. European Charger Dogtra’s European chargers are designed for use with a 220 volt AC electrical outlet. To purchase accessories, please visit www.dogtra.com or call customer service at (888) 811-9111. Owner's Manual QL LauncherPL Launcher TransmitterBattery Charger Recevier Splitter Cable 6 • Multiple receivers: one transmitter can control up to 8 receivers which can control up to 16 launcher baskets • Multiple sound modes: the receiver emits a duck call and beep sound • Range: effective within one mile • Scenting: launcher basket and bird cradle are designed for maximum air flow • Quiet launch: prevents dogs from being startled by a loud release noise • Waterproof: the handheld transmitter is fully waterproof (receiver is water resistant) • Multi-colored LED: 3 types of LED colors show the remaining battery life MAIN FEATURES 7 • DO NOT use the bird launcher until you have read this manual. • Transport the launcher in a safe position. It should either have the bird cradle open or if it is closed, the safety pin must be inserted to lock the release latch. • To store for long periods of time, place the bird launcher in the open position to prevent the springs from weakening. • To avoid danger, keep the bird launcher away from children. Never leave a set bird launcher unattended as the bird cradle can pop open with significant force. • Do not look down or into it during the launch process because you may be injured as the bird cradle opens up. Use caution when using a bird launcher. Keep your head away from the top of the launcher when it is loaded. You can be injured if the dummy or bird is accidentally launched. WARNING! IMPORTANT PRODUCT INFORMATION 8 DESCRIPTION OF TRANSMITTER PARTS 1. Antenna2. LED Indicator Light 6. Right Launcher Button 5. Left Launcher Button 4. Battery Charging Receptacle & Rubber Plug 3. Selector Dial 7. Beeper Button 8. Duck Call Button RR DELUXE Transmitter 9 1. Antenna: A 2 inch antenna is supplied with the Dogtra RR DELUXE transmitter. The antenna must be fastened to the transmitter before using the unit. 2. LED Indicator Light: The color of the light indicates the status of battery life. Green = full charge; amber = medium charge; red = needs charge. The LED indicator light will come on when the but…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Dogtra Co., Ltd. Address 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA Grantee Code SWN FCC ID SWN-LC10UT Authorized Contact Name YongByeong Chae Contact Email [email protected] Contact Phone +82-032-812-2445 I, the undersi gned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordanc e with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Appl icant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CF Rs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Dogtra Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Dogtra Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date:2023-09-18 Print Name: YongByeong Chae Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

UNIT ED STATES DESIGNATED AGENT LETTER Da te: 2023-02-14 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Dogtra Co., Ltd. Company Name: Dogtra Company Grantee Code: SWN FRN: 0033422338 Contact Name: Yong Byeong, Chae Contact Name: Eui Jung Kim Address: 35, Namdongdong-ro 33beon- gil, Namdong- gu, Incheon, South Korea Address: 12322 Monarch St., City/Province/Zip: 21694 City/Province/Zip: Garden Grove, CA 92841 Telephone: +82-032-812-2445 Telephone: +1-310-534-0101 Fax: +82-32-812-2449 Fax: +1-310-534-9111 Email: [email protected] Email: [email protected] Applicable Equipment: FCC ID: <FCC ID: SWN-LC10UT> ATT N: Director of Certification: We, Dogtra Co., Ltd. and Dogtra Company u nderstand and acknowledge the applicants consent and th e designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, Dogtra Co., Ltd. and Dogtra Company acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Yong Byeong, Chae Name (Printed): Eui Jung Kim Title: Associate manager Title: VP Signature: Signature:

DOC. NO C-070501 ANTENNA SPECIFICATIONS REV. NO 0 Issued Date 2007-03-15 Page 1/6 Product Name : 27MHz Band 1/4λMonole Antenna Model Name: ST-50N Contents 1. Descriptions 2. Application 3. Antenna Shape 4. Electrical Performance 5. Mechanical Specifications 6. Environmental Performance 7. Attachment Release Sign. Written Checked Checked Approved J.R.Park Date 2007-5-7 CHINWOOTECH A4(210297) Model ST-50N ANTENNA SPECIFICATIONS Docu-NO C-070501 Code NO Rev-NO 0 Customer PAGE 2/6 1. Descriptions This monopole Antenna has the 1/4wavelength helical coil ements on the plastic bobbin coverd TPE, designed for 27MHz band wireless communcation unit. 2. Application ▣ Hand Held ▣ Fixed □ Mobile ▣ Out Door ▣ In Door □ Others 3. Antenna Shape See attached 4. Electrical Performance 4.1 Frequency Range 27 MHz Band (Fc=26.75MHz) 4.2 Impedance Nominal Value 50 Ohm 4.3 V.S.W.R Less than 1 : 7.0 (at Fc) 4.4 Antenna Radiation Pattern Omni-Directional 4.5 Antenna Polarization Vertical CHINWOOTECH A4(210297) Model ST-50N ANTENNA SPECIFICATIONS Docu-NO C-070501 Code NO Rev-NO 0 Customer PAGE 3/6 4.6 Antenna Gain ( dBi ) Unity ( -28dBi) 5. Mechanical Specifications 5.1 Element Material 0.10 Cu Finish UEW Electrical Length 1/4 Wavelength 5.2 Connector Type Stud (M6x0.75) Material Brass Finish Ni-plating 5.3 Bobbin Material PA 66 Finish - 5.4 Sleeve Material TPE Finish Black 5.5 Antenna total length See Attached 5.6 Antenna Weight 11 gram CHINWOOTECH A4(210297) Model ST-50N ANTENNA SPECIFICATIONS Docu-NO C-070501 Code NO Rev-NO 0 Customer PAGE 4/6 6. Environmental Resistance Performance 6.1 Operating Temperature – 30°C ~ 70°C 6.2 Storage Temperature – 40°C ~ 80°C 6.3 Humidity 95% RH / 50°C 7. Attached 1. Antenna Specifications Drawing 2. Antenna Performance Data -. V.S.W.R CHINWOOTECH A4(210297) Model ST-50N ANTENNA SPECIFICATION Docu-NO C-070501 Code NO Rev-NO 0 Customer PAGE 5/6 [Attached] 1. Antenna Specifications Drawing CHINWOOTECH 한승기업 CHINWOOTECH A4(210297) Model ST-50N ANTENNA SPECIFICATION Docu-NO C-070501 Code NO Rev-NO 0 Customer PAGE 6/6 2. Antenna Performance Data ( Test Equipment : HP-8753ES ) -. VSWR CHINWOOTECH A4(210297)

Dogtra Co., Ltd. 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA 18 Sep, 2023 Fe deral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)co mply with the relevant provisions of the certification program; b)m ake all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)mak e claims regarding certification only in respect of the scope for which certification has been granted; d)d o not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)up on suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)us e certification only to indicate the products are certified as being in conformity with specified standards; g)en deavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)en sure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; Dogtra Co., Ltd . 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)t ake appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k )document the actions taken. This authorization is valid until further written notice from the applicant. S incerely yours, Na me / Title : Yo n g-Byeong, Chae / Associate manager Company Name : Dogtra Co., Ltd.

Dogtra Co., Ltd. 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA 18 Sep, 2023 Feder al Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID : SWN-LC10UT To Wh om It May Concern: Pursu ant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Dogtra Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Dogtra Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFID ENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune up 5 - Short-Te r m 6 External Photos 7 Internal Photos 8 Te s t-Setup Photos 9 User’s Manual The Ap plicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Name / Ti tle : Yong Byeong Chae / Associate manager Company Name : Dogtra Co., Ltd.

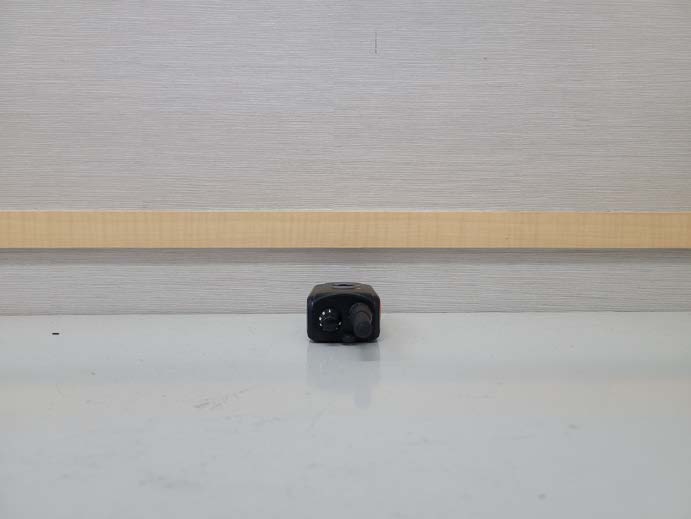

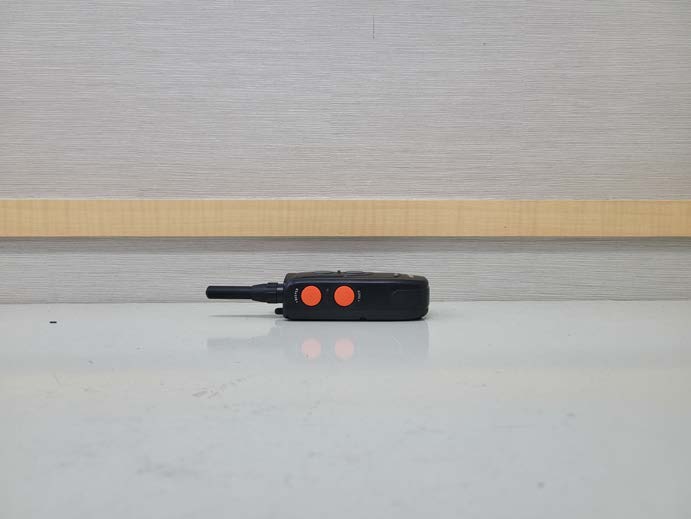

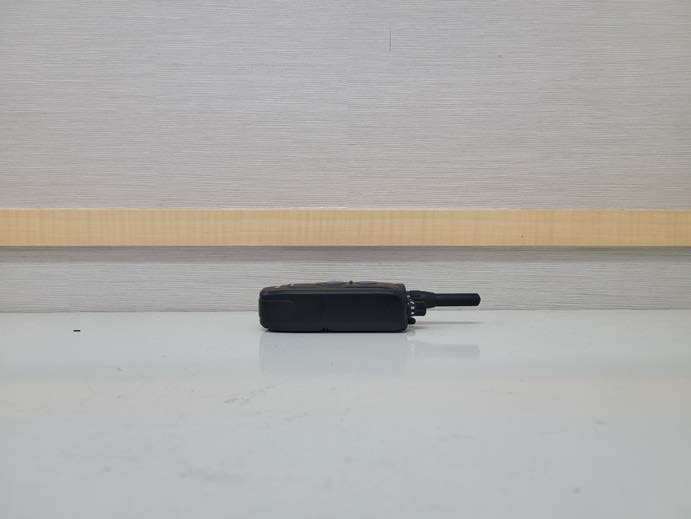

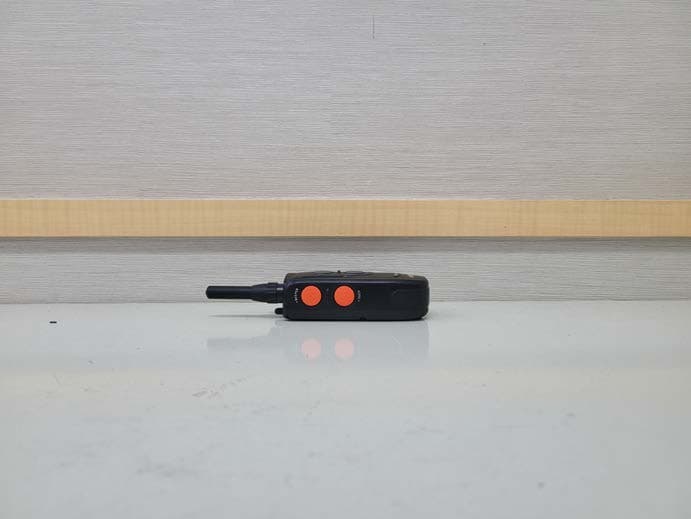

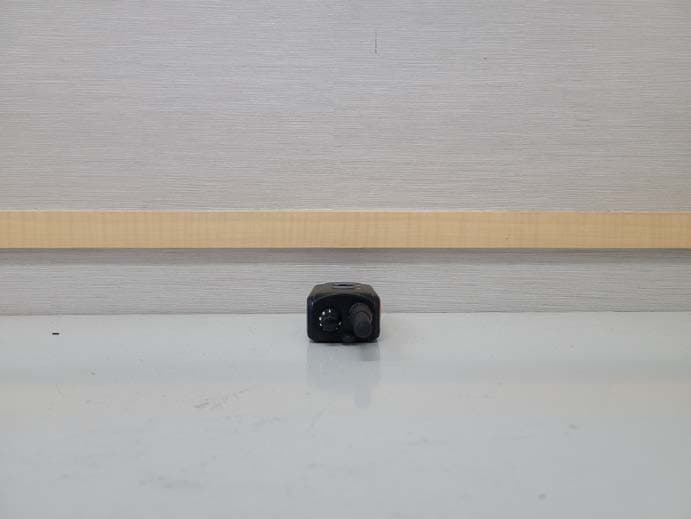

Model Name: RR Deluxe External photos of EUT Model Name: RR Deluxe Top view of EUT Bottom view of EUT Model Name: RR Deluxe Side view of EUT Model Name: RR Deluxe Model Name: RR Deluxe View of Antenna

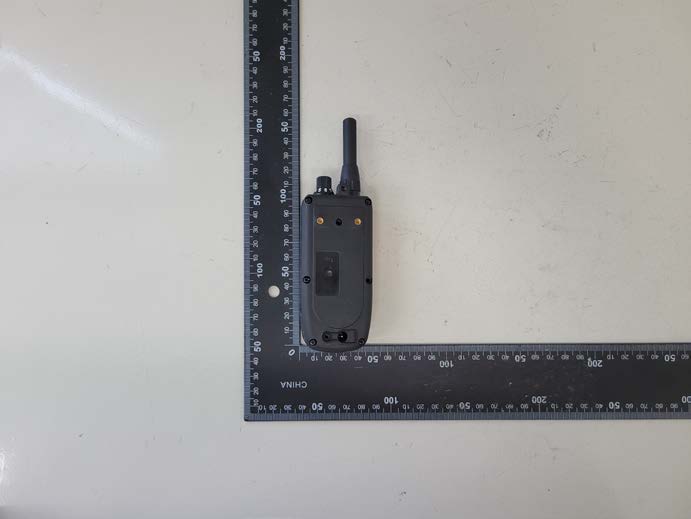

※ Due to the small size of the product, FCC/ISED warnings are written in the User Manual. <Bottom view of EUT>

Model Name: RR Deluxe Internal photos of EUT Model Name: RR Deluxe Internal view of EUT Model Name: RR Deluxe Top view of Main PCB Model Name: RR Deluxe Bottom view of Main PCB

FCC ID: SWN-LC10UT According to KDB 447498 D01 General RF Exposure Guidance v06. For frequencies below 100 ㎒, the following may be considered for SAR test exclusion (also illustrated in Appendix C). 1) For test separation distance > 50 ㎜ and < 200 ㎜, the power threshold at the corresponding test separation distance at 100 ㎒ in step b) is multiplied by [1 + log(100/f ( ㎒ ) )] 2) For test separation distance ≤ 50 ㎜, the power threshold determined by the equation in C) 1) for 50㎜ and 100 ㎒ is multiplied by 1 2 � [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold: 3.0 Step a): at 100 ㎒ and 50 ㎜, power threshold = (3.0 * 50) / sqrt(0.1) = 474.342 ㎽ Step b1): 474.342 + (50 – 50) x (27.145/150) = 474.342 ㎽ Step c1): 474.342 x [1 + log(100/27.145)] = 742.967 ㎽ Step c2): 742.967/2 = 371.483 ㎽ 2. Conclusion: No SAR is required. Note: Measured maximum output power: 17.40 ㏈m / Tune-up tolerance : 17 dBm ± 2 ㏈ Frequency Maximum Average Target Power Maximum Tune up Maximum Average Output Power Limit (㏈m) (㏈) (㏈m) (㎽) 27.145 ㎒ 17 2 19 79.433 371.483 ㎽

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004351 Page: 2 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. RF Output Power -------------------------------------------------------------------------- 6 3. Occupied Bandwidth ---------------------------------------------------------------------- 8 4. Emission Mask ------------------------------------------------------------------------------ 10 5. Transmitter Unwanted Emissions ------------------------------------------------------ 12 6. Frequency Accuracy ----------------------------------------------------------------------- 17 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004351 Page: 3 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil. Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Dogtra Co., Ltd. Address : 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon, South Korea, 21694 Contact Person : Chae, Yong-byeong Phone No. : +82 32 812 2449 1.3. Details of Manufacturer Company : Same as Applicant Address : Same as Applicant 1.4. Description of EUT Kind of Product DOG TRAINING DEVICE Model Name RR Deluxe Serial Number Conducted: 001 Radiated: 002 Power Supply DC 7.2 V Frequency Range 27.145 ㎒ Modulation Type FSK Number of Channel 1 Antenna Type Helical Antenna Antenna Gain ※ -28 ㏈i H/W Version RR Deluxe TX_Rev2.1 S/W Version RDT_ver03 FVIN N/A SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004351 Page: 4 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMA100B 106887 Dec. 13, 2022 Annual Dec. 13, 2023 Spectrum Analyzer R&S FSV30 103453 Nov. 01, 2022 Annual Nov. 01, 2023 DC Power Supply R&S HMP2020 020089489 May 11, 2023 Annual May 11, 2024 Attenuator AEROFLEX / INMET 40AH2W-10 40G-1 Jun. 14, 2023 Annual Jun. 14, 2024 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2023 Annual Aug. 04, 2024 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 21, 2023 Biennial Aug. 21, 2025 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Feb. 09, 2023 Annual Feb. 09, 2024 Test Receiver R&S ESU26 100109 Jan. 18, 2023 Annual Jan. 18, 2024 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable RFONE PL360P-292M292M-1.5 M-A 20200324002 Apr. 14, 2023 Semi- Annual Oct. 14, 2023 Note; For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibration due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004351 Page: 5 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 95 Subpart C, RSS-210 Issue 10 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 95.767 (b) RSS-210 Issue 10 Annex A.2.1(c) RF Output Power Complied 95.773 RSS-210 Issue 10 Annex A.2.1(e) Occupied Bandwidth Complied 95.779 (a)(1)(2) RSS-210 Issue 10 Annex A.2.1(g) Emission Mask Complied 95.779 (a)(3) RSS-210 Issue 10 Annex A.2.1(g) Unwanted Emissions Complied 95.765 (b) RSS-210 Issue 10 Annex A.2.1(f) Frequency Accuracy Complied 1.7. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty RF Output Power 0.33 ㏈ Occupied Bandwidth 0.04 ㎑ Frequency Accuracy 0.11 ㎑ Radiated Emission, 9㎑ to 30㎒ H 3.40 ㏈ V 3.40 ㏈ Radiated Emission, below 1 ㎓ H 4.50 ㏈ V 5.10 ㏈ All measurement uncertainty values are shown with a coverage factor of k=2 to indicate a 95 % level of confidence. 1.8. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL004351 2023.08.31 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004351 Page: 6 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2. RF Output Power 2.1. Test Setup EUT Spectrum Analyzer Attenuator 2.2. Limit 2.2.1. FCC According to §95.767 (b), 26-28 ㎒ frequency band. For an RCRS transmitter operating on 26.995, 27.045, 27.095, 27.145, or 27.195 ㎒, the mean transmitter output power must not exceed 4 Watts. 2.2.2. IC According to RSS-210 Issue 10 Annex A.2.1(c), For double sideband (DSB), digital or frequency modulation (FM), the transmit…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test [9 ㎑ ~ 30 ㎒] [30 ㎒ ~ 1 ㎓] 3. Photo of Conducted Test
