SWN-TD11UTDOG TRAINING DEVICE

1 CUE REMOTE DOG TRAINING COLLAR SYSTEM OWNER’S MANUAL Please read this manual thoroughly before operating the CUE training e-collar. DESIGN PATENT PENDING 2 3 Such use or storage may damage your product and/or cause fire, explosion, injury, or property damage. Medical Device Interference Dogtra products contain electrical and magnetic components that emit low level electromagnetic waves and radio frequencies. These electromagnetic waves or radio frequencies may interfere with pacemakers, defibrillators, or other medical devices. Consult your physician or medical device maker before using your medical device around a Dogtra product. If you think that your Dogtra product is interfering with your pacemaker, defibrillator, or other medical device, stop using the Dogtra product. Inadvertent Activation The digital microprocessor offers thousands of unique codes to eliminate frequency match-up with other Dogtra e-collars. The Constant button will automatically shut down after being held down for 12 seconds or more as a safety feature. UNAUTHORIZED USE Your Dogtra product should be used only in a humane manner to train and educate your dog. Dogtra products are not intended for use in any other manner nor are they intended for use with other animals or with humans. BATTERY Your Dogtra product contains batteries. Take care when removing and installing batteries as your fingers may get caught. Dispose of batteries as provided by your local regulations. Do not disassemble, crush, heat, or otherwise alter the battery as it may cause fire, injury or property damage. WARNING Please read all safety and product information below before using your Dogtra product. Failure to follow these safety instructions could result in injury to you, your dog and others, or it could result in damage to your Dogtra product or other property. PRODUCT SAFETY Training Methods Dogtra products may be used with a variety of training methods. However, each dog may have a different reaction to training methods and to Dogtra products. Closely observe your dog when determining the right training method to use with your Dogtra product. Aggressive Dogs Do not use Dogtra products with aggressive dogs as such dogs may react adversely and cause injury to people or other dogs. Seek the assistance of a dog-training specialist or veterinarian when dealing with aggressive dogs. Children Dogtra products are not toys. Adult supervision and close attention are necessary when Dogtra products are used by or near children. PRODUCT DAMAGE Electrical Product Your Dogtra product contains electrical components and batteries. Do not use or keep your product near heat or flammable sources. IMPORTANT SAFETY AND PRODUCT INFORMATION 4 HOW TO USE CUE: RECEIVER CONVERTIBLE RECEIVER FITTING •••••••••••••••••••••••••••••••••••••• HOW TO CHANGE THE RECEIVER ORIENTATION •••••••••• RECEIVER FITTING ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• MAXIMIZING THE DISTANCE •••••••••••••••••••••••••••••••••••••••••••••••• LED INDICATOR ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• CARE FOR LCD TRANSMITTERS IN COLD TEMPERATURE 6 7 8 CONTENTS PACKAGE CONTENTS ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• MAIN FEATURES •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• OVERVIEW •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• HOW TO USE CUE TURNING THE CUE ON/OFF •••••••••••••••••••••••••••••••••••••••••••••••••• STIMULATION BUTTONS: BASE & BOOST •••••••••••••••••••••••••• 1. 2. HOW TO USE CUE: BATTERY CHARGING •••••••••••••••••••••••••••••••••• GENERAL TRAINING TIPS ·••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• FCC WARNING STATEMENT ••••••••••••••••••••••••••••••••••••••••••••••••••••••••• MAINTENANCE •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• TROUBLESHOOTING GUIDE •••••••••••••••••••••••••••••••••••••••••••••••••••••••• WARRANTY AND REPAIR INFORMATION •••••••••••••••••••••••••••••••• HOW TO USE CUE: TRANSMITTER BASE STIMULATION MODE SELECTION ••••••••••••••••••••••••••••• BASE STIMULATION LEVEL SELECTION •••••••••••••••••••••••••••• WHAT IS BOOSTED CONTINUOUS? •••••••••••••••••••••••••••••••••••• BOOST STIMULATION LEVEL SELECTION •••••••••••••••••••••••• SAFETY LEVEL LOCK/UNLOCK •••••••••••••••••••••••••••••••••••••••••••• CARABINER •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• MULTI DOG DEVICE SELECTION ••••••••••••••••••••••••••••••••••••••••• HOW TO ADD ADDITIONAL RECEIVER DEVICES ••••••••••••• 1. 2. 3. 4. 5. 6. 7. 8. 1. 2. 3. 4. 5. 6. 10 11 12 13 14 15 16 17 18 19 20 20 22 23 25 26 27 29 31 34 35 37 6 7 PACKAGE CONTENTS Transmitter Receiver USB C-type Charging Cable Owner’s Manual MAIN FEATURES NICK/ CONSTANT/ PAGER IPX9K WATERPROOF RECEIVER 400-YARD RANGE CUSTOM BOOST RECEIVER FIT FOR ANY NECK SIZE 24 LEVEL WITH LOCK CARABINER HOOK PLASTIC CONTACTS FOR SENSITIVE DOGS MULTI DOG UNIT THAT REMEMBERS EACH LEVEL EXPANDABLE 3-DOG SYSTEM USB C-TYPE CHARGING CABLE LCD/SINGLE BUTTON/BOOST DESIGN PATENT PENDING 8 9 OVERVIEW Base Stimulation Button Stimulation Level Buttons Carabiner LCD Screen Boost Button for Boosted Continuous Stimulation Battery Charging Port ( USB-C Type) TRANSMITTER TRANSMITTER LCD SCREEN Stimulation mode Battery Lock/Unlock Dog Displayed stimulation level LCD screen will dim after 8 seconds of no action to reserve the battery. 1st Dog/2nd Dog/3rd Dog Dog Select Button Mode Select Button On/Off Button Collar Strap LED Indicator Light RECEIVER Stimulation Level Buttons Battery Charging Port On/Off Button Contact Points DESIGN PATENT PENDING 10 11 The transmitter's power button is located on the back of the product. Press and hold the power button for 3 seconds to power on or off. The power button on the receiver is located between contact points. Press and hold the power button for 3 seconds to power on or off. If the LED light turns green…

Text truncated - open the document above for the full version.

Dogtra Co., Ltd. 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA August 20, 2022 Fe deral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)co mply with the relevant provisions of the certification program; b)m ake all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)mak e claims regarding certification only in respect of the scope for which certification has been granted; d)d o not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)up on suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)us e certification only to indicate the products are certified as being in conformity with specified standards; g)en deavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)en sure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; Dogtra Co., Ltd . 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)t ake appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k )document the actions taken. This authorization is valid until further written notice from the applicant. S incerely yours, Na me / Title : Yo n g-Byeong, Chae / Associate manager Company Name : Dogtra Co., Ltd.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Dogtra Co., Ltd. Address 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA Grantee Code SWN FCC ID SWN-TD11UT Authorized Contact Name Yong-Byeong Chae Contact Email [email protected] Contact Phone +82 32 812 2445 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in acc ordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in acc epting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in acc ordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in acc ordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: August 20, 2022 Print Name: Yong-Byeong Chae Title: Associate manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Dogtra Co., Ltd. 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon 21694 Rep. of KOREA August 20, 2022 Fed eral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID : SWN-TD11UT To Whom It May Concern: Pur suant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Dogtra Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We a re also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Dogtra Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CON FIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune up 5 - Short-Te r m 6 External Photos 7 Internal Photos 8 Te s t-Setup Photos 9 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Name / Title : Yong Byeong Chae / Associate manager Company Name : Dogtra Co., Ltd.

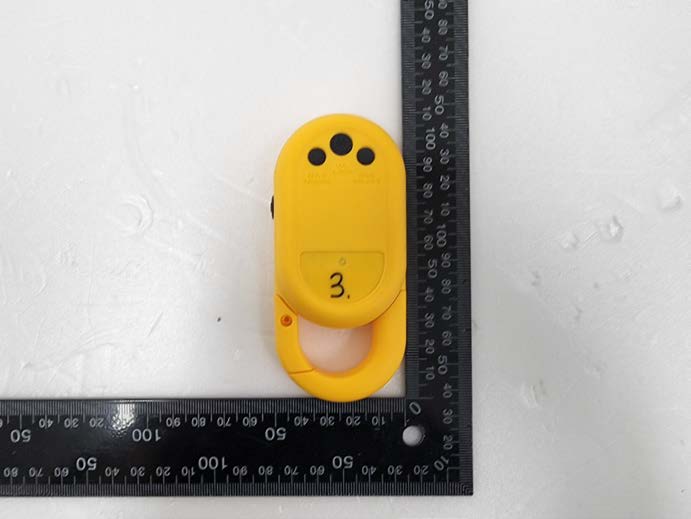

Model name: CUE External photos of EUT Model name: CUE Top view of EUT Bottom view of EUT Model name: CUE Side view of EUT Model name: CUE

<Bottom view of EUT> ※ Due to the small size of the product, FCC warnings are written in the User Manual.

Model name: CUE Internal photos of EUT Model name: CUE Internal view of EUT Model name: CUE Top view of Main PCB Bottom view of Main PCB Model name: CUE View of Antenna Coil Antenna

FCC ID: SWN-TD11UT According to KDB 447498 D01 General RF Exposure Guidance v06. For frequencies below 100 ㎒, the following may be considered for SAR test exclusion (also illustrated in Appendix C). 1) For test separ For test separation distance > 50 ㎜ and < 200 ㎜, the power threshold at the corresponding test separation distance at 100 ㎒ in setp b) is mutiplied by [1 + log(100/f ( ㎒ ) )] 2) For test separation distance ≤ 50 ㎜, the power threshold determined by the equation in C) 1) for 50㎜ and 100 ㎒ is multiplied by 1 2 � [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 7.5 1. SAR test exclusion threshold: 7.5 Step a): at 100 ㎒ and 50 ㎜, power threshold = (7.5 * 50) / sqrt(0.1) = 1185.854 ㎽ Step b1): 1185 + (50 – 50) x (27.195/150) = 1185.854 ㎽ Step c1): 1185 x [1 + log(100/27.195)] = 1856.467 ㎽ Step c2): 1856.467/2 = 928.234 ㎽ 2. Conclusion: No SAR is required. Note: Measured maximum output power : 24.46 ㏈m / Tune-up tolerance : 24 dBm ± 2 ㏈ Frequency Max. Conducted output power Max. tune-up contained tolerance Limit 27.195 ㎒ 279.254 ㎽ (24.46 ㏈m) 398.107 ㎽ (26.00 ㏈m) 928.234 ㎽

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003365 Page: 2 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. RF Output Power -------------------------------------------------------------------------- 6 3. Occupied Bandwidth ---------------------------------------------------------------------- 8 4. Emission Mask ------------------------------------------------------------------------------ 10 5. Unwanted Emissions ---------------------------------------------------------------------- 12 6. Frequency Accuracy ----------------------------------------------------------------------- 17 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003365 Page: 3 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil. Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Dogtra Co., Ltd. Address : 35, Namdongdong-ro 33beon-gil, Namdong-gu, Incheon, South Korea, 21694 Contact Person : Yong-Byeong, Chae Phone No. : +82 32 812 2449 1.3. Details of Manufacturer Company : Same as Applicant Address : Same as Applicant 1.4. Description of EUT Kind of Product DOG TRAINING DEVICE Model Name CUE Serial Number Conducted: 001 Radiated: 002 Power Supply DC 5.0 V Frequency Range 27.195 ㎒ Modulation Type FSK Number of Channel 1 Antenna Type Coil Antenna Antenna Gain ※ 0.50 ㏈i H/W Version Rev1.0 S/W Version CUE_TxRev00 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003365 Page: 4 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMBV100A 255834 May 25, 2022 Annual May 25, 2023 Spectrum Analyzer R&S FSV30 103453 Sep. 29, 2021 Annual Sep. 29, 2022 DC Power Supply Agilent U8002A MY49030063 Jan. 25, 2022 Annual Jan. 25, 2023 Attenuator MCLI FAS-23-20 23835 Dec. 07, 2021 Annual Dec. 07, 2022 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2022 Annual Aug. 04, 2023 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 23, 2021 Biennial Aug. 23, 2023 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Feb. 07, 2022 Biennial Feb. 07, 2023 Test Receiver R&S ESU26 100109 Jan. 18, 2022 Annual Jan. 18, 2023 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNMS (4 m) J1023142 Apr. 04, 2022 Semi- Annual Oct. 04, 2022 Coaxial Cable micro-coax UTiflex 142A SERIES 502839-8 (10 m) 90000034 Apr. 04, 2022 Semi- Annual Oct. 04, 2022 Coaxial Cable RFONE PL360P-292M292M-1.5 M-A 20200324002 Feb. 18, 2022 Semi- annual Aug. 18, 2022 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003365 Page: 5 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 95 Subpart C, RSS-210 Issue 10 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 95.767 (b) RSS-210 Issue 10 Annex A.2.1(c) RF Output Power Complied 95.773 RSS-210 Issue 10 Annex A.2.1(e) Occuiped Bandwidth Complied 95.779 (a)(1)(2) RSS-210 Issue 10 Annex A.2.1(g) Emission Mask Complied 95.779 (a)(3) RSS-210 Issue 10 Annex A.2.1(g) Unwanted Emissions Complied 95.765 (b) RSS-210 Issue 10 Annex A.2.1(f) Frequency Accuracy Complied 1.7. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty RF Output Power 0.32 ㏈ Occupied Bandwidth 3.90 ㎑ Frequency Accuracy 5.97 ㎑ Radiated Emission, 9㎑ to 30㎒ H 3.30 ㏈ V 3.30 ㏈ Radiated Emission, below 1 ㎓ H 4.80 ㏈ V 5.20 ㏈ All measurement uncertainty values are shown with a coverage factor of k=2 to indicate a 95 % level of confidence. 1.8. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL003365 2022.08.19 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003365 Page: 6 of 18 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2. RF Output Power 2.1. Test Setup EUT Spectrum Analyzer Attenuator 2.2. Limit 2.2.1. FCC According to §95.767 (b), 26-28 ㎒ frequency band. For an RCRS transmitter operating on 26.995, 27.045, 27.095, 27.145, or 27.195 ㎒ , the mean transmitter output power must not exceed 4 Watts. 2.2.2. IC According to RSS-210 Issue 10 Annex A.2.1(c), For double sideband (DSB), digital or frequency modulation (FM), the transmitter unmodulated carrier power shall not exceed 4 W. 2.3. Test Procedures 1. The equipment under test is connected to the spectrum analyzer. 2. The spectrum anlyzer is set to the as follow; RBW : 10 ㎑ VBW : 3 x RBW Detector function : Peak Trace : Max hold 3.…

Text truncated - open the document above for the full version.

Model name: CUE Test setup photos of EUT Model name: CUE 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Model name: CUE Z-axis Model name: CUE 2. Photo of Radiated Spurious Emission Test (Below 1㎓) [9 ㎑ ~ 30 ㎒] [30 ㎒ ~ 1 ㎓] Model name: CUE 3. Photo of Conducted Test
