SWOND2325EXTERNAL STORAGE EQUIPMENT

2. Thing to Remember Before Using Nexto-M1 The Features z Nexto-M1 can back up data from CF, MD, SD, SDHC, MemoryStick or MMC into HDD. The back up speed is fastest in the world so far. (With help of OTG feature you can back up data from any kind of memory cards) z With maximum speed of 20MB/sec and average speed of 14MB/sec, it only takes about 1 minute for Nexto-M1 to back up 1G bytes of data. z Nexto-M1 has verification feature that you can double check the integrity of your data. z You can install large sized HDD into Nexto-M1. Most of legacy devices can only manage HDD size less than 120G, but you can install maximum of 2000G bytes HDD into Nexto-M1. Things to be careful z For Nexto-M1 to work properly, 2.5” PATA type HDD must be installed. Without HDD, Nexto- M1 will not work properly. (※ Nexto-M1 doesn’t match with SATA type HDD z HDD is fragile to magnetic field and impact. So be careful not to drop Nexto-M1 or place it near magnetic devices such as TV, radio or speaker. The company will not be responsible for loss of data stored in HDD under any conditions. z Nexto-M1 has many slots for variety of cables and memory card. Do not let dust or foreign objects get into those slots. z Nexto-M1 has internal slots for CF, MD, SD, SDHC, MemoryStick and MMC memory cards. However you can back up other kinds of memory cards with USB card readers using OTG feature of Nexto-M1. 3. Contents and Part Name Contents Nexto-M1, USB Cable, Power DC Adapter, Pouch, Screw Driver and Screws, User Manual Optional Items External Battery Leather Case Part Name 4. HDD Installation Nexto-M1 requires 2.5” laptop HDD to work properly. However, Nexto-M1 does not support SATA type HDD. To install HDD into Nexto-M1; Remove lower aluminum case of Nexto-M1 Connect HDD to 50-pin connector. Align the pins on PCB with connector on HDD and insert gently. Make sure all the pins are firmly inserted and place insulator between PCB and HDD. Replace the lower case and screw it to the main frame. 5. Button and LCD Screen Turn On and Off Nexto-M1 is single button operating device. You can control all the features with the button. To turn on Nexto-M1, press the button for more than 2 seconds. Nexto-M1 will turn itself off 30 seconds after the last button press. To turn off Nexto-M1 when error occurs, press the reset button at the bottom of Nexto-M1 with sharp object such as screw driver in Nexto-M1’s package. Button Operation There are 3 ways to control the button. Screen Display Operation Method S Press the button once like mouse click. (‘Short’) L Press down the button for more than a second. (‘Long’) D Click the button twice like mouse double click. (‘Double Click’) LCD Screen Display On LCD screen of Nexto-M1 shows status commands and how to execute the commands as well as the status of the device. Internal battery status and remain HDD capacity is displayed at the top of the screen. Current status of commands to confirm is displayed at the middle of the screen., The ways to execute command are displayed at the bottom of the screen. More details on operating Nexto-M1 will be explained in later chapters. 6. Data Backup The basic function of Nexto-M1 is to backup data from memory card to HDD. Executing the function is easy and is done through the single button. Nexto-M1 has built-in slot for CF, MD, SD, SDHC, MemoryStick and MMC card. Or you can use USB card readers to back up data from other kinds of memory cards. Refer to chapter 11 for more information on USB card reader connection. [Caution] For MS Duo, MS Duo MagicGate, MS Pro Duo, or MS Pro Duo MagicGate use the MemoryStick transform adapter. Do not insert these cards into Nexto-M1 directly. Also use SD card transform adapter for mini SD, TransFlash, MMC mobile or RSMMC. To backup data; Turn on Nexto-M1. (You can insert memory card before turn on Nexto-M1) If screen displays other messages than the screen shown here, refer to “Error Messages” at the end of this chapter. Insert memory card. For CF or Md use the slot at the top and for SD, SDHC, MemoryStick or MMC use the slot at the side. If you insert 2 cards at the same time, Nexto-M1 will only back up from the card inserted first. [Caution] If any device or cable is connected to USB connector at the bottom the backup process will not work properly so remove any device of cable from the USB connector before inserting the cards. “CF Detected” or “Mem Detected” will be displayed on the screen depend on the card you inserted. There are 2 ways you can backup. z Copy: With copy method, Nexto-M1 only copies data from memory card to HDD. So all the data in memory card remains. z Move: With move method, Nexto-M1 copies data from memory card to HDD and verifies the integrity then deletes all data in memory card. If however verification fails, Nexto-M1 will not delete the data in memory card. As seen at the bottom of the screen; z Press the button once for copy. z Press down the button for more than 1 second for move The number on the screen indicates the number of files to be copied and number of files copied to HDD. As the backup proceeds, the number of files copied is displayed on the screen. During the process you can press down the button to cancel the job as indicated at the bottom of the screen. The total time for the backup is displayed when backup is completed. Remove the memory card to end the process. Even if you do not remove the card, Nexto-M1 will turn itself off after 15 seconds. Other Features When backup is completed, if you do not remove the card for next 15 seconds, Nexto-M1 will turn itself off. In this case when you turn on Nexto-M1 next time, it will show you the result of last process. This message tells you the last backup process was successful. Press the button once to go back to the initial state. This message tells you the last backup process was failure. Backup the same card again or check for other possible reason for failure such as shortage of power. Error Messages Nexto-M1 may display other mes…

Text truncated - open the document above for the full version.

HW Block Diagram OTG IC (M5637) Flash (39VF010) FPGA (EPM3032) CU3384 CF Slot HDD connector OTG PC DCIn ExtBatt ATA I/F LCD CPU I/F GPIOs Control Signal ExtConnectors IntBatt 5V 3.3V EL-drive EL GL827 3in1 Slot Power OV EL_D Chargr * Water like current flow Xtal_12M Xtal_12M Power Block DC-DC Regulator 1117 Battery Sensor Battery Charger Over voltage Detection To OTG 3.3V5V 1M switching

EMI Test Report Report No.: KST-FCC-070029 Page : 14 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) EUT Front Rear

EMI Test Report Report No.: KST-FCC-070029 Page : 19 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Appendix – Sample Label

NEXTO DI Inc. Product: NEXTO CF M1 Model: ND 2325 FCC ID: SWOND2325 MIC ID: NXD-070002325 Made in KOREA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

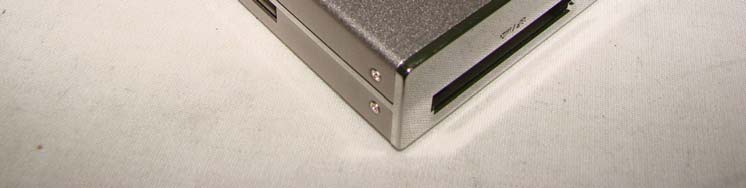

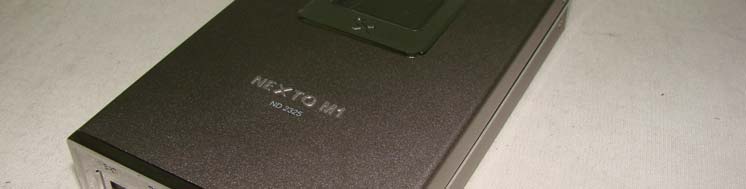

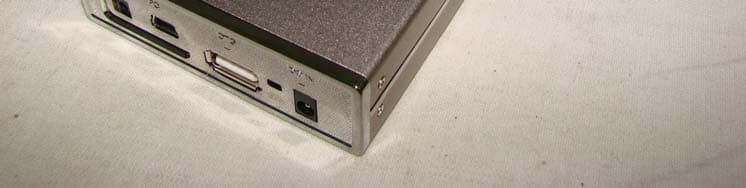

1/4 Page Internal Photo (Front) Internal Photo (Rear) 2/4 Page Main control board (Front) Main control board (Rear) 3/4 Page Main control board front enlarge photo 4/4 Page Main control board rear enlarge photo

PartList.txt Bill Of Materials for Nexto_Multi1_03.sch on Fri May 25 16:09:42 2007 -------------------------------------------------------------------------------------------- No. CODE Qty Ref PART NUMBER VALUE SMD NI ₩ -------------------------------------------------------------------------------------------- 1 DCTR-00200 1 QP301 2SA2018 YES 30 2 DCTR-00096 1 QP302 2SA1037AK YES 30 3 DCTR-00095 3 QN301 QN304-305 2SC2412K YES 30 4 DCFT-00201 1 QN309 2SK3018 YES 30 5 PSRS-00048 1 B102 Bead_Gen 0 YES 6 PSRS-00091 1 BP301 2012 0 Ohm 2012 0 Ohm YES 7 PSBD-00202 3 BP201 BP203 BP210 HH-1M2012-601(Hi_ 600Ohm@100M(2 YES P) 012) 8 PSBD-00201 2 B101 B501 Bead_Gen 60Ohm@100M YES 9 PSBZ-00094 1 BZ301 BPT-03S Yes 300 10 ICPW-00205 1 U316 BQ24013DRCR YES 11 PSCP-00043 1 C303 C1608-J(50V) 101 YES 4 12 PSCP-00045 3 AC101-102 AC210 C1608-Z(50V) 102 YES 4 13 PSCP-00042 37 BC101-115 BC130 BC201-202 C1608-Z(50V) 104 YES 4 BC220 BC230-231 BC240-241 BC302-303 BC420-421 BC423 BC501-502 BC504-507 BC510-511 BC520 14 PSCP-00042 2 BC301 BC330 C1608-K(50V) 104 YES 4 15 PSCP-00042 1 BC304 C1608-Z(10V) 104 YES 4 16 PSCP-00040 2 KC301-302 C1608-Z(10V) 105 YES 4 17 PSCP-00040 6 KC101-103 KC105-106 KC310 C1608-Z 105(10V) YES 5.6 18 PSCP-00202 4 C102-103 C501-502 C1608-J(50V) 12pF YES 4 19 PSCP-00113 8 XC101-102 XC301-302 XC401 C1608-Z(6.3V) 225 YES 4 XC501-503 20 PSCP-00206 1 C505 C2012-Z(250V) 3.3nF YES 4 21 PSCP-00203 1 C301 C1608-K(50V) 39pF YES 4 22 PSCP-00201 1 C101 C1608-J(50V) 56pF YES 4 23 PSCP-00047 1 TC302 ELECT_CAP 220uF/10V(6.3 NO 25 220uF/10V(SRJ, X7) 6.3X7) 24 PSCP-00205 1 TC350 CAP_TB 2.2uF/16V 2.2uF/16V(B) YES 55 25 PSCP-00041 3 TC101 TC307 TC501 CAP_TB 22uF/10V 22uF/10V(B) YES 55 26 PSCP-00207 2 TC301 TC303 CAP_TB 22uF/16V 22uF/16V(B) YES 55 27 CNCN-00098 1 J201 60103020 Yes 600 28 DCLD-00065 2 DG301-302 SMD_LED(GREEN) GREEN YES 33 29 DCLD-00064 4 DR301-303 DR501 SMD_LED(RED) RED YES 38 30 PSLC-00201 1 L502 220uH(50mA) YES 160 31 DCDI-00205 1 D370 DAN202U YES 32 CNCN-00067 1 J203 DS-218, DC002 NO 50 33 CNCN-00070 1 J204 TDC-031H, DC-011 Yes 170 34 ICFP-00202 1 U410 EPM3032ATC44-10 EPM3032ATC44- YES 10 35 ICUB-00203 1 U501 GL827-MNG GL827-MNG YES 36 DMTP-00202 1 J401 NO YES 37 ICPW-00208 1 U503 HV839K6 HV839K6 YES 38 ICPW-00206 1 U320 HV857K7 YES YES 39 CNCN-00099 1 J202 PTRZ-50R1-F-030 NO 700 40 CNCN-00200 1 U105 LCD_CONN YES 41 LDCG-00087 1 U311 JH2015 JH2015 NO 42 ICPW-00202 1 U301 LM2621MMX Yes 43 DCCM-00126 1 U315 LMS33460 YES 44 ICPW-00033 1 U306 LMS8117AMP-3.3 YES 792 45 ICUB-00200 1 U101 M5637 Yes 46 DCDI-00203 3 D301-303 RSX201L-30 YES 47 DCDI-00201 2 D304 DX301 RB081L-20 YES 48 CNCN-00108 1 J206 MiniUSB-B/F/SMT YES 500 49 CNCN-00206 1 J205 22-03-5025(5267-0 NO 2A)) 50 CNCN-00208 1 J501 MSD019-A0-12A YES 0 51 ICMI-00200 1 U110 NW-ALPU-B YES YES 52 PSRS-00226 1 RZ200 R1608-J 1.5 YES 0.8 53 PSRS-00071 1 RZ350 R1608-J 1.5K YES 0.8 54 PSRS-00051 18 RK102 RK201 RK204-206 R1608-J 100K YES 0.8 RK210 RK225 RK230 RK240-241 RK301-304 RK306 RK331 RK340 RK358 55 PSRS-00049 8 RU120 RU201-202 RU230 R1608-J 10K YES 0.8 RU301 RU305 RU309 RU352 56 PSRS-00217 1 RF101 R1608-F 14K 1% YES 0.8 1 페이지 PartList.txt 57 PSRS-00204 1 RZ327 R1608-J 150 YES 58 PSRS-00210 1 RZ302 R1608-J 150K 1% YES 13 59 PSRS-00052 7 RT205 RT306 RT351 R1608-J 1K YES 0.8 RT407-410 60 PSRS-00084 6 RB101 RB201-202 RB301-302 R1608-J 1M YES 0.8 RB530 61 PSRS-00209 2 RZ301 RZ505 R1608-J 200K YES 0.8 62 PSRS-00072 1 RZ503 R1608-J 270K YES 0.8 63 PSRS-00223 1 RZ371 R1608-J 2M YES 0.8 64 PSRS-00055 2 RZ323-324 R1608-J 330 YES 0.8 65 PSRS-00220 1 RF308 R1608-J 330K 1% YES 0.8 66 PSRS-00202 4 RZ120 RZ352-353 RZ357 R1608-J 33K YES 0.8 67 PSRS-00058 3 RZ101 RZ201-202 R1608-J 4.7K YES 0.8 68 PSRS-00086 4 RZ304 RZ325-326 RZ502 R1608-J 470 YES 0.8 69 PSRS-00086 1 RZ310 R1608-J 470 YES 13 70 PSRS-00050 6 RA202-203 RA302 RA330 R1608-J 470K YES 0.8 RA332 RZ359 71 PSRS-00123 1 RF305 R1608-J 47K 1% YES 0.8 72 PSRS-00057 2 RZ203 RZ340 R1608-J 5.6K YES 0.8 73 PSRS-00211 1 RZ303 R1608-J 50K 1% YES 13 74 PSRS-00224 1 RZ370 R1608-J 560K YES 0.8 75 PSRS-00225 1 RF520 R1608-F 715 YES 0.8 76 PSRS-00219 1 RF307 R1608-J 750K 1% YES 0.8 77 DCDI-00083 1 D101 RB520S-30 YES YES 30 78 DCDI-00083 4 D307-308 D310 D330 RB520S-30 YES 30 79 DCDI-00127 4 D305-306 D311-312 RB551V-30 YES 80 DCDI-00206 1 D502 LBAS21HT1 YES 81 DCFT-00202 2 Q302-303 SI2301 YES 25 82 PSLC-00200 1 L301 6.8uH(SHP0735P-F6 6.8uH/1A YES 160 R8A) 83 DMTP-00205 6 TP1 TP3-6 TP24 YES YES 84 ICTL-00019 1 U202 SN74AHC14PWR Yes 105 85 ICTL-00024 2 U103-104 SN74CBT3384APWR Yes 223.2 86 ICMM-00201 1 U102 SST39VF010-70-4C- YES WH 87 SWTS-00085 1 SW301 1107GU ???? YES 100 88 SWTS-00201 1 SW302 YES 89 DCFT-00201 4 Q201 QN310-311 QN340 2SK3018 YES 25 90 DMTP-00205 6 EL+1 EL-1 TP2 TP9-11 YES YES 91 CNCN-00116 1 J207 USB_Host_A NO 92 DCXT-00080 2 X101 X501 XTAL 12MHz 12MHz YES 250 2 페이지

Nexto_Multi1_03.sch-1 - Fri May 25 15:58:35 2007 Nexto_Multi1_03.sch-2 - Fri May 25 15:58:52 2007 Nexto_Multi1_03.sch-3 - Fri May 25 15:58:56 2007 Nexto_Multi1_03.sch-4 - Fri May 25 15:58:58 2007 Nexto_Multi1_03.sch-5 - Fri May 25 15:58:59 2007

Korea Standard Technology Report No.: KST-FCC-070029 KOSTEC Co., Ltd. : 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 | T. +82 31 222 4251 F +82 31 222 4252 FCC EVALUATION REPORT FOR CERTIFICATION KOREA Standard Technology Test report No.: KST-FCC-070029 Applicant’s Name : NEXTO DI Inc. Applicant’s Address : E-702, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong-Gu, Suwon, Gyeonggi-Do, Korea 443-813 Manufacturer’s Name : NEXTO DI Inc. Manufacturer’s Address : E-702, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong-Gu, Suwon, Gyeonggi-Do, Korea 443-813 EUT’s: FCC ID : SWOND2325 Product Name : NEXTO CF M1 Model Number(s) : ND 2325 Product Options : None Category : FCC Part 15 subpart B (Class B Digital Device) Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-2003 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Date : May 10, 2007 Issued Date : May 11, 2007 Te s t e d b y : Approved by: Jeong, seok-jin Lee, Kyung-Jae EMI Test Report Report No.: KST-FCC-070029 Page : 2 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Contents 1. Description of E.U.T 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. EMI Test Report Report No.: KST-FCC-070029 Page : 3 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 1. Description of E.U.T 1) Kind of equipment: NEXTO CF M1 2) FCC ID: SWOND2325 3) Model Name: ND 2325 4) Serial No.: Proto Type 5) Type of Sample Tested: Pre-production 6) High Frequency Used: 12 MHz 7) Adapter: M/N : DSA-0101F-05 KA 1 S/N : None Manufacturer : Dee Van Electronics (Shenzhen) Co., Ltd. 8) Power : Input : 100-240 V, 60 Hz, 0.3 A Output : 5 V, 2.0 A 9) Tested Power supply: 1phase AC120 V, 60 Hz 10) Date of Manufacture: April, 2007 11) Manufacture: NEXTO DI Inc. 12) Description of Operating: “Down & Upload” pattern displayed on the Monitor 13) Dates of Test: May 10, 2007 14) Place of Tests: KOSTEC Co., Ltd. EMC site 15) Test Report No: KST-FCC-070029 EMI Test Report Report No.: KST-FCC-070029 Page : 4 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. KOSTEC CO., LTD. (Korea Standard Technology) Head office & Test Lab ; :180-254, Annyung-dong, Hwasung-shi, Gyeonggii-do, Korea Telephone Number : 82-31-222-4251 Facsimile Number: 82-31-222-4252 MIC(Ministry of Information and Communication) Number: KR0041 FCC Filing Number. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 EMI Test Report Report No.: KST-FCC-070029 Page : 5 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 3. MAP Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd EMI Test Report Report No.: KST-FCC-070029 Page : 6 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 4. TEST SYSTEM CONFIGURATION Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( kPa ) 10 m Open Area site 14 38 101.0 Shielded room: 21 48 101.0 Test site These testing were performed following locations ; Shielded room : Conducted Emission, 10 m Open Area Site: Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, ite imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95 % confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30 dB, LISN Factor 1 dB, CL 1 dB The result (MR) is 30 + 1 + 1 = 32 dBμV EMI Test Report Report No.: KST-FCC-070029 Page : 7 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 5. Description of E.U.T. Product Description Manufactured By: NEXTO DI Inc. Address: E-702, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong-Gu, Suwon, Gyeonggi-Do, Korea 443-813 Model: ND 2325 Serial Number: Proto type Configuration of EUT Description Manufacturer Model/Part # Serial Number Main controller NEXTO DI Inc. Nexto M1 NEM740100010 Internal battery None None None HDD Seagate Momentus 5400.3 3MA02XEV EUT Used cables Cable Type Shield Length (m) FerriteConnector Connection …

Text truncated - open the document above for the full version.

EMI Test Report Report No.: KST-FCC-070029 Page : 8 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Peripherals No Description Manufacturer Model/Part # Serial Number 1 PC Dell Inc. DIMENSION 4700 8VKSD1S 2 LCD Monitor Dell Inc. E173FPb CN-0C5385-46633- 539-383L 3 Keyboard SILITEK YET FOUNDATESK-8115 None 4 Mouse Dell Inc. MO56UO 526102771 5 Adapter Dee Van Electronics (Shenzhen) Co., Ltd. DSA-0101F-05 KA 1 None 6 External battery None None None 7 SD Card Transcend None None 8 CF Card Transcend None None 9 NEXTO CF M1 NEXTO DI Inc. ND 2325 Proto type E.U.T Test Configuration (example) 6. Summary of test results Modification to the E.U.T. - None Result : PASS LCD Monitor PC NEXTO CF M1 (EUT) Adapter Keyboard Mouse CF Card SD Card External battery EMI Test Report Report No.: KST-FCC-070029 Page : 12 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 8. PHOTOGRAPHS Conducted emission ( Front ) Conducted emission ( Rear ) EMI Test Report Report No.: KST-FCC-070029 Page : 13 / 19 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Radiated Emission ( Front ) Radiated Emission ( Rear )
