SWOND2525External Storage Equipment

Nexto-CF ND-2525 CF Card Back Device NextoDI inc. As more and more people starting to use digital camera, it is essential to back up the date in the memory card. However, the price of memory card is still very high while the price of HDD is getting down everyday. Using Nexto-CF you can back up data in a CF card to HDD by just pressing a button. Nexto-CF is run by internal batteries so you can take it outside with only one or two CF cards without worrying about when the memory card would run out of space. Backup the data into Nexto-CF, erase the data in the CF card and keep on taking pictures. It is as simple as that. With Nexto-CF you can access every function with only one button. You can either press the button once or you hold down the button more than 2 seconds to command the needed function. The list of commands and processes are displayed on the LCD windows, so it is very easy to use and check what is going on. The functions of Nexto-CF includes CF card backup, auto formatting so you don’t need to connect to PC to format new HDD and self shut down. You can connect Nexto-CF to PC either using IEEE1394 connection or USB 2.0 connection. With IEEE 1394 connection, Nexto-CF uses bus power so no battery power is consumed and with USB 2.0, Nexto-CF consumes very little battery power. The internal battery can be charged when connected to PC through IEEE 1394. While Nexto-CF is connected to PC in either way, CF card backup function will not work however Nexto-CF functions as CF card reader. External Ports and Button Usages A button and a LCD screen is located on the front panel of Nexto-CF. All the functions of Nexto- CF is controlled by single button. There are 2 ways to press the button. You can either press it once or press it down for more than 2 seconds. On LCD screen the command description is preceded by either “L” of “S” sigh. For “L” sign press down the button for more than 2 seconds and for “S” sign press the button once. To back up data from CF card or MicroDrive card, insert CF card or MicroDrive card into the CF card slot on top of Nexto-CF labeled “CF/MD” Than press the button once and the backup will begin. copy To connect Nexto-CF to PC, you can either use IEEE1394 or USB 2.0 connection. The ports are at the bottom of Nexto-CF. To charge internal battery, use AC adaptor to connect out let on the wall and Nexto-CF. The port to connect AC adaptor is at the bottom of Nexto-CF. You can use optional external battery. Connect the external battery to the port at the bottom of Nexto-CF. Use only the battery provided by Nexto-DI. Specification Name Nexto-CF Model Number ND-2525 Built-In CF Card Type 1, 2 Microdrive Compatible Memory Card With Optional Adaptor SM SD MMC Memory Stick Memory Stick PRO Compatible HDD Any HDD for Notebook (No capacity limit) Internal Battery Li-Polymer Rechargeable Optional External Battery Li-Ion Rechargeable AC Adaptor 12VDC 1A Power IEEE1394 Bus Power (When connected through IEEE1394) Interface with PC IEEE 1394 USB 2.0 OS Windows 98SE/Me/2000/XP Mac OS 10 or above File System FAT FAT32 Size 128x75x22 (DxWxH) mm FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Nexto-CF Ultra Block도ND-2525 2006.09.20Larry SeongNextoDI Main Block CPU (OXFW911+) 24.576M Xtal FPGA (EPM3032) (X-copy control) Power Block Buffer CF Slot HDD connector 1394 USB DCIn ExtBatt ATA I/F LCD GPIOs Control Signal ExtConnectors IntBatt 5V 3.3V 1.8V 41AB1 PL2507 12M Xtal Power Block DC-DC Step Up Regulator 1117 Battery Sensor Battery Charger Over voltage Detection To FPGA 3.3V5V 1M switching 1394 Int_Batt Ext_Batt Regulator 1117 1.8V DC-IN DC-DC Step Down VBUS_USB

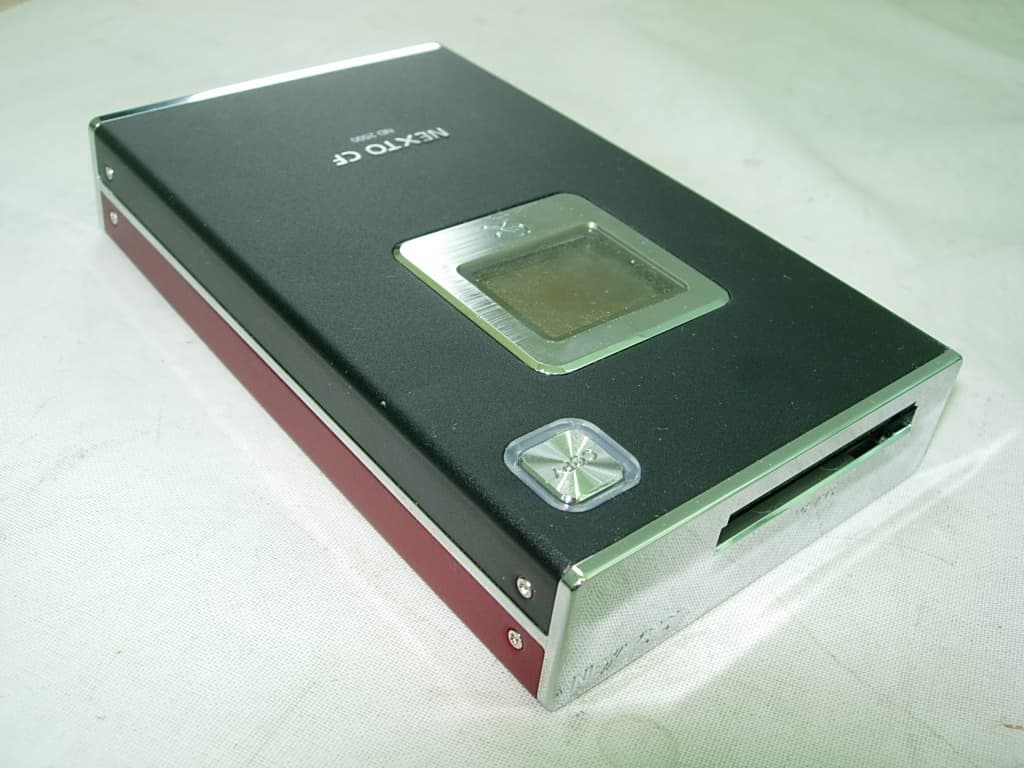

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 14of 18 October 9, 2006 EUT Front Rear

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 18of 18 October 9, 2006 Appendix – Sample Label & Location

NEXTO DI Inc. Product: External Storage Equipment Model: ND-2525 S / N : None FCC ID: SWOND2525 MIC ID: NXD-060002525(B) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION Made in KOREA

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 15of 18 October 9, 2006 Inside AC/DC adapter E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 16of 18 October 9, 2006 Main Controller (component side) Main Controller (solder side) E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 17of 18 October 9, 2006 HDD Battery

E E M M I I T T E E S S T T R R E E P P O O R R T T FCC EVALUATION REPORT FOR CERIFICATION KOREA Standard Technology Test report No.: KST-FCC0630 Applicant’s Name : NEXTO DI Inc. Applicant’s Address : E-702, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong –Gu, Suwon-Si, Gyeonggi-Do, Korea Manufacturer’s Name : NEXTO DI Inc. Manufacturer’s Address : E-702, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong –Gu, Suwon-Si, Gyeonggi-Do, Korea EUT’s: FCC ID : SWOND2525 Product Name : External Storage Equipment Model Number(s) : ND-2525 Product Options : None Category : FCC Part 15 subpart B Class B Computing Digital Device Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-2003 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Date : October 4, 2006 Issued Date : October 9, 2006 Te s t e d b y : Approved by: Choi, Jae-RakLee, Weon-Woo E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 2of 18 October 9, 2006 Contents 1. Description of Device 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. Appendix. Schematics E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 3of 18 October 9, 2006 1. Description of Device 1) Kind of equipment: External Storage Equipment 2) FCC ID: SWOND2525 3) Model Name: ND-2525 4) Serial No.: None 5) Type of Sample Tested: Pre-production 6) High Frequency Used: 24.576 MHz 12.000 MHz 7) Adapter Model name: DSA-0131F-12KA Manufacturer: Dee Van Electronics CO., LTD. Serial no: None 8) Power : 1phase AC100 - 240 V, 50/60 Hz 0.3 A Output: DC 12 V, 1.0 A, 9) Tested Power supply: 1phase AC120 V, 60 Hz 10) Date of Manufacture: September, 2006 11) Manufacture: NEXTO DI Inc. 12) Description of Operating: Down & Upload Mode 13) Dates of Test: October 4, 2006 14) Place of Tests: KOSTEC Co., Ltd. EMC site 15) Test Report No.: KST-FCC0630 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 4of 18 October 9, 2006 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. Korea Standard Technology ( KOSTEC Co., Ltd) Head office & Test Lab ; :180-254, Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Telephone Number : 82-31-222-4251 Facsimile Number: 82-31-222-4252 MIC(Ministry of Information and Communication) Number: KR0041 FCC Filing Number. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 5of 18 October 9, 2006 3. Route Map of Measurement Facility Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 6of 18 October 9, 2006 4. Test System Configuration Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( hPa ) 10 m Open Area site 27 41 1009 Shielded room: 25 48 1009 Test site These testing were performed following locations ; Shielded room : Conducted Emission, 10 m Open Area Site: Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, site imperfection, mismatch, and system repeatability. Based on NIS 80, 81, The measurement uncertainty level with a 95% confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30 dB, LISN Factor 1 dB, CL 1 dB The result (MR) is 30 + 1 + 1 = 32 dBuV E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 7of 18 October 9, 2006 5. Description of E.U.T. Product Description Manufactured By: NEXTO DI Inc. Address: E-702, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong –Gu, Suwon-Si, Gyeonggi-Do, Korea Model: ND-2525 Serial Number: None Configuration of EUT Description Manufacturer Model/Part # Serial Number HDD FUJITSU(THAILAND) Co., Ltd. MHV2060AT NS11TSA266AJ Main Controller NEXTO…

Text truncated - open the document above for the full version.

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 8of 18 October 9, 2006 Peripherals No Description Manufacturer Model/Part # Serial Number 1 Personal Computer Dell Inc. DCSM 8XPBG1S 2 Keyboard SILITEK YET FOUNDATE SK8115 None 3 Mouse Dell Inc. MO56UO 526102771 4 LCD MONITOR Dell Inc. E153FPb CN-0U4938-46633- 53P-0YNL 5 External Storage Equipment NEXTO DI Inc. ND-2525 None 6 AC/DC Adapter Dee Van Electronics Co., Ltd.DSA-0131F-12KANone 7 CF Card KYOCERA CF-8MB None 8 Battery NEXTO DI Inc. Li-Ion None E.U.T Test Configuration (example) 6. Summary of test results Modification to the E.U.T. - None Result : - PASS 2 3 5 1 4 7 6 8 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 12of 18 October 9, 2006 8.PHOTOGRAPHS Conducted emission ( Front ) Conducted emission ( Rear ) E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0630 KOSTEC Co., Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 13of 18 October 9, 2006 Radiated Emission ( Front ) Radiated Emission ( Rear )
