SWUBLP-A04-NR06Smart Card Reader

Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 1/9 Model Name : BLP-A04-NR06 Document No. : EP01-15-003 Draft review Approval Distributor : . Product Specification Original General Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 2/9 Revision History No. Date PAGE Contents 1 15.03.18 all First edition 2 3 4 5 6 7 8 9 10 11 12 12 13 14 15 16 Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 3/9 Overview 1.1 Product overview PS/SC mode is used for this RFID card reader. (SO14443 TYPE-A) This reader adopts ARM7 of STMicroelectronics. 1.2 Product specification ITEM Specifications Remark CPU STM32F072C8U6 Cortes-M3(ARMv7), 32bit RISC Program Memory 64KByte FLASH Data Memory 16KByte SRAM DISPLAY Status LED *2 Communication MINI USB Card Type ISO-14443 A Input voltage Mini USB Power(5V, 200mA over) 1.3 RF PART Specifications ITEM SIC9410 Specification Remark RF 13.56MHz Card communication speed 106,212,424,847 Kbps Subcarrier 847 KHz Using voltage 5V, 3.3V Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 4/9 2 Exterior Specifications 2.1 Exterior of device 2.2 Size of device - 90(W) *90(H) * 26(D) mm MINI USB BLUE LED Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 5/9 3 Electric specifications 3.1 Power supply - Use USB power (5V 200mA) 3.2 Current consumption - Basic current consumption: 5V, 150mA under - Maximum current consumption: 5V, 200mA under (Reding or writing card) 3.3 USB communication specification - USB 2.0 FULL SPEED - Communication speed: Up to 12Mbps Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 6/9 4 Function specification 4.1 Card Reading - TYPE A Tag: Card reading should be available within up to 2.5 cm. There should be no dead zone - Once you tag the card on the reader, you can see that the LED of the reader gets brighter. Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 7/9 5 Environmental characteristic 5.1 Use environment. - Use temperature: 0 ~ 60 °C - Use humidity : 30 ~ 90 % (relative humidity) 5.2 Storage Environment - storage temperature: 0 ~ 60 °C - storage humidity : 30 ~ 90 % (relative humidity) Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 8/9 6 Caution z As equipment designed for indoor use, this unit should refrain from outdoor use in direct sunlight. z Basically this reader works only with USB. Connecting the reader directly to PC is recommended, rather than Using USB hub. z To maximize the card read range, make sure that there is no metallic material near the reader. If the device is opened or the antenna is out of the position, card reading range can be shortened or it’s not available to read the card. Model Name BLP-A04-NR06 Doc. Number EP01-15-003 Code 0 Date 2015.03.18 Drafter Minyoung Jo Approver Taeyang Ha Title Product Specifications DUALi Inc. 9/9 7 Certification This product must be certified to KC, FCC and CE standard as a wireless communication device at a frequency of 13.56MHz FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat. European CE notice to users and product statements This product is CE marked according to the provisions of the R&T…

Text truncated - open the document above for the full version.

DUALi Inc. 1-309 Innoplex, 306 Sinwon-ro, Yeongtong-gu, Suwon, Gyeonggi-do, Korea May 18, 2015 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: SWUBLP-A04-NR06, would like to declare that the composite portion categorized as computer peripheral has been authorizedunderthe Declaration of Conformity procedures. Test Laboratory : Korea Standard Quality Laboratories #102, Jangduk Dong, Hwasung City, Kyunggi Do, South Korea Regards, Signature: Name/Title:Tae Yang, Ha / Director Company Name:DUALi Inc. Model Name :BLP-A04-NR06 Address:1-309 Innoplex, 306 Sinwon-ro, Yeongtong-gu, Suwon, Gyeonggi-do, Korea TEL :+82-31-213-0074 FAX :+82-31-213-0078 Email :[email protected]

DUALi Inc. 1-309 Innoplex, 306 Sinwon-ro, Yeongtong-gu, Suwon, Gyeonggi-do, Korea Tel: +82-31-213-0074, Fax: +82-31-213-0078 www.duali.com LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Korea Standard Quality Laboratories, to act on our behalf in all manners relating to application for equipment authorization for FCC ID: SWUBLP-A04-NR06. including signing of all documents relating to these matters. Any and all acts carried out by Korea Standard Quality Laboratories, on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from DUALi Inc. Korea Standard Quality Laboratories (Contact Person) Contact name: Kwangmin, Lee Position: Manager Phone:+82-31-356-7333 E-mail: [email protected] Date : May 18, 2015 Sincerely, Tae Yang, Ha / Director Company name: DUALi Inc. Phone: 82-31-213-0074 Fax: +82-31-213-0078 E-mail: [email protected]

FCC, Request for non-disclosureDate: May 18, 2015 Page 1 of 1 DUALi Inc. 1-309 Innoplex, 306 Sinwon-ro, Yeongtong-gu, Suwon, Gyeonggi-do, Korea Subject: Request for confidentiality FCC ID: SWUBLP-A04-NR06 Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application asoutlined below: Block Diagrams☑ Operational Description☑ Schematic Diagrams☑ the above materials contain trade secrets and pr oprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation willnotbemadebeforethedateoftheGrantforthisapplication. <Date> May 18, 2015 <City> Suwon City <Nameandsignatureofapplicant> Tae Yang, Ha / Director

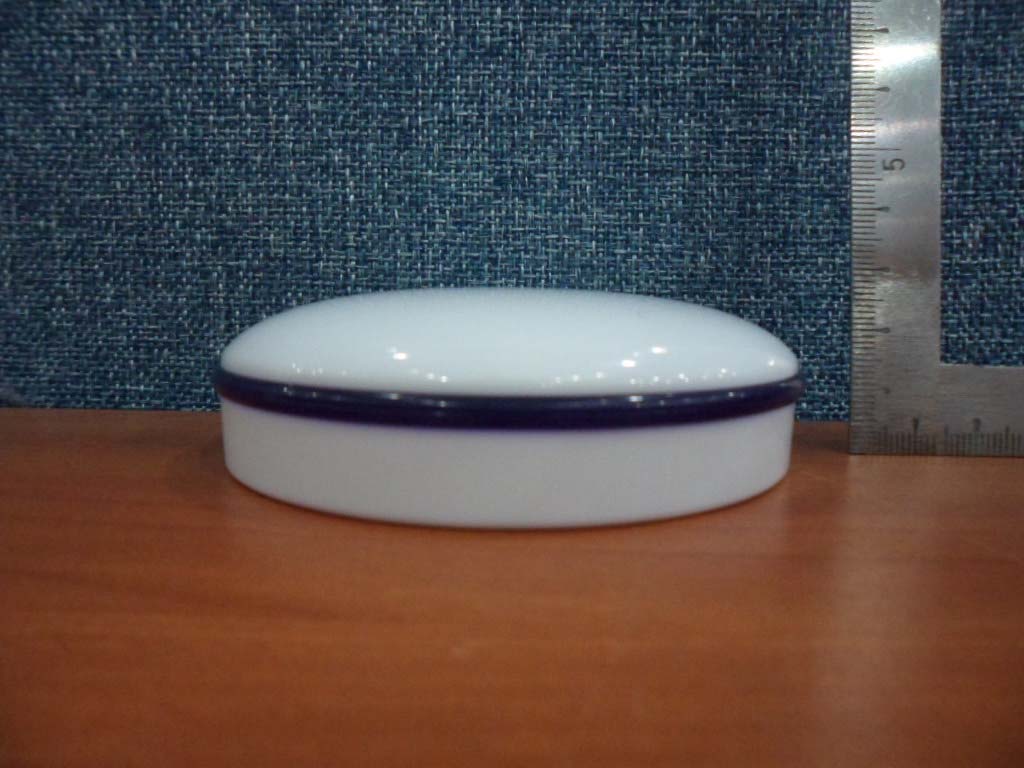

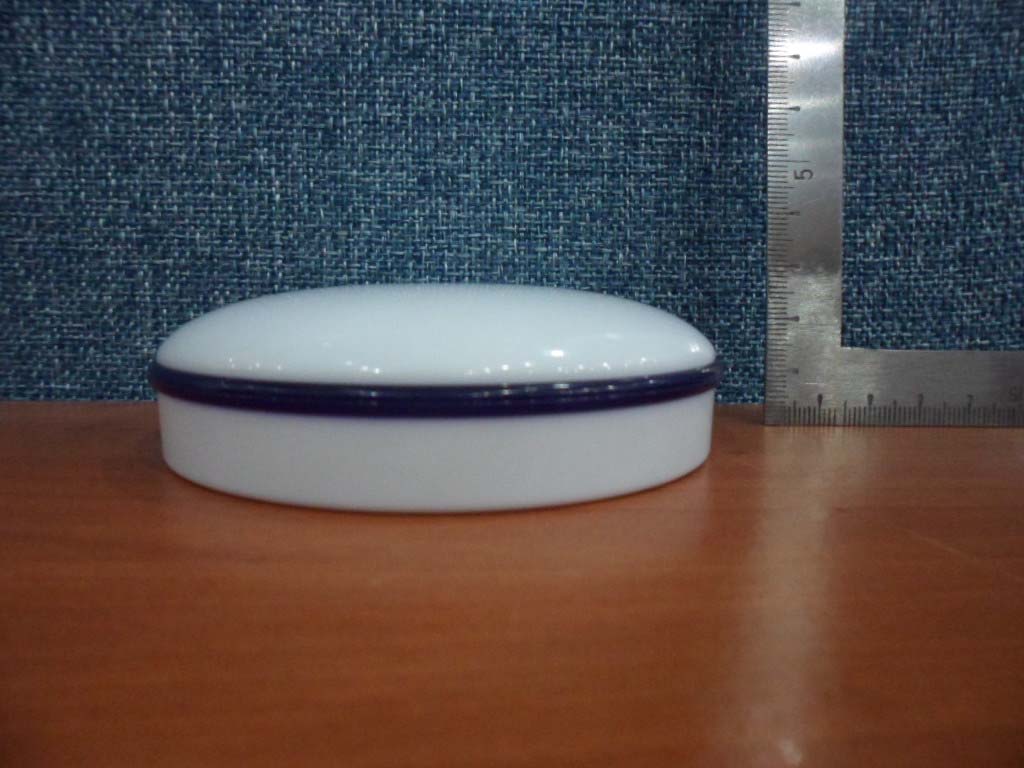

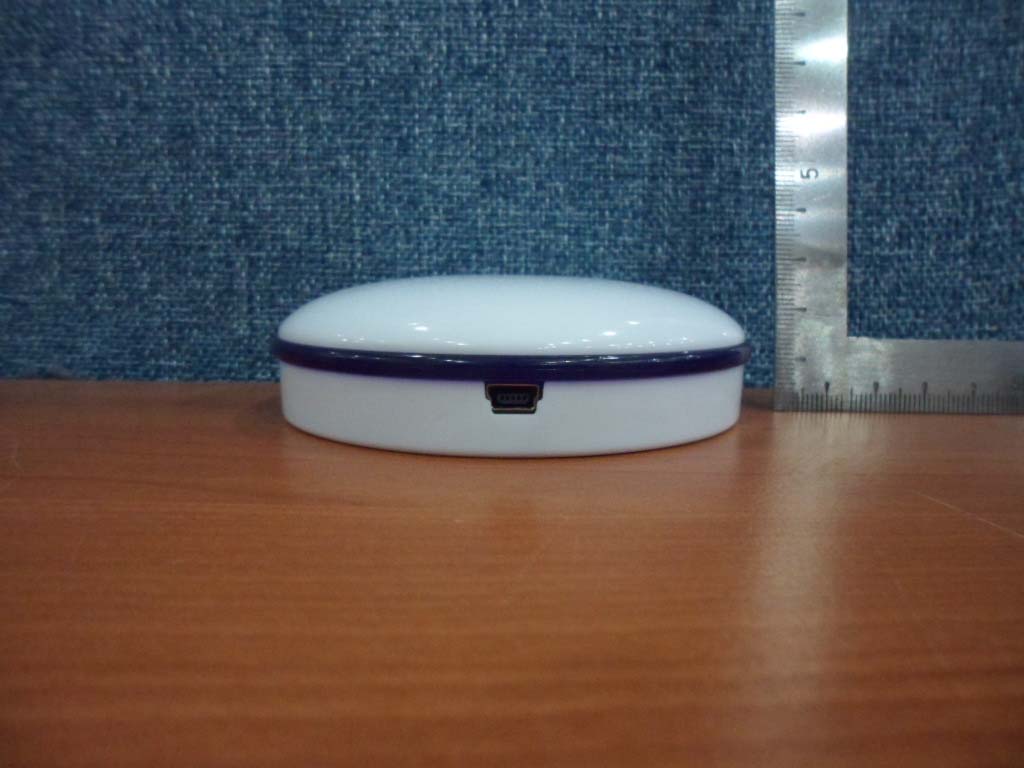

Photo 1: Exterior Photographs Top Bottom Side 1 Side 2 Side 3 Side 4 Cable

모델명 :SIC9410_캄아일랜드 (주)듀얼아이 기술 연구소 작성일자 : 2015년 03월 26일 배포처 : 기술연구소 MODEL 명 : SIC9410 캄아일랜드 문서 번호 : EP07-15-00X 총 매 수 : 5 매 (표지,변경이력 포함) Part list 대외비 원본 EP07-15-00x 1/5 (주)듀얼아이 모델명 :SIC9410_캄아일랜드 순번 내용 변경일 페이지 검토 승인 비고 1 최초 작성 2015.01.19 ALL 2 인증 버전 릴리즈 2015.03.26 ALL 3456789 101112 JMYJMY 변 경 이 력 작 성 EP07-15-00x 2/5 (주)듀얼아이 모델명 :SIC9410_캄아일랜드 NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY 단위 DESIGN NUMBER 비고 1 IC STM32F072C8U6, Cortex-M0 CPU STM32F072C8U6STM32F072CBU6 ST 1 EA U1 C8U6CBU6 2 IC 13.56MHz Multi Standard RFID Reader IC SIC9410 Silicon Carft 1 E AU2 3 TRANSISTOR 65 V, 100 mA NPN general-purpose transistors,SOT416 BC846T,115 NXP Semiconductors 1 EA Q1 PCB와 타입 확인 4 X-TAL 13.56MHz, 10pF, SMD 535-10904-1-ND DI13-0913-01 Tatung 동인전자 1EA Y1 5 LED LED 0602 SIDEVW, BLUE 470NM, SMD QBLP617-IB QT-Brightek 2 EA D2, D3 6 CONNECTOR USB/SM0.8-6H5_MiNi B TYPE MINI USB 1 EA J17 INDUCTOR FIXED IND 330nH 400MA 600 MOHM, 3216 NLV25T-R33J-EF TDK Corporation 2 EA L1,L2 8 CAPACITOR 1005 / 10pF / 5% 0402N100J500 WALSIN 2 EA C17,C189 CAPACITOR 1005 / 100pF / 5% 0402N101J500 WALSIN 1 EA C25 10 CAPACITOR 1005 / 100nF / 5% 0402F104Z250 WALSIN 11 EA C2,C4,C20,C24,C26,C28,C29,C30,C34,C45,C 47 11 CAPACITOR 1005 / 1uF / 5% 0402X105K6R3 WALSIN 1 EA C19 12 CAPACITOR 1608 / 18pF/ 2% 0603N180D500 WALSIN 1 EA C313 CAPACITOR 1608 / 27pF / 5% 0603N270D500 WALSIN 2 EA C5,C16 14 CAPACITOR 1608 / 36pF / 5% 0603N360J500 WALSIN 2 EA C32,C33 변경일자 사유 작성 검토 비고 승인 EP07-15-00x 3/5 (주)듀얼아이 모델명 :SIC9410_캄아일랜드 NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY 단위 DESIGN NUMBER 비고 15 CAPACITOR 1608 / 100pF / 5% 0603101J500 WALSIN 6 EA C6,C7,C9,C11,C13,C15 16 CAPACITOR 1608 / 220pF / 5% 0603N221G500 WALSIN 2 EA C8,C14 17 CAPACITOR 1608 / 330pF / 5% 0603N331J500LT WALSIN 2 EA C10,C12 18 CAP-TANTAL 10uF / 10V / P SIZE TCSCS0J106MPART491R106M010AT 삼성전기 KEMET 3 EA C27,C31,C35 19 RESISTOR 1005 / 10R / 5% WR04X100JTL WALSIN 2 EA R13 20 RESISTOR 1005 / 22R / 5% WR04X220JTL WALSIN 1 EA R2,R3 21 RESISTOR 1005 / 100R / 5% WR04X100RJTL WALSIN 3 EA R4,R16,R17 22 RESISTOR 1005 / 150R / 5% WR04X150RJTL WALSIN 1 EA R12 23 RESISTOR 1005 / 470R / 5% WR04X471JTL WALSIN 1 EA R14 24 RESISTOR 1005 / 560R / 5% WR04X561JTL WALSIN 1 EA R5 25 RESISTOR 1005 / 1.5K / 5% WR04X152JTL WALSIN 1 EA R27 26 RESISTOR 1005 / 100K / 5% WR04X104JTL WALSIN 1 EA R18 27 RESISTOR 1005 / 1M / 5% WR04X105JTL WALSIN 1 EA R28 28 RESISTOR 1608 / 1R / 5% WR06X1R0JTL WALSIN 2 EA R21,R23 변경일자 사유 작성 검토 비고 승인 EP07-15-00x 4/5 (주)듀얼아이 모델명 :SIC9410_캄아일랜드 NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY 단위 DESIGN NUMBER 비고 29 RESISTOR 1608 / 300R / 5% WR06X301JTL WALSIN 1 EA R11 30 RESISTOR 1608 / 1.2K / 5% WR06X122JTL WALSIN 1 EA R10 31 RESISTOR 2012 / 0R / 5% WR08X000PTL WALSIN 5 EA BD1,BD2,BD3,BD4,BD5 32 미삽 XXX 8 EA C22,C46,D1,D4,S1,J9,R19,R26 33 PCB 9410 Board Ver 1.02015.03.18 1.0T 2LAYER GRN 2*1 배열 첨단써키트 1 EA 343536373839404142 변경일자 사유 작성 검토 비고 승인 EP07-15-00x 5/5 (주)듀얼아이

Report Number: KSQ-FCC150508 FCC ID : SWUBLP-A04-NR06 Page: 1 / 19 FCC Test Report Report Number KSQ-FCC150508 Applicant Company Name DUALi Inc. Address 1-309 Innoplex, 306 Sinwon-ro, Yeongtong-gu, Suwon, Gyeonggi- do, Korea Product Product Name Smart Card Reader Model Name BLP-A04-NR06 FCC ID SWUBLP-A04-NR06 Manufacturer DUALi Inc. Serial No. - Country of origin Korea Other Receipt Date 2015.04.01 Receipt Number KSQ-2015-N-0401 Issued Date 2015.05.18 Tested Date 2015.04.16 ~ 2014.04.20 Standard FCC CFR 47 Part 15 Subpart C Tested by Kwang Min, Lee (sign) Approved by Yeoung Ryul, Jo (sign) Korea Standard Quality Laboratories #102, Jangduk-Dong, Hwasung-City, Kyunggi-Do, KOREA. o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Korea Standard Quality Laboratories Report Number: KSQ-FCC150508 FCC ID : SWUBLP-A04-NR06 Page: 2 / 19 Revision History Rev. Issue Date Revisions Revised By - 2015.05.18 Initial Issue Kwang Min, Lee Report Number: KSQ-FCC150508 FCC ID : SWUBLP-A04-NR06 Page: 3 / 19 CONTENTS 1. APPLICANT AND MANUFACTURER INFORMATION .......................................................................... 4 2. TEST RESULT CERTIFICATION ................................................................................................................ 4 2.1 Applicable standards ................................................................................................................................... 4 3. LABORATORY INFORMATION .................................................................................................................. 5 3.1 General ......................................................................................................................................................... 5 3.2 Test Site ........................................................................................................................................................ 5 3.3 Location ........................................................................................................................................................ 5 4. EUT INFORMATION ...................................................................................................................................... 6 4.1 Family Model ............................................................................................................................................... 6 4.2 EUT Modifications ...................................................................................................................................... 6 4.3 Antenna Requirement ................................................................................................................................. 6 5. Measurement conditions ................................................................................................................................... 7 5.1 Description of test modes ............................................................................................................................ 7 5.2 Description of test configuration ................................................................................................................ 7 5.3 Setup of equipmet under test ...................................................................................................................... 7 5.3.1. Description of support units ............................................................................................................... 7 6. Limite And Result .............................................................................................................................................. 8 6.1 Radiated Electric Field Emissions .............................................................................................................. 8 6.1.1 Regulation.............................................................................................................................................. 8 6.1.2 Test Condition ....................................................................................................................................... 8 6.1.3 Test result .............................................................................................................................................. 8 6.2 Radiated Electric Field Emissions .............................................................................................................. 9 6.2.1 Regulation.............................................................................................................................................. 9 6.2.2 Test Procedure ...................................................................................................................................... 9 6.2.3 Test Setup Layout ............................................................................................................................... 10 6.3 Frequency Stability .................................................................................................................................... 12 6.3.1 Regulation............................................................................................................................................ 12 6.3.2 Test Condition ..................................................................................................................................... 12 6.3.3 Test Setup Layout ............................................................................................................................... 12 6.3.4 Test result ............................................................................................................................................ 13 6.4. AC Power Line Conducted Emissions ..............................................................................…

Text truncated - open the document above for the full version.
