SWUDE-930SMART CARD READER

Copyright ⓒ 2011 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this document in part or as a whole for any purposes other than those for which this document is disclosed. This document is copyrighted and contains confidential information and other intellectual property rights of DUALi Inc. Any unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property rights. DUALi Inc. Document Version: 1.0 Last Revised Date: Aug. 2011 DE-930 User’s Manual DUALi Inc. reserves the right to make changes to its applications or services or to discontinue any application or service at any time without notice. DUALi provides customer assistance in various technical areas, but does not have full access to data concerning the use and applications of customer's products. Therefore, DUALi assumes no liability and is not responsible for customer applications or software design or performance relating to systems or applications incorporating DUALi products. In addition, DUALi assumes no liability and is not responsible for infringement of patents and/or any other intellectual or industrial property rights of third parties, which may result from assistance provided by DUALi. Composition of the information in this manual has been done to the best of our knowledge. DUALi does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips. We have our development center in South Korea to provide technical support. For any technical assistance can contact our technical support team as below; Tel: +82 31 213 0074 e-mail : [email protected] FeliCa ™ is registered trademark of SONY Corporation. Mifare ® is registered trademarks of NXP Semiconductors DE-930 User’s Manual Version : 1.0 DUALi Inc. (http://www.duali.com) 3 Revision History  2011.08 (Ver. 1.0) : First Release © Copyright 2000-2011 DUALi Inc. DE-930 User’s Manual Version : 1.0 DUALi Inc. (http://www.duali.com) 4 CONTENTS 1. Introduction....................................................................................................................................5 2. Contents Confirmation...................................................................................................................5 3. Hardware Specifications.................................................................................................................5 4. Installation................................................................................................................................................ 6 5. Connection Diagram................................................................................................................................7 6. Operation & Usage.................................................................................................................................. 8 7. Output Format.......................................................................................................................................... 9 8 . Warranty & Service...............................................................................................................................11 DE-930 User’s Manual Version : 1.0 DUALi Inc. (http://www.duali.com) 5 1. Introduction DE-930 is refined design of proximity reader which supports Contactless ( ISO 14443 A/B type, Mifare®, FeliCa™ ) and SAM. It also supports 32/34 / 64/66-bit Wiegand format for Host communication which is the most widespread system. DE-930 is applicable to various systems as Access control system, Time attendance system, Parking management or e-Payment system. 2. Contents Confirmation - The following items are contained in DE-930 package. Reader unit Wall Mount User Manual screw (1 ea) (1 ea) (1 ea) (1 ea) 3. Hardware Specifications Read Range Up to 4cm Input Voltage/Current DC 12 V, MAX 140mA LED/Beeper 2 LEDs(Red, Blue) / Magnetic Buzzer Color White(body) Silver(frame) Operating Environment -20°C ~ +60°C, 10~90% Humidity Overall Size(WxHxD) 78 x 122 x 25mm Output Format 32 / 34 / 64/ 66 bit Wiegand, RS-232/485(option) 3*4 Flat head machine screw DE-930 User’s Manual Version : 1.0 DUALi Inc. (http://www.duali.com) 6 4. Installation 1. Place the wall mount bracket on the wall and fix it tightly with Screw (Φ4mm Flat head) -4nos. 2. Connect the power and communication cable to DE-930’s Terminal Block. (refer to the picture as below) 3. Tilt the device slightly and insert to the wall mount from the top. Fix it tightly with 3*4 Flat head machine screw. <Picture 1.Installation> ※ Caution - Do not push the device/ wall mount bracket when fixing it to the wall. - Screw has to be re-considered depends on wall’s material and condition. - Please place flat panel before wall mount bracket if the wall’s not flat. It could cause a problem to assemble the device if the bracket bent. 3*4 Flat head machine Φ4mm Flat head screw DE-930 User’s Manual Version : 1.0 DUALi Inc. (http://www.duali.com) 7 5. Connection Diagram Terminal block can be differ by choosing option (RS485 OR Wiegand ). See the table as below Pin No. Name Description Terminal Block Option 1 PWR POWER 2 485G POWER 3 485- Comm. 4 485+ Comm. 5 GND POWER RS485 Comm. option 6 TAMP Output 7 BEEP Input 8 LED Input 9 WD1 Comm.(Output) 10 WD0 Comm.(Output) 11 GND POWER 12 PWR POWER Wiegand Comm. option * RS232 - Connector specification: 2mm X 3p housing (Part No.: 53014-0310) (Housing Part No.:51004-0300, Terminal Part No.:50011, Vendor : Molex) Pin No. RS-232 Description 1 TX 2 RX 3 GND 1 DE-930 User’s Manual Version : 1.0 DUALi Inc. (http://www.duali.com) 8 6. Operation & Usage 1. Apply power of the Reader, then check 5 times of Beep sound and RED LED is on. It means this device is ready. 2. Present an authorized con…

Text truncated - open the document above for the full version.

DUALi Inc. 1-309 Innoplex, 552 Woncheon-dong, Youngtong-gu, Suwon, Gyeonggi-do South Korea TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ December 24, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize SK TECH Co., Ltd.(Mr. Jongsoo, Yoon) to act on our behalf in all matters relating to application for equipment authorization. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). APPLICANT/AGENT CERTIFICATION AND AGREEMENT: All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. Sincerely, Ha Tae Yang/ Director

DUALi Inc. 1-309 Innoplex, 552 Woncheon-dong, Youngtong-gu, Suwon, Gyeonggi-do South Korea TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ December 24, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: We, the undersigned, would like to declare that the composite portion categorized as digital device has been authorized under the Declaration of Conformity procedures. FCC ID Number Product Description (Model) SWUDE-930 SMART CARD READER(DE-930) Sincerely, Ha Tae Yang/ Director

DUALi Inc. 1-309 Innoplex, 552 Woncheon-dong, Youngtong-gu, Suwon, Gyeonggi-do South Korea TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ December 24, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: The EUT required ferrite beads for the compliance testing, and these beads will be permanently attached to the products when offered for sale. FCC ID Number Product Description (Model) SWUDE-930 SMART CARD READER(DE-930) Sincerely, Ha Tae Yang/ Director

DUALi Inc. 1-309 Innoplex, 552 Woncheon-dong, Youngtong-gu, Suwon, Gyeonggi-do South Korea TEL: +82-31-213-0074, FAX: +82-31-213-0078 http://www.duali.com/ December 24, 2012 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, DUALi Inc. requests confidentiality for the following products: FCC ID Number Product Description (Model) SWUDE-930 SMART CARD READER(DE-930) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain DUALi Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Ha Tae Yang/ Director

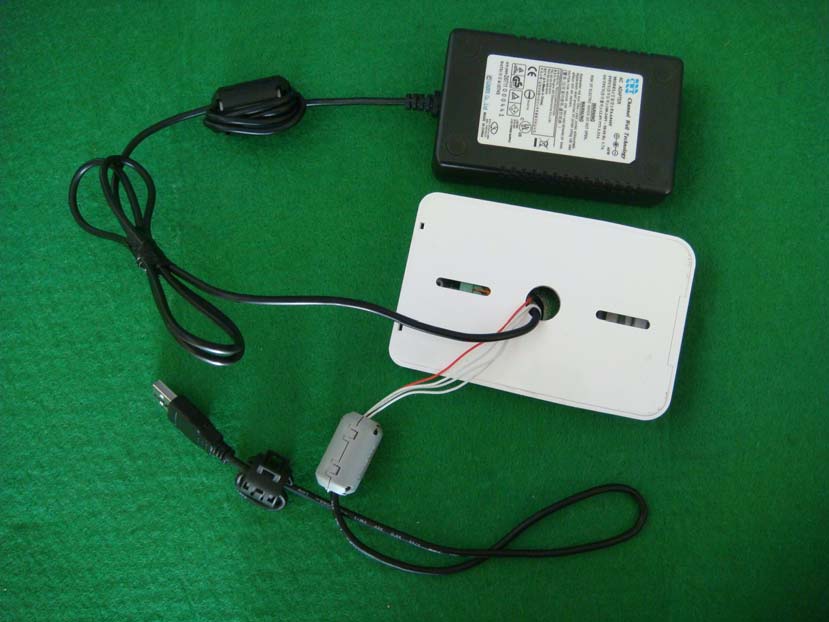

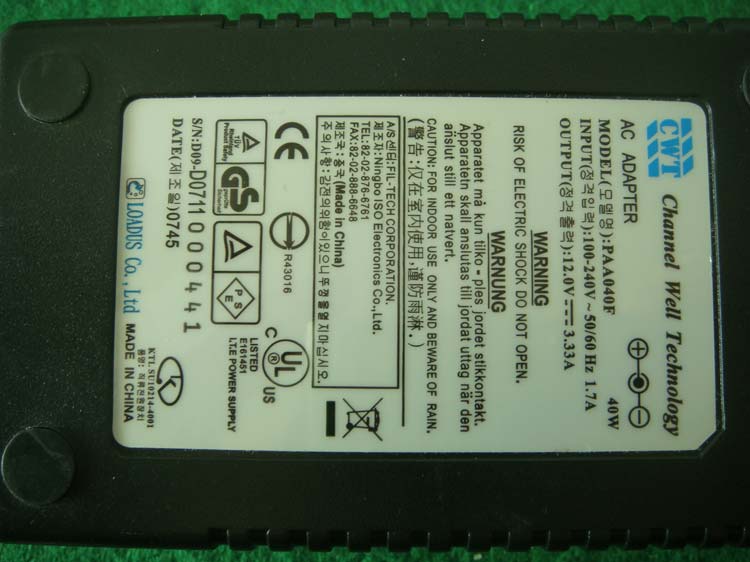

SK TECH CO., LTD. Page 1 of 3 SKTRFC-121226-028 FCC ID: SWUDE-930 External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View> SK TECH CO., LTD. Page 2 of 3 SKTRFC-121226-028 FCC ID: SWUDE-930 <Photograph 3: Left-side View> <Photograph 4: Right-side View> SK TECH CO., LTD. Page 3 of 3 SKTRFC-121226-028 FCC ID: SWUDE-930 <Photograph 5: AC/DC Adapter Label View > <Photograph 6: RFID tag tested with the EUT> Front view (A type) Rear view (A type) Front view (B type) Rear view (B type)

ID Label Location & Sample LABEL LOCATION: Label will be attached to the Rear of the product LABEL Drawing: 14 mm 50 mm

ID Label Location & Sample LABEL LOCATION: Label will be attached to the Rear of the product LABEL Drawing: 14 mm 50 mm

SK TECH CO., LTD. Page 1 of 3 SKTRFC-121226-028 FCC ID: SWUDE-930 Internal Photographs <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKTRFC-121226-028 FCC ID: SWUDE-930 <Photograph 2: Main board - Front view> RFID ANTENNA SK TECH CO., LTD. Page 3 of 3 SKTRFC-121226-028 FCC ID: SWUDE-930 <Photograph 3: Main board - Rear view>

SK TECH CO., LTD. Page 2 of 17 SKTRFC-121226-028 FCC ID: SWUDE-930 >> CONTENTS << 1. GENERAL ···························································································3 2. TEST SITE ···························································································3 2.1 Location ·························································································3 2.2 List of Test and Measurement Instruments ·················································4 2.3 Test Date ·························································································4 2.4 Test Environment ···············································································4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ····································5 3.1 Rating and Physical Characteristics ·························································5 3.2 Submitted Documents ·········································································5 3.3 Equipment Modifications ·····································································5 4. MEASUREMENT CONDITIONS ······························································6 4.1 Description of test configuration ·····························································6 4.2 List of Peripherals ··············································································6 4.3 Type of Used Cables ············································································6 4.4 Uncertainty ······················································································6 5. TEST AND MEASUREMENTS ·································································7 5.1 ANTENNA REQUIREMENT ······························································7 5.1.1 Regulation ··················································································7 5.1.2 Result ·······················································································7 5.2 RADIATED EMISSIONS ···································································8 5.2.1 Regulation ··················································································8 5.2.2 Measurement Procedure ·································································9 5.2.3 Calculation of the filed strength limits below 30 MHz ···························· 10 5.2.4 Test Results ·············································································· 11 Table 1: Field strength below 30 MHz ·········································································· 11 Table 2: Field strength above 30 MHz ·········································································· 11 Figure 1: Plot of the Band edge ················································································· 12 Figure 2: Plot of the 20 dB bandwidth ········································································· 12 5.3 FREQUENCY TOLERANCE OF CARRIER SIGNAL ···························· 13 5.3.1 Regulation ················································································ 13 5.3.2 Measurement Procedure ······························································· 13 5.3.3 Test Results ·············································································· 14 Table 3: Frequency Tolerance····················································································· 14 5.4 AC POWER LINE CONDUCTED EMISSIONS ···································· 15 5.4.1 Regulation ················································································ 15 5.4.2 Measurement Procedure ······························································· 15 5.4.3 Test Results ·············································································· 16 Table 4: Measured Values of the Conducted Emissions······················································· 16 Figure 4: Plot of the Conducted Emissions ···································································· 17 SK TECH CO., LTD. Page 3 of 17 SKTRFC-121226-028 FCC ID: SWUDE-930 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4-2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.225. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK TECH CO., LTD. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE SK TECH CO., LTD. 2.1 Location #820-2, Wolmoon-ri, Wabu-up, Namyangju-si, Kyunggi-do, 472-905 South Korea (FCC Registered Test Site Number: 938639) (OPEN AREA TEST SITE INDUSTRY CANADA NUMBER: IC 5429A-1) This test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is recognized as a Conformity Assessment Body (CAB) for CAB's Designation Number: KR0007 by FCC. SK TECH CO., LTD. Page 4 of 17 SKTRFC-121226-028 FCC ID: SWUDE-930 2.2 List of Test and Measurement Instruments No. Description ManufacturerModel No.Serial No. Calibrated until Used 1 Spectrum Analyzer Agilent E4405B US40520856 2013.03.07 2 Spectrum Analyzer Agilent E4440A MY46186322 2013.03.08 3 EMC Spectrum Analyzer Agilent E7405A US40240203 2013.07.09 4 EMI Test Receiver Rohde&Schwarz ESPI7 101206 2013.07.10 5 EMI Test Receiver Rohde&Schwarz ESIB40 100277 2013.03.08 6 EMI Test Receiver Rohde&Schwarz ESHS10 835871/002 2013.09.18 7 Artificial Mains Network Rohde&Schwarz ESH3-Z5 836679/018 2013.07.09 8 Pre-amplifier HP 8447F 3113A05153 2013.07.10 9 Pre-amplifier MITEQ AFS44 1116321 2012.12.22 10 Pre-amplifier MITEQ AFS44 1116322 2013.07.10 11 Power Meter Agilent E4417A MY45100426 2013.07.10 12 Power Meter Agilent E4418B US39402176 2013.07.10 13 Power Sensor Agilent E9327A MY444…
